5HP Dry Dust Collector, 230V 3PH (MDC-550)

Metalworking dust is abrasive, hard on air quality, and in some shops a genuine housekeeping problem. The Baileigh MDC-550 is a 5 HP dry dust collector engineered for fabrication shops, precision machining operations, and MRO facilities that need dependable, certified extraction — not a shop vacuum stretched past its limits.

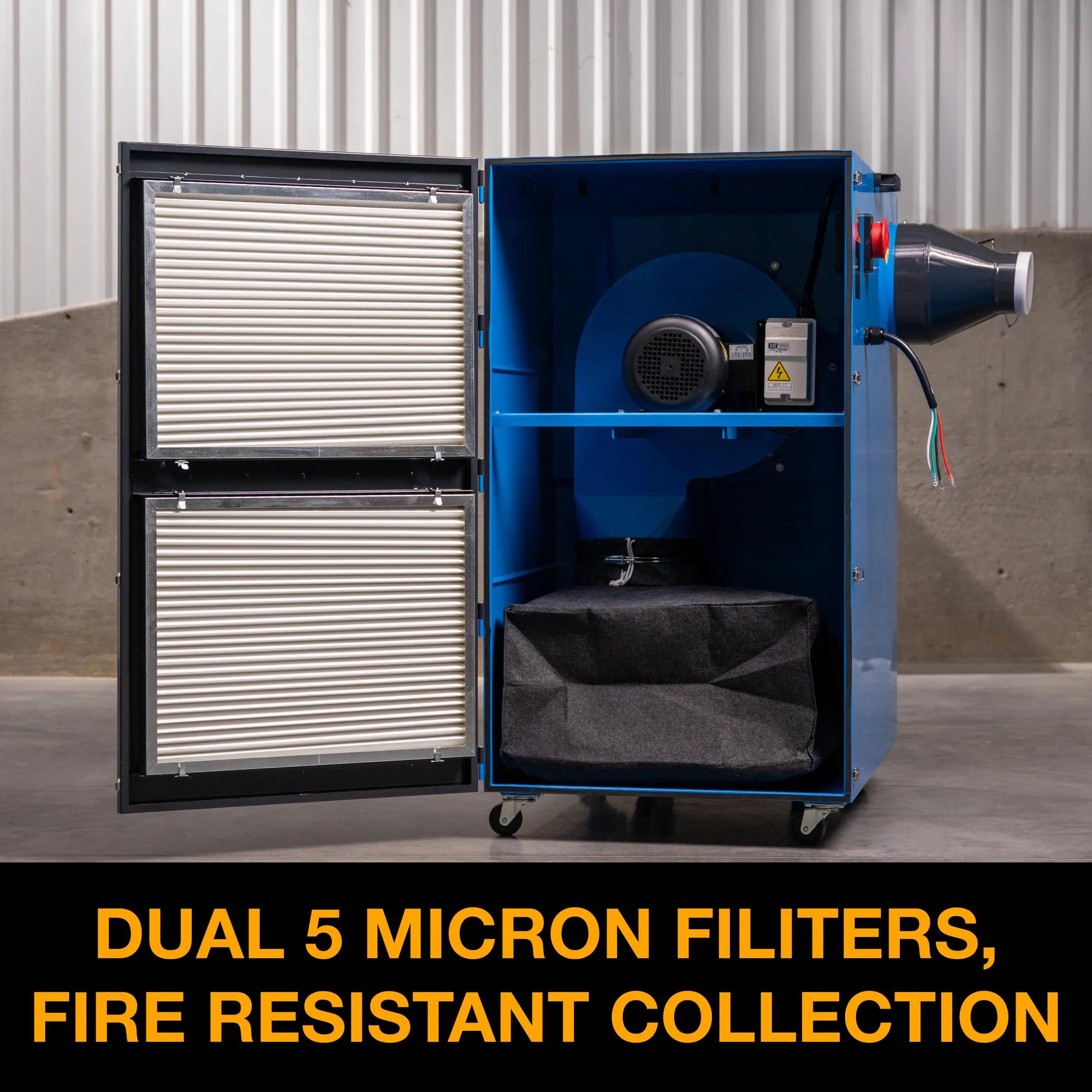

Two 5-micron paper filters capture 84.3% of 1–3 micron particles and 95.4% of 3–10 micron particles, while 3,583 CFM of airflow at the 10" inlet (1,487 CFM at 5") and up to 10,889 FPM of velocity keep dust moving instead of settling on the floor.

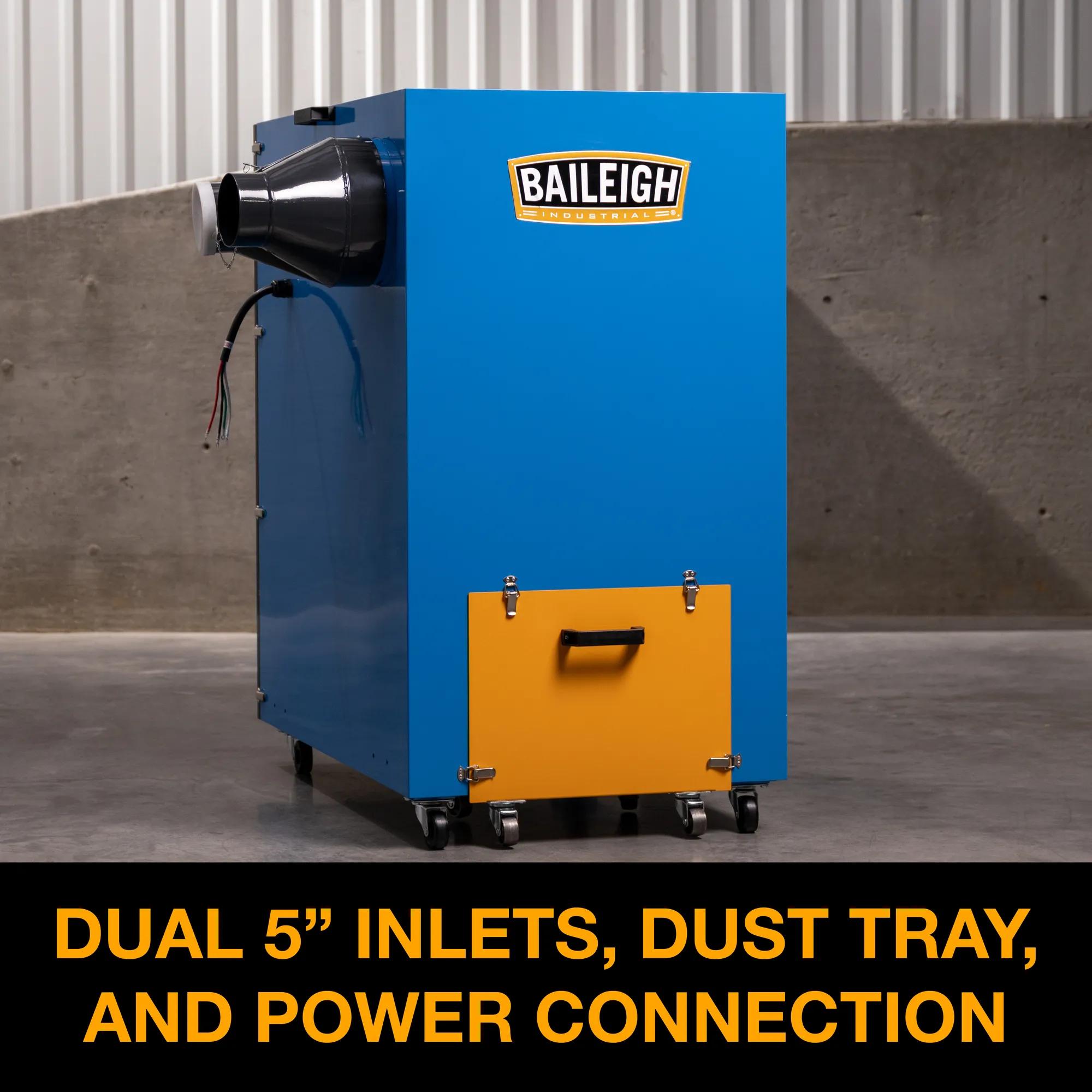

A dual 5" inlet port design lets one MDC-550 support two wide-belt sanders or polishing stations at once, and the 126L fireproof collection bag keeps disposal simple. It runs on 230V/3-phase power (14A FLA, 30A breaker) and is backed by a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Industries & Who It's For

Fabrication Shops

Typical work: Multi-material finishing — aluminum, steel, stainless — across production runs.

What they need: Needs a UL-certified dry (or wet) system matched to the material being polished.

Industries: Construction, Agriculture, Appliance Mfg, HVAC

Precision Machining

Typical work: Grinding and polishing station dust extraction after tight-tolerance work.

What they need: Needs multi-material-ready collection with 3,100+ CFM.

Industries: Aerospace, Medical Devices, Automotive, Electronics, Defense

Specialty MRO

Typical work: Multi-station dust collection across a variety of polishing activities.

What they need: Needs a versatile system that keeps the workplace safe.

Industries: Marine, Oil & Gas, Power Generation, Rail

Common Applications

•       Ferrous metal grinding & deburring: pairs with grinding stations, polishing stations, and deburring equipment.

•       High-volume wide-belt sanding with heavy dust loads: built for ferrous or non-reactive metal polishing at production volume.

•       Multi-station setups: the dual 5" inlet design lets one collector serve two machines, reducing equipment footprint.

Works with: Stainless Steel, Mild Steel, Carbon Steel, Alloy Steel, Cast Iron, Tool Steel

Warranty & Support: 1-year parts warranty plus Baileigh Lifetime Technical Support
