Mandrel Benders

• 1 axis NC control bend angle (Y) • Memory can store 25 programs x 10 bends • Full hydraulic clamping • Available in 35, 60 & 90mm OD capacities

• Hydraulic plain of bend clamp • Automatic mandrel lubrication • Useful bed length can be increased in 1mn increments • Split die system for square and custom sections

The first in our range of hydraulic mandrel benders has the capacity to bend up to 104mm pipe, operated with an NC controller. It allows you to store up to 25 programs, each with 10 sequential bends. All hydraulic movements are independent of each other. The pressure die assist speed is adjustable to follow the clamp die at the right speed. The clamp die base locks into the former die base to ensure there is no change in speed between the clamp and former, with the bend speed being adjustable too. This outwardly simple machine ensures you have the adjustability, strength, reliability, and accuracy needed to make high-quality bends on a regular basis.

• 2 axis Numerically Controlled bend degree (Y) and rotation (Z)
• Memory can store up to 25 programs with 10 bends (Y) and 10 rotations (Z) per program
• Completely hydraulic design allowing for optimal accuracy and performance
• Up to 10 programmable bending speeds and pressure die assist speeds for maximum control
• 3rd axis Sequential adjustable roller stop system  - (X)
• Fully hydraulic clamping with standard Pressure die assist AND Mandrel Extraction
• Available in capacities up to 13” O.D Round tube

Manually Operated Mandrel Bender, 1-1/8" x .065" Mild Steel Maximum Capacity.

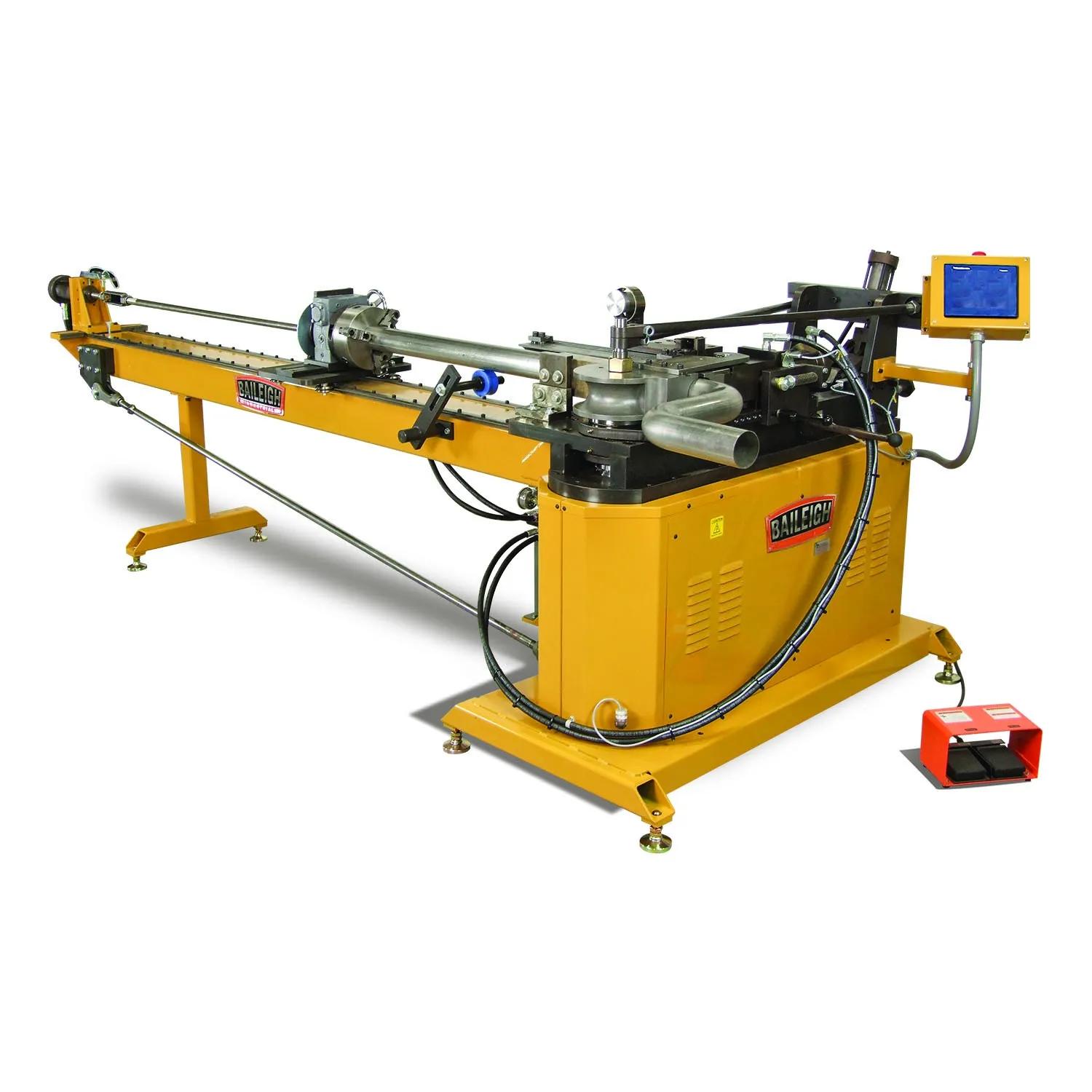

220V Three Phase Mandrel Tube and Pipe Bender. 3" Round Capacity, Touch Screen Operator Interface Includes Capability to Program up to 140 programs with up to 10 bends per program and Numeric Control Operation. Maximum Feeding Length 10'
