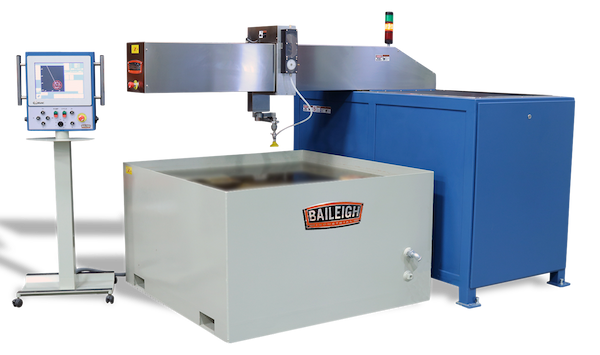

Engineered for precision and built for real-world productivity, the Baileigh Water Jet is designed to meet the demands of today's fast-paced shops.
Whether you're cutting metal, stone, or composites, it delivers clean, consistent results while keeping your workflow efficient.
From high-performance fabrication to custom jobs, it's a powerful addition to any operation looking to streamline production without compromising quality.
SMALLER FOOTPRINT, SMARTER WORKFLOW Compact Footprint, Touchscreen Controls, Remote Access, & Multi-File Support
LESS MAINTENANCE, MORE EFFICIENCY Direct Drive Pump & Patented Abrasive Feed
LOAD FASTER WITH EASIER ACCESS 3-Sided Entry + Cantilever Gantry + Free-Standing Table
Explore Our Water Jet Lineup

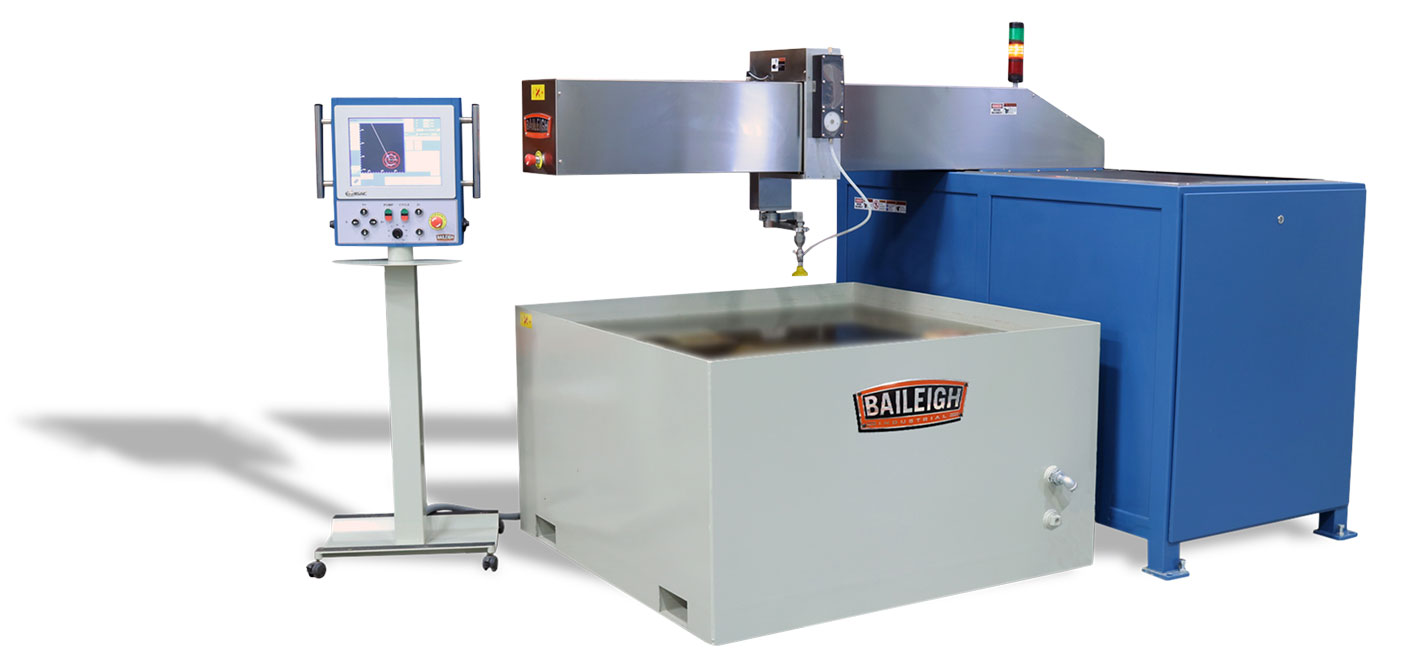

Water Jet
WJ-4X4CNC
- 48" x 48" working area
- Hammelmann direct drive pump
- 58,000 PSI
- Cuts metal, ceramic, plastic, foam, and glass

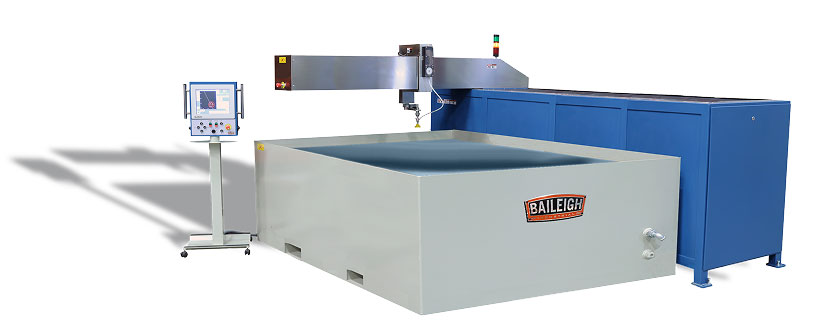

Water Jet
WJ-85CNC
- 60" x 98" working area
- Jekran direct drive pump
- 58,000 PSI
- Cuts metal, ceramic, plastic, foam, and glass
Water Jet
WJ-512CNC
- 60" x 144" working area
- Jekran direct drive pump
- 58,000 PSI
- Cuts metal, ceramic, plastic, foam, and glass
Water Jet Cutting Capabilities
CUTS ALMOST ANYTHING
Handles metal, glass, stone, composites, and more - with no heat affected zone. Unlike plasma or laser, it's safe for heat-sensitive materials.
CLEANER, SMOOTHER CUTS
Delivers narrow kerfs and clean edges, reducing or eliminating the need for secondary grinding or finishing.
CUTS THICKER MATERIALS
Maintains precision on thick metals—well beyond the ¾"-1" limit of most plasma or laser systems.
SUPERIOR PRECISION & ACCURACY
Excels at tight tolerances and intricate shapes, delivering cleaner results than plasma with better repeatability.
HANDS-FREE PRODUCTIVITY
Run jobs unattended while you focus elsewhere unlike punch or manual systems that demand constant input.
Frequently Asked Questions
INFRASTRACTURE REQUIREMENTS
- Footprint: Varies by machine size
- Incoming Air Pressure: 90 psi (1 cfm)
- Incoming Water Pressure: 30 psi (3 gpm)
- Drain Flow: 3 gpm
- Power: 480VAC, 3-phase, 50/60 Hz
SOFTWARE COMPATIBILITY
- Included: BobCAD
- Also compatible with: Fusion 360, MasterCAM, SheetCAM
TRAINING AND INSTALLATION
- Rigging and installation available upon request
- Training options available in both on-site and virtual formats
ESTIMATED HOURLY COST BREAKDOWN
| Item | Cost* | Lifespan | Cost per Hour |
|---|---|---|---|
| Orifices | $14-25 | Lasts 40 hrs | $0.50/hr |
| Nozzles | $85-150 | Lasts 80 hrs | $1.00/hr |
| Wet End Wear Parts | Lasts ~5000 hrs | $1.90/hr | |
| Intermittent Seals | Lasts ~2000 hrs | Included | |
| Power | 48 HP Pump | $0.10/kh hour | $3.60/hr |
| Water | 48 HP Pump | Estimate based on avg | $0.27/hr |
| Abrasive | $0.35 to $0.17 per lb. | $4.75 to $9.25/hr | |
| General Repairs | $4.00/hr | ||
| Total | Parts, Consumables, & Entergy | $17/hr |
*Estimated based on typical costs and livespan
WATER QUALITY REQUIREMENTS
The pump water supply is not to have hardness levels greater than 170 ppm CaCO 3. If the water does not meet this specification, a water softening unit is to be installed.
Please note: the hardness level must not drop lower than 90 ppm CaCO3.
The minimum water conductivity value should not drop further than 300μS/cm.
IMPORTANT: It shall be the responsibility of the customer to provide proper safety and regulatory compliance for the entire installation and operation.
- Proper floor to carry the load.
- Proper, safe, and regulation compliant: workspace, power supply, air supply, water supply with drainage etc.
CONTROLLER SET UP
Learn how to navigate the easy-to-use touchscreen controller, designed to support DXF files and deliver precise cuts on nearly any material.
ASSEMBLY & INSTALLATION
Follow this step-by-step video to unpack, set up, and connect your Baileigh Water Jet — so you can start cutting fast and with confidence.
