Description

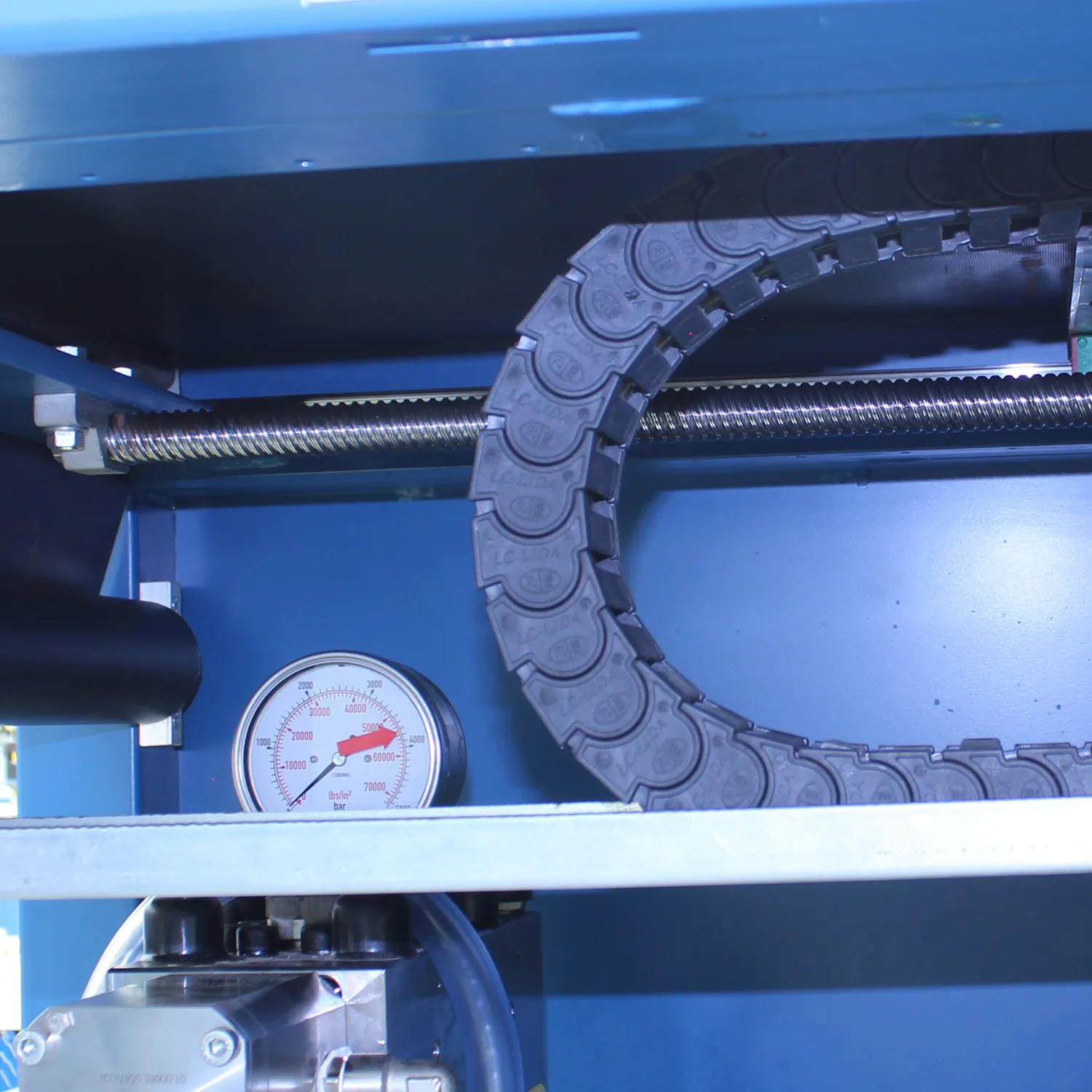

The WJ-85CNC water jet from Baileigh Industrial offers excellent work table accessibility on a machine built for the rigors of waterjet cutting.  The cutting table and framework of the WJ-85CNC is laser cut and interlocked, then welded for strength and rigidity to ensure accuracy during the cutting process.  The design is a cantilever design that allows for much easier material loading and unloading.  This CNC water jet cutting machine also offers smoother action on the axis with exclusion of moving parts.  All axis ride on precision balls screws with square slide ways.  All slide ways are covered and protected from water for long life.

Because of the smooth action of the gantry, this water jet has the ability to cut just about any material with precision.  This includes glass, granite, ceramic, plastic, foam, mild steel, stainless steel, titanium, aluminum, and copper in its 60” x 96” table.  To help keep maintenance to a minimum, Every WJ-85CNC includes our own proprietary abrasive auto feed system that is coupled with a 55,000psi Hammelmann direct drive pump .  This system is unique to the Baileigh Industrial line and offers a low maintenance approach to water jet cutting.

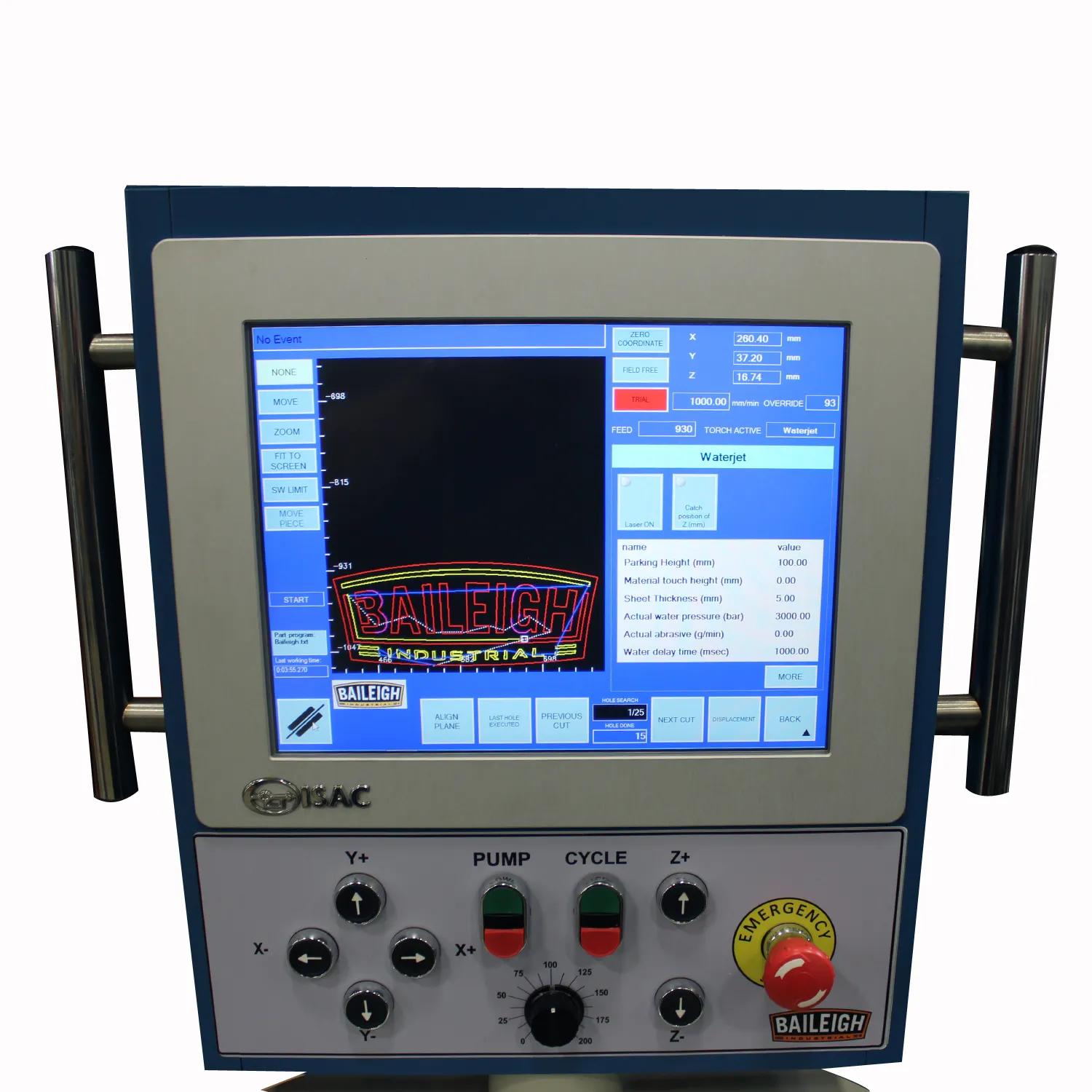

Controlling the WJ-85CNC water jet Baileigh Industrial could not be easier.  The water jet saw includes an easy to use windows based stand alone operator console.  This programmer will support DXF.



For more detailed information on the WJ-85CNC water jet click here.



To find out the operating cost of a Baileigh Industrial water jet click here.



 Suggested Machine Layout


BobCAD-Cam V29 Express Design Software (Included)

bobCad cam

The WJ-85CNC comes standard with BobCAD-Cam Express programming software. You can design or plot out your project on any computer and load the plasma table via a USB drive.  To learn more or download a free trial, click the BobCAD-Cam logo above.

 For more information on the WJ-85CNC water jet from Baileigh Industrial contact a representative today.

*Onsite training does not include initial set up of machine and is a maximum of 2 days.  If more time is needed it will be billed seperately.

Read More Read Less

Specifications

Item Number WJ-85CNC
Country of Manufacture Malta
Motor KW 30kw
Working Table Size 96" x 60"
Working Table Travel (X/Y) 96"/60"
Table Size 102" x 63"

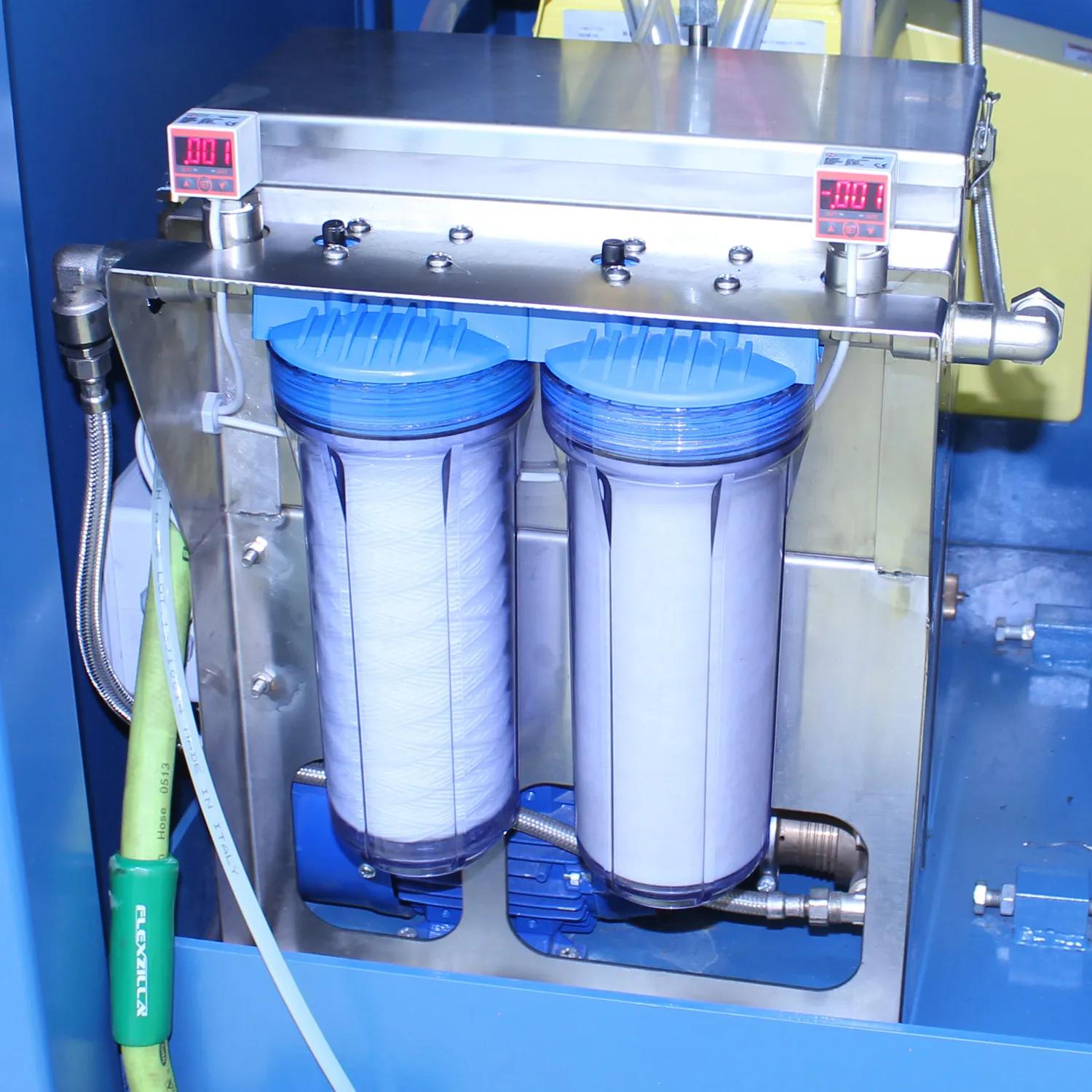

Filter Type 2 Stage/2 Filter, 10 Micron & 1 Micron
Number of Filters 2
Supported File Formats DXF
Repeatability Accuracy ± .001"
Production Pressure 56,000 psi
Max. Pump Pressure Outflow 7.92 gallons per minute
Orifice Size .014"
Travel Speed 40 fpm (26 fpm Cutting) Maximum
CNC System Windows Based
Cutting Accuracy ±.001"
Inlet Pressure 30 psi
Motor 40 hp
X Axis Travel 98"
Y Axis Travel 59"
Z Axis Travel 6.75"
Power 460V / 3-phase 60amp
Shipping Weight 5600lbs
Hopper Capacity 250 lbs
Software BobCad Cam
Shipping Dimensions (Inches) 153x46x80, 112x73x36, 69x44x25

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Q & A

Question:  What makes a Baileigh Industrial Water Jet Unique?

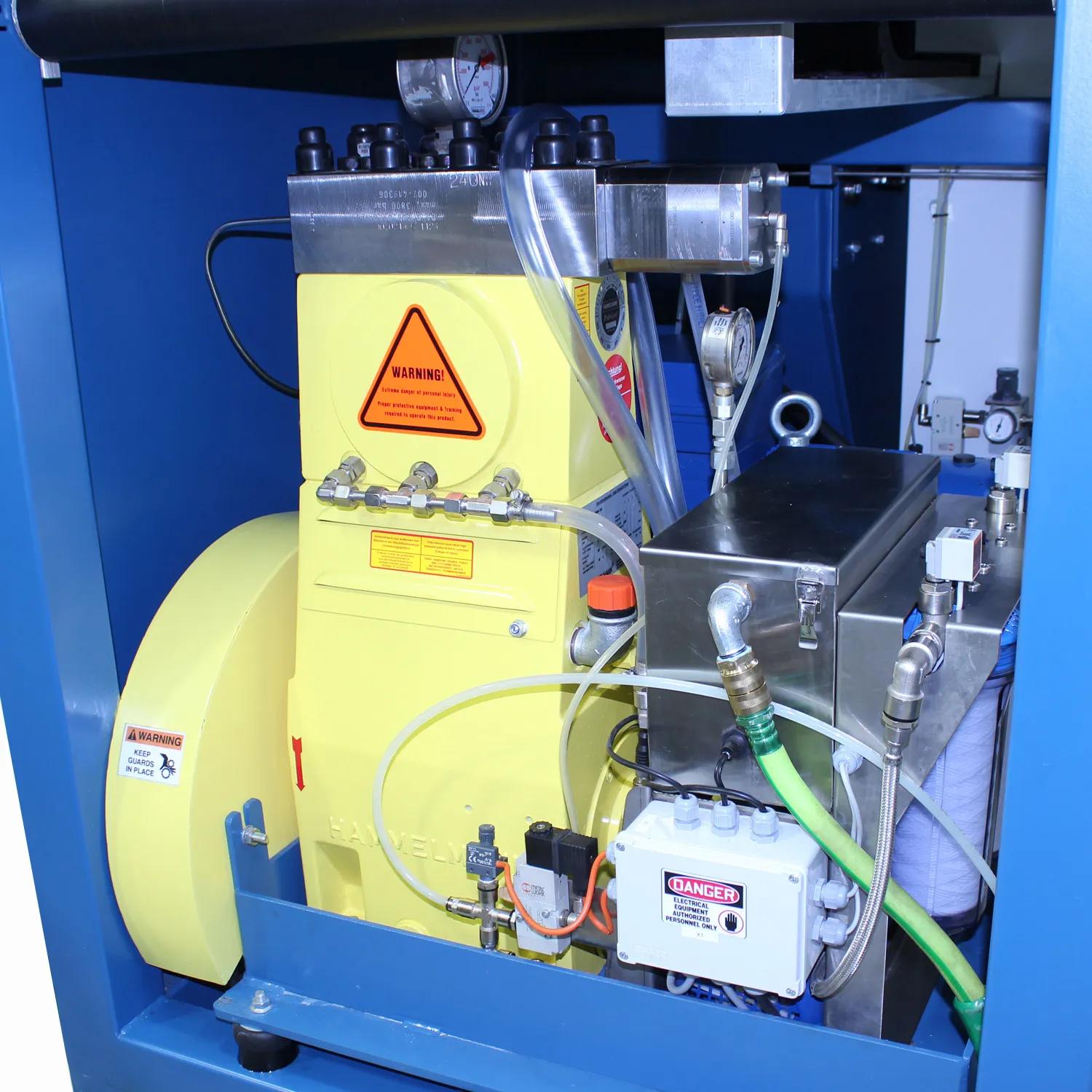

Answer:  Baileigh Industrial looked at traditional water jets and thought, there must be a better way.  The first aspect of traditional water jet that Baileigh looked at was the pump, this lead them to the direct drive design that took up less space and required less maintenance then what was already on the market.  This led us to Hammelmann®.  The Hammelmann® pump was born in the high volume, high demand industrial mining business where downtime can’t happen, and maintenance intervals need to be as long as possible.  Knowing that Baileigh’s customers would expect nothing less, we’ve built the “heart” of our water jets with a Hammelmann® direct drive pump.  This pump system can run a 100% duty cycle at maximum system pressure!  And it’s achieving this while being up to 40% more energy efficient than an intensifier water jet system!

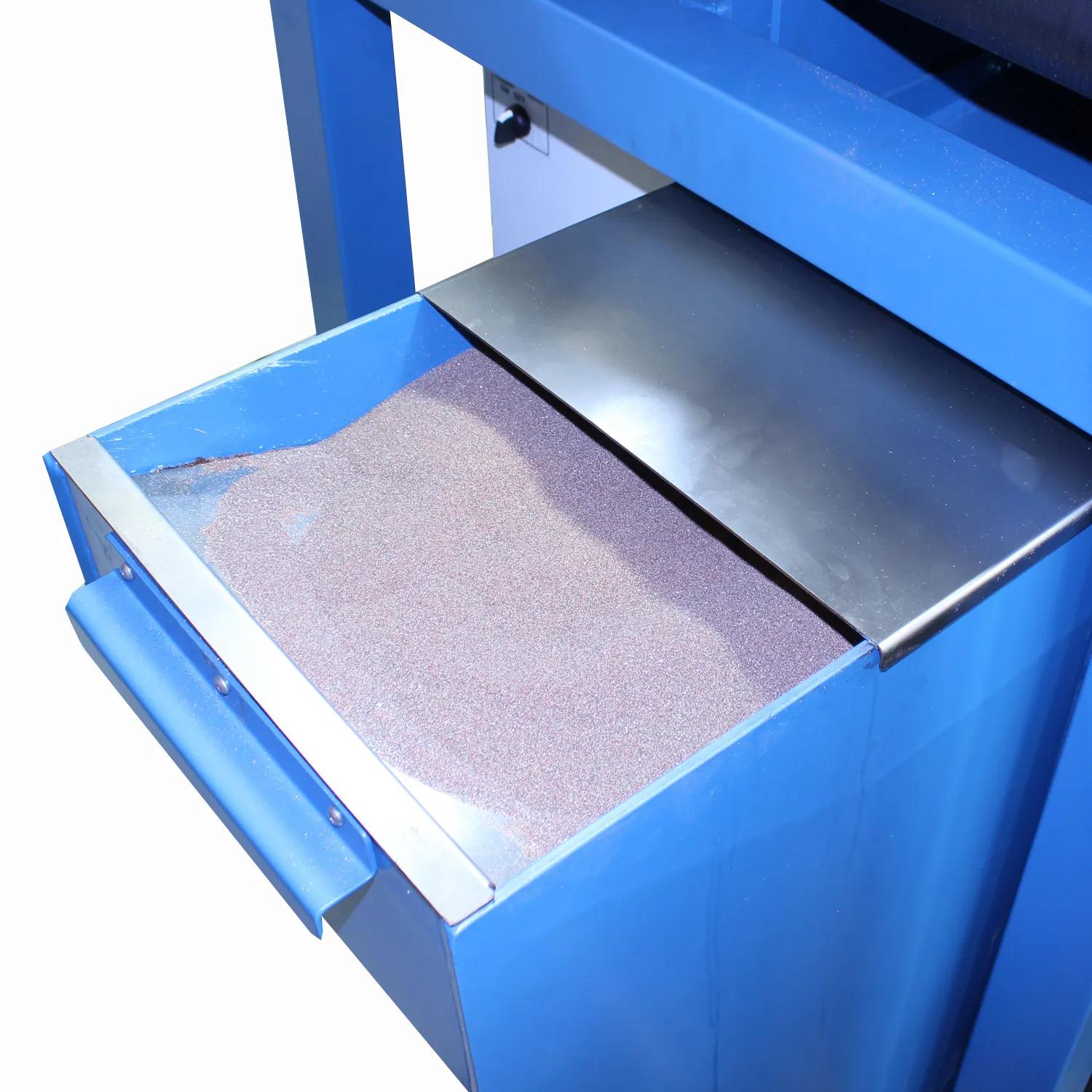

Cutting stone, glass, marble, granite, tile, or anything brittle?  Traditional water jets tend to chip or blow-out the surface of brittle material when initially piercing.  Baileigh’s direct drive system has addressed this headache with the powertrain that lies behind the Hammelmann pump.  An Italian Elvem 40hp motor, powered by an Allen Bradley PowerFlex VFD, enables the cutting system pressure to be varied infinitely, in real time.  This means your expensive stone can be pierced at low pressure to avoid damage, but cut at high pressure for increased production; all handled by the Windows based controller!  That’s right, no more manually adjusting the hydraulic system.  In fact, Baileigh water jets don’t have a hydraulic system at all, which also alleviates the need for a cooling system.  No hydraulic system, no cooling system, and an integrated garnet hopper make the Baileigh water jets some of the smallest footprint water jets in the industry!  The only items you see on your shop floor are the chassis, water table/tank, and control pedestal.

More detailed info can be found here.

Question:  What does it cost to run a Baileigh Water Jet?

Answer:  There are many factors that influence the cost of running a water jet, please click here for more information.
