Milling Machine Vm1054

Product image is only a representation, actual product appearance may differ slightly

  • Milling Machine Vm1054

Description

Table size is very important when deciding which milling machine to buy.  The VM-1054 from Baileigh Industrial has a 10” x 54” table that has been hardened, ground, polished, and coated with a special coating called Turcite® B to extend life and help eliminate corrosion.

The VM-1054 is a variable speed milling machine that is powered by a Yaskawa® inverter.  This inverter is powered by 220 volts of three phase power.  Inverters are great for milling machines because of their ability to be adjusted to any speed desired between 80 and 3800 rpm.  By selecting the right speed tooling life is lengthened and cut quality improves, both of which save money.  Baileigh Industrial selected an NT 40 taper for its spindle to help improve performance as well.  A larger spindle is stronger and has tighter tolerances over a longer period of time.  Rigidity is also very important on a mill that is why Baileigh Industrial went with only the best castings to make the base and frame.  The stronger you make he platform the better the cutting is.

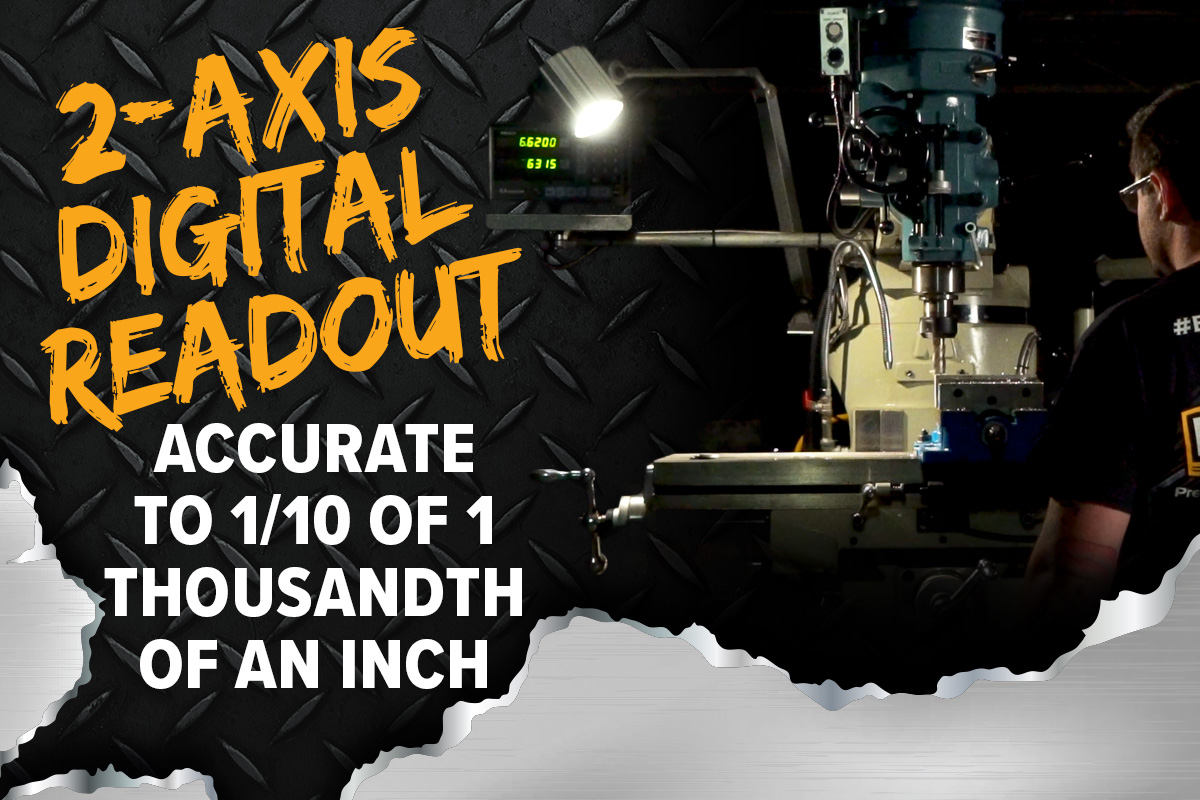

All three axis are powered on the VM-1054 making it easy on the operator.  Another nice feature of the VM-1054 milling machine is the two axis digital readout that comes standard.  This Mitutoyo® digital readout is accurate to 1/10 of 1 thousandth of an inch.  A flood coolant system, air draw bar, and central lubrication system are all factory installed on the VM-1054.

To learn more about the VM-1054 milling machine call a Baileigh Industrial representative.

Read More Read Less

Specifications

Item Number VM-1054-3
Country of Manufacture Taiwan
Table Size 54" x 10"
Spindle Center To Column Min Max 7.87" – 26.77"
Spindle Diameter 3.93"
Spindle Feed Per Rev .0015"/.003"/.005"
Spindle Head Swivel 45° (F&R) 90° (R&L)
Motor Spindle 3 hp
Travel Auto X Axis 32.25"
Travel Auto Y Axis 15.75"
Travel Auto Z Axis 16"
Travel Manual X Axis 35.43"
Travel Manual Y Axis 15.75"
Travel Manual Z Axis 16"
Spindle Nose To Table Min Max 1.57" – 17.55"
Spindle Speed 80 – 3800 rpm
Spindle Taper NT 40
Table Load Capacity 550 lbs.
T Slots .625"
Motor Coolant 1/8 hp
Cross Travel Of Ram 18.89"
Power 220V / 3-phase
Shipping Weight 3000lbs
Spindle Travel 5"
Shipping Dimensions (Inches) 68x72x75

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Vertical Mill VM-1054-3

SKU: 1008136

In stock

$22,895.00 $
Leasing starts at $508 . Calculate your monthly lease price
