Product Details
Industrial Machining: The Baileigh VMD-931G Vertical Mill Drill with R-8 Taper is designed to combine drilling, milling, tapping, and boring in one machine with a robust gear-driven head for accurate speed selection and reduced tooling wear.
Performance & Flexibility: With a large milling-style table, X-axis power feed, and the ability to choose from multiple spindle speeds, this mill drill provides flexibility and precision for a wide range of workshop applications.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Input power: Operates on 110 V single-phase electrical power.
- Motor power: Equipped with a 2 HP motor.
- Drilling capacity: Maximum drilling capacity in mild steel is 1.75 in..

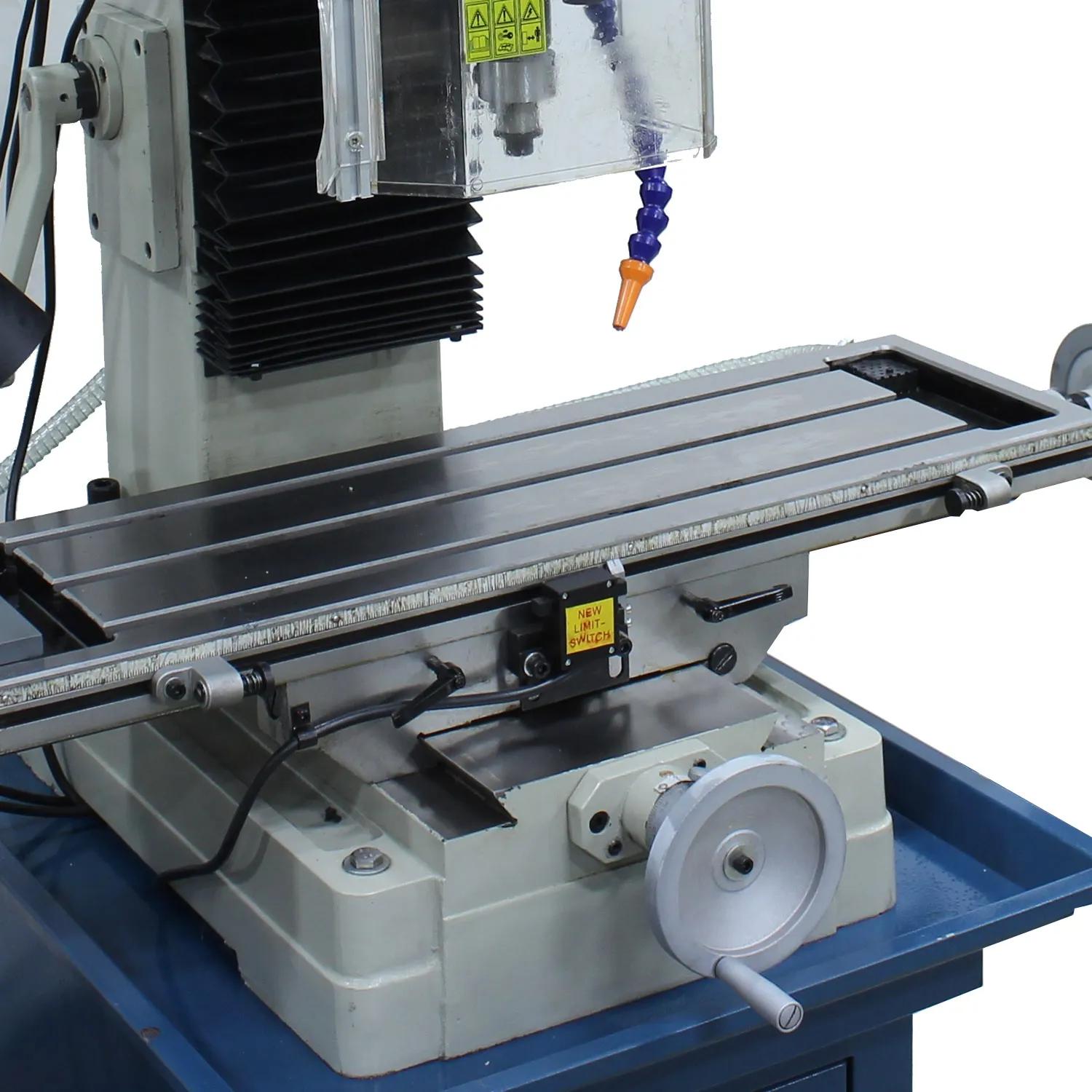

- Work table: Includes a 31.5″ × 9.45″ milling-style table with X-axis power feed.
- Spindle taper: Features an R-8 taper spindle.

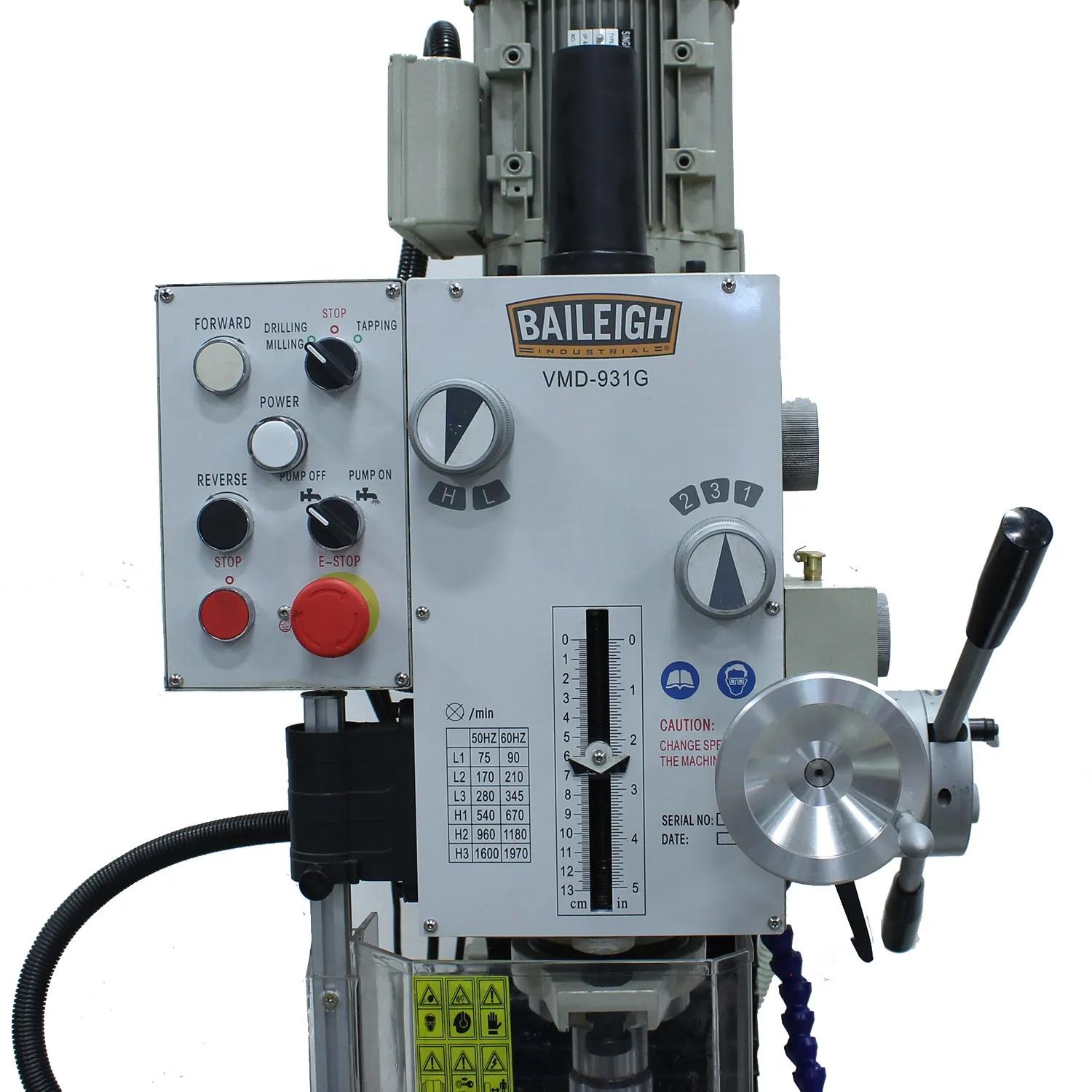

- Spindle speeds: Gear-driven head offers 6 selectable speeds: 90, 210, 345, 670, 1180, 1970 RPM.
- Dual function: Designed for milling, drilling, tapping, and boring tasks.
- Construction quality: Wide steel column and heavy-duty base minimize flex and vibration during machining.
- Coolant & lighting: Comes standard with a coolant system and flexible halogen light.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1020693
- Drilling Capacity Mild Steel1.75 in.
- Face Mill Capacity (In.)3.15"
- Gross Weight815.0
- Horse Power (HP)2
- Input Power110V
- Model NumberVMD-931G
- Motor HP2
- Net weight815.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle Speeds90 to 1970 RPM
- Warranty1 Year
