Product Details

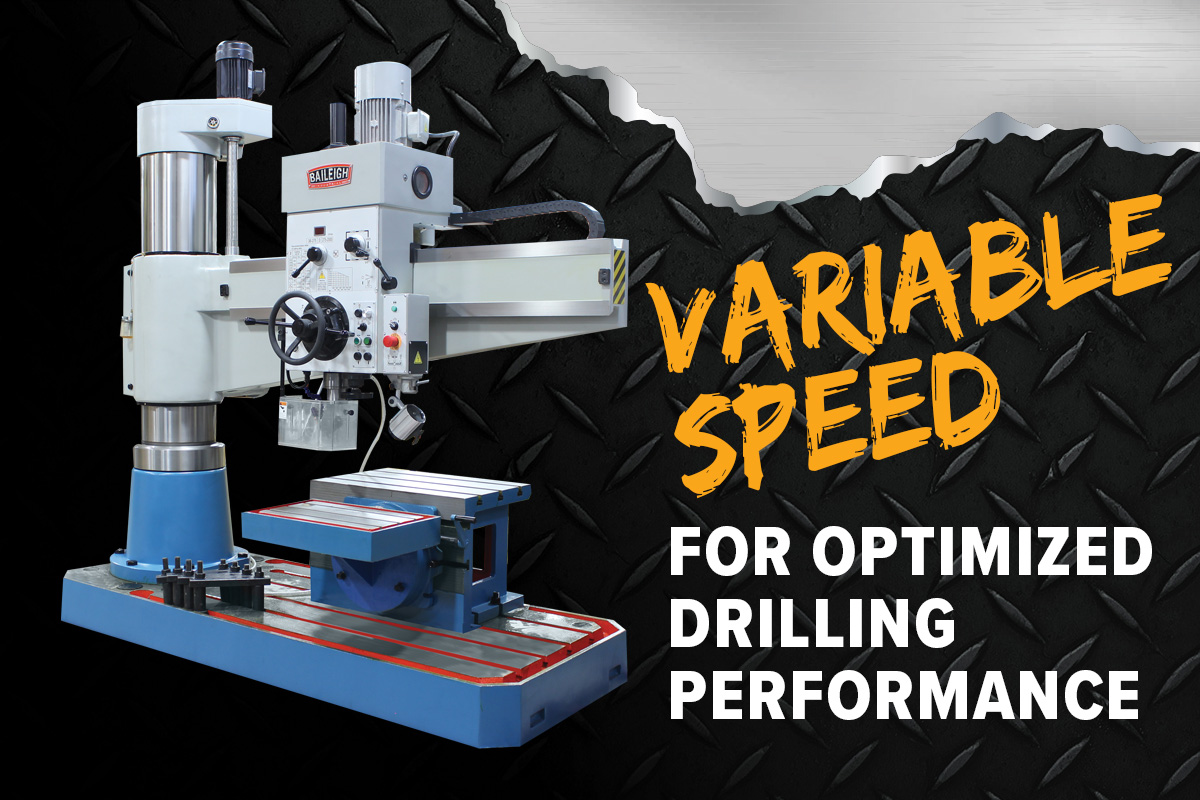

Industrial Construction: The Baileigh RD-1600H-VS is a heavy-duty variable speed radial drill press engineered for industrial fabrication, machining, and production environments. Its robust cast iron structure and large 49″ arm reach provide rigidity and support large components with precision.
Power & Performance: Powered by a 5.25 HP motor on 220 V three-phase power, this radial drill delivers smooth, infinitely variable spindle speeds from 38 to 2000 RPM via inverter-driven control, optimizing cutting conditions across drilling, boring, reaming, and tapping operations.
Precision Control: The RD-1600H-VS includes hydraulic controls for effortless column, arm, and spindle head positioning, integrated coolant system, and power downfeed for improved efficiency and extended tooling life during repeated drilling tasks.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Input power: Operates on 220 V three-phase power.
- Motor horsepower: Equipped with a 5.25 HP industrial motor.
- Variable speed range: 38–2000 RPM infinitely variable for optimal cutting control.
- Spindle taper: MT5 oversized spindle for heavy-duty tooling.
- Drilling capacity: Drills up to 2″ in mild steel.
- Arm reach: 49″ maximum arm reach to accommodate large workpieces.
- Hydraulic controls: Hydraulic positioning for column, arm, and spindle box for ease of setup.
- Coolant system: Integrated coolant system with easy-to-reach switch.

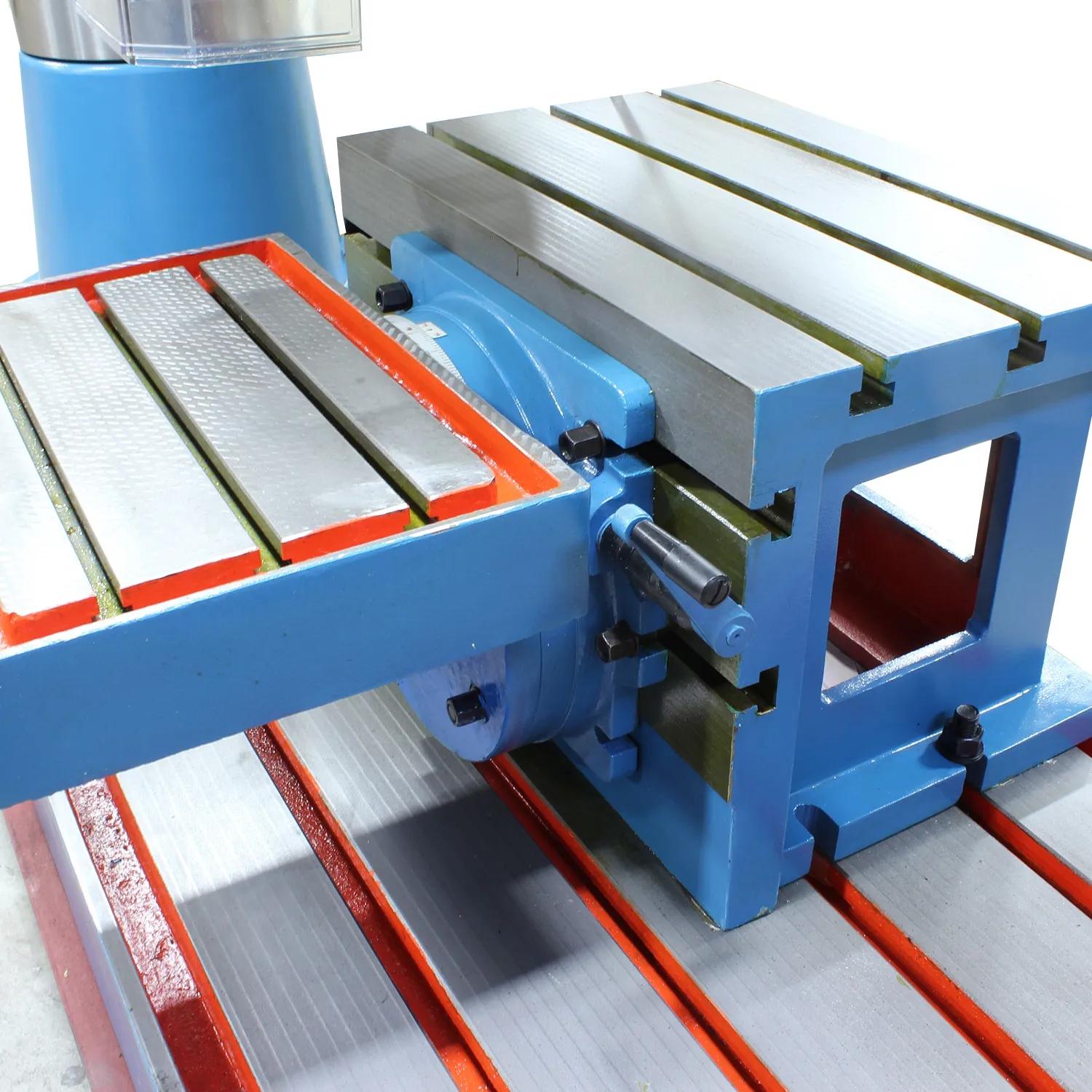

- Worktable size: Approximately 29.5″ × 19.5″ stable adjustable table.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1019843
- Drilling Capacity Mild Steel2 in.
- Gross Weight8500.0
- Horse Power (HP)5.375
- Input Power220V Three Phase
- Model NumberRD-1600H-VS
- Motor HP5.25
- Net weight8500.0
- Number of Spindle Speeds38 to 2000 rpm (variable)
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM).0024 in. to .0394 in. in/rev
- Spindle Speeds38 to 2000 RPM
- Spindle Taper (In. x TPI)MT5
- SwingAdjustable
- Warranty1 Year
