Variable Speed Drill Press DP-1200VS

Product image is only a representation, actual product appearance may differ slightly

  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS
  • Variable Speed Drill Press DP-1200VS

Description



Built to last for years, the DP-1200VS floor drill press is an economical option for any shop. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.



  • 2 hp motor runs on just 220 volts of single-phase power.
  • Tackles a maximum drilling capacity of 1-1/16” mild steel.

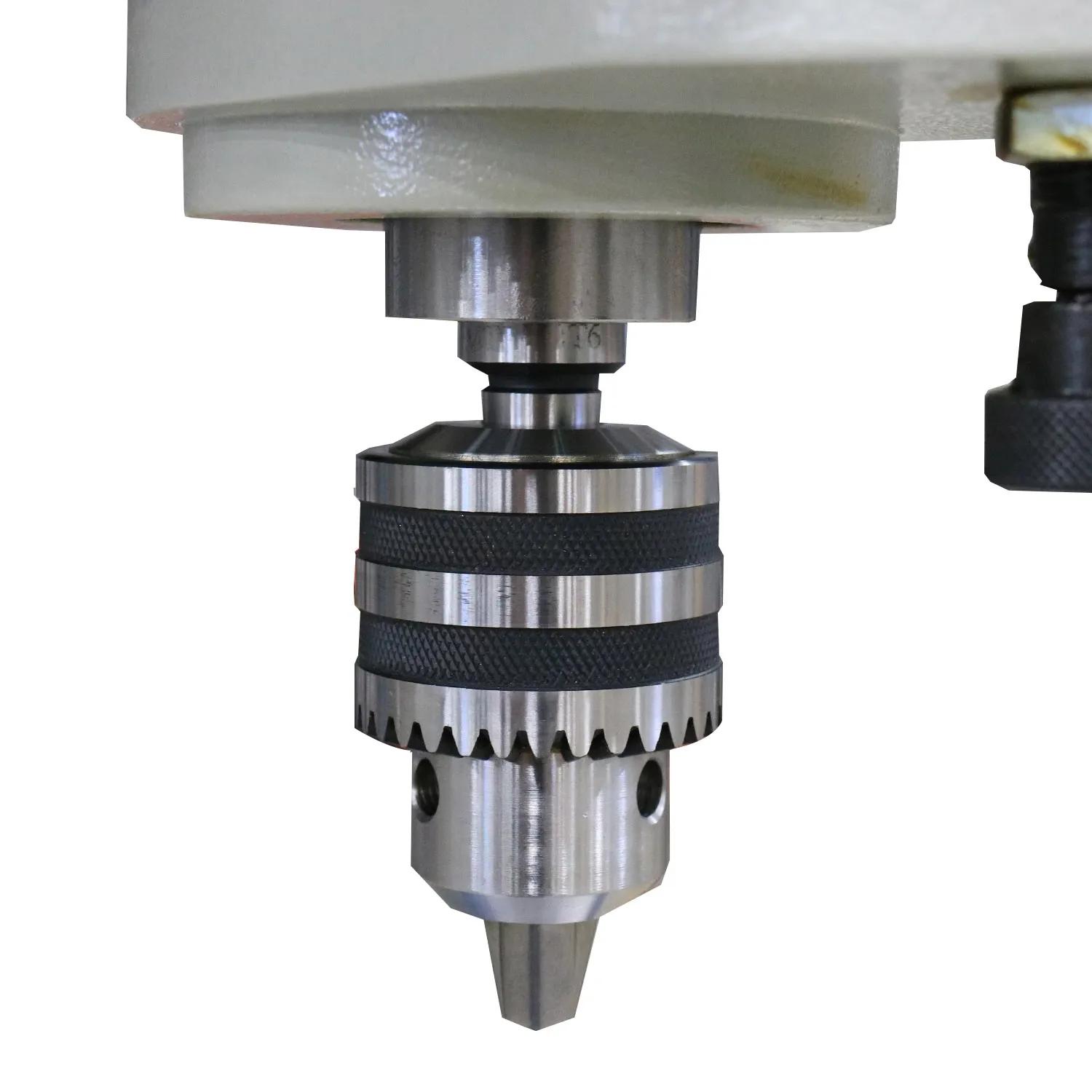

  • Heavy duty spindle transfers power to the #3 Morse taper tooling .

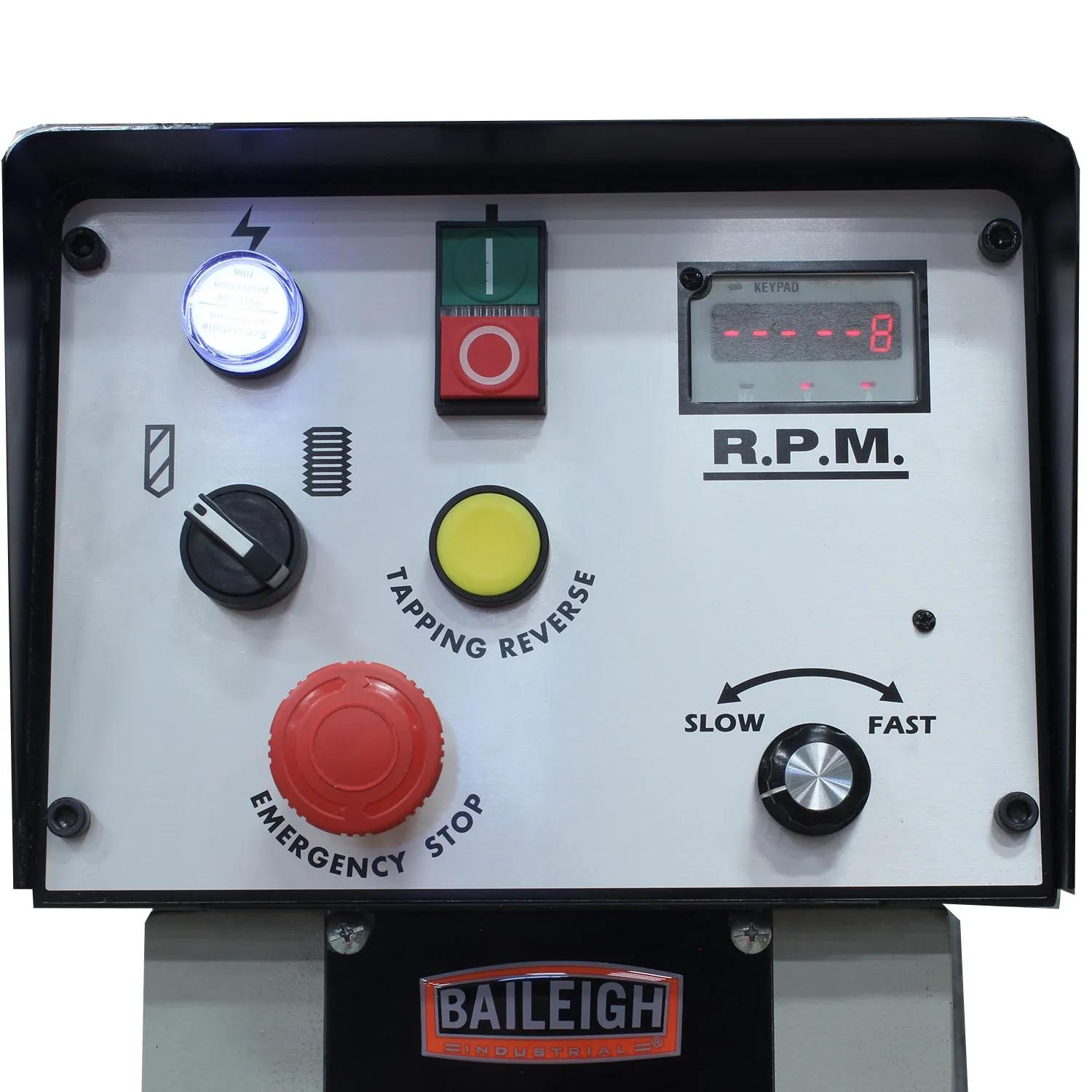

  • Speed potentiometer dial controls powerful inverter-driven head.
  • Variable drilling speed, ranging from 10 to 2250 rpm, lets you choose the right setting to suit your application.
  • Digital readout displays actual spindle rpm, ensuring precise results time after time.
  • Features an auto-reversing tap function with up to .1/2” capacity.
  • Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

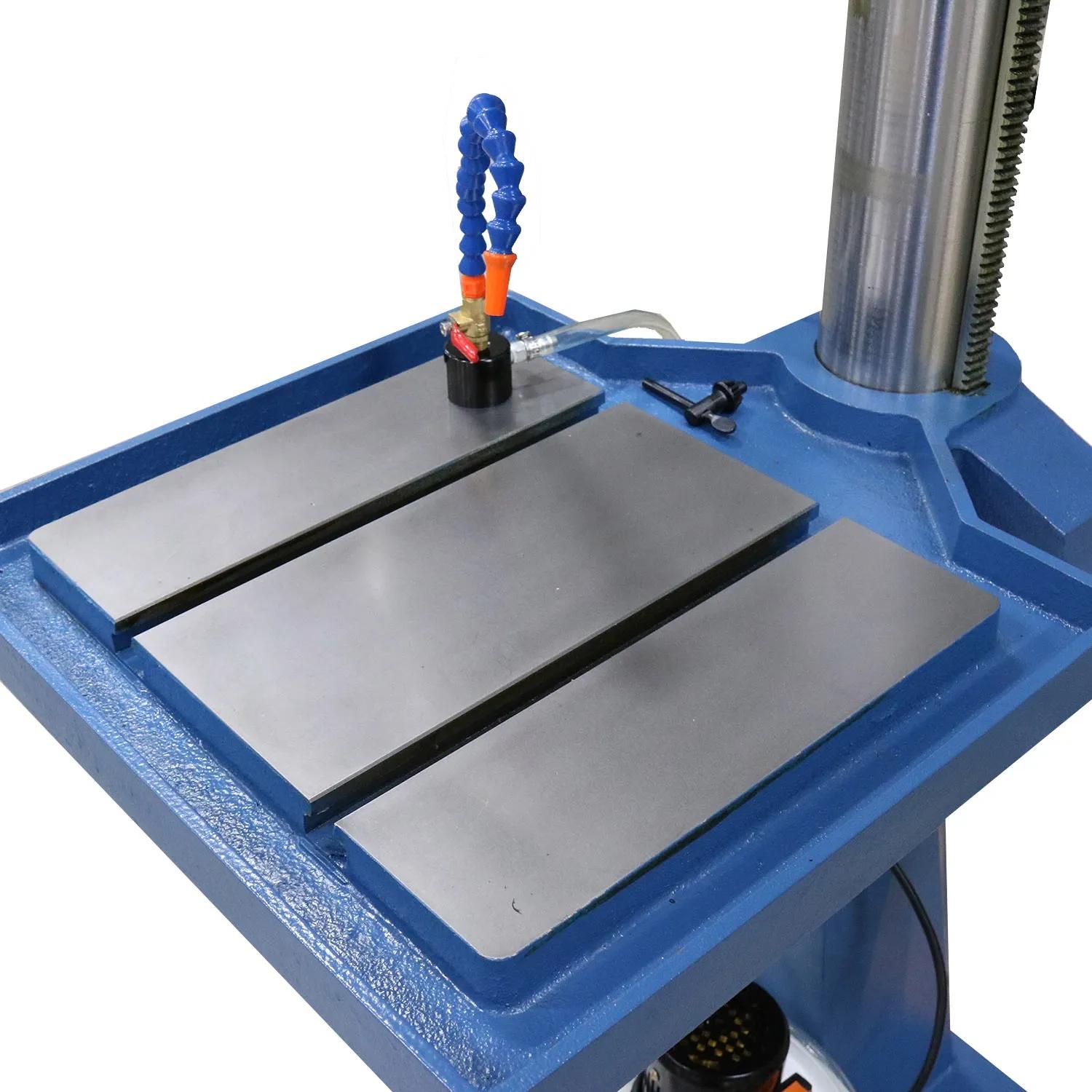

  • Base and 16-3/4” x 19” table are made of a heavy iron casting to increase rigidity.
  • Very large .625" T-slots let a vise or fixture securely hold your material.

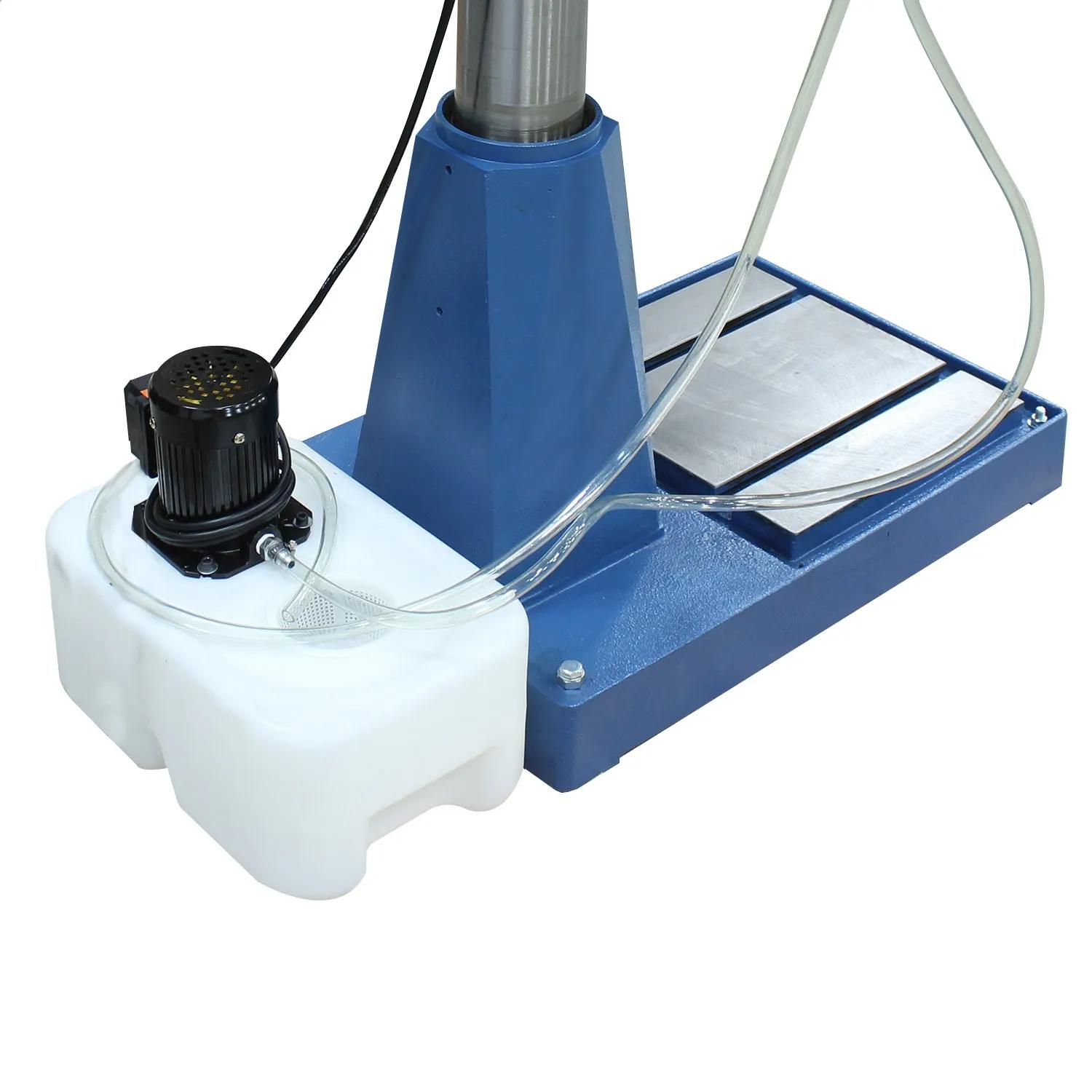

  • Movable coolant system, with magnetic fixture, sprays out where you need it to extend drill bit and tap lifespan.
  • Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
  • Need it soon? We keep the DP-1200VS in stock for quick shipments.



Questions? Please give us a call at 1-920-684-4990.

Read More Read Less

Specifications

Item Number DP-1200VS
Country of Manufacture Taiwan
Swing 20.8"
Diameter of Column 4"
Distance Between Spindle Nose and Base 1-1/4" Min. / 23-1/2" Max.
Base Size 25-3/4" x 16-1/2"
Table Size 16-3/4" x 19"
Quill Diameter 3"
Stroke 6"
Spindle Nose to Table 36.41"
Spindle Nose to Base 44-1/2"
Spindle Speed 10-2,250 RPM
Spindle Taper MT3
Table Slot .625"
Tapping Capacity 1/2"
Main Motor 2 hp
Drill Capacity Steel 1-1/16"
Power 220V / 1-phase
Shipping Weight 650lbs
Drill Capacity 1.25"
Spindle Travel 5.9"
Column Diameter 4.52"
Shipping Dimensions (Inches) 60x44x82

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Variable Speed Drill Press DP-1200VS

SKU: 1020169

In stock

$3,795.00 $
