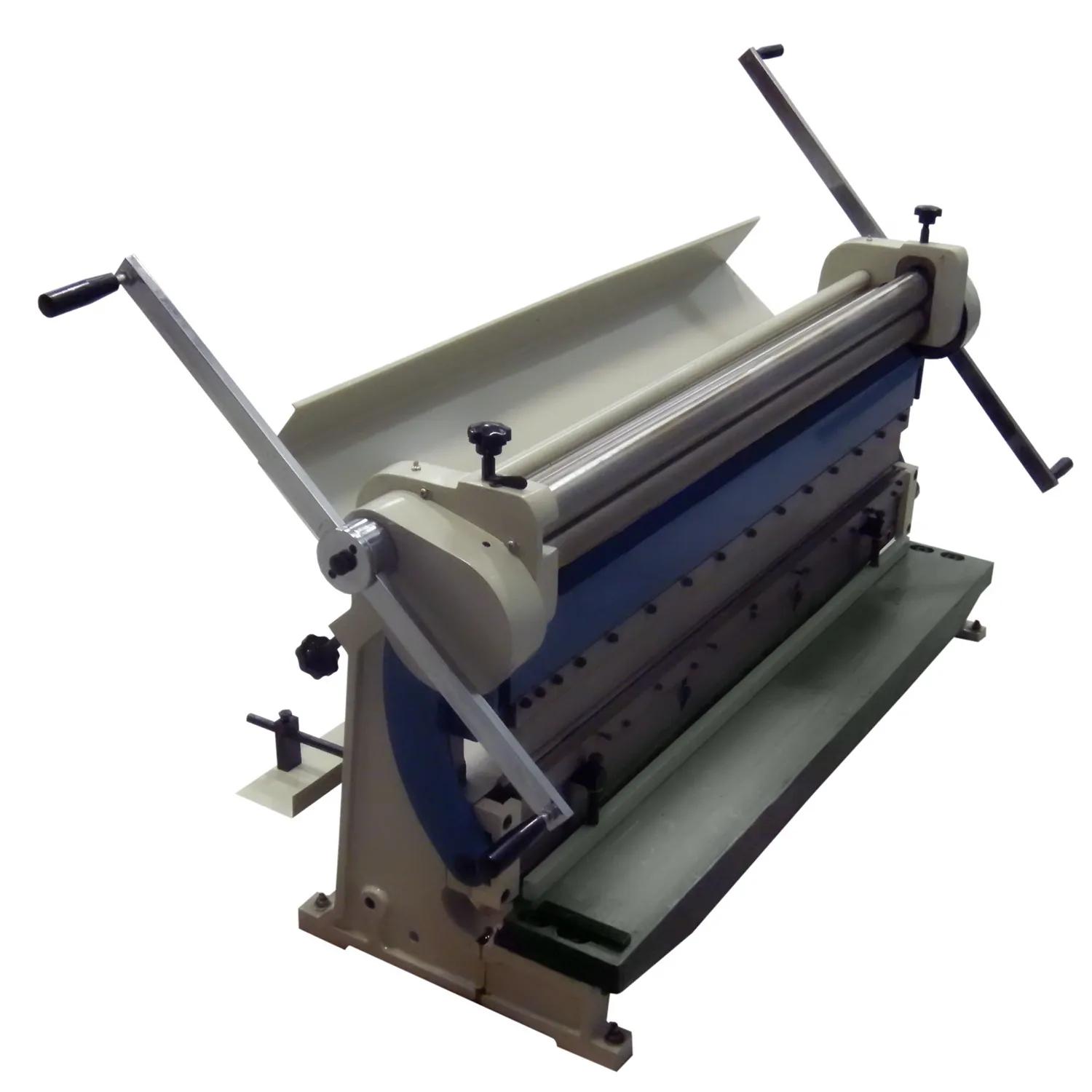

Shear Brake Roll SBR-5216
SKU: BA9-1006972
In stock
Calculate your monthly lease price
Description

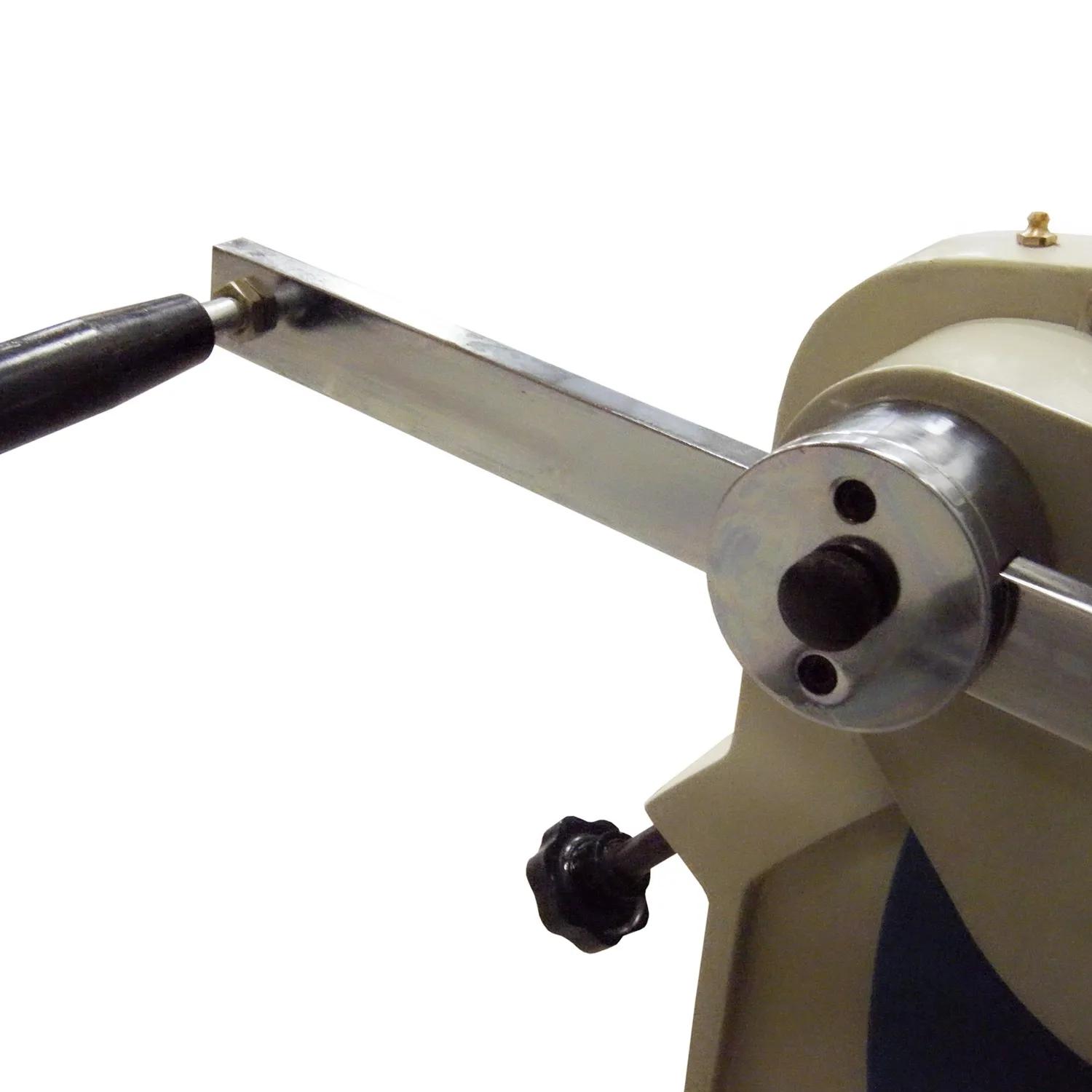

With a 16 gauge mild steel capacity for all functions, the SBR-5216 is the most powerful 3-in-1 combination machine on the market. This manual combination shear brake and roll saves space and money for small shops.
- 52” width lets you roll, bend, and shear 4’ x 8’ sheets.
- Slip roll portion is on top, press brake in the middle, and sheet metal shear on the bottom.
- 1.70” minimum rolling diameter.

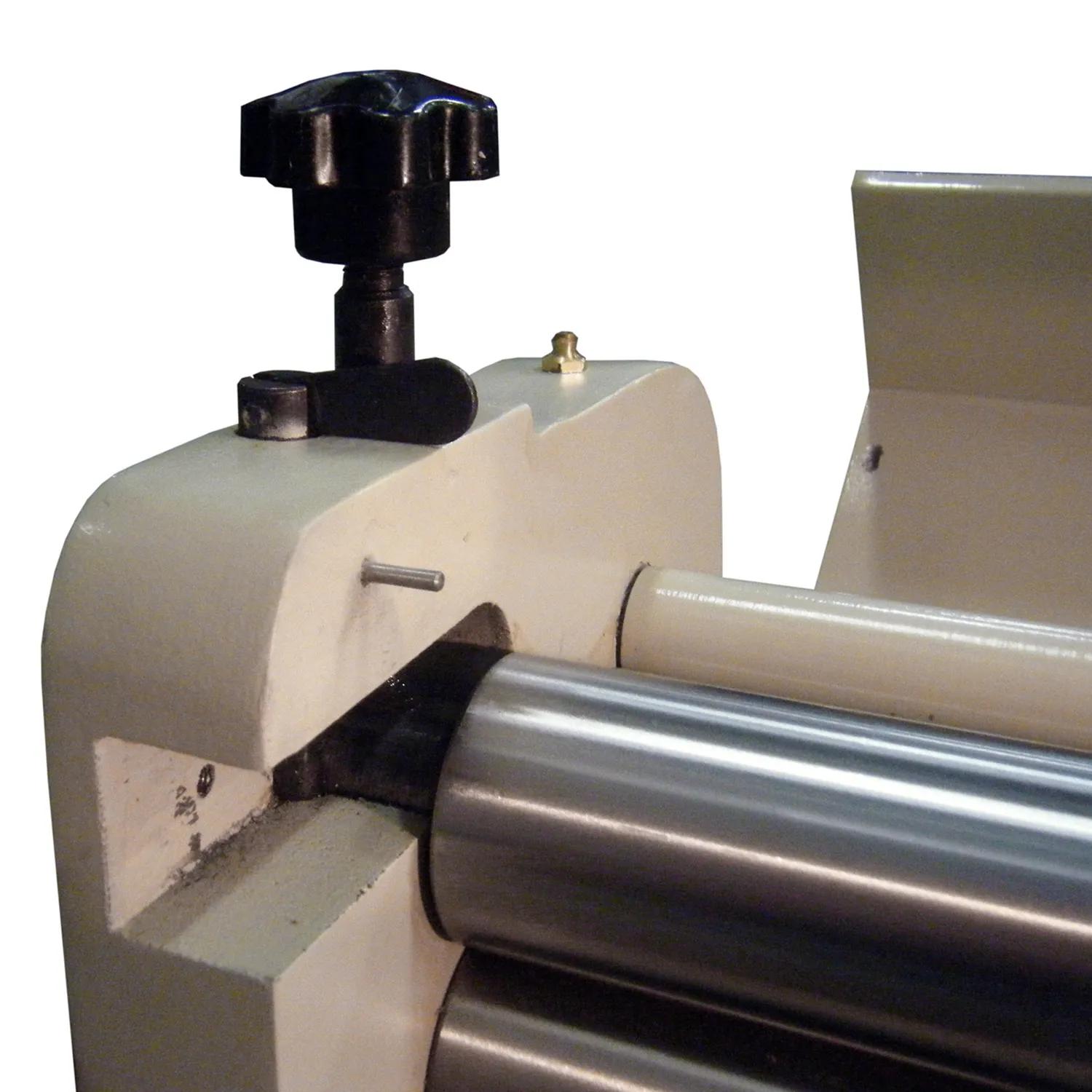

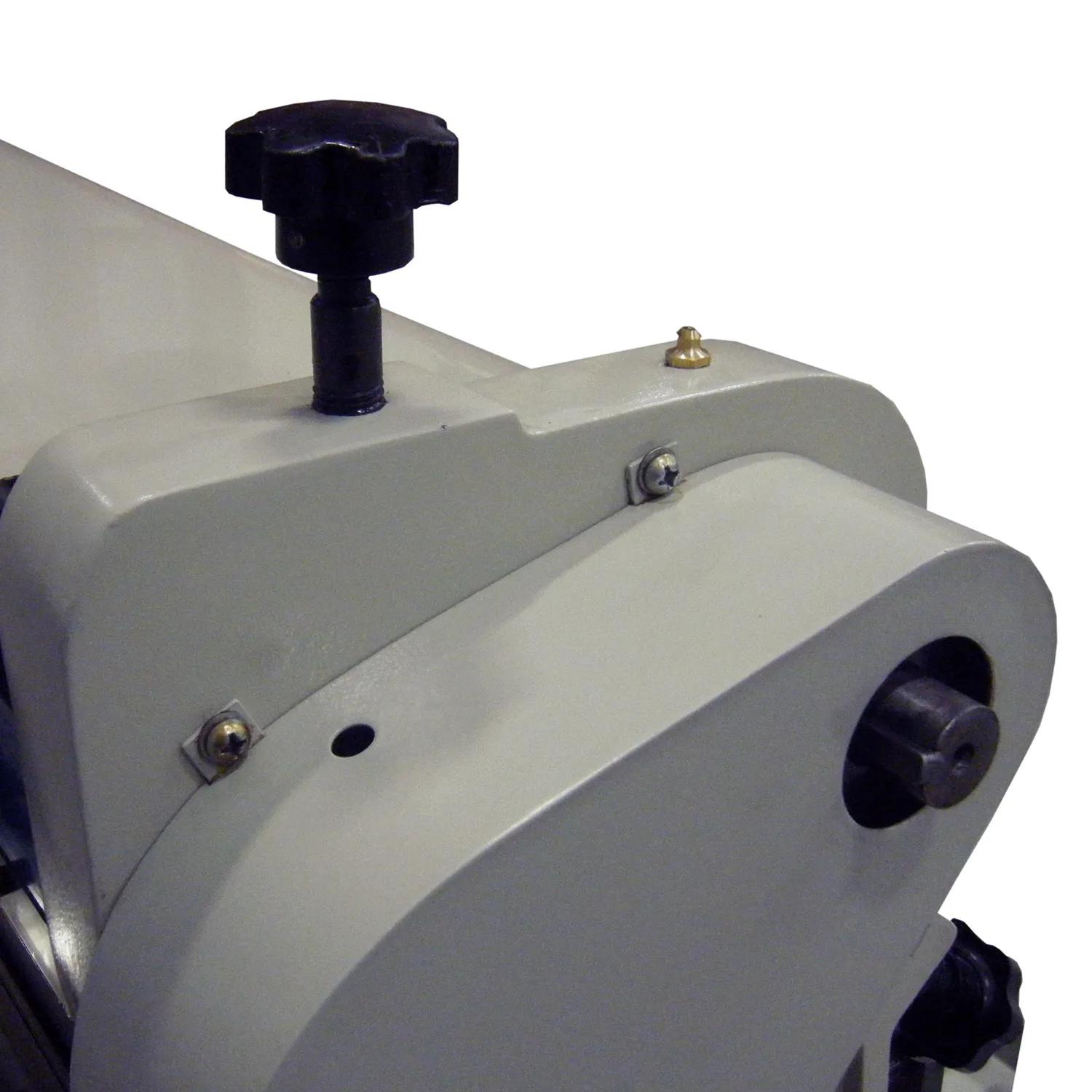

- Hardened, adjustable back and top rolls can form different thicknesses.
- Top roll can swing away from the machine for convenient material removal.

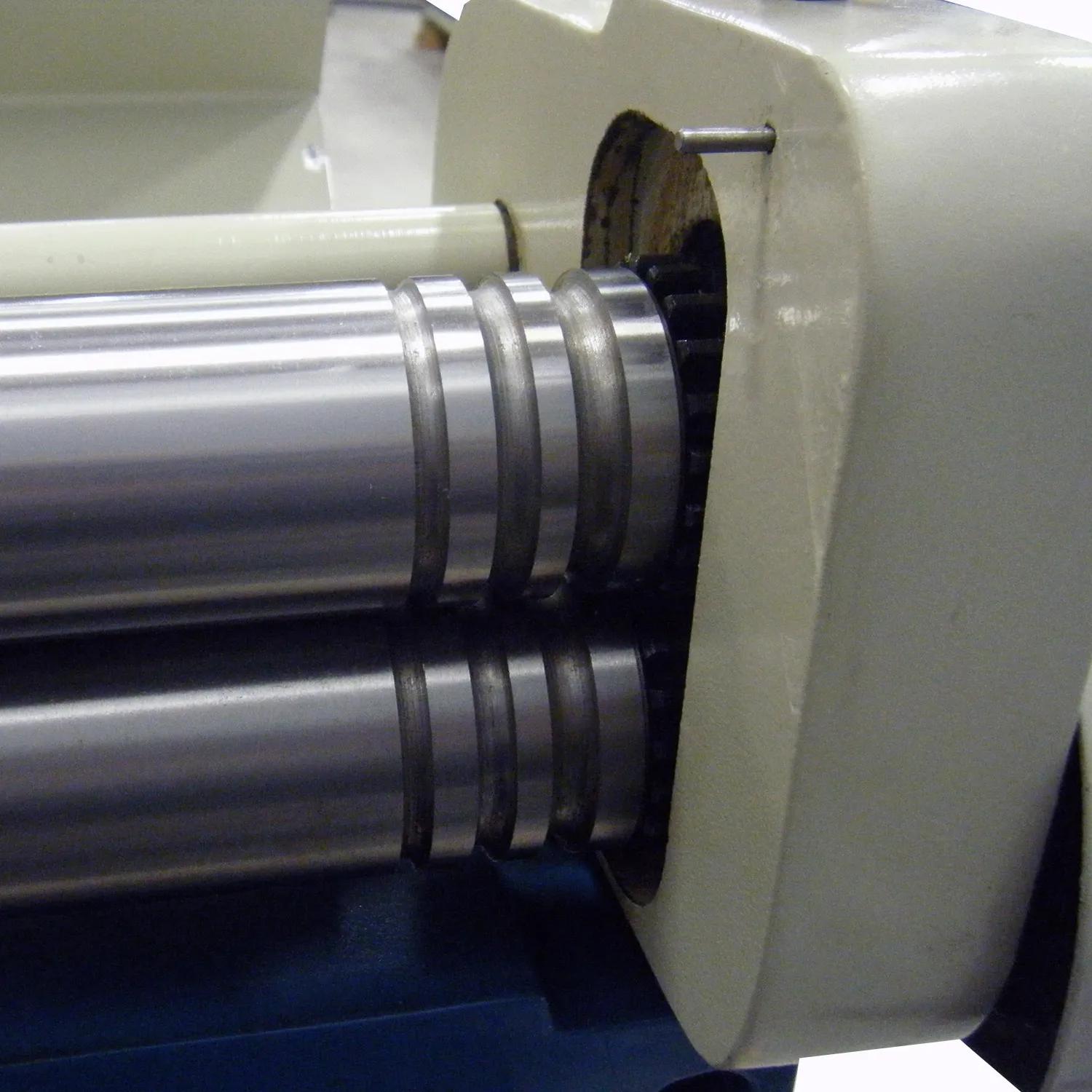

- 3 grooves on the roll can form wire or round rod.
- Manual press brake section comes with a fixed bottom V-block die.
- The SBR-5216 combination shear brake roller bends up to 90°, so you can make perfect corners.

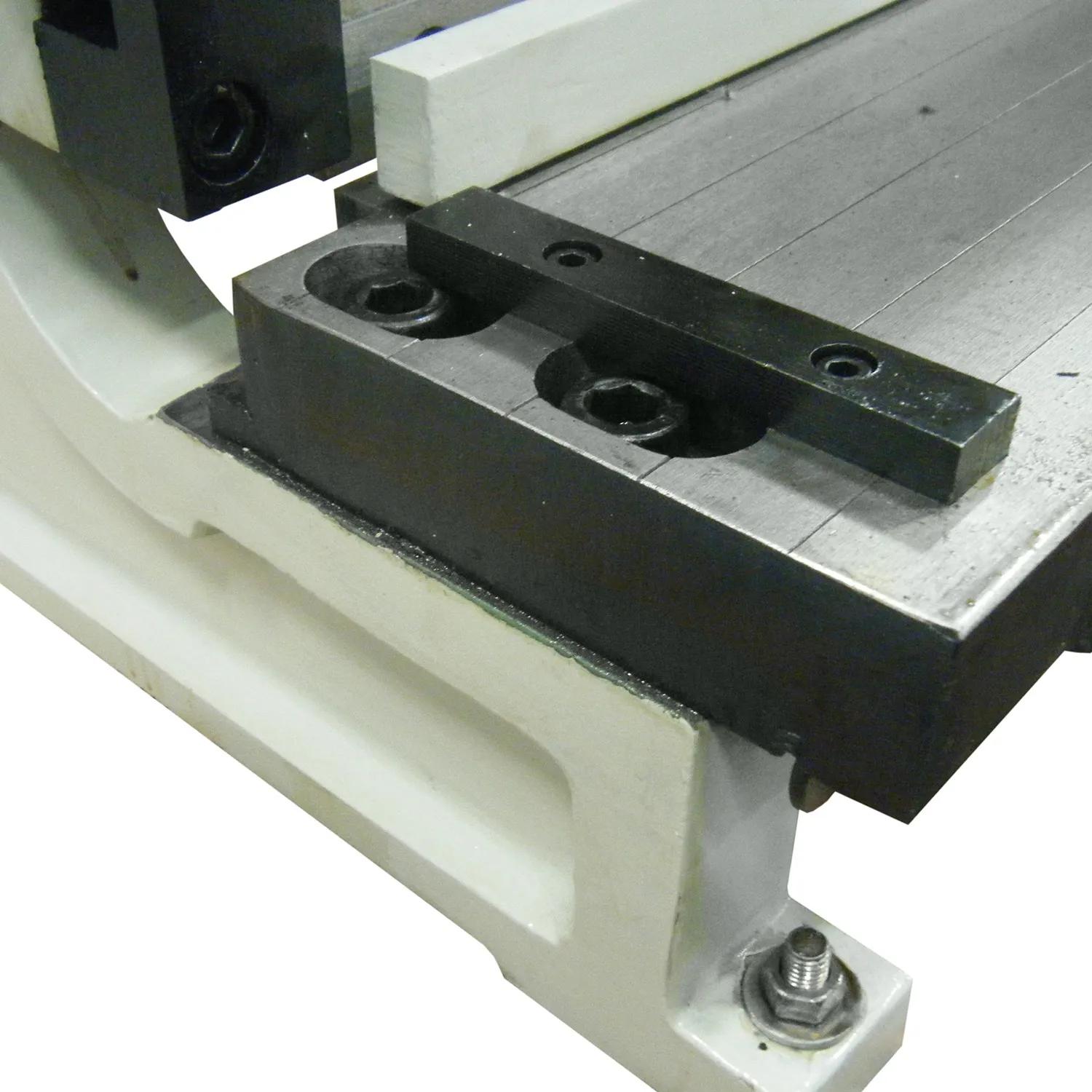

- 9 movable fingers on the top beam can make many sizes of boxes and pans.
- Crowning feature adjusts the camber of press brake tooling to make consistent bends across your material.

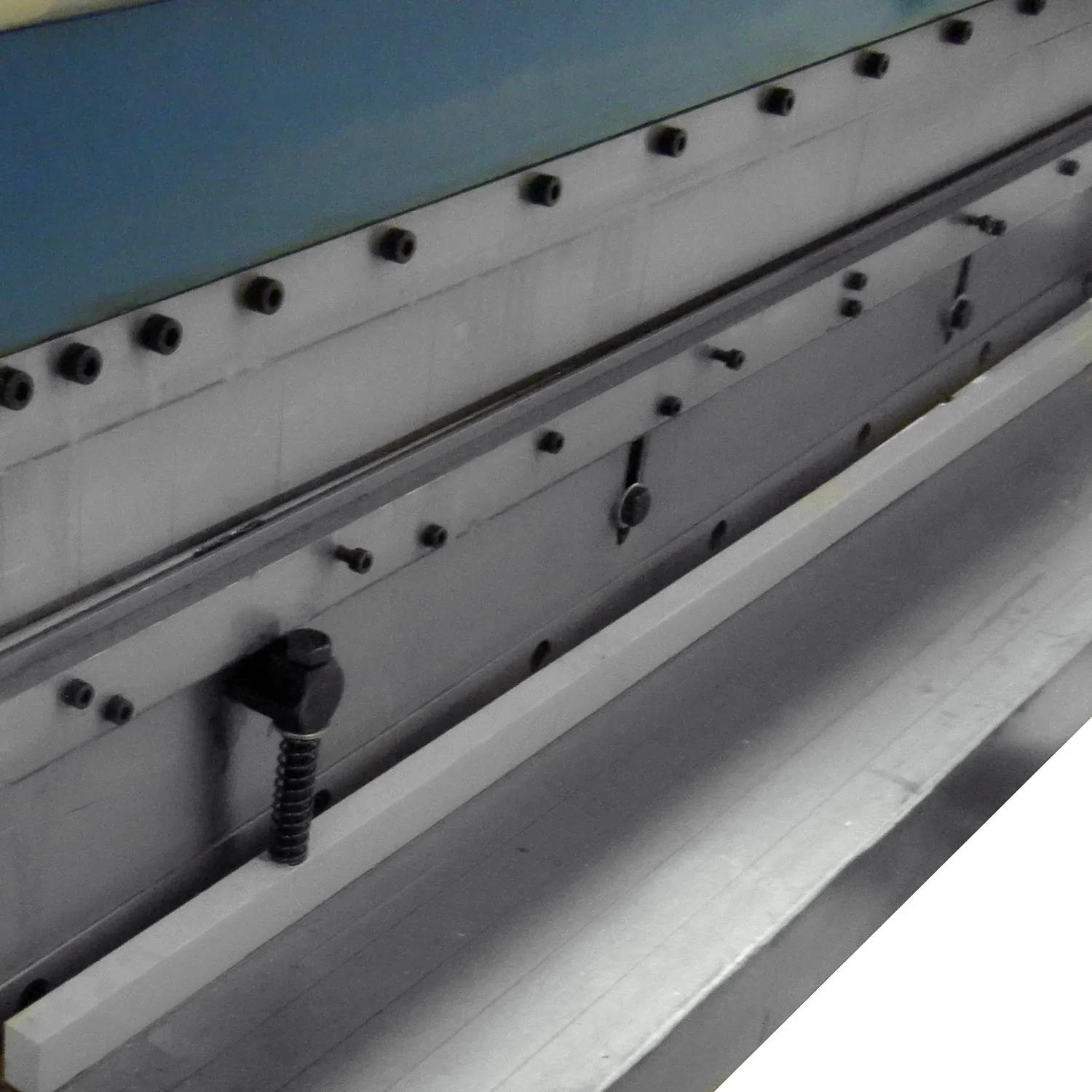

- Shear portion includes a spring-loaded clamp or hold-down to keep the material from lifting up, extend blade life, improve cut quality.
- You can adjust the blade gap to fit different gauges of sheet metal.

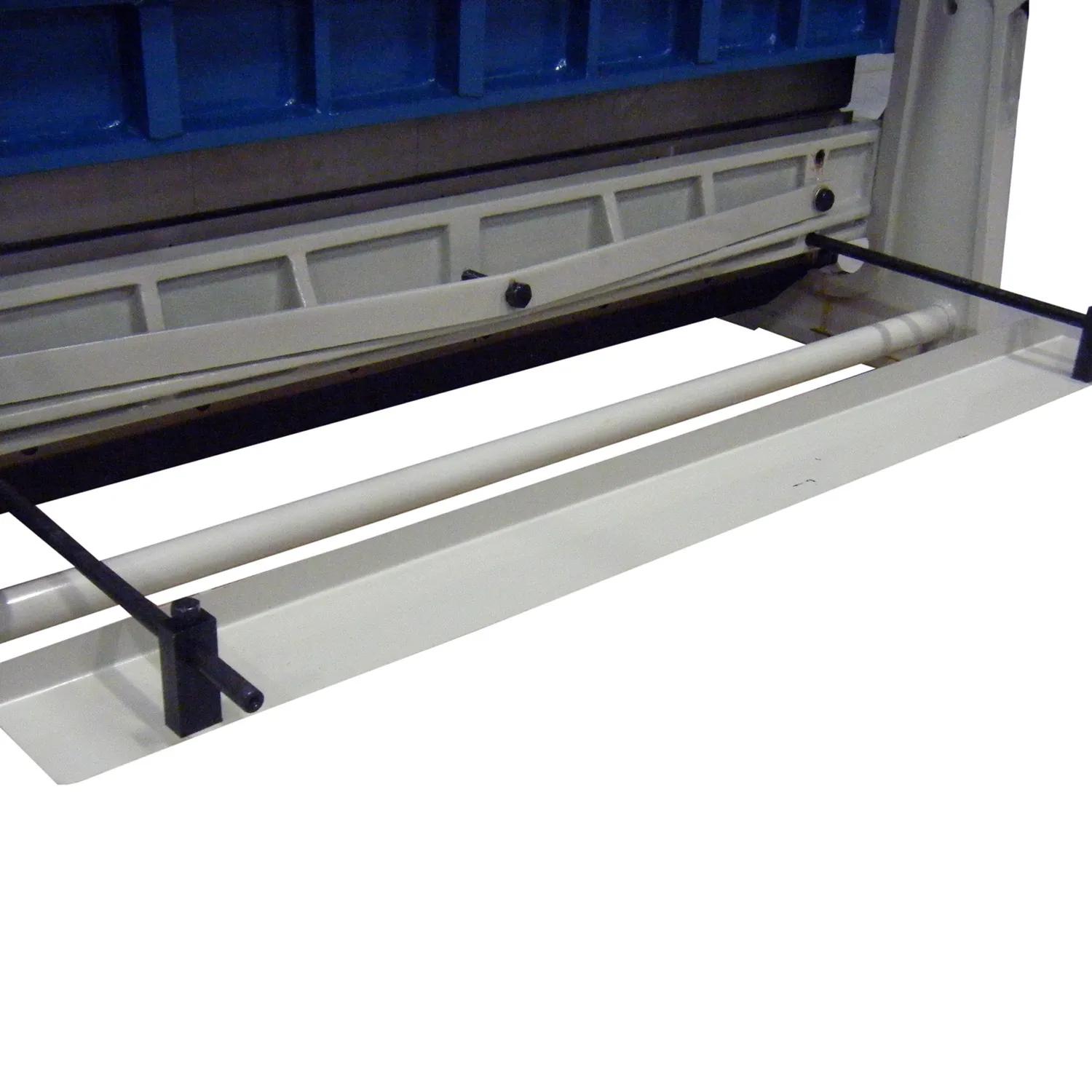

- Includes a material guide.
- Hardened, reversible blades stay sharp.
- Manual back gauge helps you easily produce repeatable parts.
- Heavy steel construction, weighing 1,200 lbs., gives this combo machine the power to deliver accurate results for many years.
- The SBR-5216 combination shear brake and roll is covered by a 1-year parts warranty.
- Our team of knowledgeable reps is here to provide lifetime technical support by phone.
Recommended for: Home shops, industrial art shops, maintenance or R&D shops, and other facilities where small production runs don't justify dedicated machines for rolling, bending, and shearing.
Questions? Not sure which combination machine is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Specifications
Item Number | SBR-5216 |
---|---|
Top Roll Dia. | 2.38" |
Rolling Capacity | 16 ga. (.060”) |
Shear Capacity | 16 ga. (.060”) |
Min. Rolling Dia. | 3.57” |
Included Accesories | Included Accesories |
Bed Width | 52" |
Bending Capacity | 16 ga. (.060”) |
Max. Bend Angle | 90 deg. |
Power | Manual |
Shipping Weight | 1200lbs |
Shipping Dimensions (Inches) | 71x24x37 |
* specifications subject to change without notice.
