Shear Brake Roll SBR-1220

SKU: 1006957

In stock

$659.00 $
SHARE PRINT

Questions? 1-844-477-7707

Description


The SBR-1220 is a manual shear, press brake, and slip roll all in one. Great for hobbyists, maintenance, and R&D shops, this combination machine saves space.


  • Maximum capacity of 20 gauge mild steel for all functions.
  • Handles material up to 12” wide, just right for those small jobs.

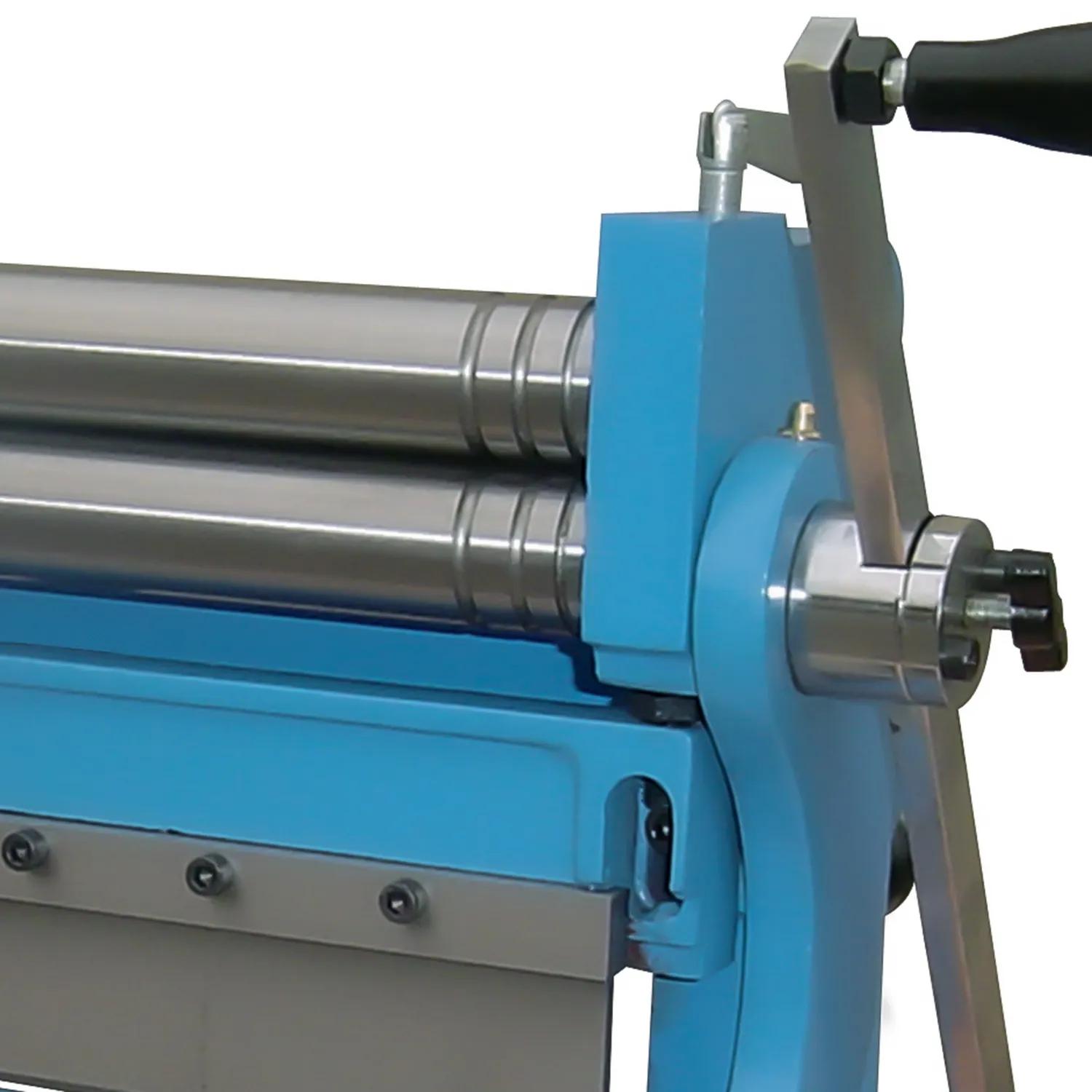

  • Slip roll portion on top has hardened and polished shafts for long life.
  • Minimum rolling diameter of 1.54”.
  • 3 grooves in the roll let you form wire perfectly.
  • Adjustable fingers on the top beam can make boxes of varying sizes with.
  • Press brake portion in the middle gives you a maximum bend angle of 90° for perfect corners.
  • You can tighten or loosen the frame and adjust the camber of the tooling for consistent bending across the material.

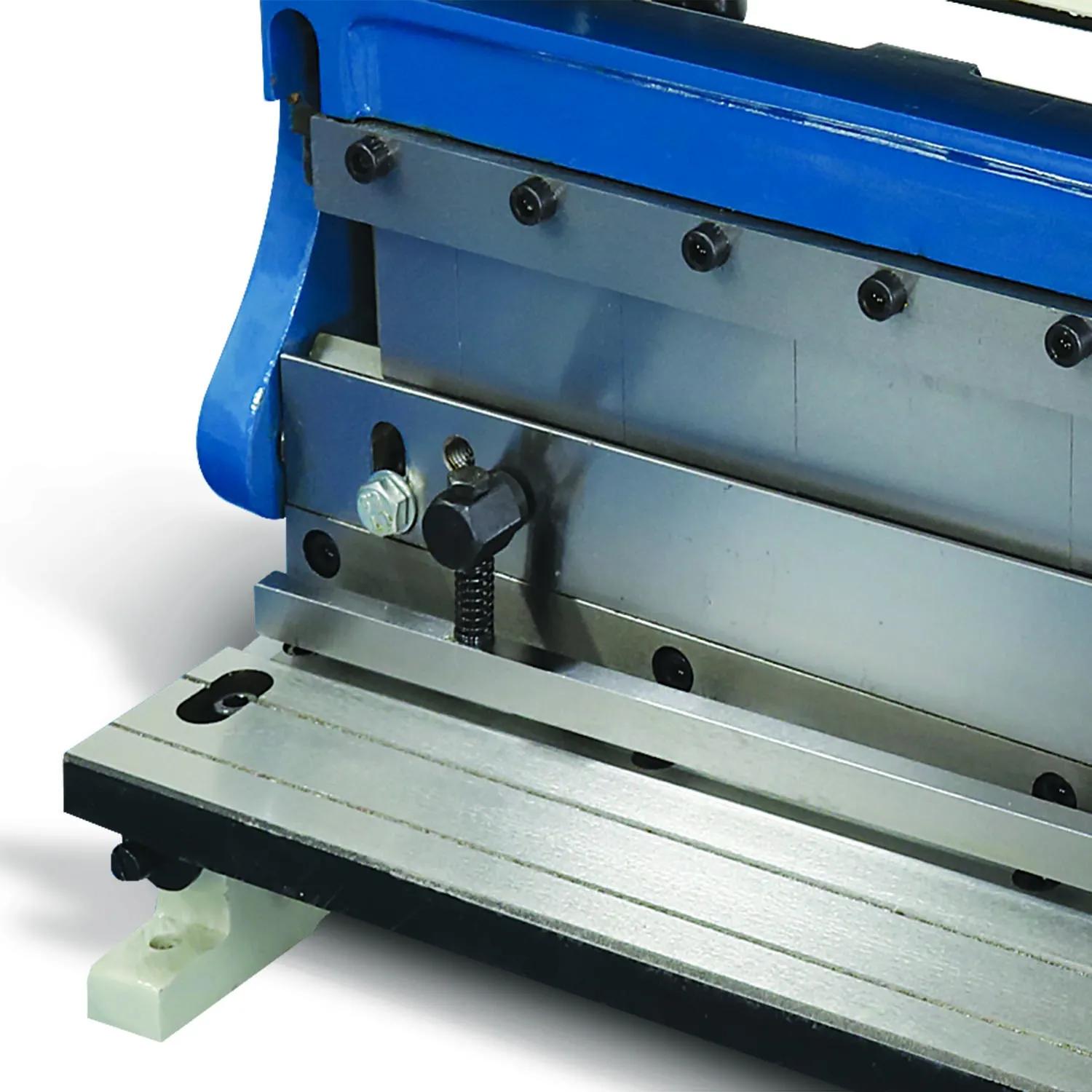

  • Shear station uses hardened, reversible blades that stay sharp over a long lifetime of us.

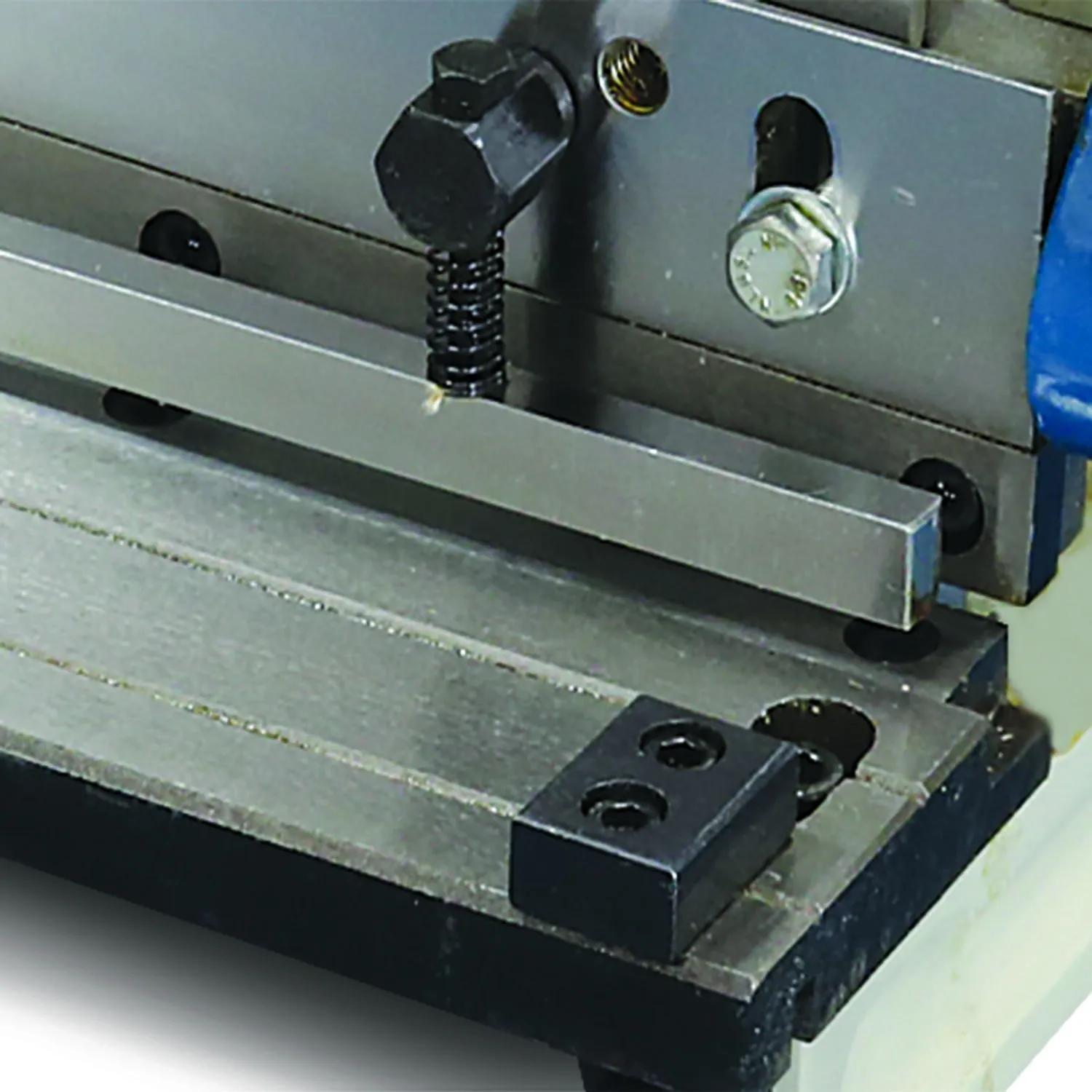

  • Spring-loaded hold-down will save a time and waste when you’re shearing.
  • Large, double-sided handles allow 2 operators to apply force.
  • You get one full up-down cycle out of each tool with one 360° turn of the handle.

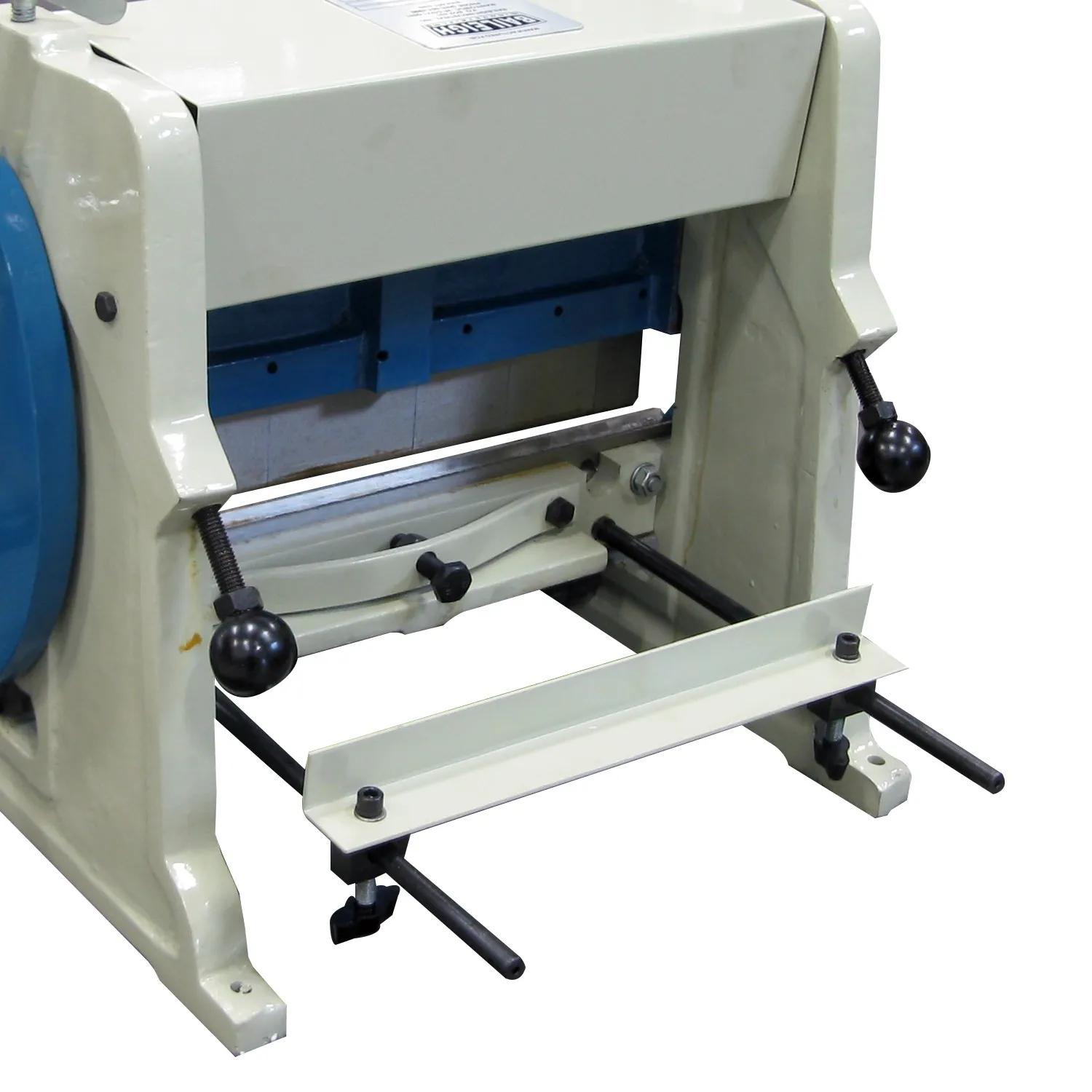

  • Manual back gauge ensures repeatability on shear and brake projects.
  • Weighs 125 lbs. with a powerful steel frame that maintains accuracy.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone from our team of knowledgeable reps.

Questions? Not sure which combination machine is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.


Specifications

Item Number SBR-1220
Rolling Capacity 20 ga. (.036”)
Shear Capacity 20 ga.
Min. Rolling Dia. 1.54”
Bed Width 12"
Bending Capacity 20 ga. (.036”)
Maximum Bend Angle 90°
Power Manual
Shipping Weight 135lbs
Finger Lengths 1", 2@2-1/8", 3-1/8", 4-1/8"
Finger Thickness 3/16"
Shipping Dimensions (Inches) 36x17x17

* specifications subject to change without notice.
