Product Details

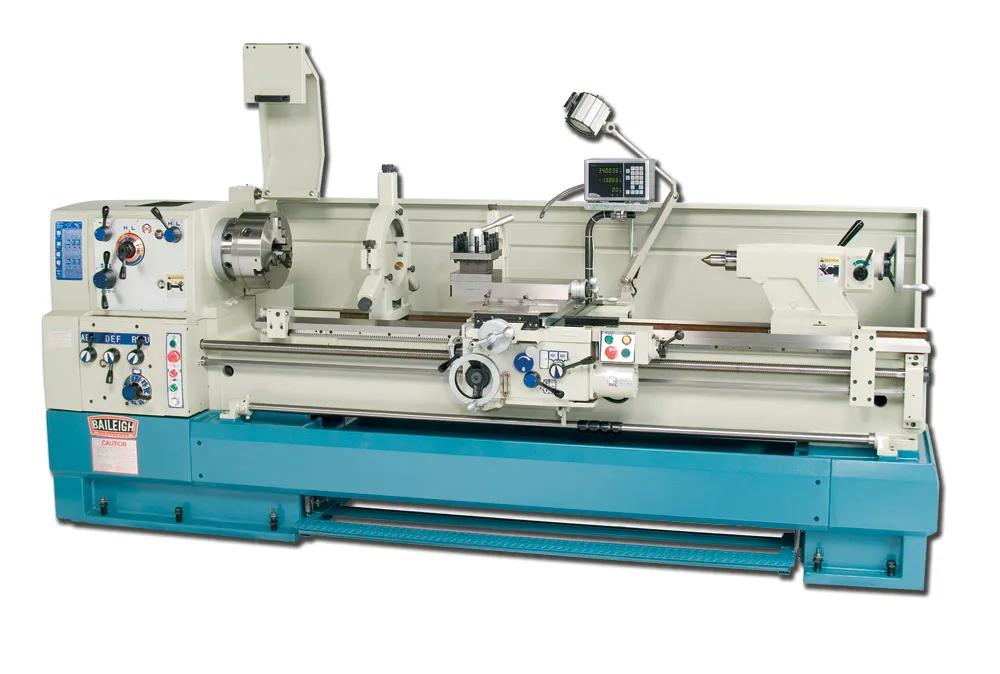

Heavy-Duty Precision: The Baileigh PL-2080 is a precision metal lathe engineered for large-scale turning tasks in industrial machine shops and production facilities. Its robust design and capacity make it suitable for heavy workpieces requiring accuracy and repeatability.
Capacity & Power: Featuring an impressive 20” swing over bed and 80” between centers, the PL-2080 accommodates long and oversized workpieces with dependable performance. A high-torque 15 HP industrial motor paired with a geared headstock ensures consistent cutting power across speeds.
Precision & Control: Built on a rugged cast-iron base with precision ground bed ways and a Mitutoyo 2-axis digital readout (DRO), this lathe minimizes vibration for cleaner finishes, long tool life, and precise setup feedback.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing capacity: Supports an 20” swing over bed for large diameter workpieces.
- Center distance: Provides 80” between centers for long stock turning.
- Motor power: Driven by a 15 HP, 220 V 3-phase industrial motor.

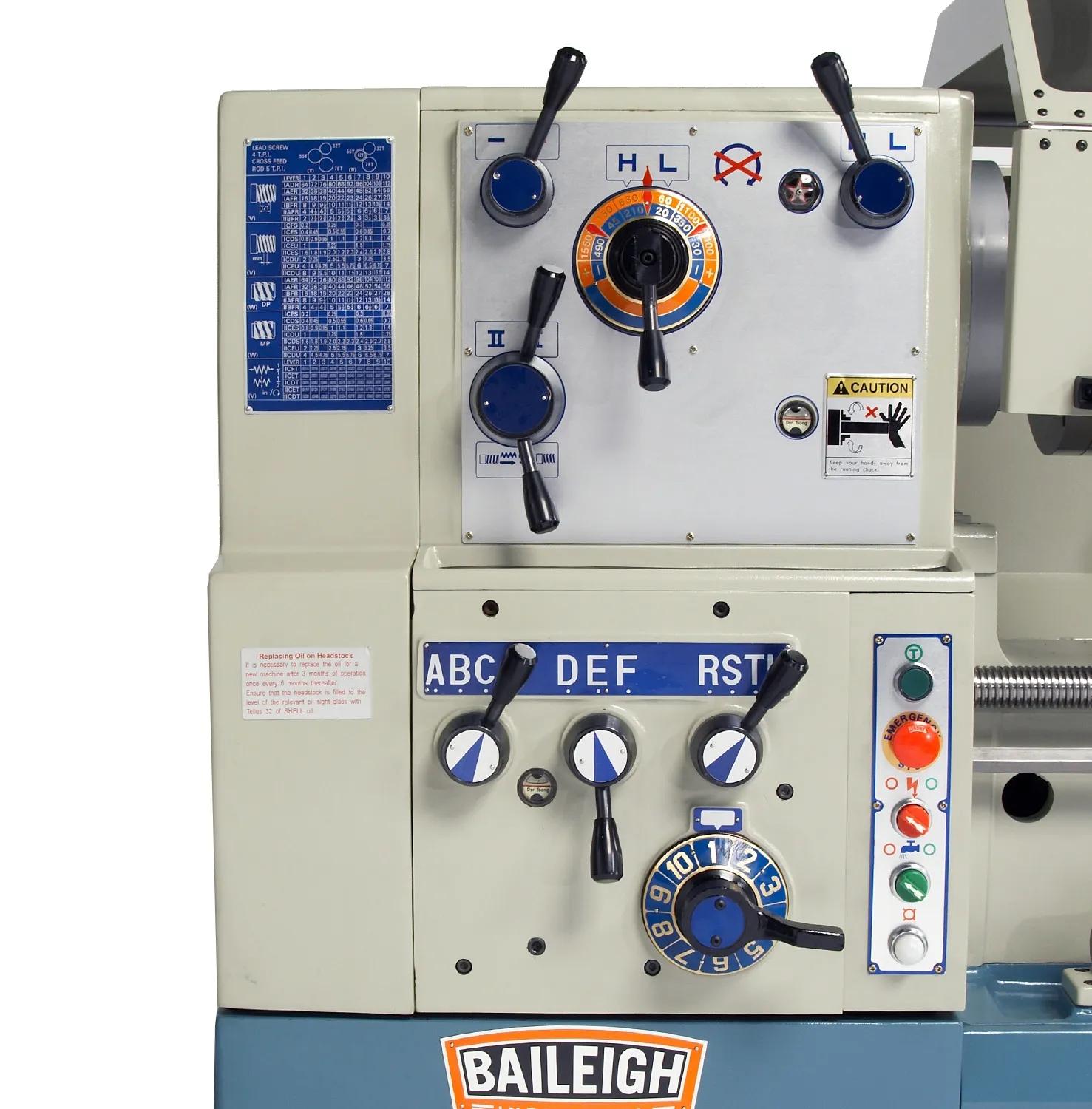

- Speed range: Offers 20–1550 RPM spindle speeds via geared headstock.
- Spindle bore: Includes a 3.125” spindle bore to handle larger bar stock.

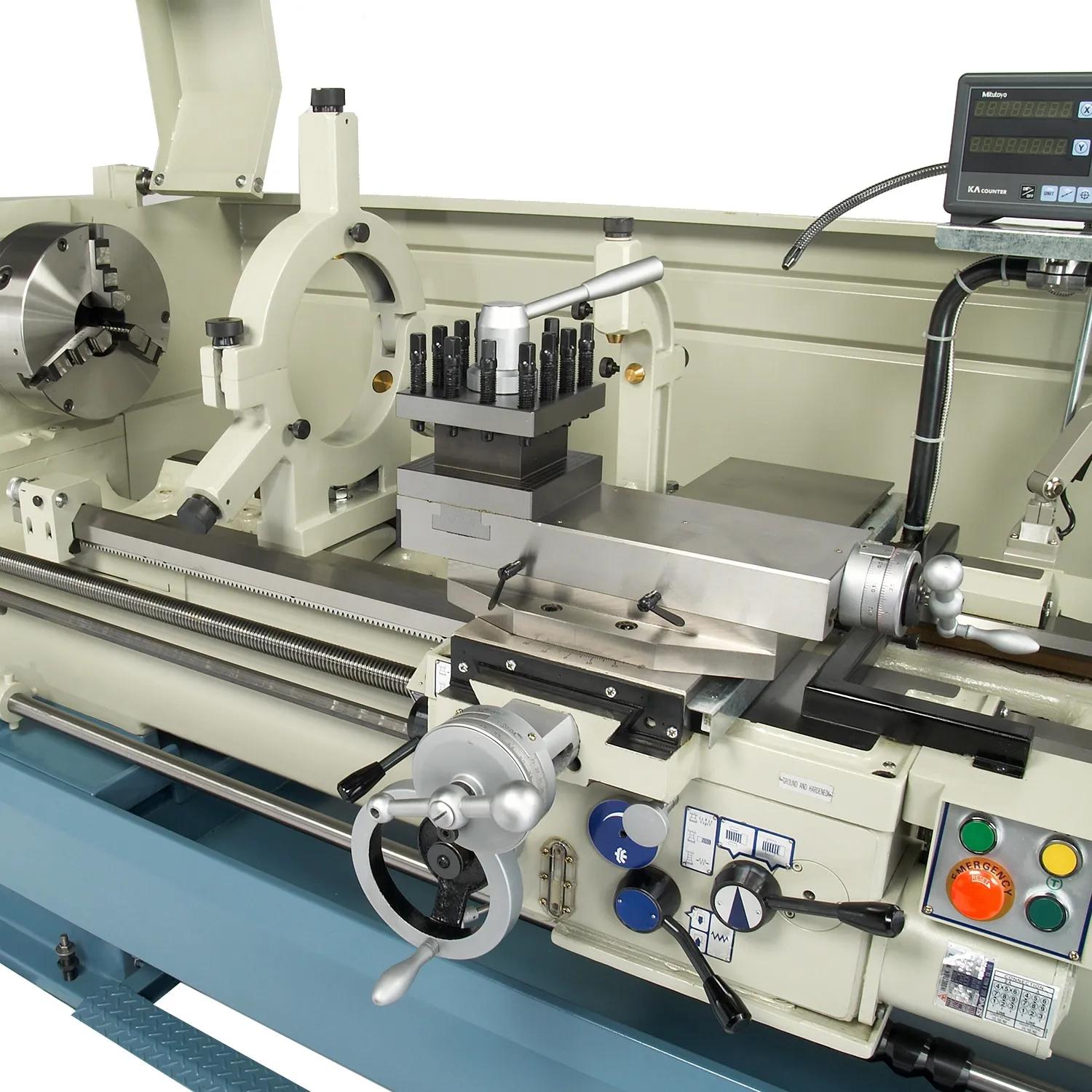

- Digital readout: Mitutoyo 2-axis DRO for accurate positioning and feedback.
- Cast-iron base: Heavy cast-iron frame and precision-ground ways ensure rigidity and stability.

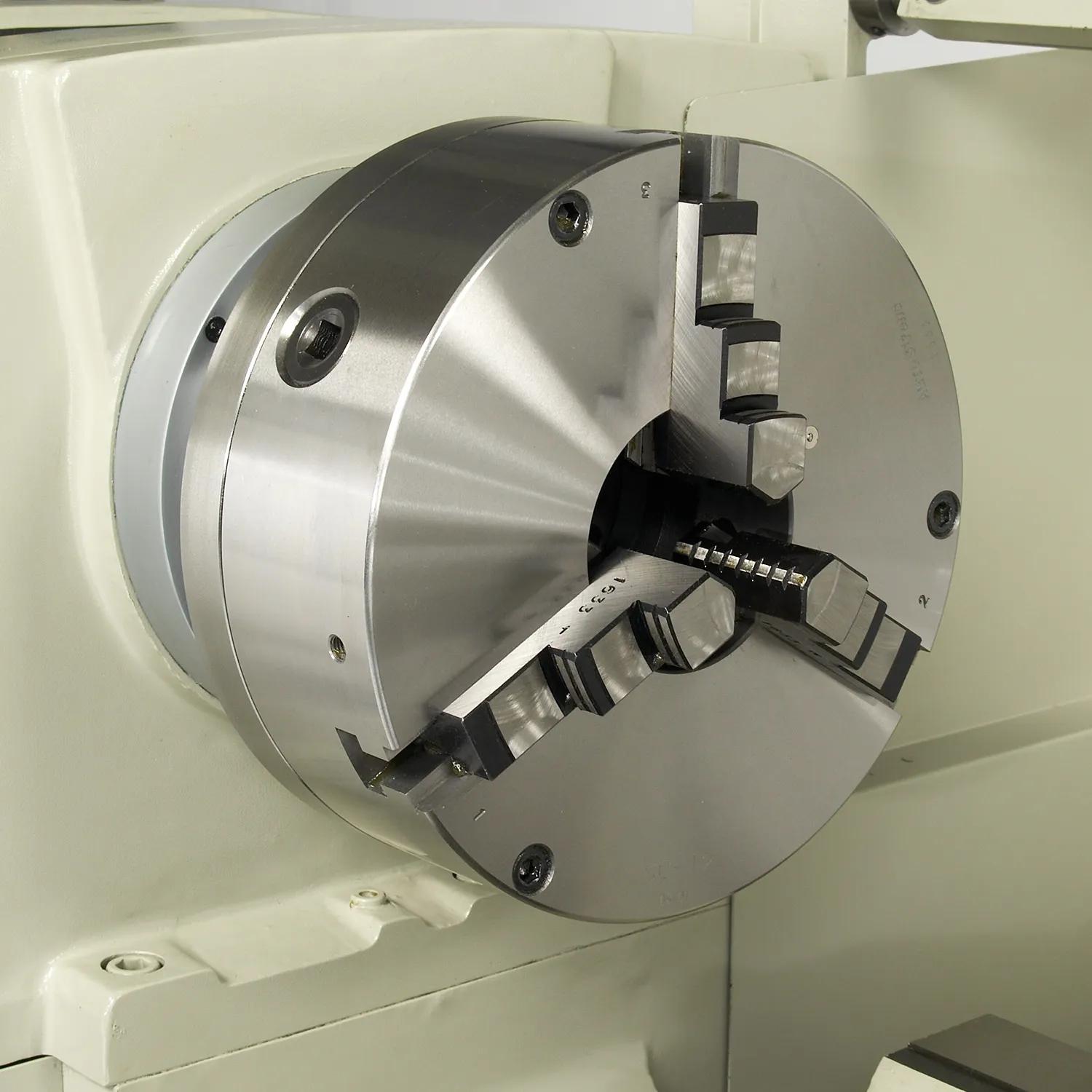

- Standard accessories: Comes with 3-jaw universal chuck, 10” back plate, micrometer saddle stop, steady rest and follow rest, and longitudinal rapid traverse.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006176
- Center Height10
- Compound Rest Travel10
- Digital ReadoutYes
- Distance Between Centers80 in.
- Gross Weight6050.0
- Horse Power (HP)15
- Input Power220V Three Phase
- Lead Screw Diameter1.5 in.
- Leadscrew Thread Pitch4 T.P.I.
- Longitudinal Feeds Imperial Qty Speed50 / .0014 in. - .0387 in. / rev.
- Longitudinal Feeds Metric Qty Speed50 / .037 - .983 mm / rev.
- Model NumberPL-2080
- Motor HP15
- Motor PhaseThree
- Net weight6050.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT7
- Range of Cross Feeds (MMPR)50 / .0185 - .52 mm / rev.
- Speed (rpm)20 – 1550 rpm
- Spindle Speeds20 to 1500 RPM
- Spindle Taper with SleeveMT5
- Swing Over Bed20 in.

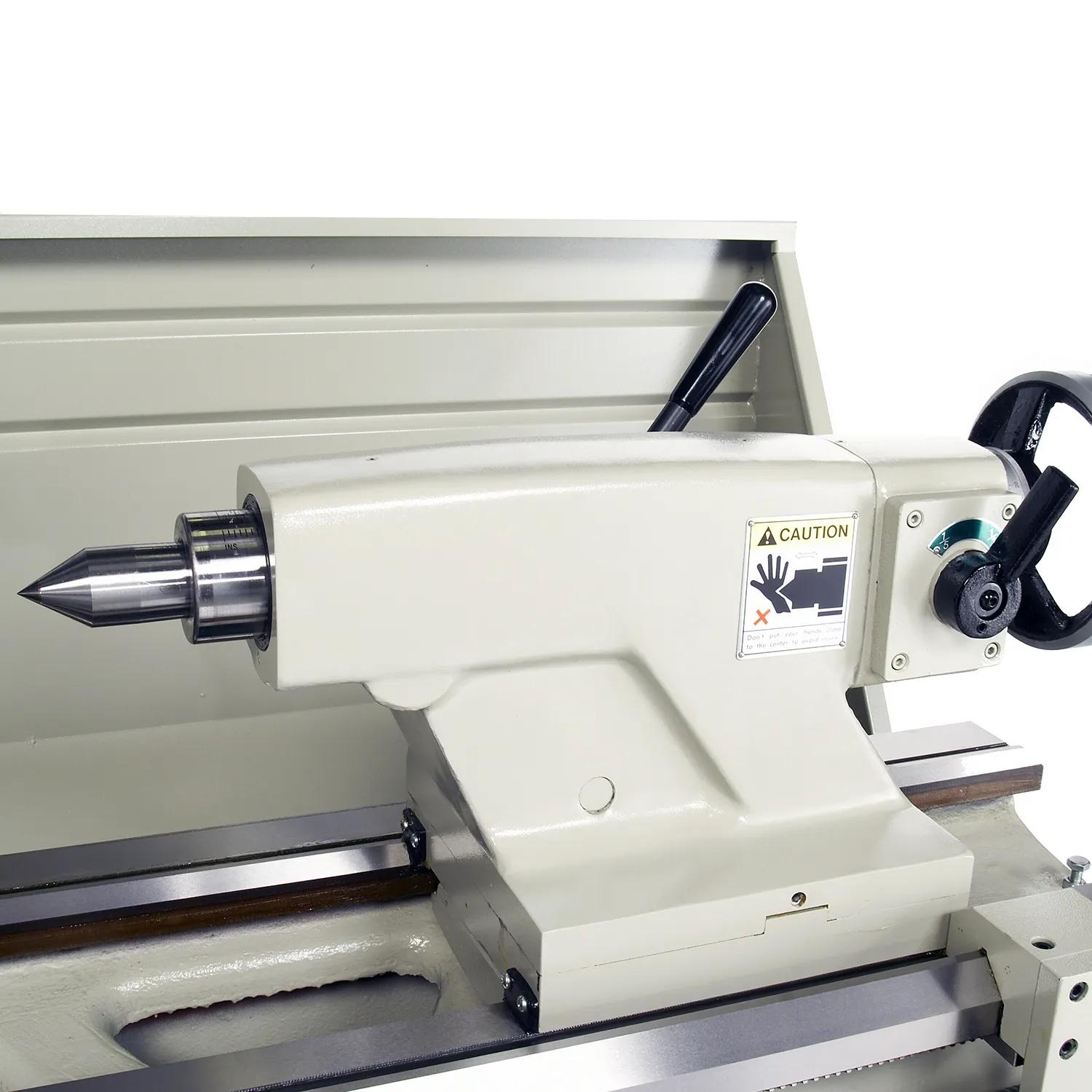

- Taper in Tailstock Spindle2.9375 in.
- Threads Diametrical Quality Speed (D.P.)50 / 4-112 D.P.
- Threads Imperial Quality Speed (T.P.I.)60 / 2-112 T.P.I.
- Threads Metric Quality Speed (mm pitch)60 / .2 - 14 mm pitch
- Threads Modular Quality Speed (M.P.)50 / .2 - 7 M.P.
- Warranty1 Year
