Power Bead Roller BR-18E-24

SKU: BA9-1000923

Call for Availability

$1,899.00 $
Leasing starts at $35 with Marlin Capital Solutions.
Calculate your monthly lease price

Questions? 1-844-477-7707


Built with foot pedal controls, this 16 gauge electric bead roller leaves your hands free to work the material. The industrial-grade motor, gearbox, and plate steel frame on the BR-18E-24 ensure accuracy.

  • 16 gauge mild steel and 14 gauge aluminum capacity.
  • 24” throat depth is perfect for 4’ x 8’ sheets of sheet metal, but the design still makes it simple for you to create intricate patterns.
  • Runs on 110-volt single-phase power, so you can plug it in almost anywhere.
  • Intuitive variable-speed foot pedal design: press harder to roll faster. Apply less force for slower, more careful forming.
  • Up to 30 rpm feed rate, which amounts to 280” per minute.

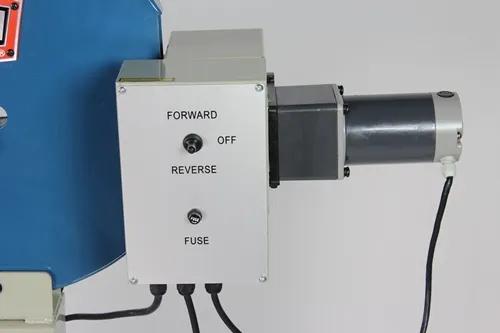

  • Rolls can run forward or in reverse. Just flip the switch to change direction.

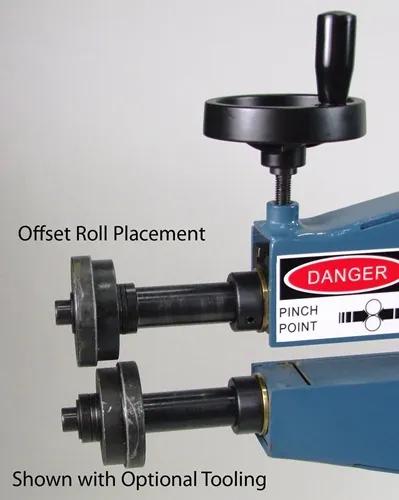

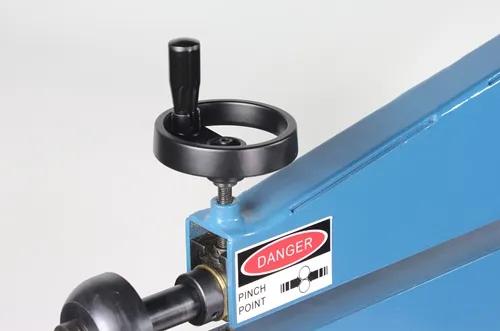

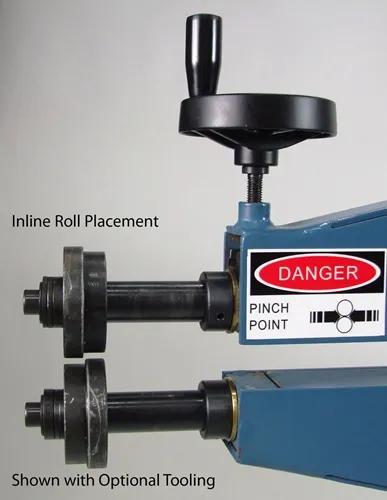

  • Adjustable top roll lets you set your desired forming depth.
  • Depth stop within the throat helps you make straight, repeatable beads.
  • We offer tooling to fit most applications. See our bead roller dies for the BR-18E-24.

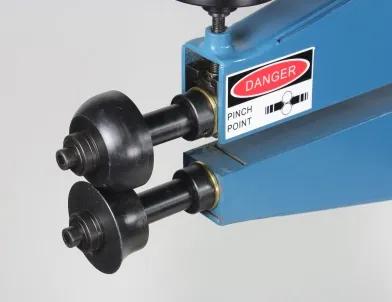

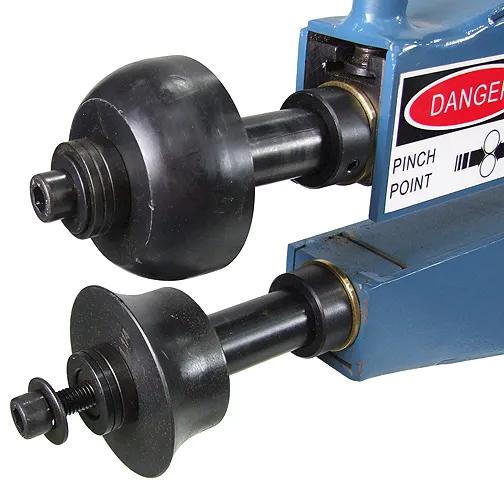

  • ¾” shaft diameter is compatible with most commercial roll sets.

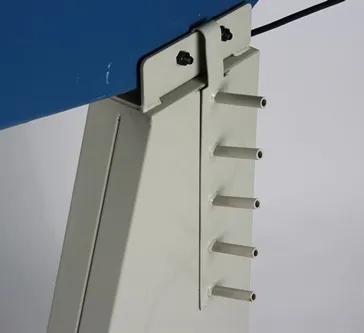

  • Robust steel floor stand includes a rack for roll sets.
  • All moving parts turn on long-lasting bronze bushings with grease fittings for convenient maintenance.
  • Fully welded plate steel frame keeps the bead roller rigid, so it makes quality profiles over many years of use.
  • Covered by a 1-year parts warranty.
  • We include lifetime technical support by phone. Call our team of experienced metalworkers when you have questions or problems.
  • This sheet metal bead roller and its parts are almost always in stock for fast deliveries.

Recommended for: Fabricators or shops looking for a fast and easy way to make beads and profiles.

You can add an optional worktable to this bead roller machine.

Questions? Not sure which bead roller is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.


Item Number BR-18E-24
Motor Hp 1/8 hp
Max. Thickness (Mild Steel) 16 gauge
Roll Holder Included
Throat Depth 24"
Stand Included
Adjustable Depth Stop Included
Power 110V
Shipping Weight 200lbs
Shipping Dimensions (Inches) 50x23x23

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Q & A

What bead roller dies do I need?

That depends on your application, but here’s our recommended list of bead roller dies that every shop should have:

Those tooling profiles should cover most projects. For more specific advice about bead roller tooling, call us at 1-920-684-4990.

Do you have bead roller tooling made of materials other than metal?

Yes, we have many nylon bead roller dies available. Browse tooling for the BR-18E-24.
