Product Details
Industrial Construction: The Baileigh PR-609 Plate Roll is a hydraulically powered plate forming machine built with an industrial-grade hydraulic system and a fully welded steel frame for long-term durability and alignment during forming operations.
Performance & Control: Featuring a 3 HP, 220 V 3-phase motor, the PR-609 delivers consistent hydraulic power to the forming rolls and back roll movement across its 72″ forming width, with intuitive controls for reliable operation.

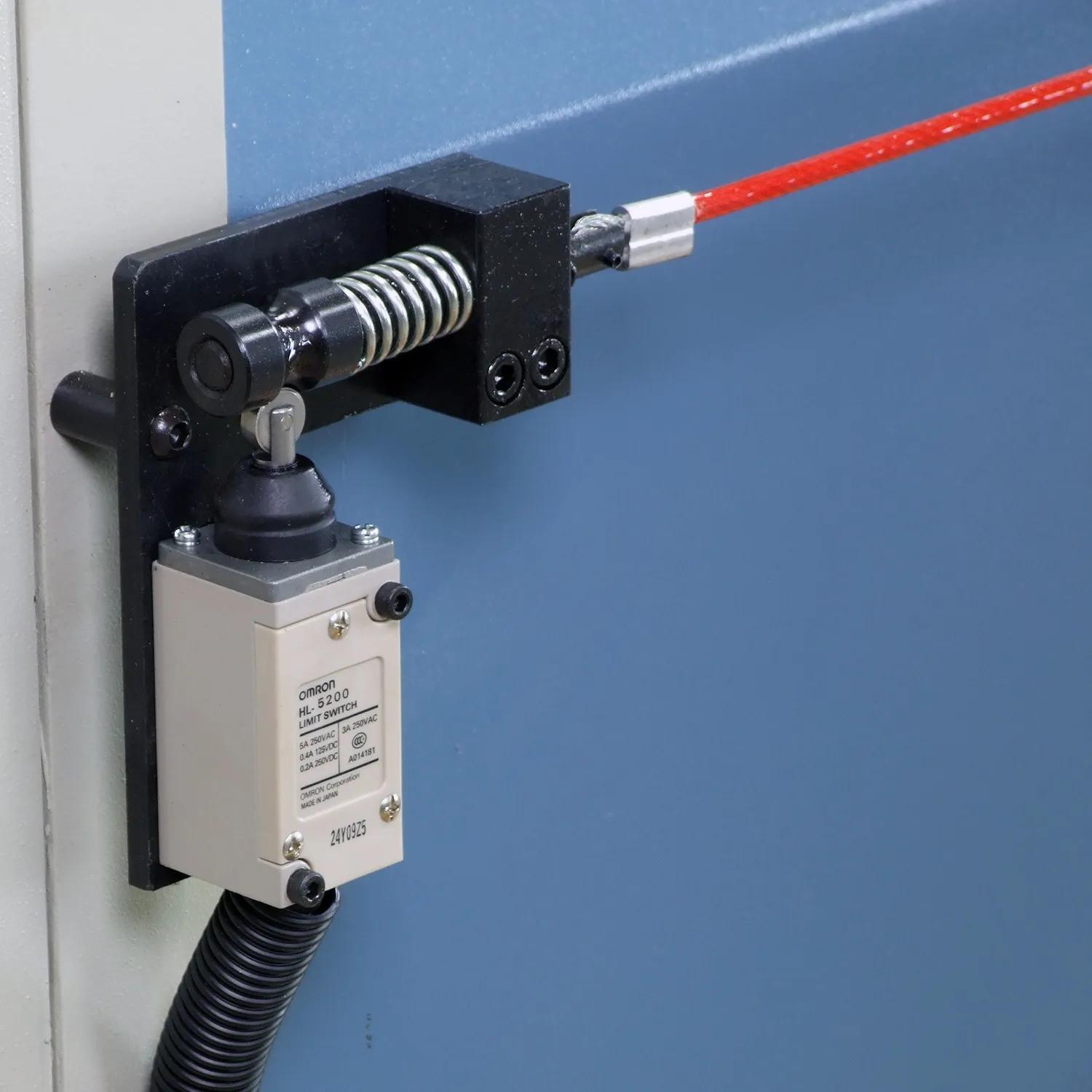

Shop Versatility: Designed for fabrication shops and metalworking environments, this plate roll includes a foot pedestal for basic bending controls, a digital back roll position indicator for repeatability, and safety features for continuous use.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Forming Width: The PR-609 provides a 72″ forming width for rolling large plate sections.
- Mild Steel Capacity: This machine bends up to 9 gauge mild steel with consistent results.

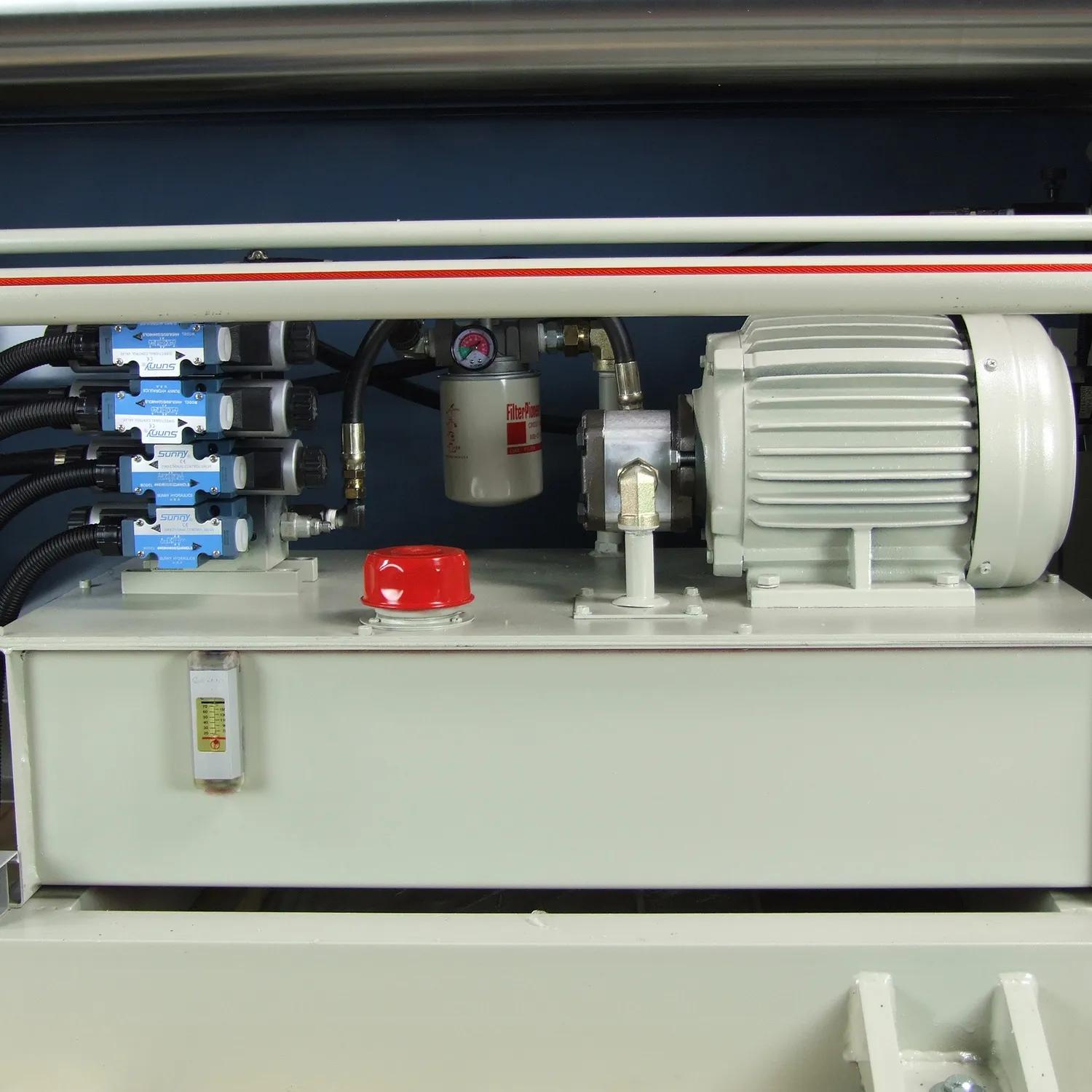

- Motor Power: A 3 HP motor supplies hydraulic power to all driven functions.
- Power Requirement: The unit runs on 220 V 3-phase power for industrial compatibility.

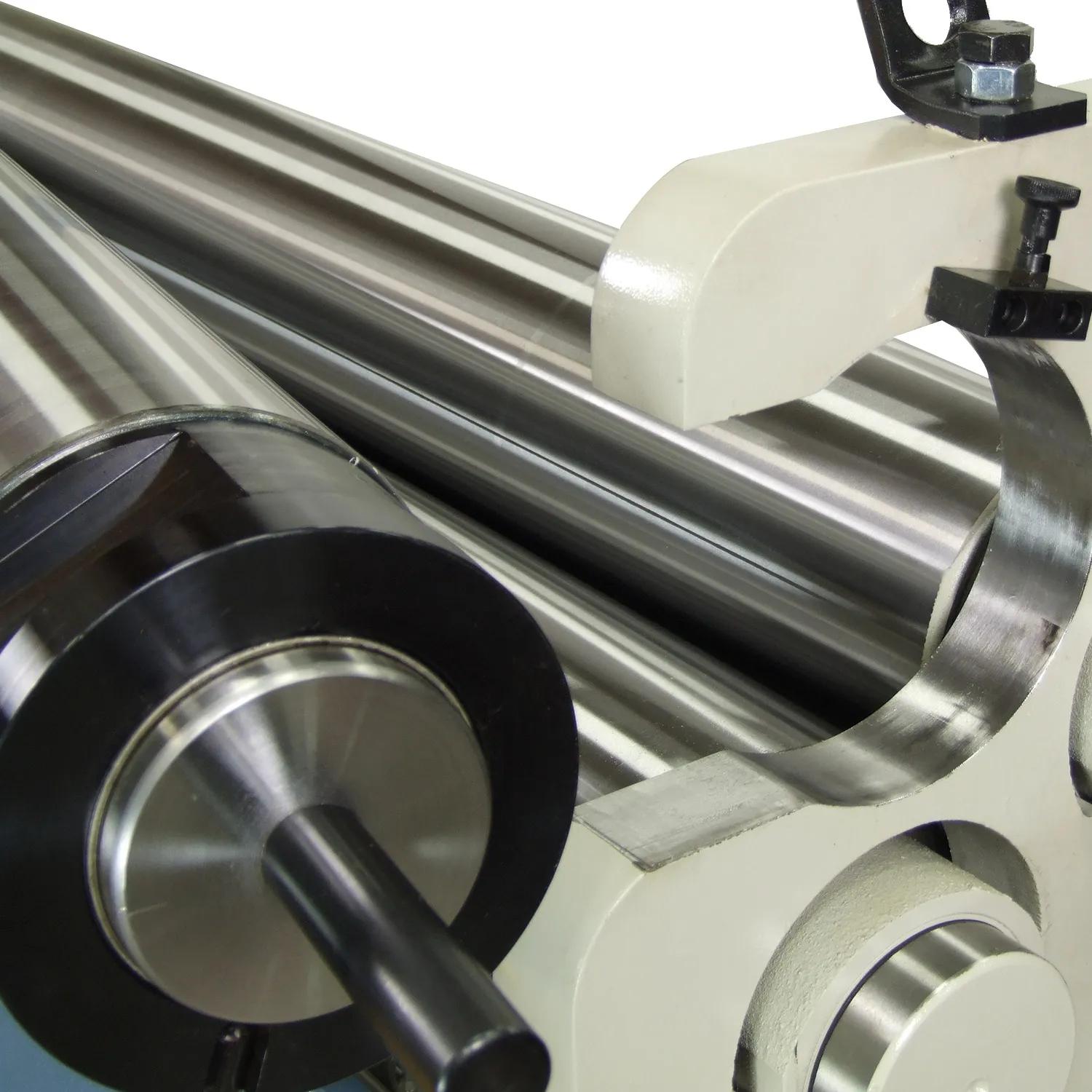

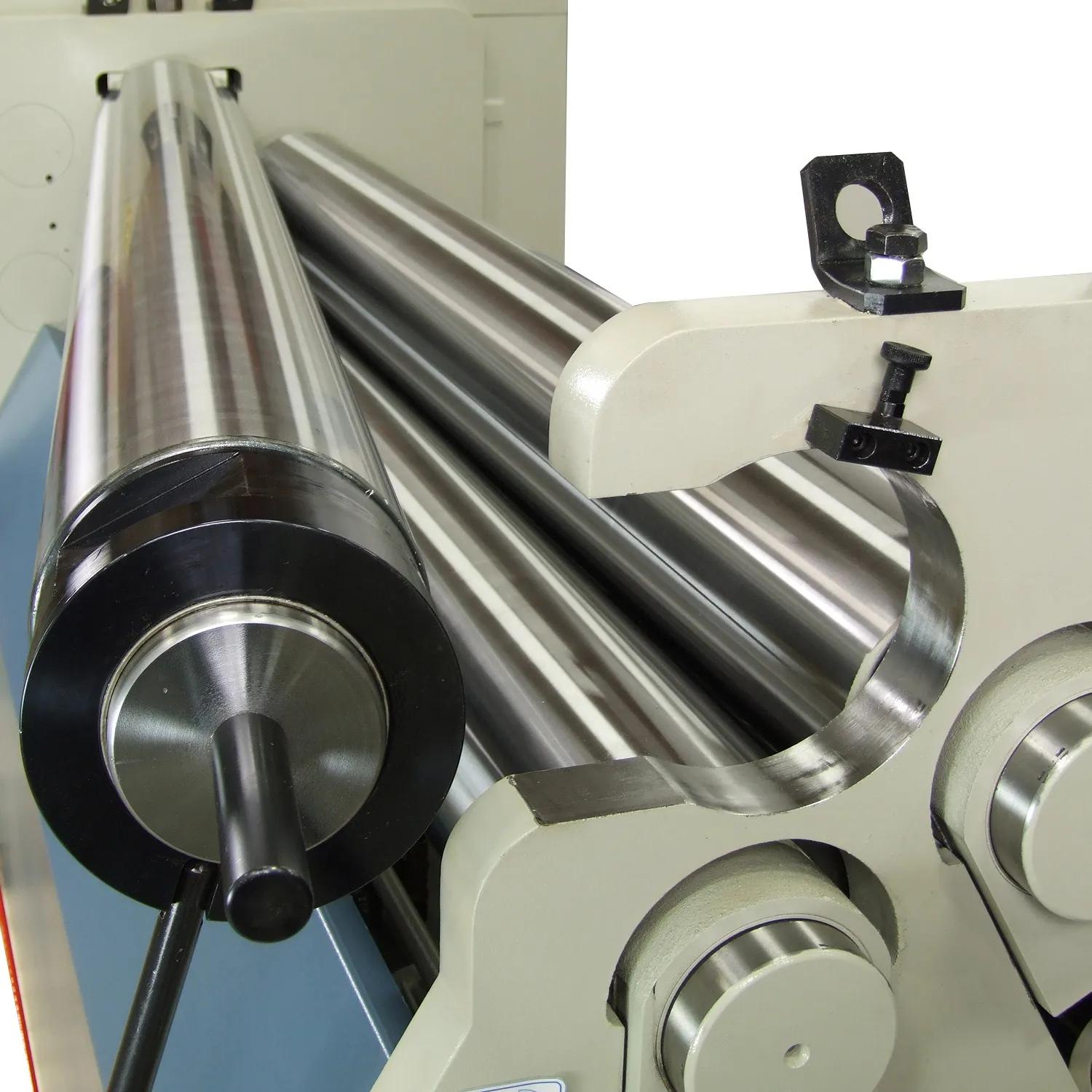

- Driven Rolls: Three driven rolls work in concert for smooth and controlled forming.
- Hydraulic Back Roll: Hydraulic back roll movement allows vertical adjustment during bending.

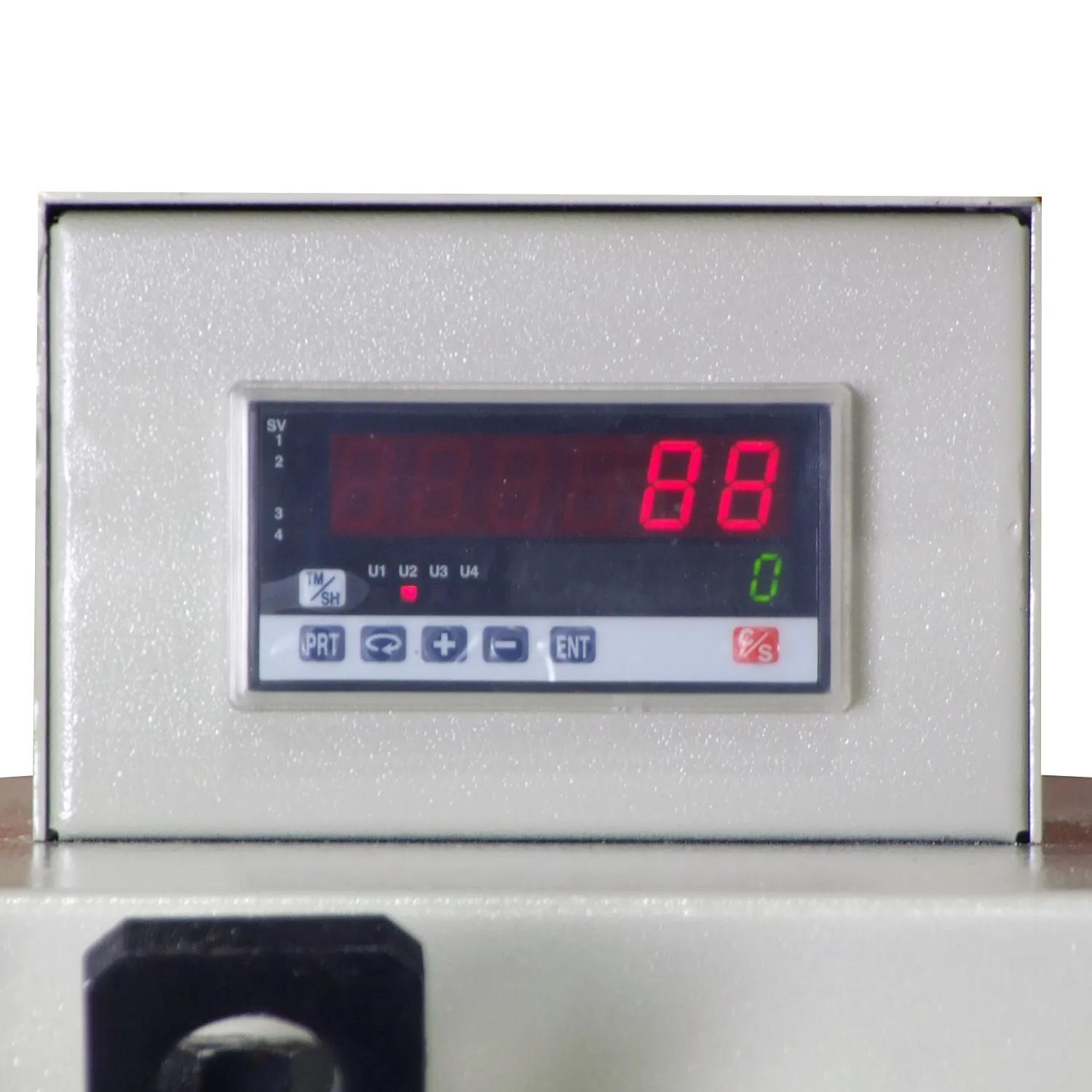

- Digital Readout: A digital readout displays back roll position for repeatable bends.
- Operator Controls: A foot pedestal provides forward, reverse, and roll functions.
- Frame Construction: The fully welded steel frame maintains roll alignment under load.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006577
- Bending Capacity - Length (Inch)72
- Gross Weight4600.0
- Input Power220V Three Phase
- Maximum Forming Length (In.)72
- Mild Steel Capacity (Gauge)9
- Mild Steel Capacity (Gauge)9 ga. (.150 in.)
- Model NumberPR-609
- Motor HP3
- Net weight4600.0
- Old Material Number1006577
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Warranty1 Year
