Plate Roll PR-409

SKU: BA9-1006517

Call for Availability

$22,229.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $363 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description

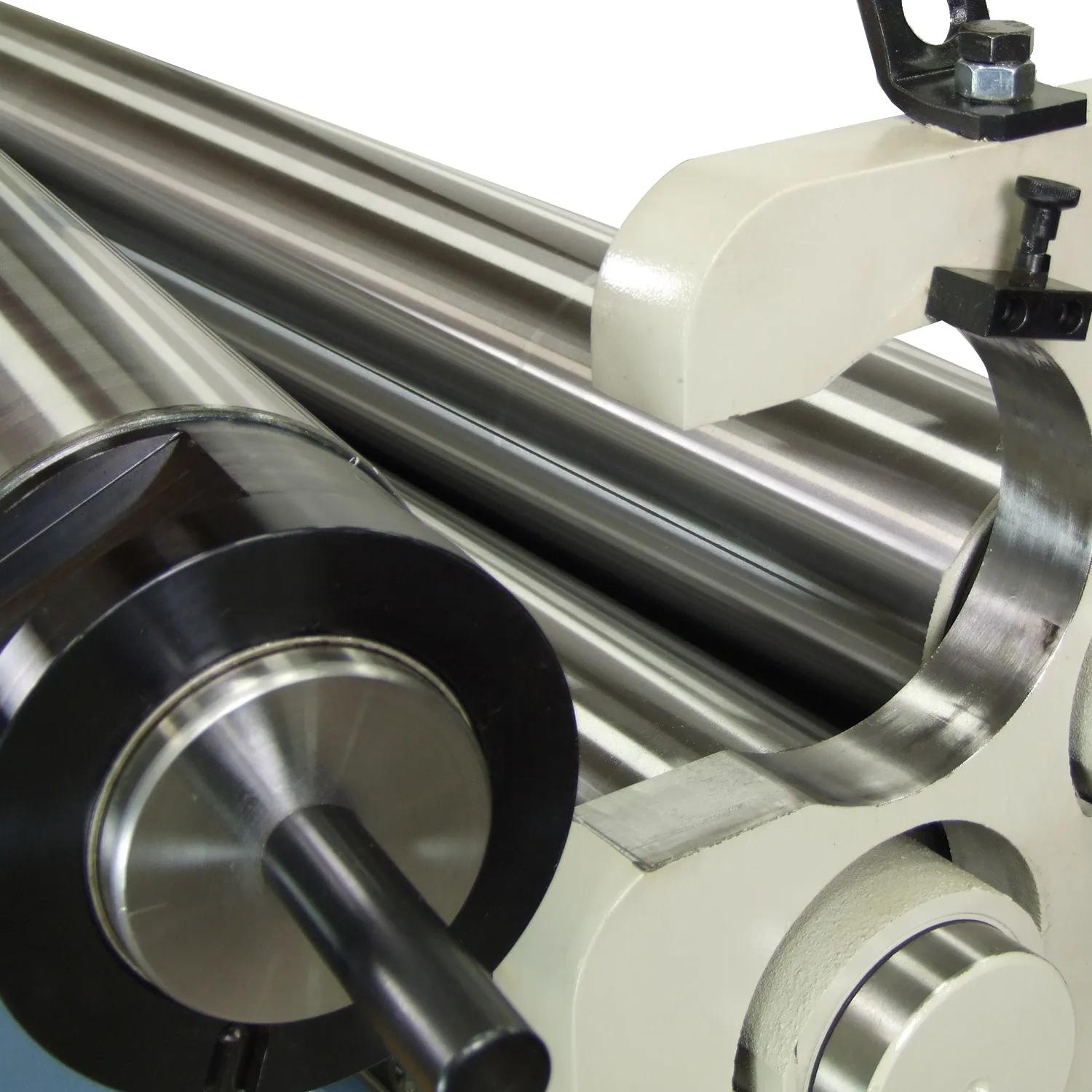

With 3 driven rolls, the PR-409 single-pinch hydraulic plate roller cuts down on forming time so you can get jobs done faster.

  • 4’ forming width.
  • Can bend 9 gauge mild steel into a 7” ring on its full length.

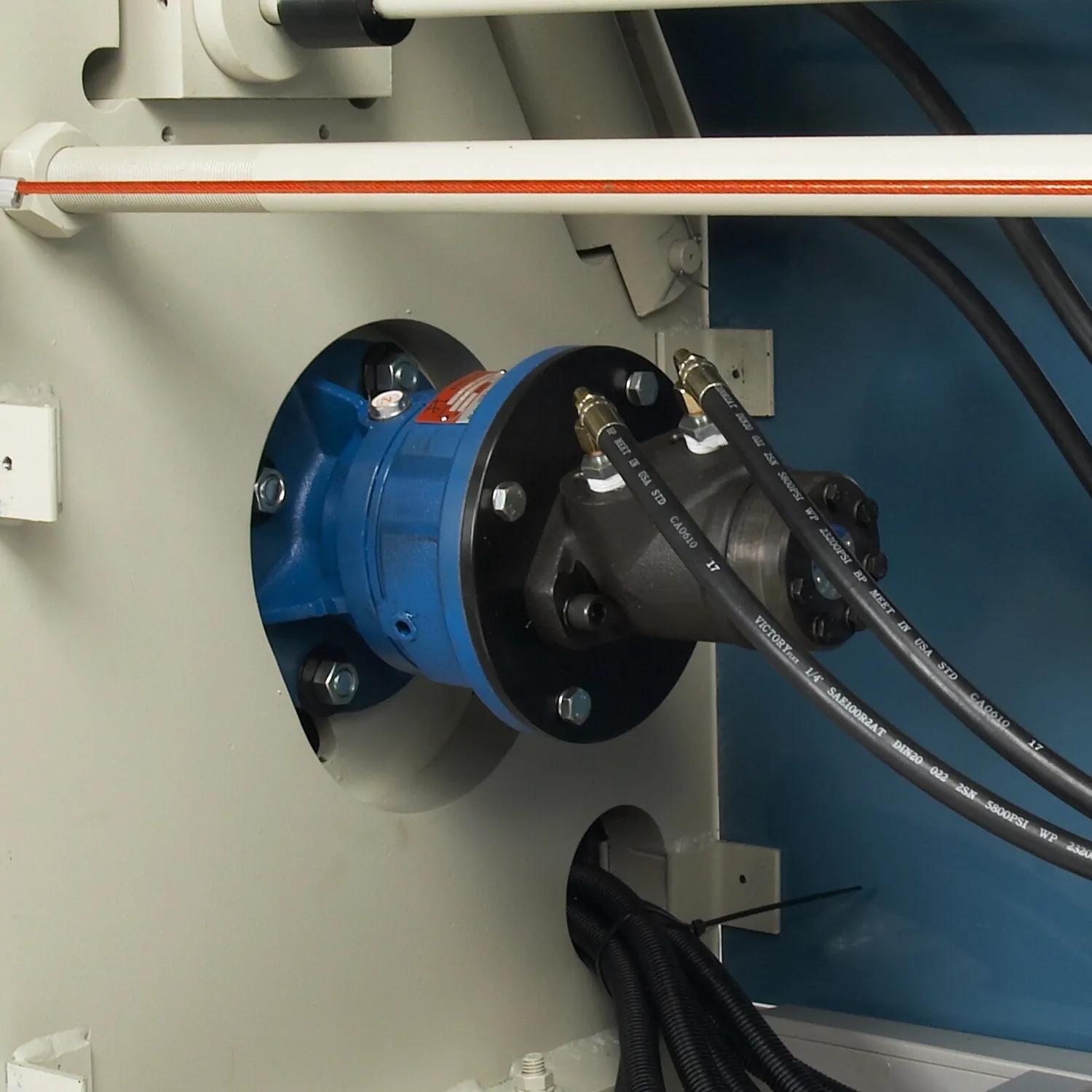

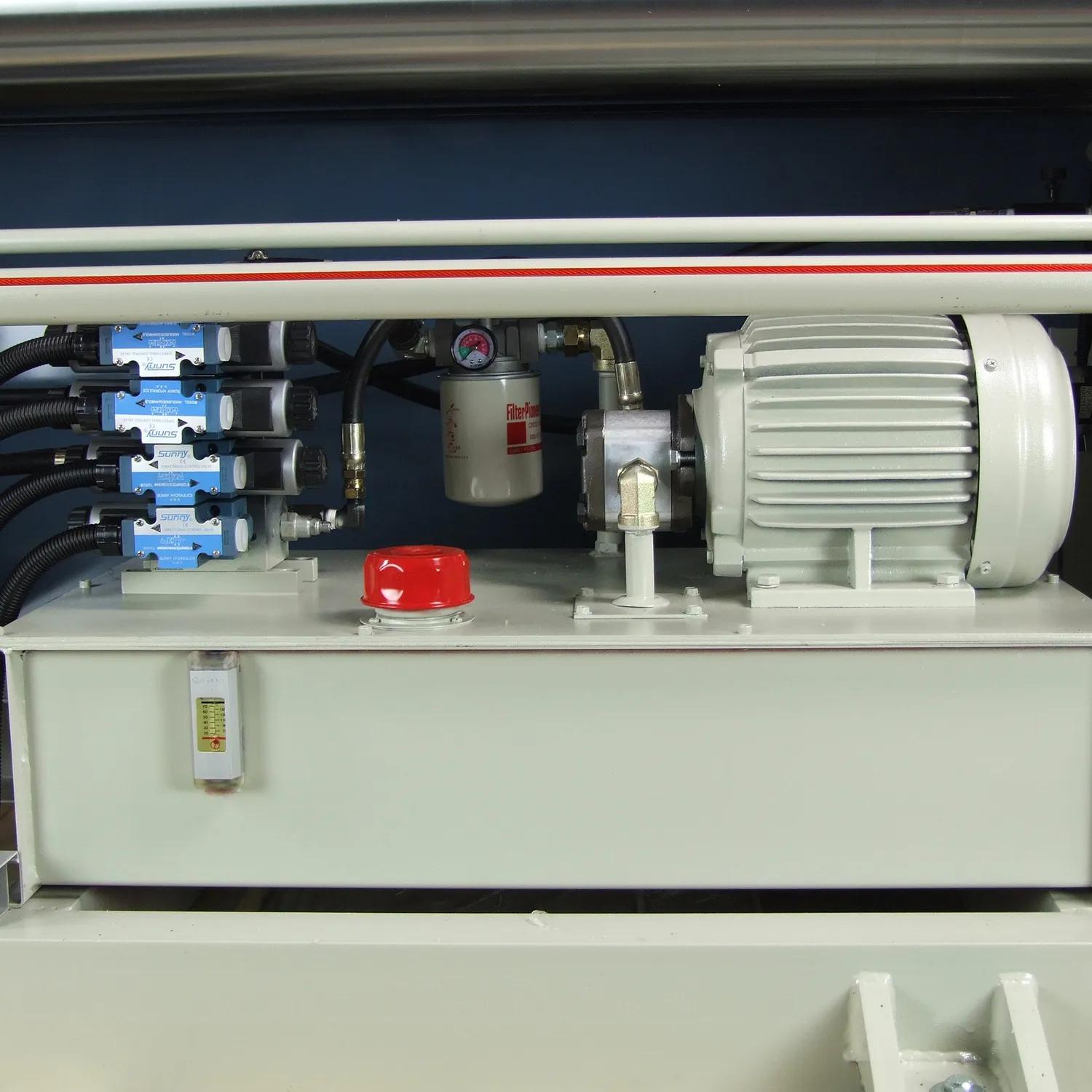

  • Operated entirely by an industrial-grade hydraulic system.
  • 2 hp 220-volt 3-phase motor controls the movement of the back roll and the rolling of all 3 forming rolls.

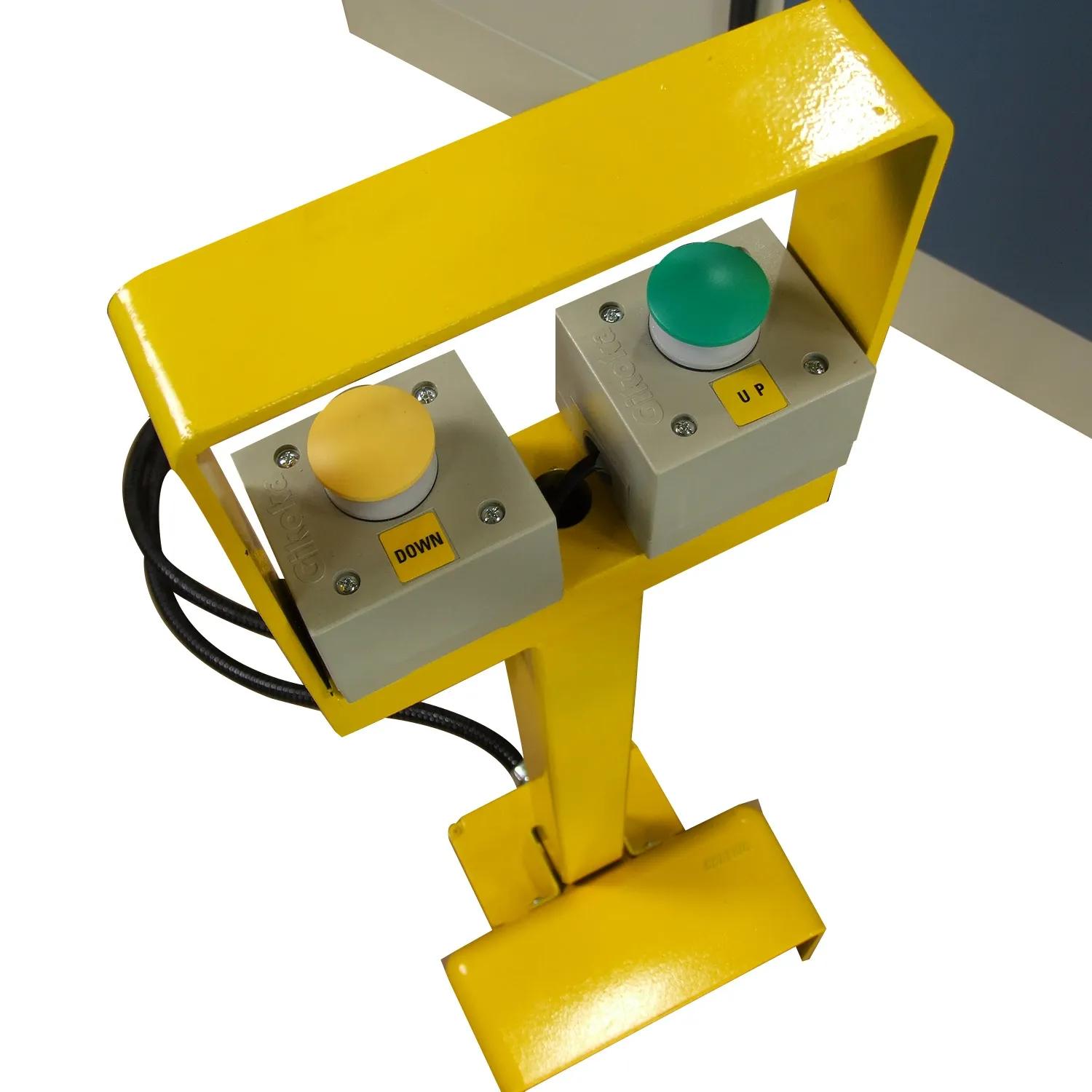

  • Convenient control pedestal includes forward and reverse foot pedals and buttons to control the up and down movement of the back roll.

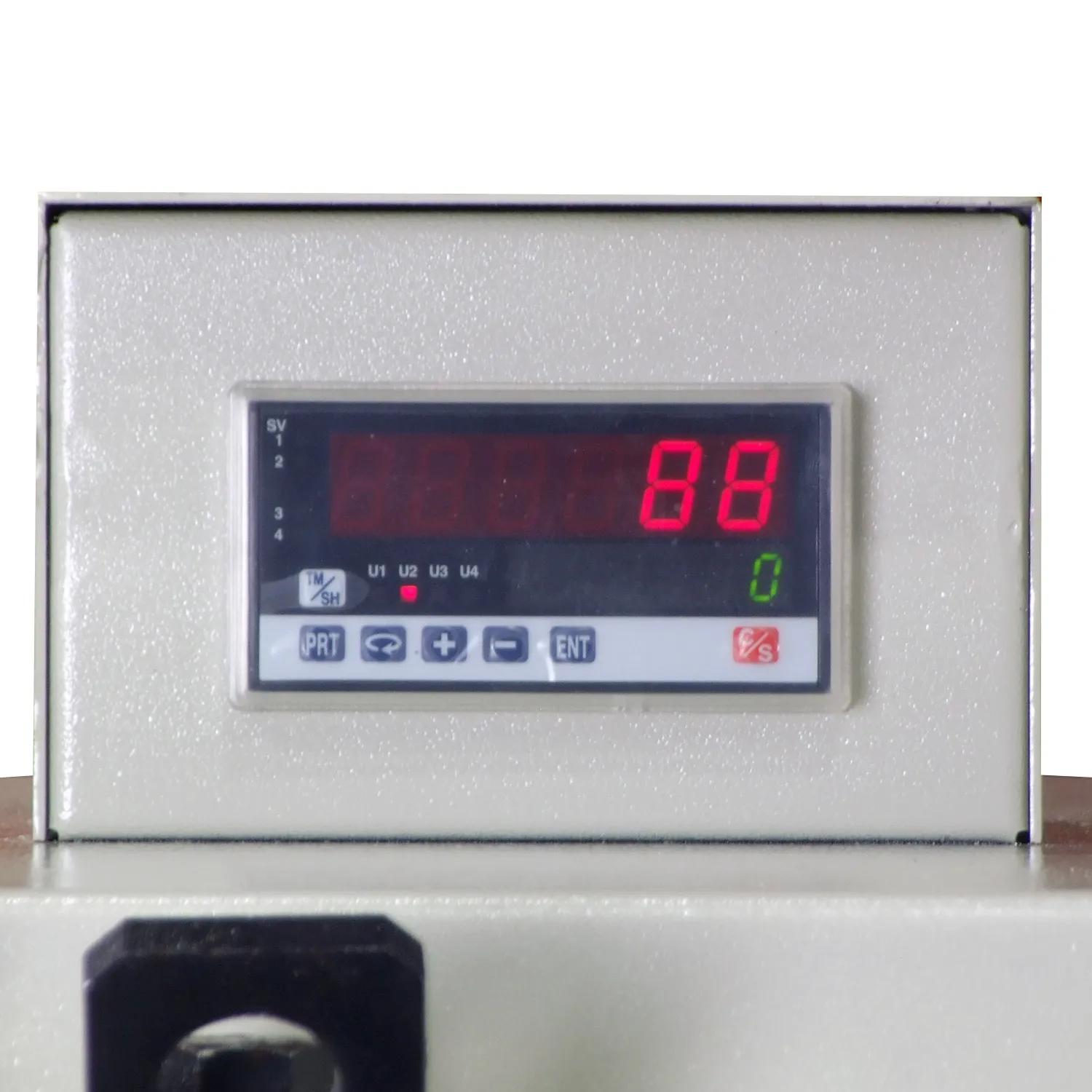

  • Digital readout shows the position of the back roll for easy repeatability.
  • Full steel frame, machined to exacting tolerances, maintains accuracy and prevents deflection.

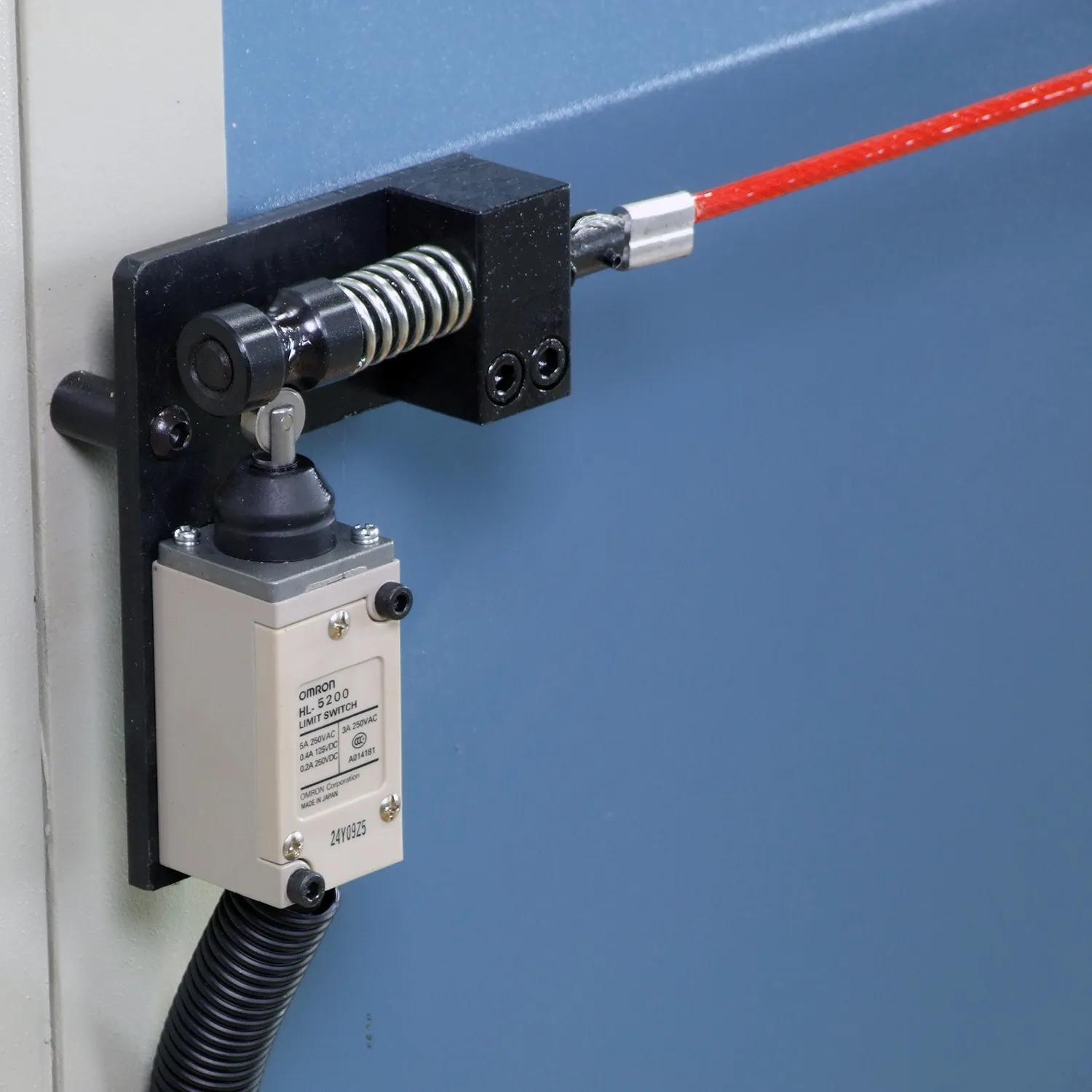

  • Emergency stop cables on the front and back of the machine help to keep your shop safe.
  • Covered by a 1-year parts warranty.
  • Comes with lifetime technical support by phone. Call us and talk to a Baileigh rep with hands-on metalworking experience.



An optional coning attachment is available for the PR-409 hydraulic plate roller.



Questions? Not sure if this hydraulic plate roller is right for you? Call us at 1-920-684-4990 and talk to a Baileigh technical sales specialist.



Specifications

Item Number PR-409
Forming Width 48"
Roll Speed 5.85 rpm.
Upper Roll Dia. 4.75"
Roll Adjustment Back Hydraulic
Minimum Forming Dia 7.125"
Motor 2 hp
Included Accesories Included Accesories
Capacity (Mild Steel) 9 ga. (.150")
Power 220V / 3-phase
Shipping Weight 3590lbs
Shipping Dimensions (Inches) 98x39x60

* specifications subject to change without notice.
