5HP Wet Dust Collector, 460V 3PH (MWDC-550H)

The Baileigh MWDC-550H is the 460V/3-phase version of Baileigh’s 5 HP wet dust collector, purpose-built for shops handling reactive or fine-particle metals where dry filtration falls short.

Its water-based separation captures sub-5-micron dust and polishing fumes, while 3,100 CFM of airflow and 15,151 FPM of velocity provide strong extraction at a quiet 75dB from 5 feet.

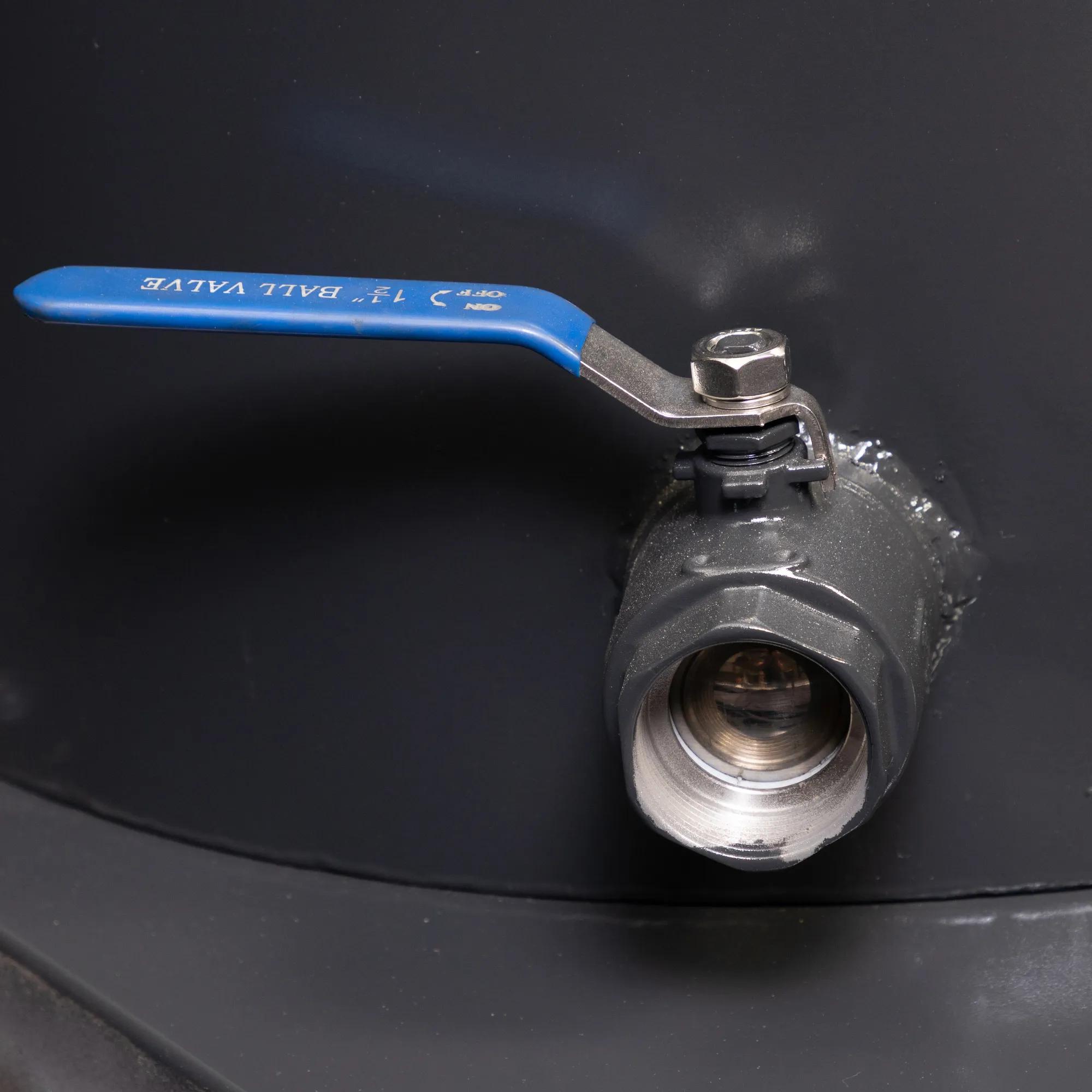

A 45L/70L capacity drum with an easy-view water level window and drain valve keeps maintenance straightforward. Built to support NFPA 660 combustible dust compliance, the MWDC-550H draws just 4.5A at 460V (10A breaker) and includes a 1-year parts warranty plus Baileigh Lifetime Technical Support.

Industries & Who It's For

Fabrication Shops

Typical work: Multi-material finishing where wet collection is required by the material — aluminum, titanium, stainless.

What they need: Needs a wet system matched to reactive or fire-sensitive materials.

Industries: Construction, Agriculture, Appliance Mfg, HVAC

Precision Machining

Typical work: Grinding and polishing dust extraction on reactive alloys in 460V facilities.

What they need: Needs multi-material-ready collection with 3,100+ CFM and fine-particle capture.

Industries: Aerospace, Medical Devices, Automotive, Electronics, Defense

Specialty MRO

Typical work: Multi-station dust collection on mixed and reactive materials.

What they need: Needs a system that reduces fire risk while keeping the shop clean.

Industries: Marine, Oil & Gas, Power Generation, Rail

Common Applications

•       Combustible / reactive metal dust collection: titanium, aluminum, copper, brass, and stainless — filters the smallest particles and reduces reactivity potential.

•       Sticky dust & fine sub-micron dust collection: supports NFPA 660 compliance and handles materials that would otherwise clog a dry filter.

•       460V facilities: the lower amp draw (4.5A vs. 9A at 230V) simplifies electrical planning in higher-voltage shops.

Works with: Titanium, Aluminum, Copper, Brass, Stainless Steel

Warranty & Support: 1-year parts warranty plus Baileigh Lifetime Technical Support
