13" x 40" Gear Head Engine Lathe (PL-1340E-1)
13" x 40" Gear Head Engine Lathe (PL-1340E-1)
13" x 40" Gear Head Engine Lathe (PL-1340E-1)
13" x 40" Gear Head Engine Lathe (PL-1340E-1)
13" x 40" Gear Head Engine Lathe (PL-1340E-1)
13" x 40" Gear Head Engine Lathe (PL-1340E-1)

13" x 40" Gear Head Engine Lathe (PL-1340E-1)

Stock Number: BA1-11223

0 Reviews

No reviews yet.

  • 2-Axis SINO DRO
  • CSA/UL Certified
  • Swing Over Gap: 16.9”
  • 1-Year Parts Warranty
$9,999.00

Financing Starting at $195 per month -

Contact a Specialist - (920) 684-4990

Product Details

13” x 40” Manual Metal Lathe | 2HP Single Phase | 2” Spindle Bore | 2-Axis DRO | UL Certified

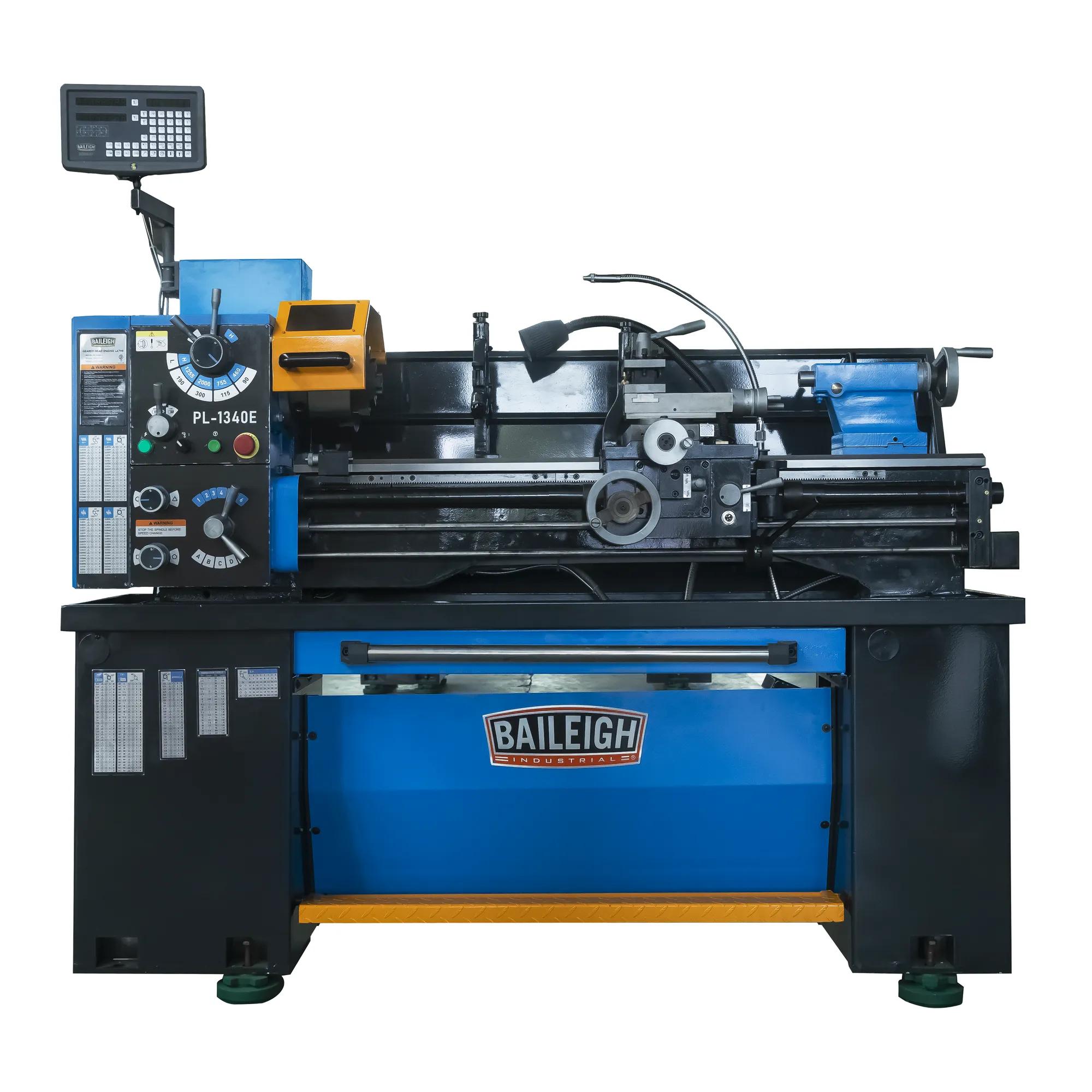

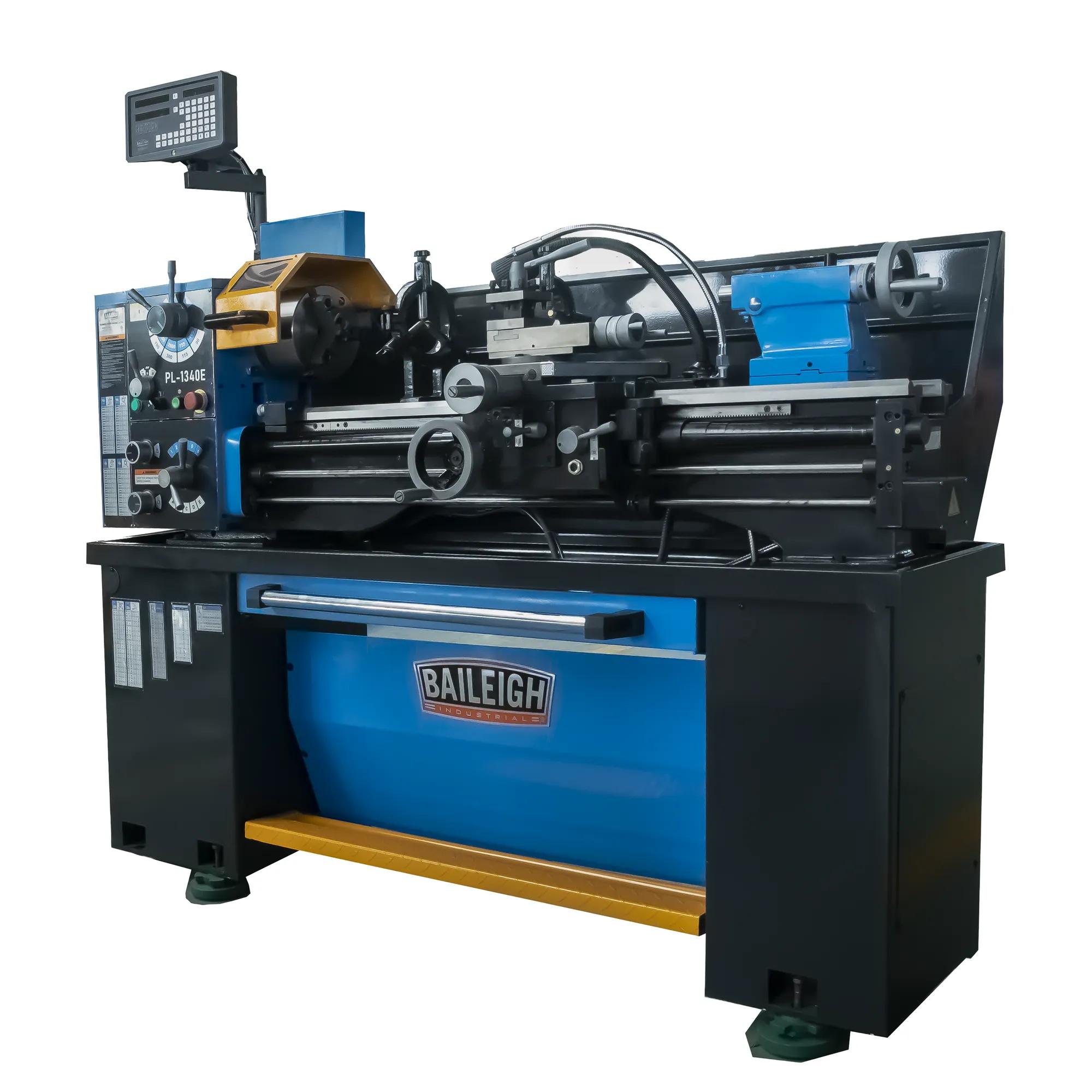

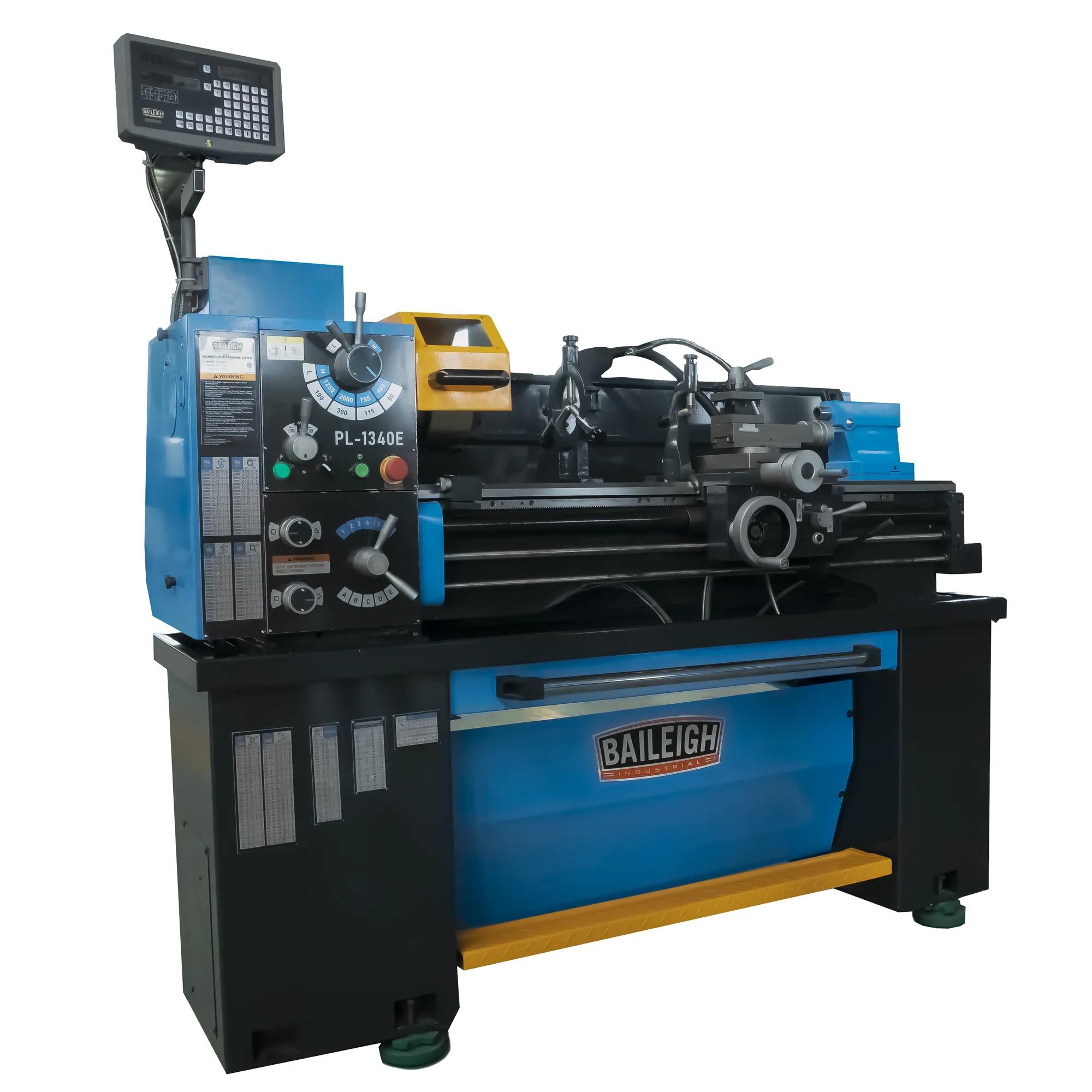

The Baileigh PL-1340E-1.0 is a heavy-duty 13” x 40” gear head engine lathe engineered for production shops, maintenance departments, fabrication facilities, and technical training programs that demand reliable turning power with built-in safety and digital precision.

Designed to deliver consistent torque and smooth operation, this manual metal lathe combines geared-head performance with modern shop features including a 2-Axis SINO digital readout, integrated coolant containment, and CSA/UL electrical certification.

Whether you're upgrading an older belt-driven lathe or expanding your shop’s manual machining capacity, the PL-1340E-1 provides controlled power, increased bar capacity, and shop-ready safety features without unnecessary complexity.

Built for Performance and Control

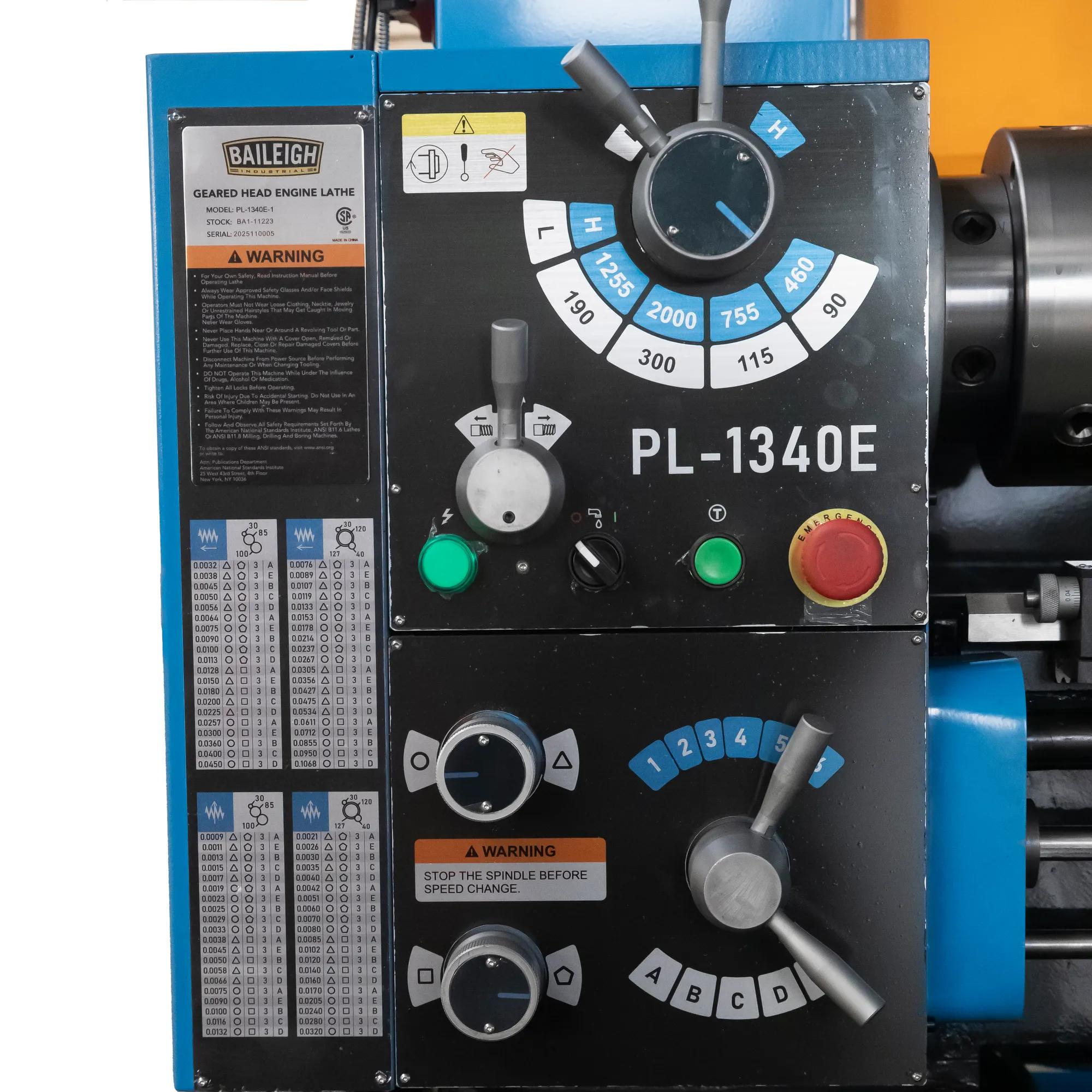

Powered by a 2 HP, single-phase motor, the PL-1340E-1 offers 8 spindle speeds ranging from 70–2000 RPM, allowing operators to dial in the correct speed for heavy roughing or fine finishing.

A large 2” spindle bore increases through-spindle capacity, reducing secondary operations and expanding the range of workpieces you can machine efficiently.

The D1-5 spindle nose ensures secure chuck mounting and repeatable accuracy.

With a 16.9” swing over gap, this lathe provides added flexibility for larger diameter work

Standard Safety & Compliance Package

The PL-1340E-1 comes equipped with integrated safety features designed for industrial and educational environments:

  • Foot brake for rapid spindle stopping

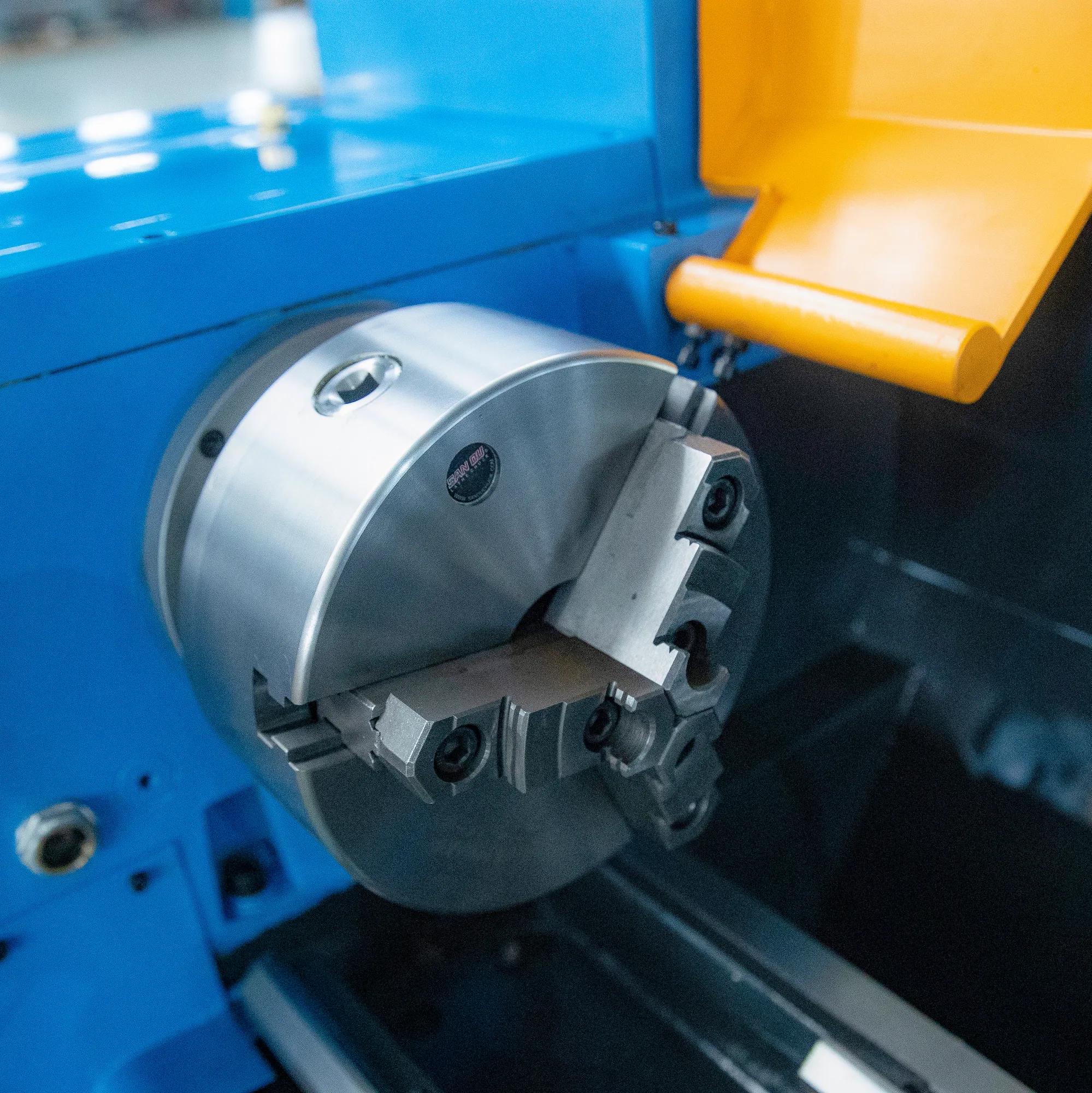

  • Chuck guard at the point of operation
  • Lead screw cover for operator protection
  • Full-length splash guard & chip tray to contain coolant and debris
  • CSA/UL certified electrical system for compliance requirements

These features make it suitable for regulated workplaces and vocational training programs.

Digital Precision Included

The included 2-Axis SINO Digital Readout (DRO) provides real-time X and Y axis feedback, helping operators:

  • Hit dimensions faster
  • Reduce manual measurement errors
  • Minimize scrap
  • Improve repeatability

Why Choose the Baileigh PL-1340E-1.0?

If you need a 13x40 manual metal lathe that combines traditional geared-head strength with modern safety compliance and digital precision, the PL-1340E-1 delivers industrial reliability without unnecessary complexity.

It’s a dependable solution for shops that demand performance, precision, and long-term durability in a single-phase platform.

Features

  • The geared-head design transfers torque efficiently for authoritative cuts without belt slippage or power loss.
  • 2” Spindle Bore - Run larger diameter stock through the headstock to reduce prep time and eliminate unnecessary secondary machining
  • The included SINO digital readout gives precise X and Y axis feedback in real time, reducing scrap and speeding setup
  • Standard foot brake, chuck guard, and lead screw cover help reduce preventable operator mistakes while maintaining productivity
  • Integrated splash guard and chip tray manage coolant and debris at the source, minimizing cleanup and supporting longer production cycles
  • CSA/UL certification ensures electrical safety standards are met for commercial, industrial, and educational facilities
  • Cast-iron base: Rigid cast-iron construction and precision-ground bed ways enhance stability and accuracy.

Specifications

  • SKU
    BA1-11223
  • Amp Draw (amps)
    15
  • Assembled Dimensions
    76 in. x 40 in. x 62 in.
  • Bed Height (In.)
    11.41"
  • Center Height
    6.5 in.
  • Chuck Size (In.)
    8"
  • Compound Slide Travel (In.)
    3.9"
  • Cross Slide Travel (In.)
    6.7 in.
  • Cutting Tool Max Section
    .625 in. x .625 in.
  • Diametral Pitch Threads Number
    8 – 120DP
  • Digital Readout
    Yes
  • Distance Between Centers
    40 in.
  • Gross Weight
    1278
  • Horse Power (HP)
    2
  • Input Power
    230V Single Phase
  • Length of Gap (In.)
    7-2/3
  • Longitudinal Feeds Imperial Qty Speed
    32 / .0020 in. - .5480 in. / rev.
  • Longitudinal Feeds Metric Qty Speed
    32 / .052 - 13.92 mm / rev.
  • Model Number
    PL-1340E-1
  • Modular Pitch Threads Number
    0.2 – 3.5MP
  • Motor Amps
    9
  • Motor HP
    2
  • Motor Output Wattage
    1.5kw
  • Motor Phase
    Single
  • Motor Voltage
    230
  • Net weight
    1146
  • Number of Inch Threads
    4-56
  • Number of Metric Threads
    0.4 – 7mm
  • Number of Spindle Speeds
    8
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Quill Taper
    MT6
  • Range of Cross Feeds (IPR)
    0.0032” – 0.1068”
  • Range of Cross Feeds (MMPR)
    0.0032” – 0.1068”
  • Range of Inch Threads (TPI)
    4 – 56 TPI
  • Range of Longitudinal Feeds (IPR)
    0.0011” – 0.0367”
  • Range of Metric Threads
    0.4 – 7mm
  • Speed (rpm)
    90 – 2000 rpm
  • Spindle Speeds
    70 to 2000 RPM
  • Spindle Taper with Sleeve
    MT3
  • Swing Over Bed
    13 in.
  • Taper in Tailstock Spindle
    MT-3
  • Threads Diametrical Quality Speed (D.P.)
    32 / 8-120 D.P.
  • Threads Imperial Quality Speed (T.P.I.)
    31 / 4-56 T.P.I.
  • UPC
    19907003151
  • Warranty
    1 Year
