Product Details

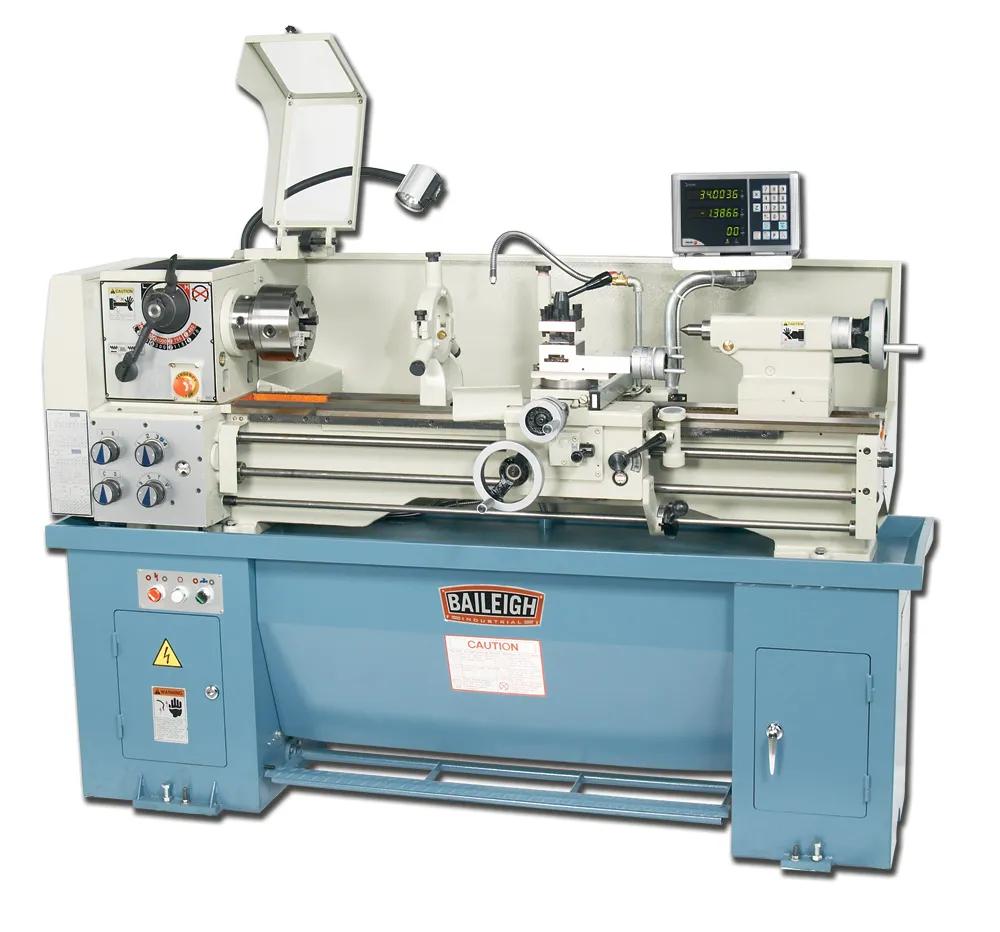

Compact Industrial Performance: The Baileigh PL-1340 is a precision metal lathe engineered for machine shops, schools, and small to medium fabrication facilities where reliable turning and accuracy are essential. Its compact footprint delivers versatile performance in tighter spaces.
Capacity & Precision: With an 13” swing over bed and 40” between centers, this lathe tackles a wide range of turning tasks. The rugged cast-iron base and precision-ground bed ways ensure stability and consistent accuracy throughout machining operations.
Balanced Power & Control: Powered by a 2 HP, 220 V single-phase motor and equipped with a geared headstock, the PL-1340 provides smooth torque delivery across its speed range for reliable performance in steels, aluminum, and other common materials.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing capacity: Offers an 13” swing over bed for medium-sized workpieces.
- Center distance: Provides 40” between centers for longer stock turning.
- Motor power: Driven by a 2 HP, 220 V single-phase motor for robust shop performance.
- Spindle bore: Includes a 1.5” spindle bore to accommodate common bar stock sizes.
- Speed range: Geared headstock with speeds from 70–2000 RPM for versatile turning.
- Digital readout: Comes with a Mitutoyo 2-axis DRO for precise reading and setup.
- Cast-iron base: Rigid cast-iron construction and precision-ground bed ways enhance stability and accuracy.
- Threading & feeds: Capable of standard and metric threading with gear-driven feeds.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006057
- Assembled Dimensions76 in. x 40 in. x 62 in.
- Center Height6.5 in.
- Compound Rest Travel2.6
- Compound Rest Width3
- Cutting Tool Max Section.625 in. x .625 in.
- Digital ReadoutYes
- Distance Between Centers40 in.
- Gross Weight1630.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Lead Screw Diameter0.875 in.
- Leadscrew Thread Pitch8 TPI
- Longitudinal Feeds Imperial Qty Speed32 / .0020 in. - .5480 in. / rev.
- Longitudinal Feeds Metric Qty Speed32 / .052 - 13.92 mm / rev.
- Model NumberPL-1340
- Modular Pitch Threads Range21 / .2 in. 3 M.P.
- Motor HP2
- Motor PhaseSingle
- Net weight1630.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT5
- Speed (rpm)70 – 2000 rpm
- Spindle Speeds70 to 2000 RPM
- Spindle Taper with SleeveMT3
- Swing Over Bed13 in.
- Taper in Tailstock Spindle1.65 in.
- Threads Diametrical Quality Speed (D.P.)32 / 8-120 D.P.
- Threads Imperial Quality Speed (T.P.I.)31 / 4-56 T.P.I.
- Warranty1 Year
