Metal Lathe PL-1236E
SKU: 1016616
Call for Availability
Calculate your monthly lease price
Description
This economical gear-head metal lathe is a perfect choice for schools, hobbyists, and maintenance shops. The PL-1236E includes a quick-change tool post and 2 chucks.
- 70 to 1,400 rpm variable speed.

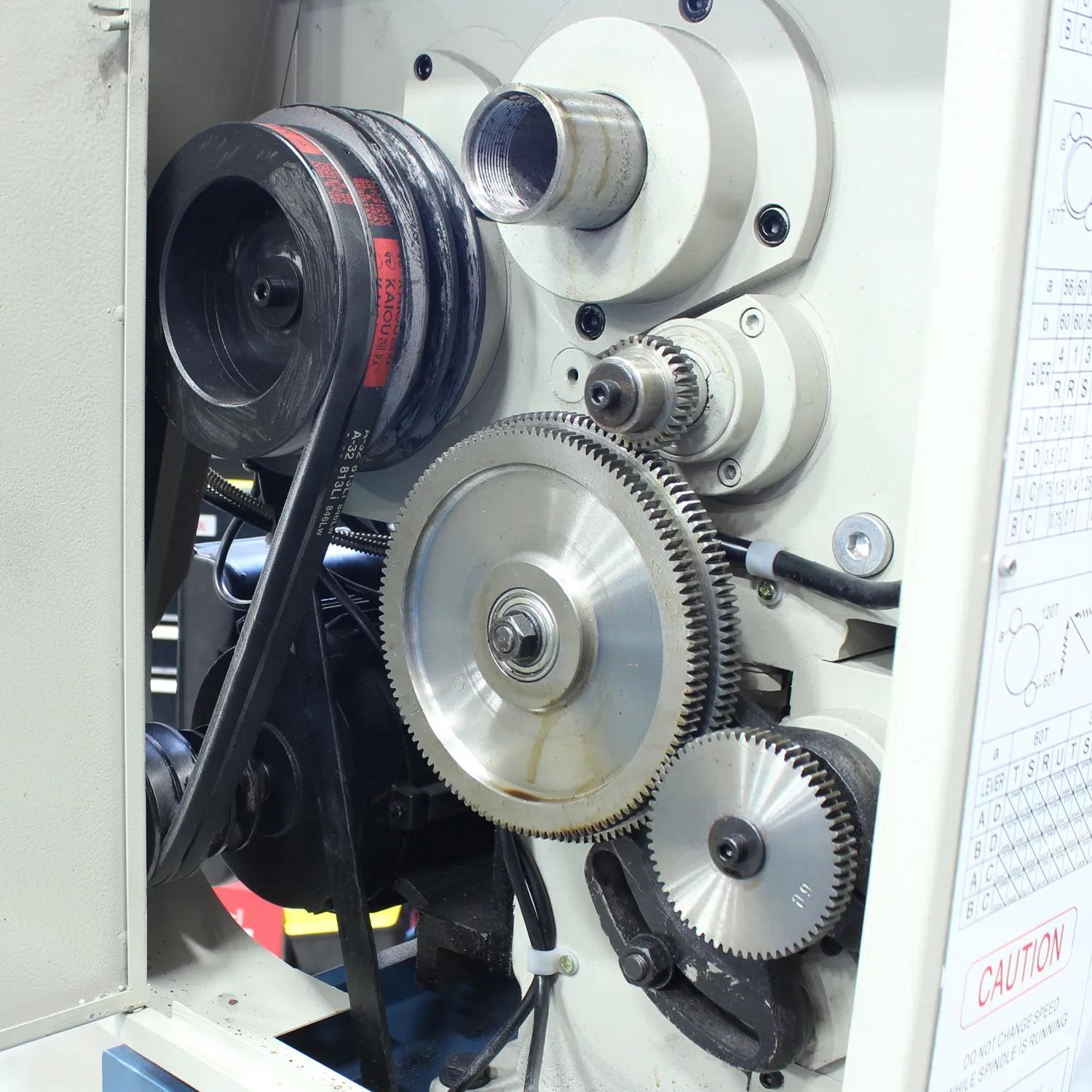

- Integrated gear system allows for taping, turning, and polishing.
- All ways are ground and hardened to ensure long life.
- Runs on 220-volt single-phase power.
- Capable of standard and metric threading.

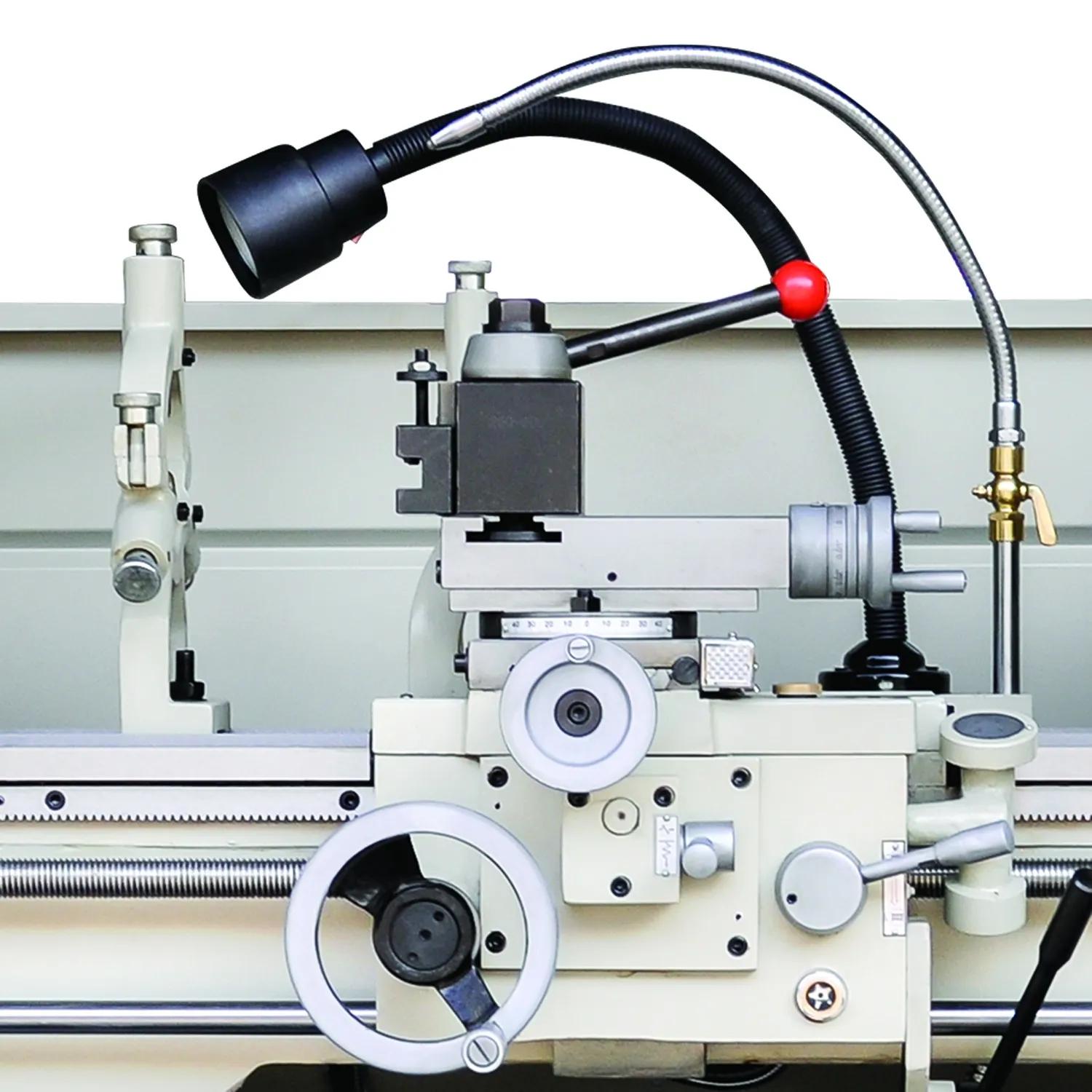

- Quick-change tool post helps you save time.

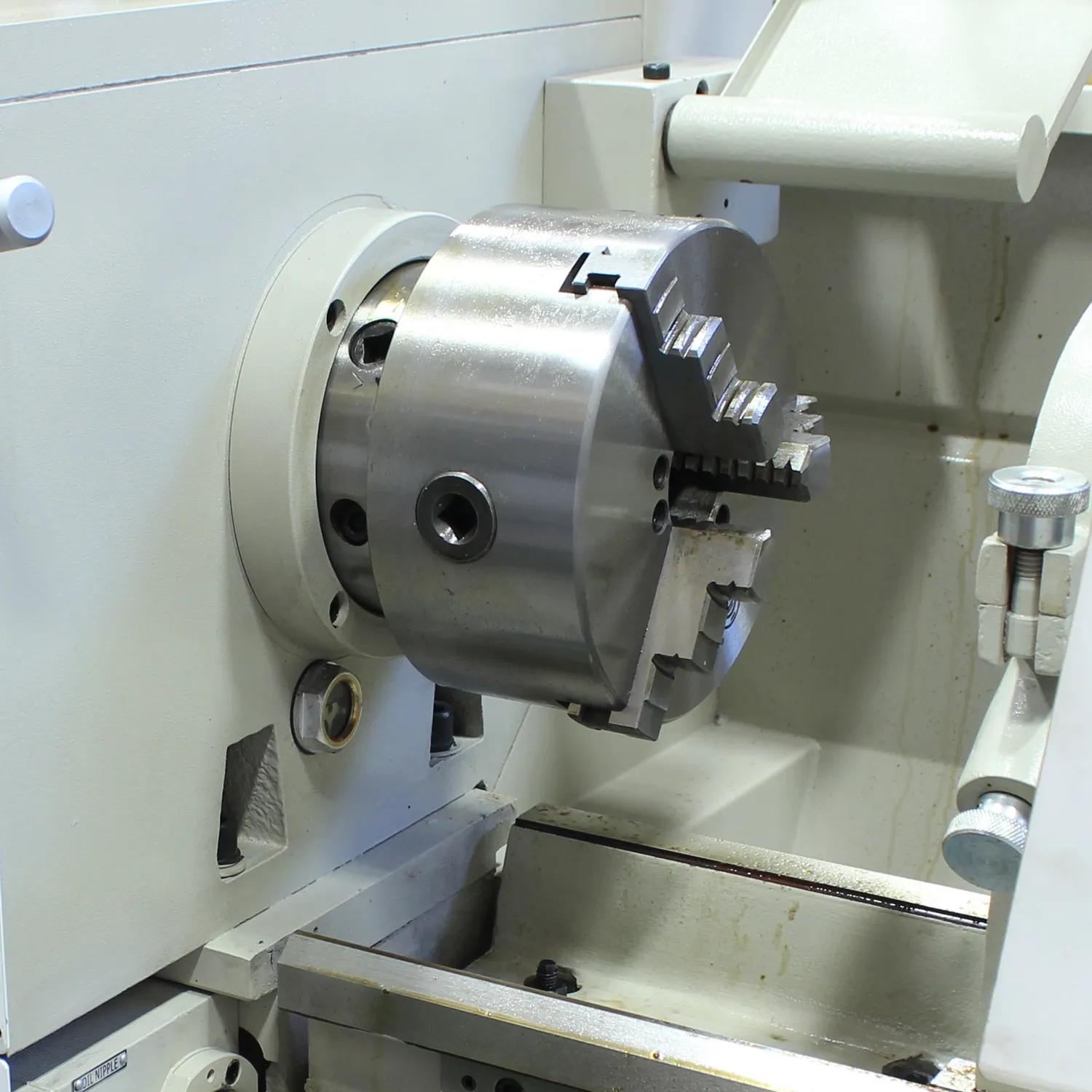

- 3-jaw and 4-jaw chucks can hold both square and rounded materials.
- Steady rest and follow rest brace the shaft and prevent wobbling to ensure high accuracy.
- Facing plate lets you shape materials that are large but not long. Bolt your metal to the plate to keep it square and symmetrical.
- Coolant system consists of a reservoir and pump in the base plus a hose you can point as needed.
- Foot brake helps keep your shop safe.
- Halogen work light comes standard.
- Covered by a 1-year parts warranty.
- Replacement parts are in stock at our Wisconsin warehouse for fast shipping.
- You can count on lifetime technical support by phone from our team of reps with first-hand metalworking experience.
Questions? Not sure which is the best metal lathe for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.
Specifications
| Item Number | PL-1236E-1.0 |
|---|---|
| Sleeve Travel | 4" |
| Spindle Bore | 1.50" |
| Spindle Bore Taper | Morse #5 |
| Sleeve Taper | Morse #3 |
| Sleeve Diameter | 1.250" |

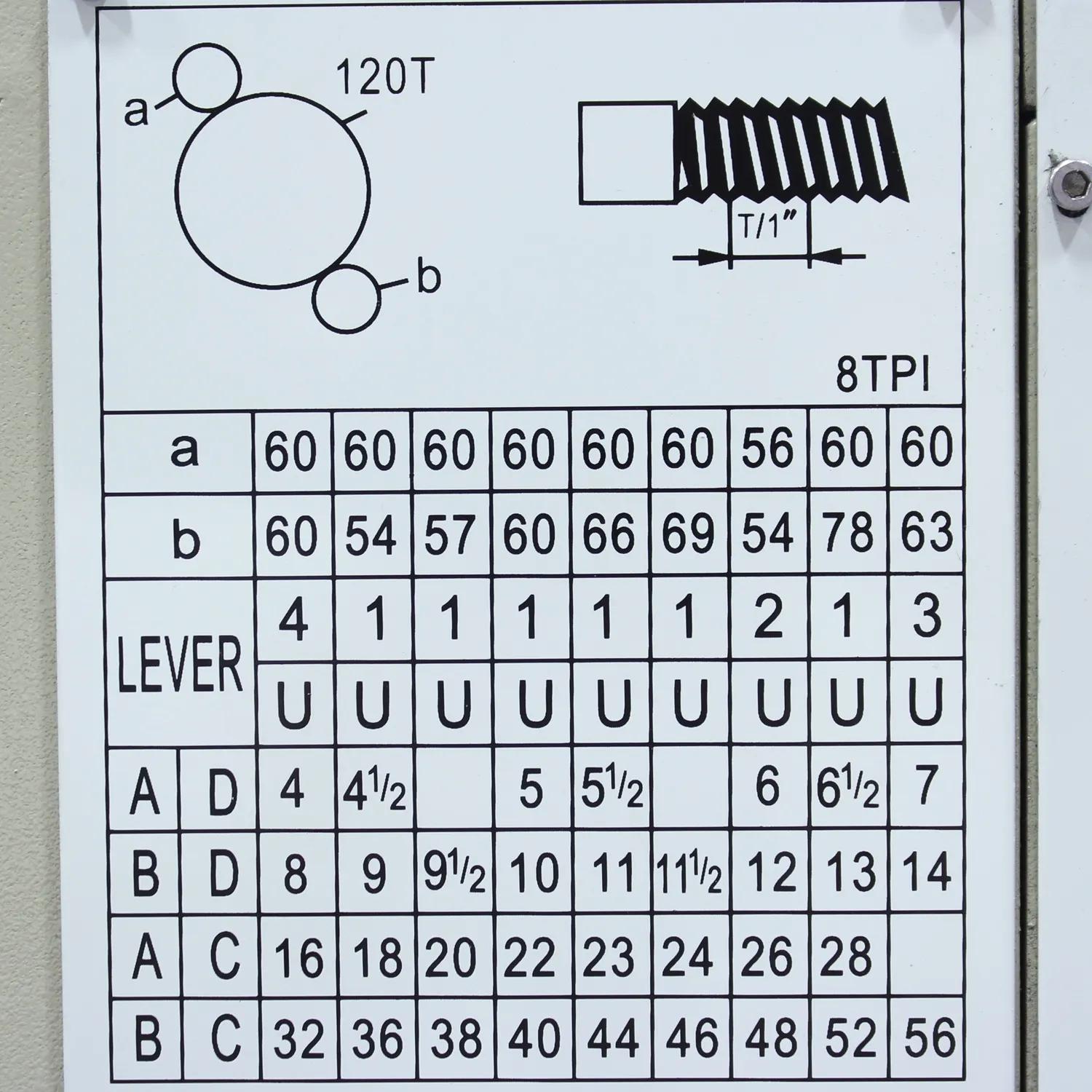

| Range Of Inch Threads | 4 - 56 T.P.I. |
| Metric Thread Range | 0.4 – 7 mm |
| Spindle Nose | D1-4" |
| Travel Of Cross Slide | 5.312" |
| Travel Of Top Slide | 3.250" |
| Width Of Bed | 7.125" |

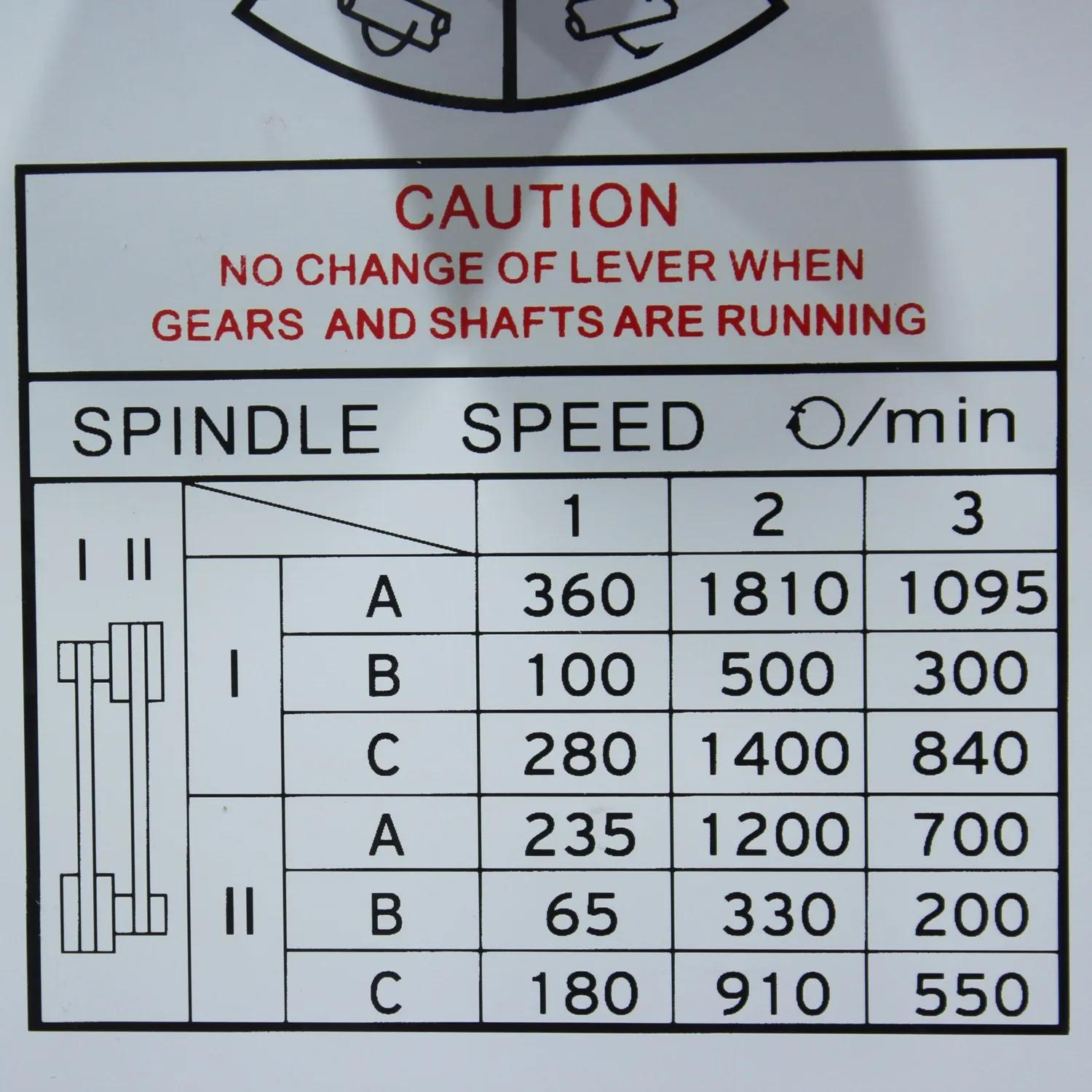

| Spindle Speed | 9 (70 – 1400 rpm) |
| Swing In Gap | 17" |
| Swing Over Bed | 12" |
| Swing Over Cross Slide | 7.625" |
| Longitudinal Feed Range | 0.002" – 0.0548"/rev |
| Lead Screw Thread Pitch | 8 T.P.I. |
| Length Of Gap | 6" |
| Max. Tool Selection | .625" x .625" |
| Cross Feed Range | 0.007" – 0.0187"/rev |
| Distance Between Centers | 36" |

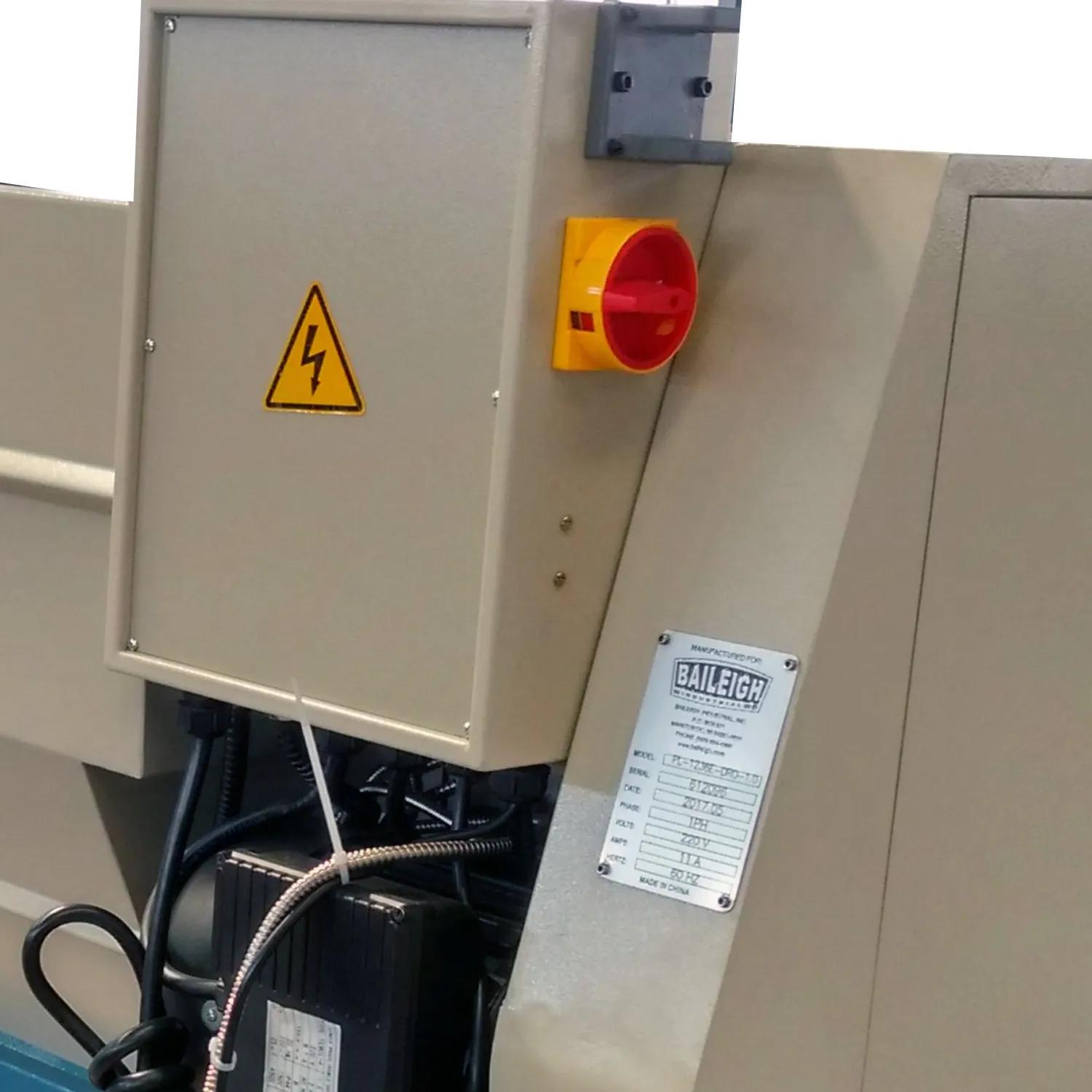

| Power | 220V / 1-phase |
| Shipping Weight | 1395lbs |
| Shipping Dimensions (Inches) | 69x44x64 |
* specifications subject to change without notice.
