Product Details
Industrial Capability: The Baileigh SW-503 delivers industrial-strength performance with five integrated stations designed to handle punching, flat bar shearing, angle shearing, bar cutting, and rectangle notching tasks in fabrication shops and maintenance departments.
Power & Performance: Equipped with a 3 HP motor running on 220 V 3-phase power, this ironworker produces 50 tons of hydraulic force, providing reliable vertical movement and clean metalworking results.
Built for Productivity: The SW-503’s heavy welded steel frame, adjustable backgauges, and accessible tooling system enhance workflow accuracy and repeatability, making it ideal for small production environments that demand professional-grade performance.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Motor type: Driven by a 3 HP motor on 220 V 3-phase electrical supply.
- Hydraulic capacity: Produces 50 tons of force across all workstations.

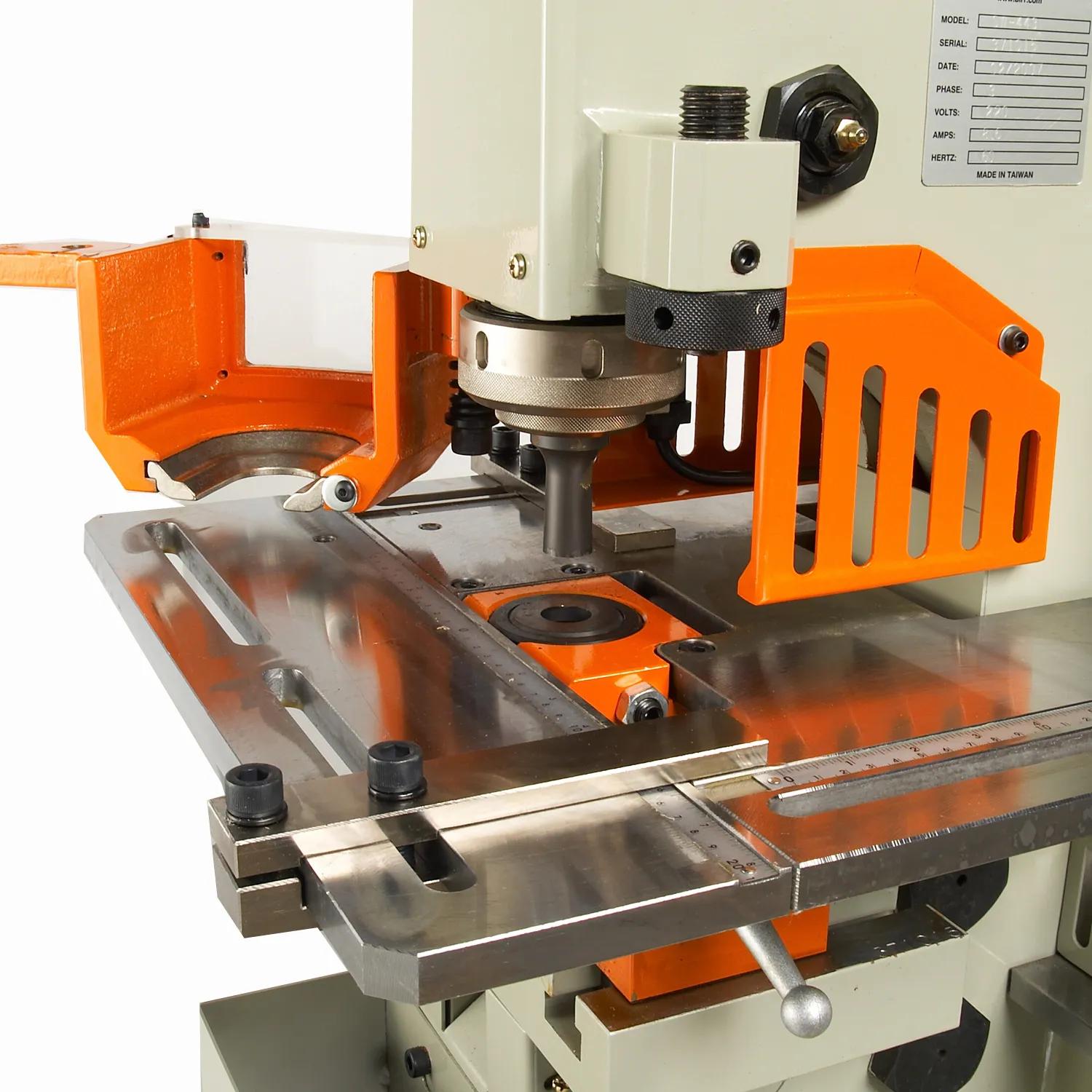

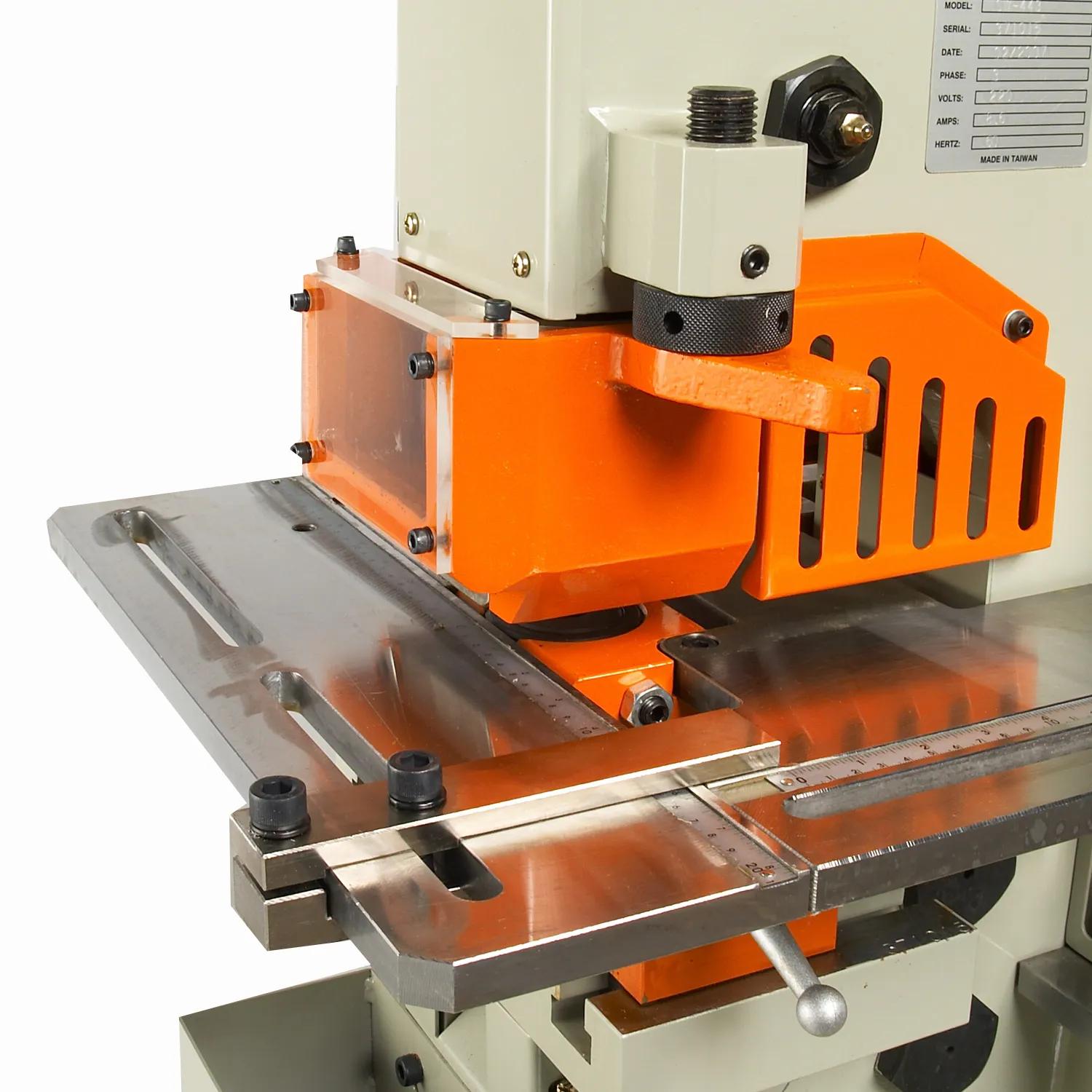

- Punch capacity: Includes punching station with .875" x .625" capacity.
- Throat depth: Features a 6" throat to accommodate larger workpieces.

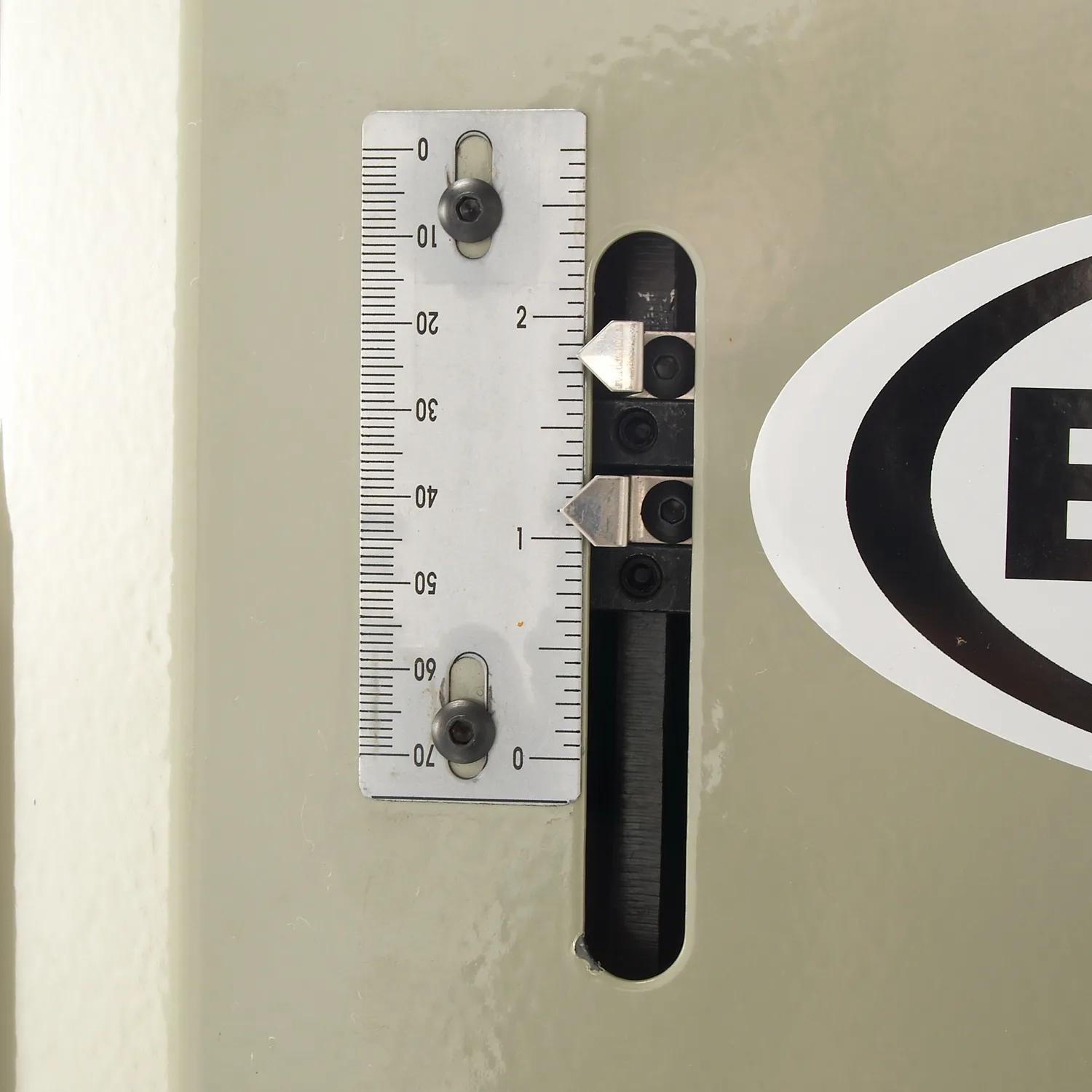

- Stroke length: Adjustable stroke up to 1.125" for controlled operation.
- Flat bar shear: Integrated station for flat bar cutting operations.
- Angle shear: Dedicated station for angle iron shearing.
- Backgauges: Adjustable backgauges improve repeatability and setup efficiency.
- Foot control: Foot pedal operation enables hands-free actuation and safer handling.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1007792
- Angle Iron Capacity3 in. x 3 in. x .25 in.
- Angle Shear Work Height40 in.
- Gross Weight1860.0
- Input Power220V Three Phase
- Model NumberSW-503
- Motor HP3
- Net weight1860.0
- Old Material NumberSW-503
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Punch Max Capacity.875 in. x .625 in.
- Stroke Length1.125 in.
- Throat Depth6 in.
- Warranty1 Year
