Product Details
High-Capacity CNC Hydraulic Press Brake: The Baileigh BP-22413CNC Press Brake is a heavy-duty 224 ton hydraulic CNC press brake engineered for demanding fabrication shops and industrial metal forming. With a 13′ (157″) bending bed, this machine provides ample space and force for large panel bending, structural components, and high-production work.
Precision Controls & Rugged Construction: Featuring 2-axis Estun E21 CNC control that lets operators program and store multiple bend sequences, the BP-22413CNC delivers consistent results and minimizes setup time. Its fully welded, stress-relieved steel frame and industrial-grade hydraulic system ensure smooth, reliable bending performance under heavy load, while included hardened tooling and programmable back gauge expand versatility.
Order Yours Today: Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Capacity: 224 tons bending force across a 13′ (157″) bed for large-scale forming.

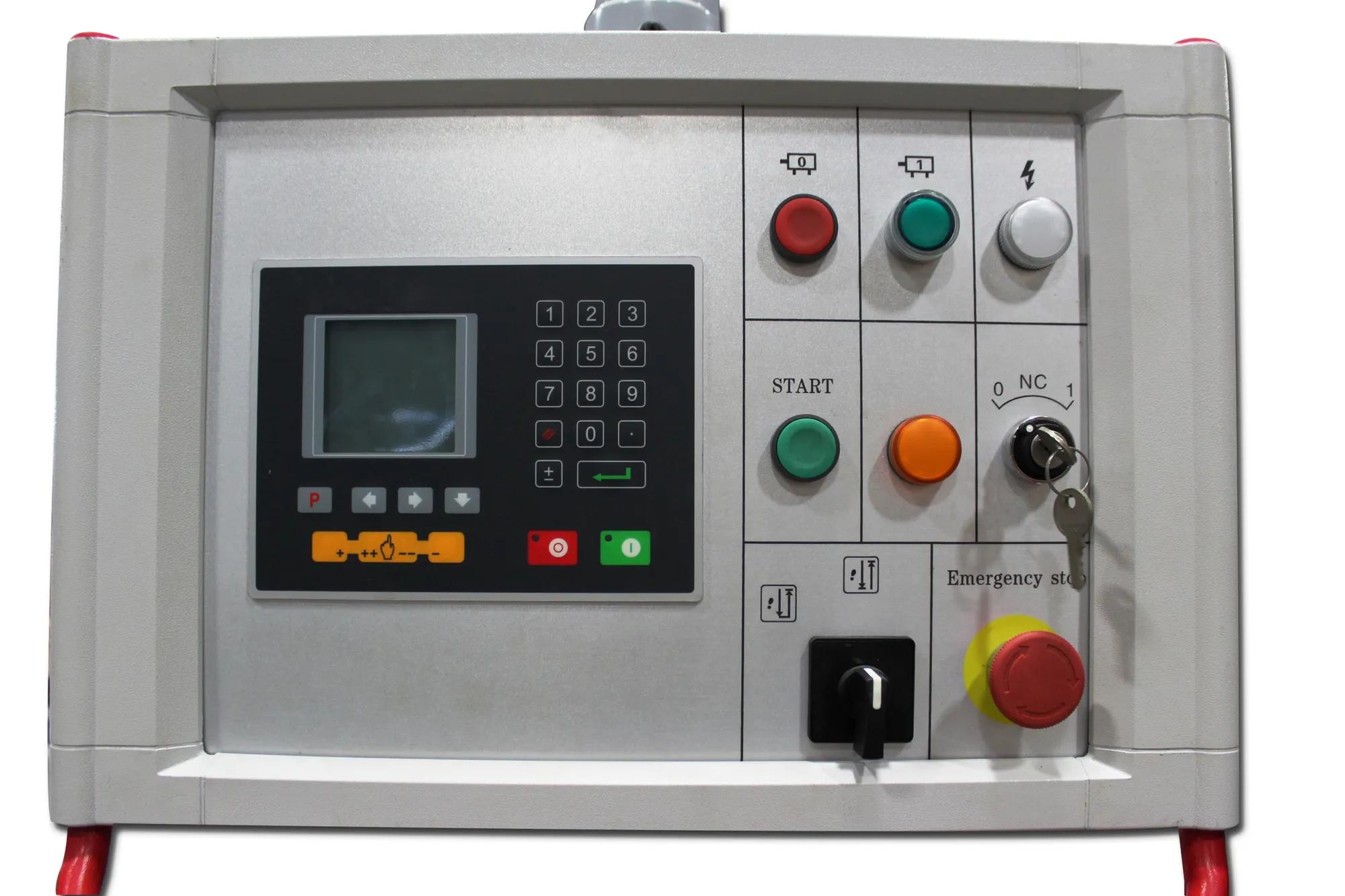

- CNC Control: 2-axis Estun E21 CNC with programmable sequences for repeatable bends.
- Hydraulic System: Industrial-grade hydraulics with Vickers/Eaton® pump for smooth performance.
- Controller stores 40 programs
- Construction: Fully welded, stress-relieved steel frame for rigidity and long service life.
- Back Gauge: CNC-controlled back gauge for precise positioning and efficiency.

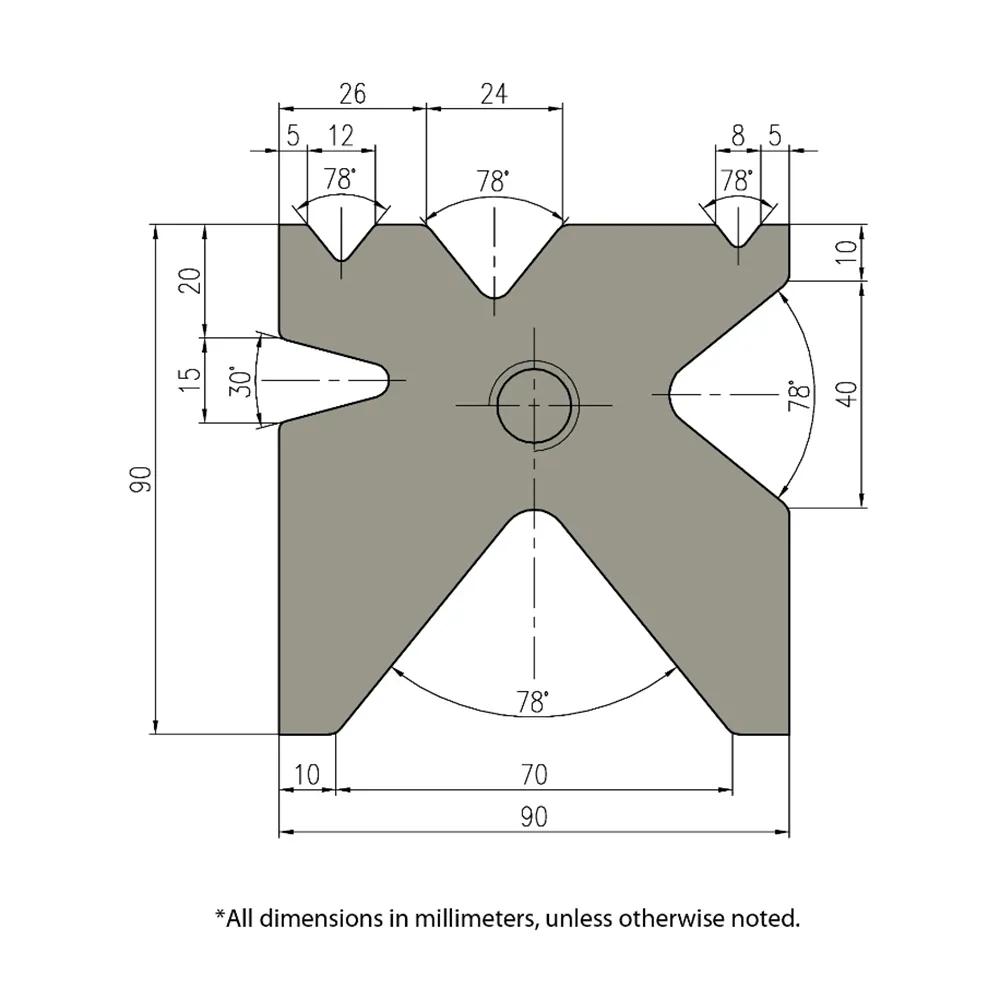

- Included Tooling: Standard gooseneck punch and multi-V bottom die for versatile forming.
- Safety: Integrated light curtains, guards, and emergency stops for operator safety.
- Power: 220 V 3-phase hydraulic drive for industrial workshop environments.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1000791
- Approach Speed2.0 in. / sec.
- Assembled Dimensions134 in. x 64 in. x 103 in.
- Back Gauge Length23.62 in.
- Back Gauge Motor (hp)1/2 hp
- Bending Capacity - Length (Inch)157
- Bending Speed.236 in. / sec
- Distance Between Housings100/123 in.
- Distance From Table To Ram19.6 in.
- Distance Per Stroke (In.)7
- Gross Weight27400.0
- Input Power220V Three Phase
- Maximum Bend Deg.135
- Model NumberBP-22413 CNC
- Motor PhaseThree
- Motor Voltage220
- Net weight27400.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Throat Depth12.5 in.
- Warranty1 Year
