Product Details
Heavy-Duty CNC Hydraulic Press Braking: The Baileigh BP-17910CNC Press Brake delivers 179 tons of bending force through a 10′ (125″) bed to handle demanding sheet metal forming tasks in fabrication shops and manufacturing environments. This CNC-capable press brake combines programmable functionality with industrial hydraulic power for precision and repeatability on complex jobs.
Industrial Strength & Precision Control: Built on a fully welded, precision steel frame and powered by an industrial-grade hydraulic system featuring quality components, the BP-17910CNC provides smooth, balanced bending performance. With programmable two-axis control for ram stroke and back gauge, operators can store and recall bend sequences to improve productivity on repetitive tasks.
Order Yours Today: Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Capacity: 179 tons bending force for heavy sheet metal forming.
- Bending Bed: 10′ (120″) table length with approx. 100″ distance between housings.
- Hydraulic System: Industrial-grade with Vickers/Eaton® and Nachi® components for lasting performance.

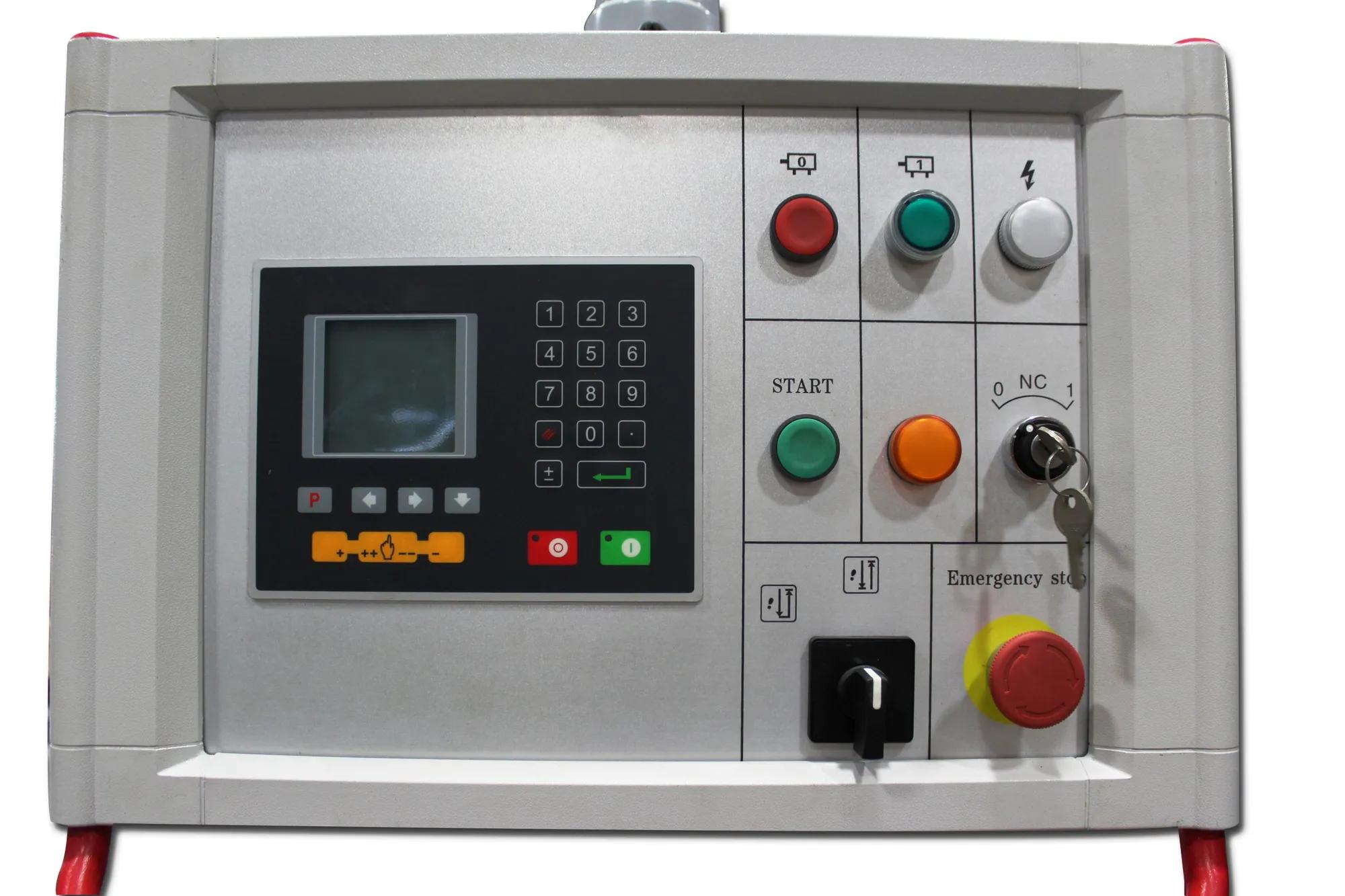

- CNC Control: Two-axis programmable control for stroke and back gauge distance.
- Power: 220 V three-phase hydraulic drive for workshop use.
- Construction: Fully welded steel frame for rigidity and long-term accuracy.
- Throat Depth: Approx. 12.5″ throat depth for deeper forming capacity.
- Stroke Distance: Approx. 7″ stroke distance.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1000788
- Approach Speed2.0 in. / sec.
- Back Gauge Motor (hp)1/2 hp
- Bending Capacity - Length (Inch)120
- Distance From Table To Ram17.7"
- Distance Per Stroke (In.)7
- Gross Weight21280.0
- Input Power220V Three Phase
- Maximum Bend Deg.135
- Model NumberBP-17910 CNC
- Net weight21280.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Throat Depth12.5 in.
- UPC731325394344
- Warranty1 Year
