Product Details
Compact CNC Hydraulic Press Brake: The Baileigh BP-7098CNC Press Brake offers 70 tons of bending force over a 98″ (8 ft) bed, delivering industrial-grade sheet metal forming in a space-efficient footprint ideal for small to mid-size fabrication shops and production environments. Its 220 V 3-phase hydraulic drive system combined with programmable CNC control provides repeatable, high-quality bends for a wide range of jobs.
Programmable Precision & Robust Construction: Featuring a 2-axis Estun E21 CNC controller that lets operators store and recall multiple bend sequences, the BP-7098CNC enhances productivity and accuracy. The fully welded, stress-relieved steel frame ensures rigidity and long-term alignment, while the industrial hydraulic system with Vickers/Eaton components ensures smooth, consistent bending motion.
Order Yours Today: Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Capacity: 70 tons bending force for industrial sheet metal forming.
- Bending Bed: 98″ (8 ft) working width for longer parts.

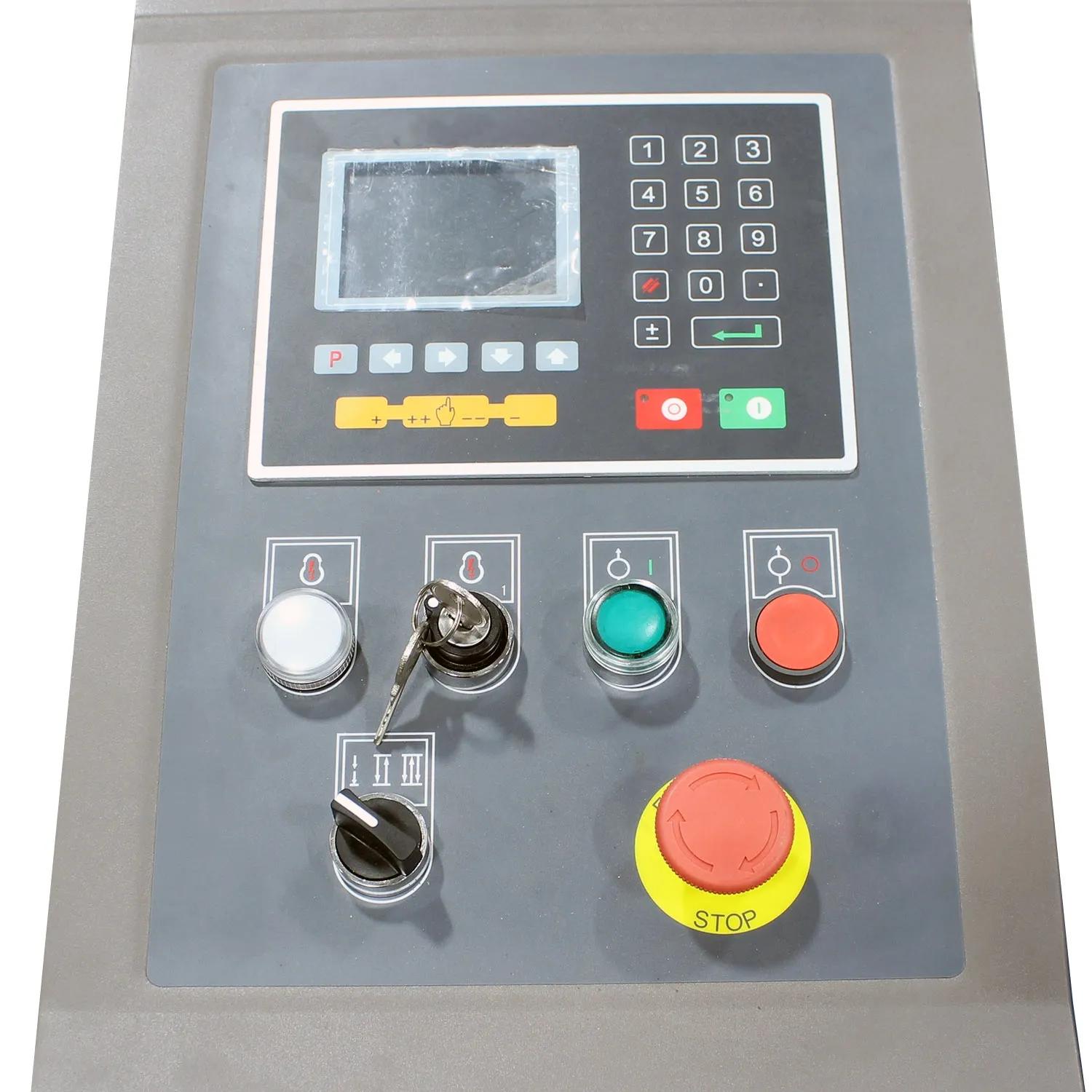

- CNC Control: 2-axis Estun E21 CNC with programmable storage for multiple bend programs.
- Hydraulic System: Industrial-grade hydraulics with Vickers/Eaton pump for smooth, balanced bending.
- Frame Construction: Fully welded, stress-relieved steel frame for durability and precision.

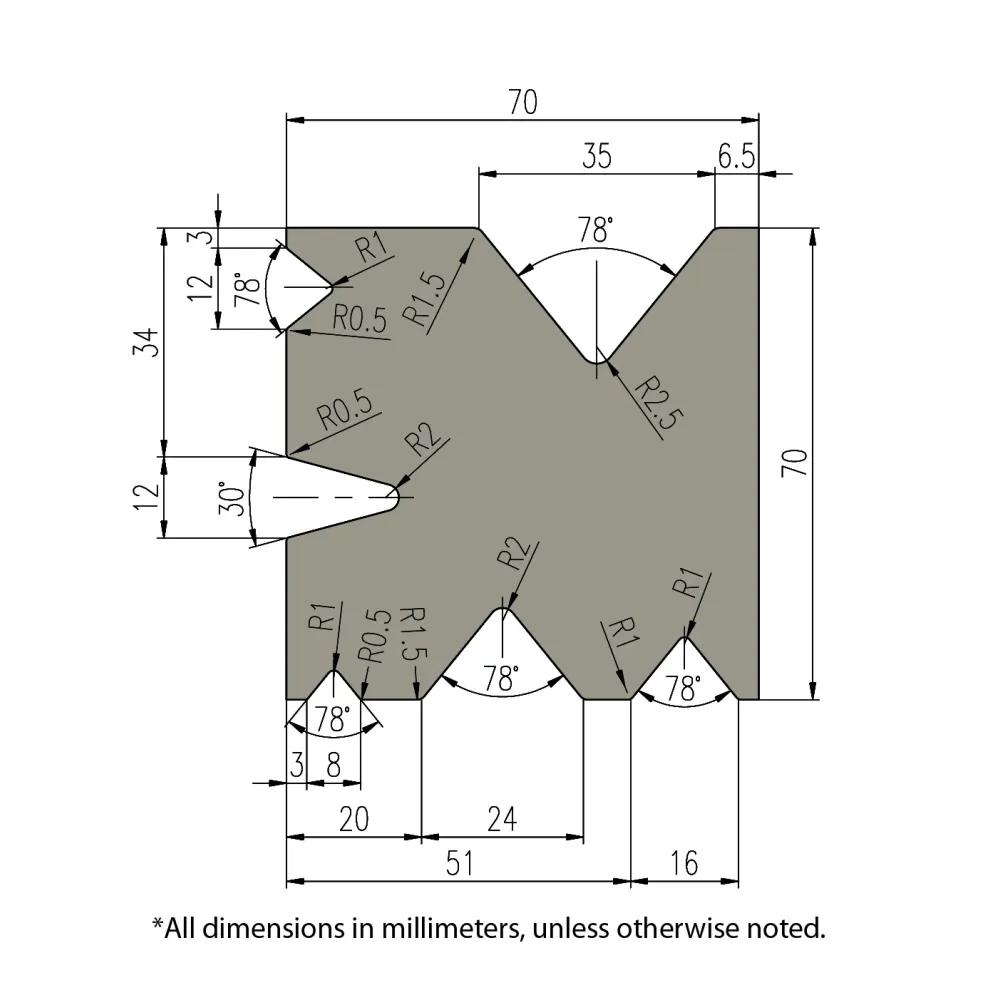

- Included Tooling: Standard gooseneck punch and multi-V bottom die for versatile forming.
- Back Gauge: CNC-controlled back gauge for accurate positioning and repeatability.
- Power: 220 V 3-phase hydraulic drive for reliable industrial performance.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1000836
- Approach Speed2.0 in. / sec.
- Back Gauge Motor (hp)1/2 hp
- Bending Capacity - Length (Inch)98
- Bending Speed.6 in. / sec.
- Distance Between Housings80
- Distance From Table To Ram14 in.
- Distance Per Stroke (In.)4.7
- Gross Weight10850.0
- Input Power220V Three Phase
- Maximum Bend Deg.135
- Model NumberBP-7098CNC
- Motor PhaseThree
- Net weight10850.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Throat Depth9.75 in.
- Warranty1 Year
