Product image is only a representation, actual product appearance may differ slightly

  • Multi Vtooling 4
  • Punching 4
  • Multi Vee 4
  • Flatbend 4
  • Single Vttooling 4
  • Straighten 4
  • Shearing 4

Horizontal Press Brake HPB-78NC

SKU: BA9-1004720

Call for Availability

$42,199.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $762 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description


Making smaller parts? This Baileigh horizontal press brake can save time and money, since material lies on the table and stays square. The HPB-78NC industrial hydraulic press brake can shear, bend, punch, and straighten.


  • 7.5 hp motor produces up to 78 tons of pressure.
  • 13.78” stroke length.
  • Runs on 220-volt 3-phase power.
  • Industrial-grade hydraulic system is located on top of the machine to reduce flex.
  • You can adjust the pressure of the the hydraulics for your material.
  • Designed for simple operation. In 15 minutes, anyone could learn to run it.
  • Numerical control (NC) programmer can store up to 50 programs with 10 bends per program.
  • Electronic encoders make this hydraulic press brake accurate to +/- .002”.
  • Product counter makes production runs more efficient.
  • Control the bending stroke with 2 buttons or with the foot pedal, so your hands are free to guide the material.
  • You can also run the machine in a manual mode for one-off projects as well as set-up.
  • Robust manual back gauge bolts to the machine and helps with repeatability.
  • Machined table, 37.4” high, keeps your material perfectly level. No need to hold one side and hope it’s lined up!
  • Quick-release tooling system makes changes fast and simple. Just turn the handle and the post will lift. The V die slides in and out.

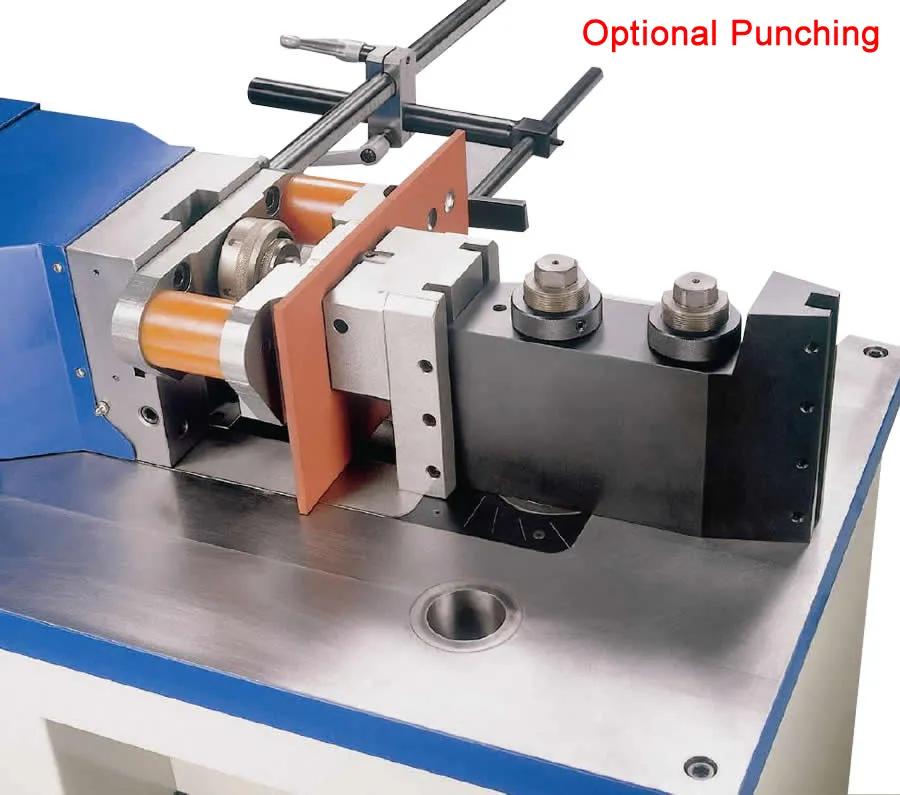

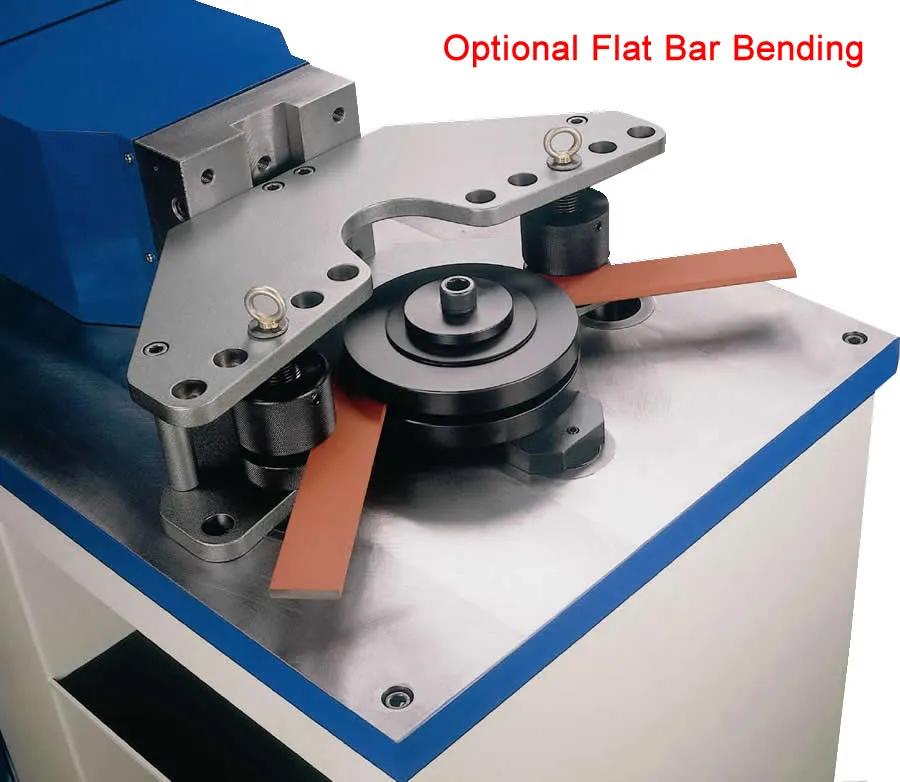

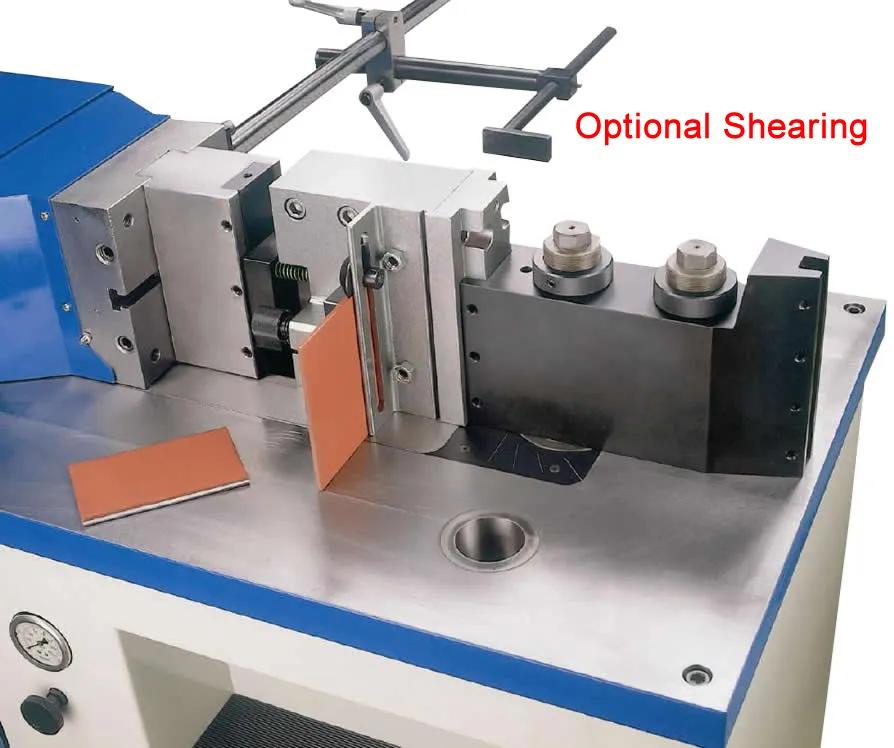

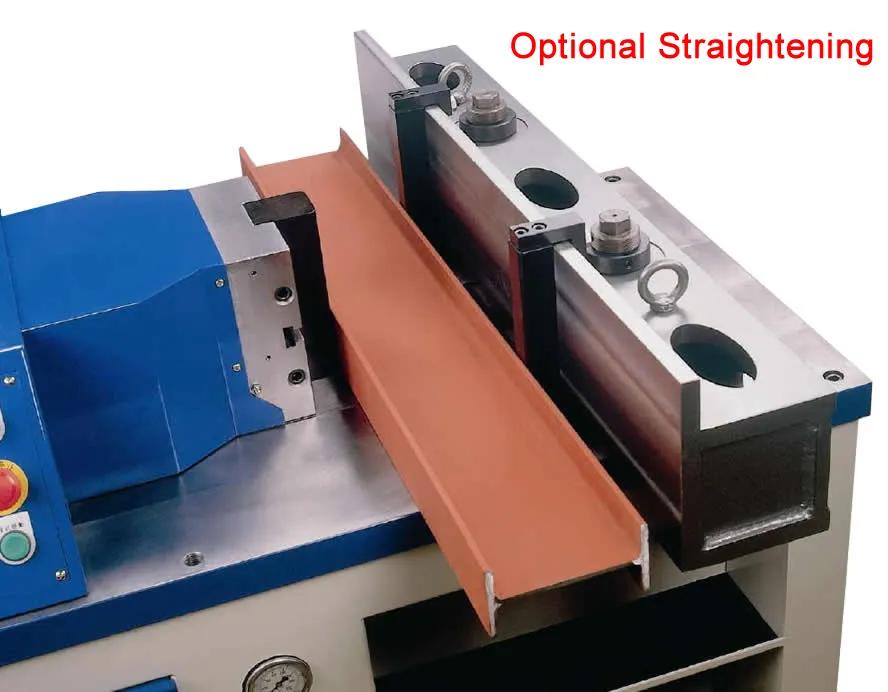

  • Accepts attachments for punching, straightening, shearing, and even pipe bending.

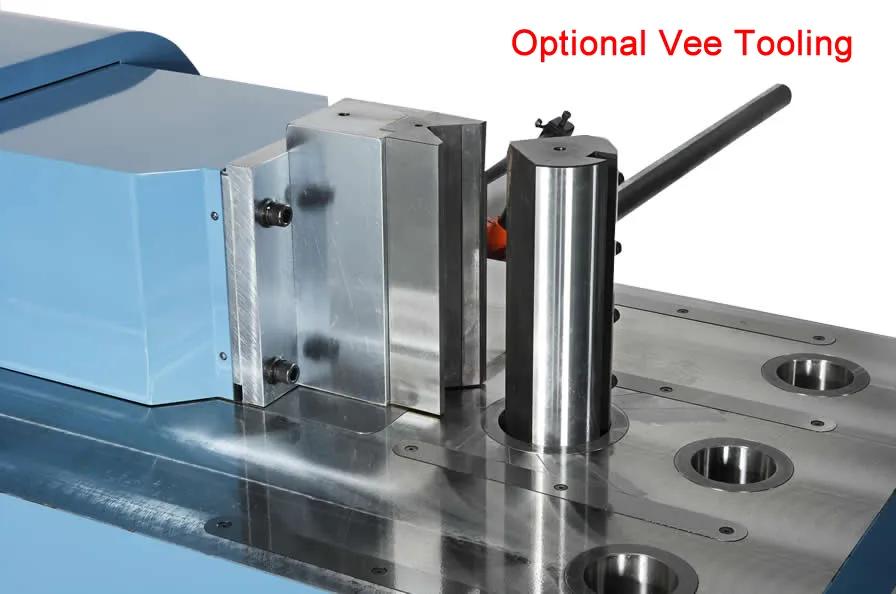

  • Includes a set of single-V tooling (V-opening die and V post).

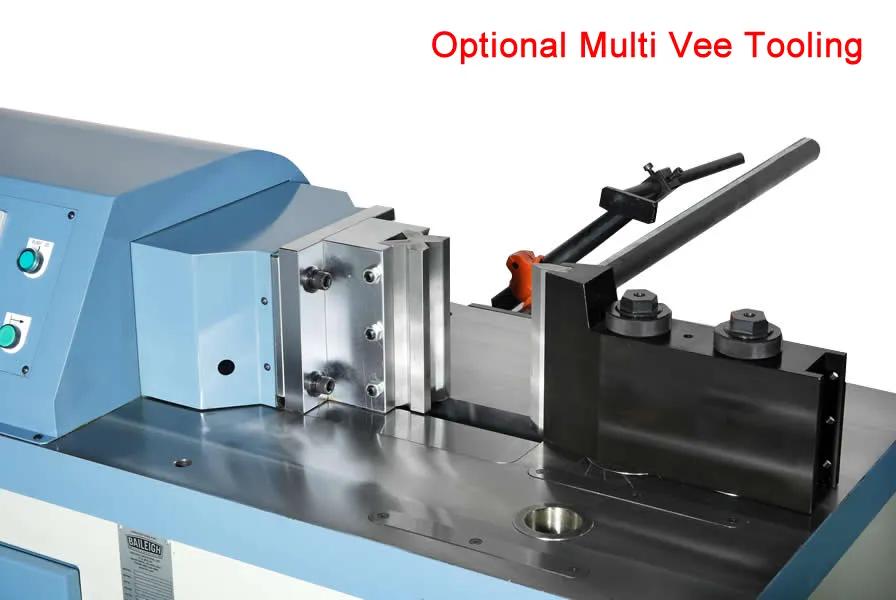

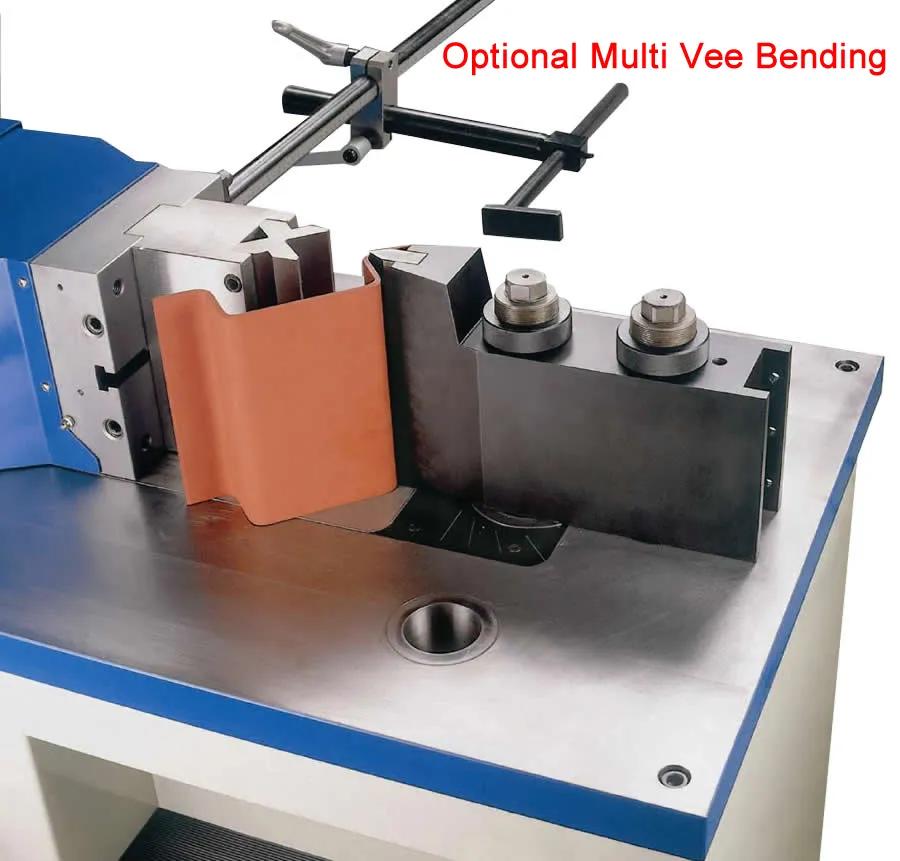

  • Many additional tooling sets are available. We can find the right one for your project or create a custom set, if necessary.
  • 4,580-pound steel frame, made from 4 powerful pieces of inch-thick flat bar, will keep results accurate for many years and won’t flinch under pressure.
  • Shelving in the front can hold tooling and items you might need on a daily basis.
  • We stock replacement parts, so we can ship them to you quickly.
  • Covered by a 1-year parts warranty.
  • Our team of service reps, all with hands-in machine experience, are here to provide lifetime technical support by phone.

Also available in a 45-ton horizontal press brake machine.


Recommended for:

  • Full industrial production, including shipbuilding yards, boiler manufacturers, nuclear applications.
  • Making parts that are thick, but not wide (die size is limited).

Questions? Not sure which press brake is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.


Specifications

Item Number HPB-78NC
Return Speed .55" / sec.
Motor 7.5 hp
Pressure 78 tons
Punch Height 11.81"
Working Speed .43" / sec.
Stroke Accuracy +/– .002"
Stroke Length 13.78"
Table Height 37.4"
Approach Speed 1.69" / sec.
Fixture Holes (1) @ 4.646" dia. / (3) @ 3.268" dia.
Power Manual
Shipping Weight 4580lbs
Shipping Dimensions (Inches) 81x38x61

* specifications subject to change without notice.
