Product Details

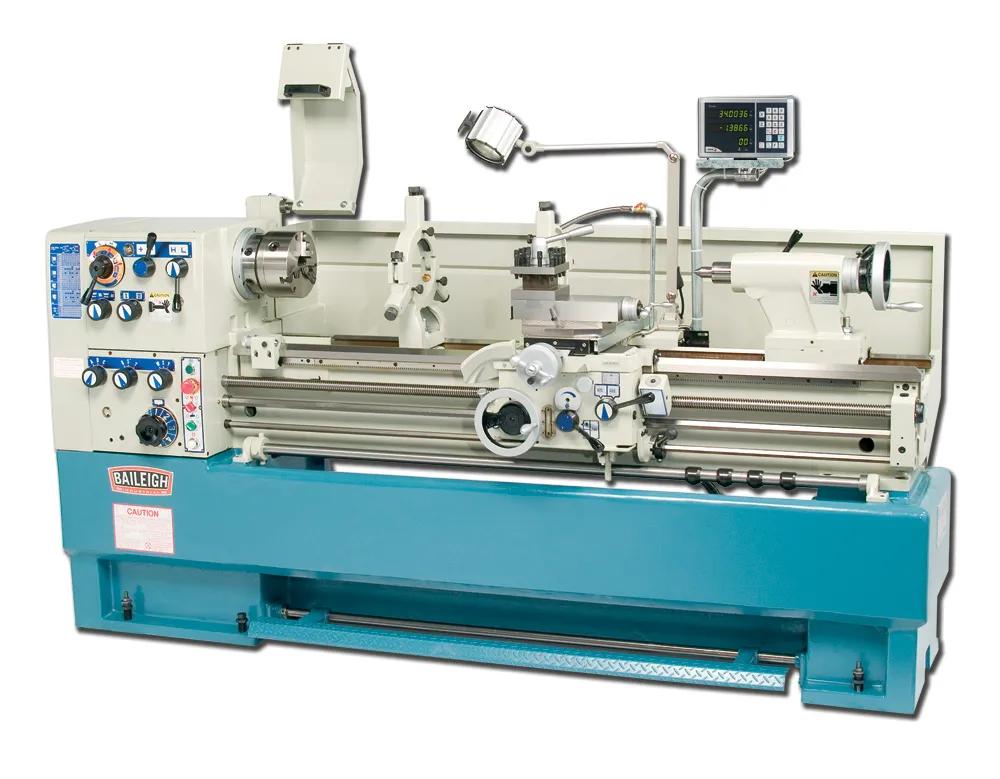

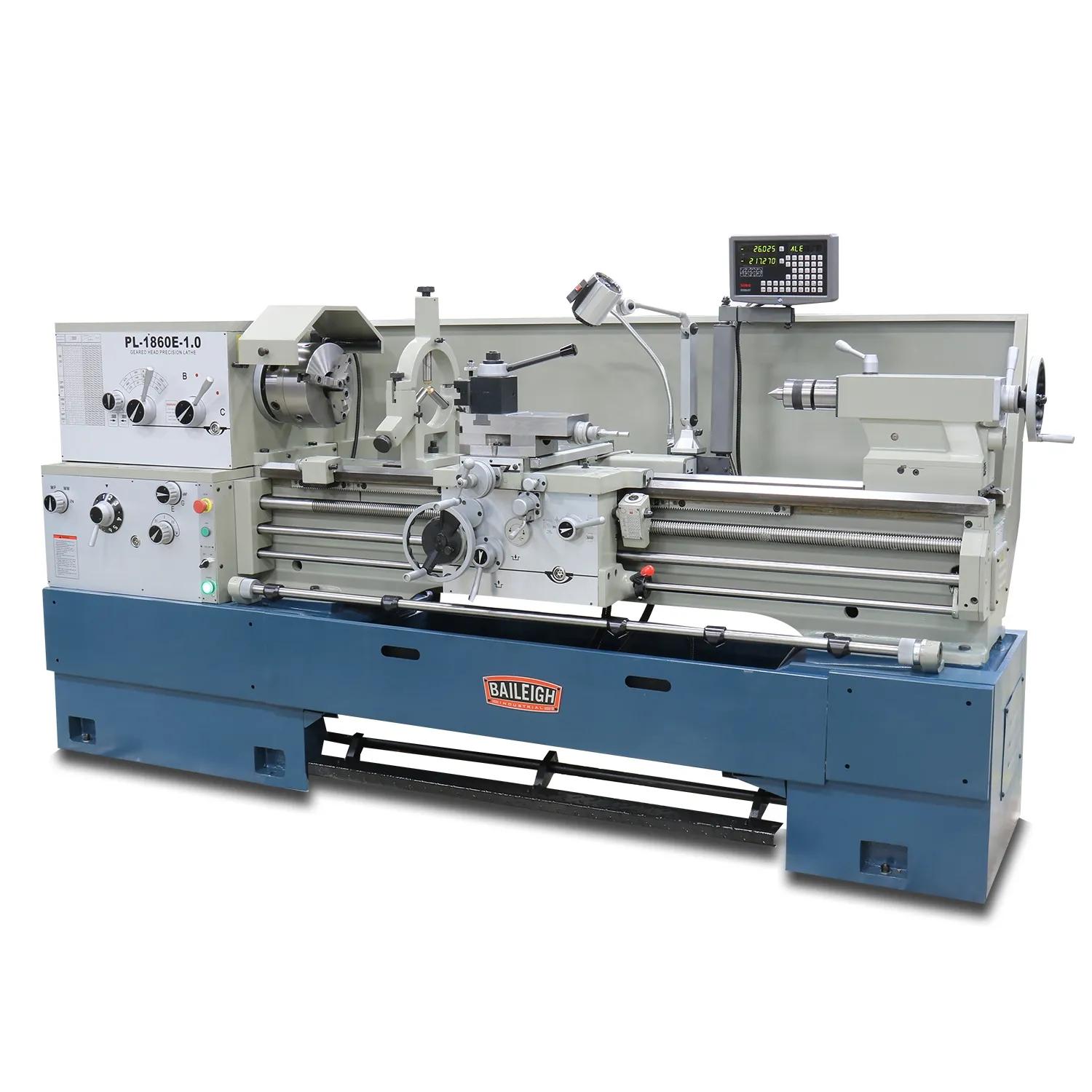

Industrial Construction: The Baileigh PL-1860 is a heavy-duty engine lathe built for precision and power in demanding shops. Its robust cast-iron base and precision-ground bed ways provide stability and accuracy for long shafts and large-diameter workpieces.
Power & Performance: With an 18” swing over bed and 60” between centers, this lathe handles oversized turning tasks with ease. A geared headstock and reliable torque delivery ensure consistent cutting across a wide range of materials.
Integrated Precision: Equipped with a Mitutoyo 2-axis digital readout (DRO), operators gain accurate feedback for efficient setup and machining of both standard and metric threads.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.

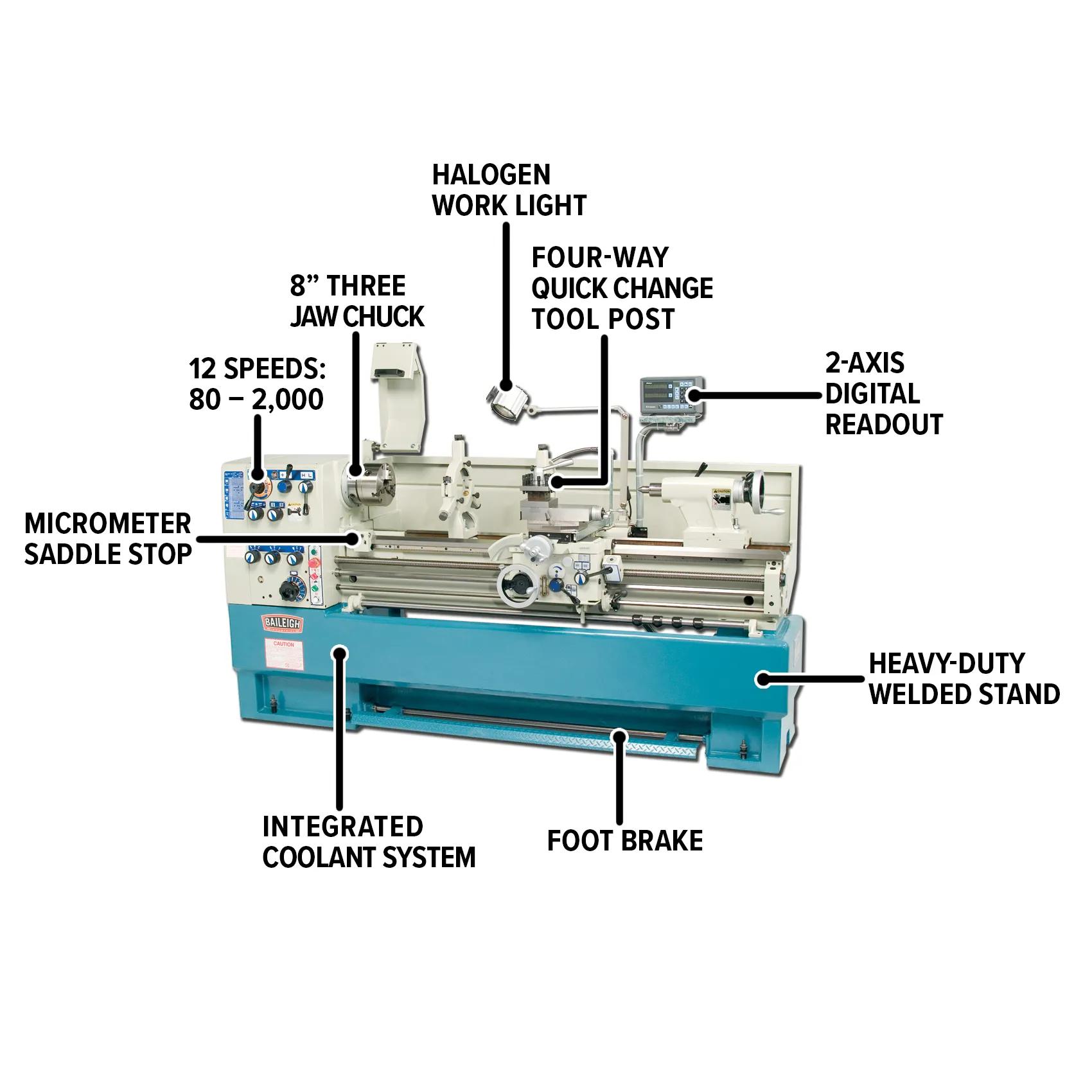

Features
- Swing capacity: Supports an 18” swing over bed for large workpieces.
- Center distance: Offers 60” between centers for long stock turning.
- Motor power: Driven by a 7.5 HP, 220 V, 3-phase motor for industrial workloads.
- Spindle bore: Features a 3.125” spindle bore to accommodate larger bar stock.
- Speed range: Provides spindle speeds from 30–2000 RPM for versatile cutting.
- Digital readout: Includes a Mitutoyo 2-axis DRO for precise positioning.
- Bed design: Cast-iron construction with precision-ground bed ways ensures rigidity and accuracy.
- Threading: Capable of both standard and metric thread cutting.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1006157
- Bed Height (In.)12.20 in.
- Center Height9 in.
- Compound Rest Width4.92 in.
- Cutting Tool Max Section.625 in. x .625 in.
- Digital ReadoutYes
- Distance Between Centers60 in.
- Gross Weight4380.0
- Horse Power (HP)7.5
- Input Power220V Three Phase
- Lead Screw Diameter1.25 in.
- Leadscrew Thread Pitch4 T.P.I.
- Longitudinal Feeds Imperial Qty Speed40 / .0012 in. - .0252 in. / rev.
- Longitudinal Feeds Metric Qty Speed40 / .032 - .640 mm / rev.
- Model NumberPL-1860
- Motor HP7.5
- Motor PhaseThree
- Net weight4380.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Quill TaperMT6
- Range of Cross Feeds (MMPR)40 / .015 - .320 mm / rev.
- Speed (rpm)30 - 2000 rpm
- Spindle Speeds30 to 2000 RPM
- Spindle Taper with SleeveMT4
- Swing Over Bed18 in.
- Taper in Tailstock Spindle2.125 in.
- Threads Diametrical Quality Speed (D.P.)32 / 4-32 D.P.
- Threads Imperial Quality Speed (T.P.I.)40 / 2-56 T.P.I.
- Threads Metric Quality Speed (mm pitch)53 / .4 - 14 mm pitch
- Threads Modular Quality Speed (M.P.)44 / .4 - 7 M.P.
- Warranty1 Year
