Product Details

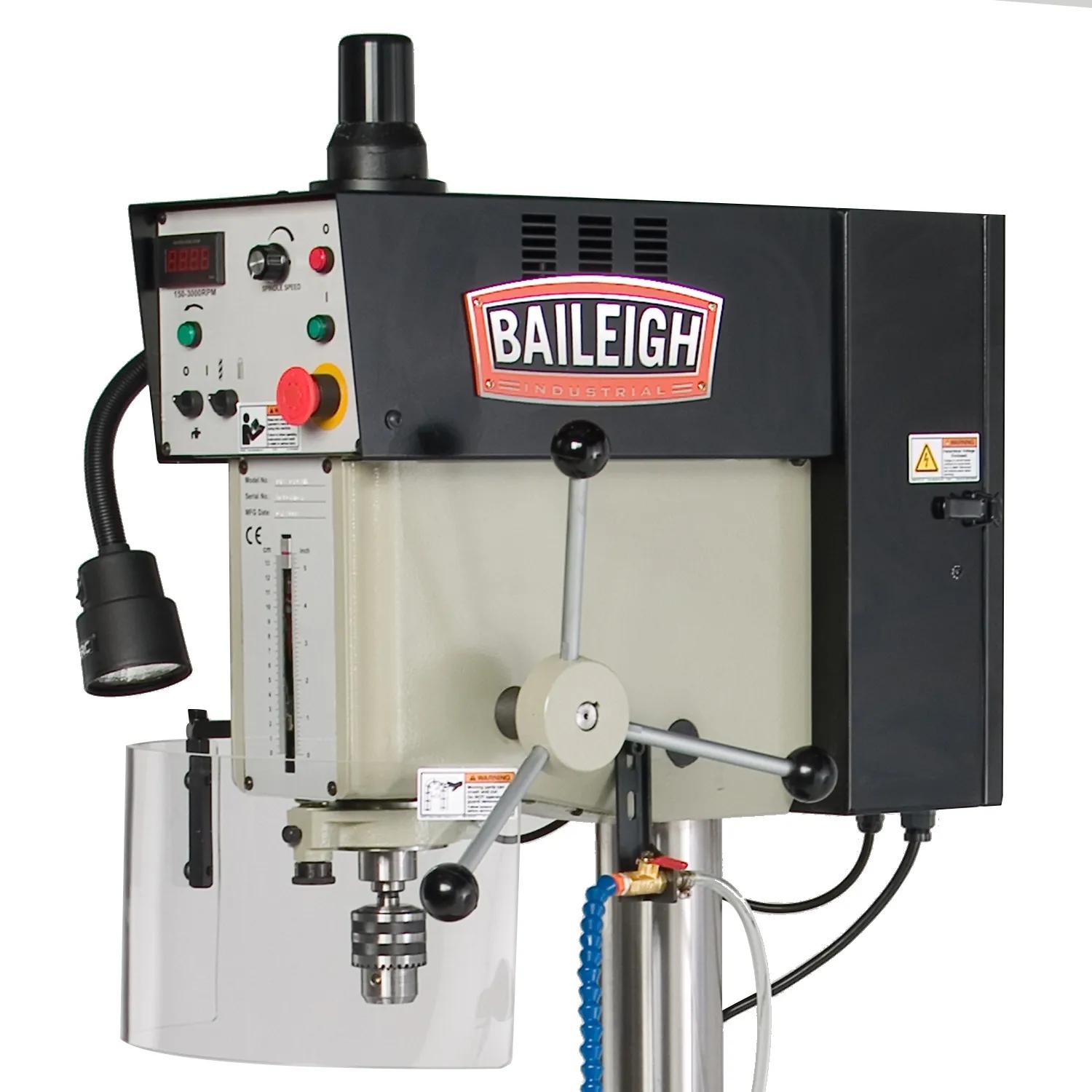

Industrial Construction: The Baileigh DP-1000VS Variable Speed Drill Press is built with a rigid cast iron base and table to resist flexing and provide strength during heavy drilling tasks.

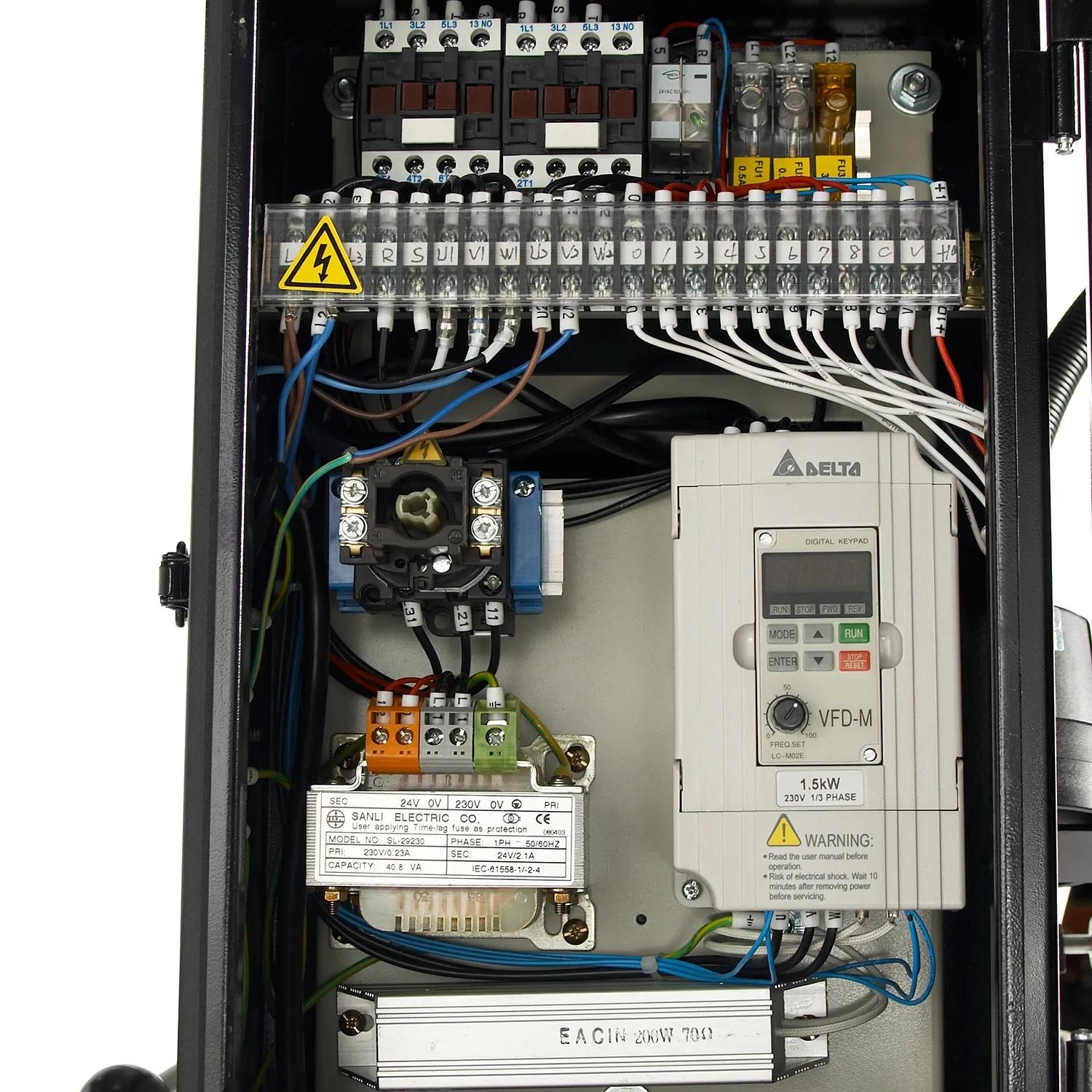

Power & Performance: Powered by a 2 HP, 220 V single-phase inverter-driven motor, this variable speed drill press lets you fine-tune speeds from 150 to 3000 RPM for optimal drilling and tapping on different materials.
Shop Versatility: Designed for fabrication and machining environments, the DP-1000VS includes a coolant system, safety shield, halogen gooseneck light, and features an auto-reversing tap function for added productivity.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: The drill press provides a 16″ swing for drilling larger workpieces.
- Drill Capacity: This machine drills up to 1″ through mild steel.
- Motor Power: A 2 HP inverter-driven motor supplies consistent drive power.
- Power Requirement: The unit operates on 220 V single-phase power.

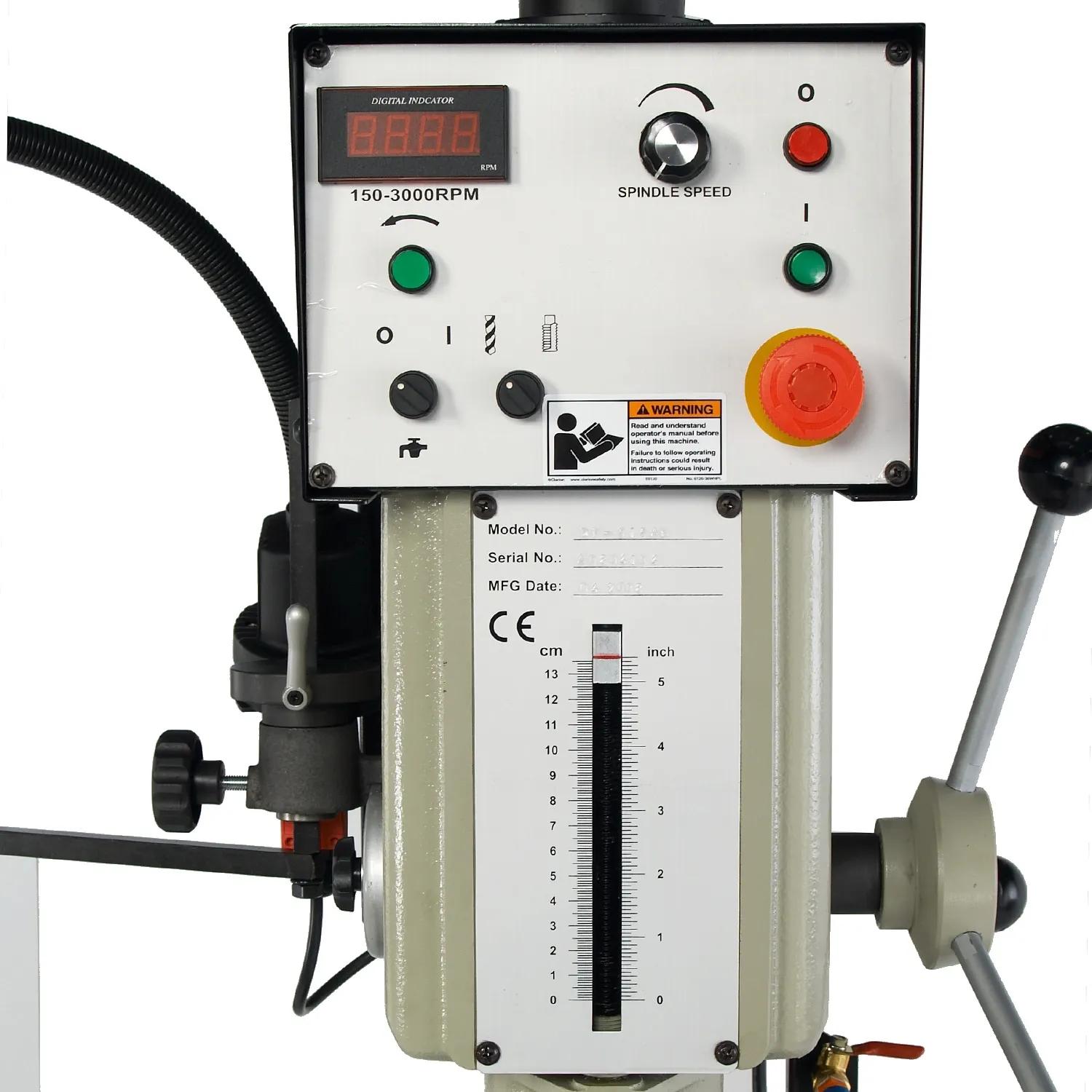

- Speed Range: Variable speed from 150 to 3000 RPM adapts to drilling and tapping needs.
- Spindle Taper: The press uses an MT 3 spindle taper for secure tooling engagement.
- Base & Column: The rigid cast iron base and wide steel column minimize flex under load.

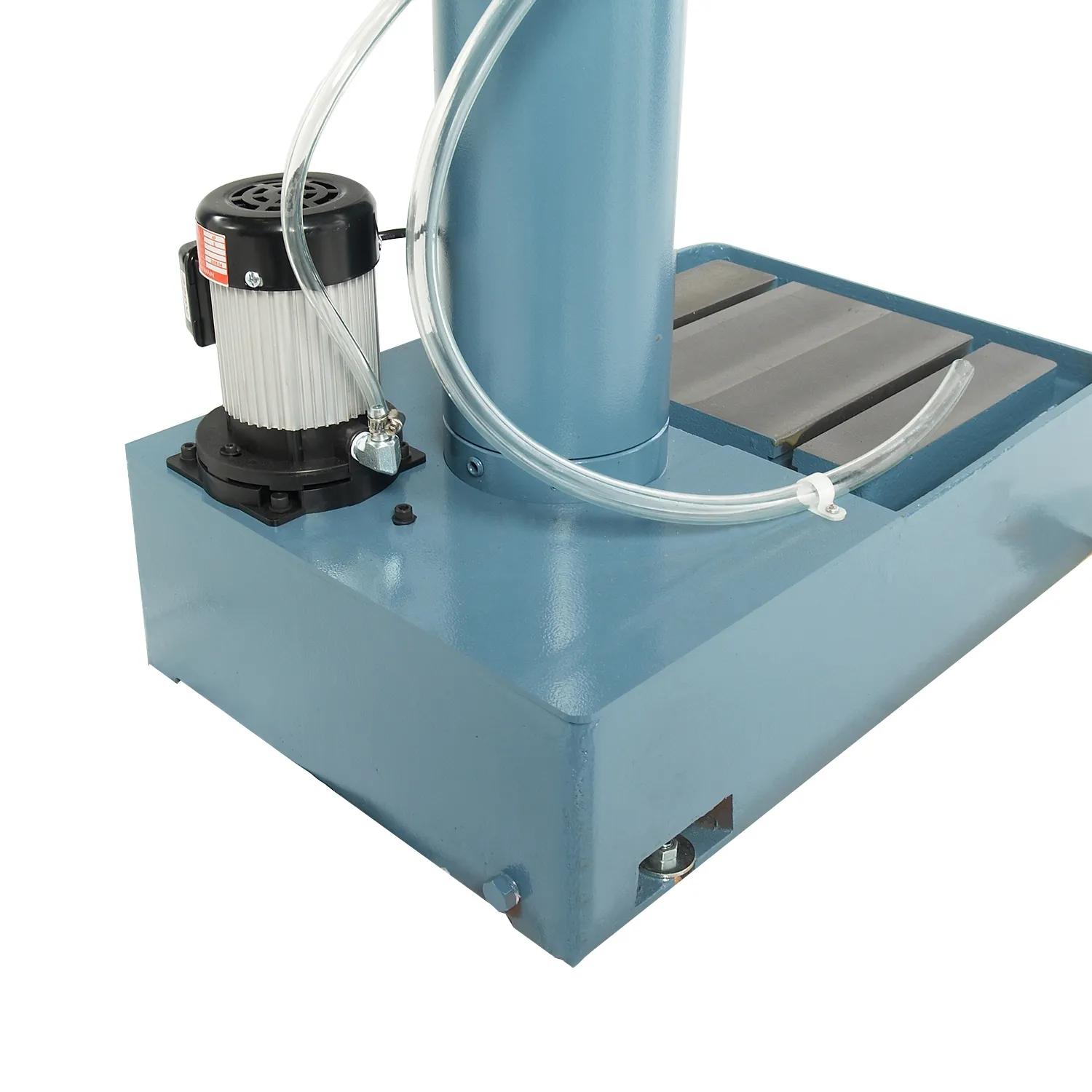

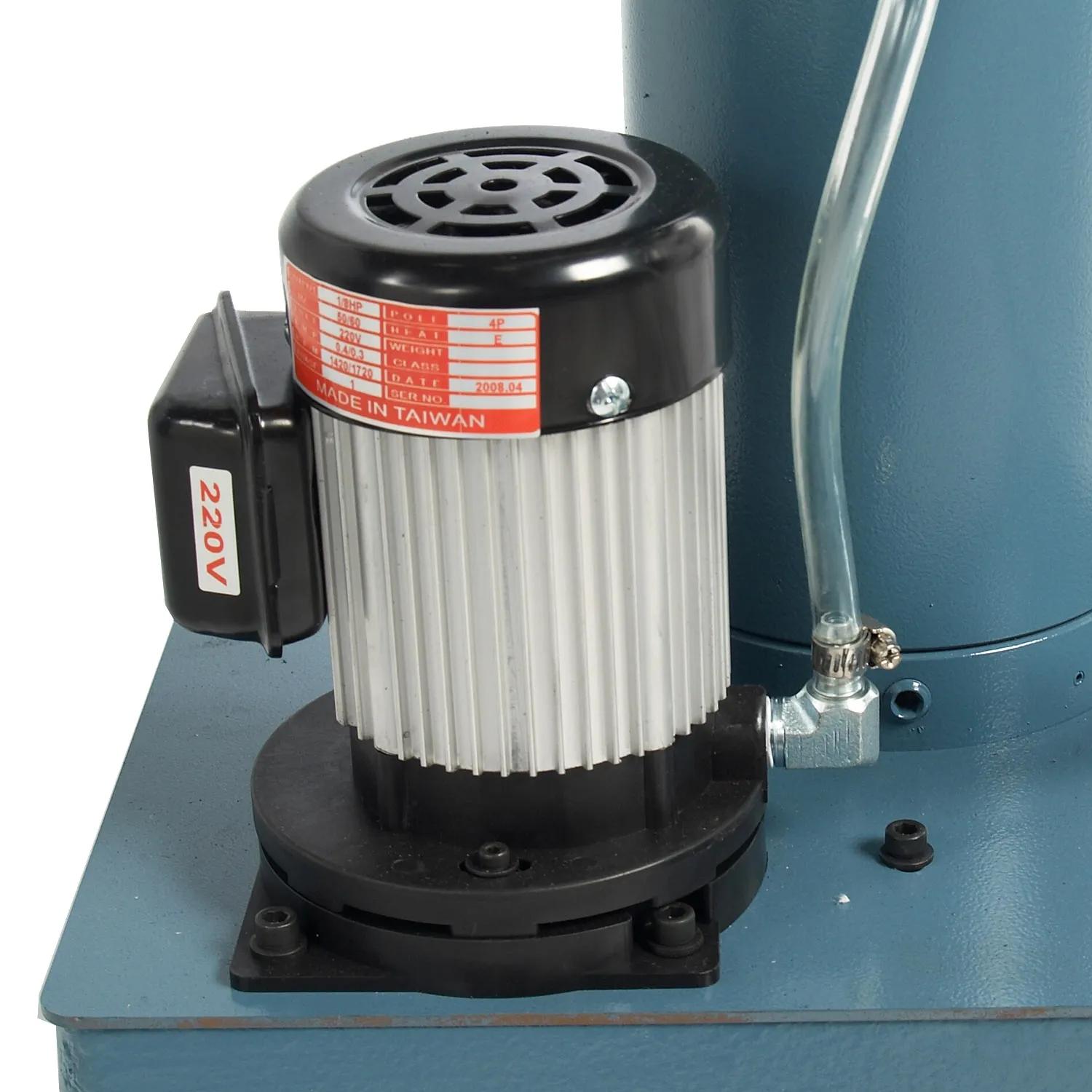

- Coolant System: An integrated coolant system helps extend tool life.

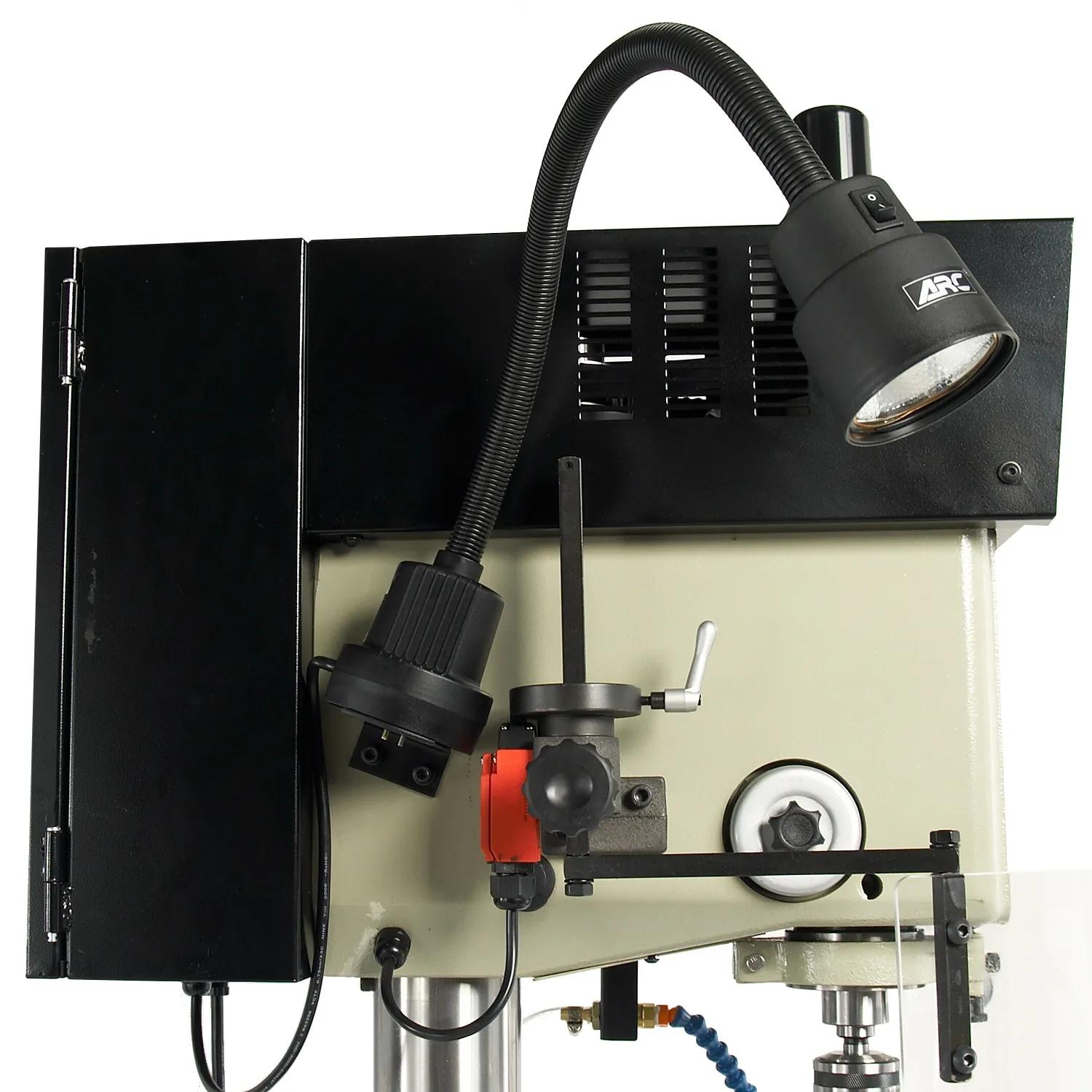

- Work Light: A halogen gooseneck light illuminates the work area.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1002862
- Drilling Capacity Cast Iron (In.)1.25 in.
- Drilling Capacity Mild Steel1 in.
- Gross Weight542.0
- Horse Power (HP)2
- Input Power220V Single Phase
- Model NumberDP-1000VS
- Motor HP2
- Motor PhaseSingle
- Net weight542.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle Speeds150 to 3000 RPM
- Swing16 in.
- Tapping Capacity Mild Steel.625 in.
- Warranty1 Year
