Product Details
Industrial Construction: The Baileigh DP-1500G Gear Driven Drill Press is engineered for heavy drilling tasks with a rigid cast iron base and a stout 5.5″ diameter steel column to resist flexing during deep cuts and heavy feeds.
Power & Performance: Powered by a 3.5 HP, 220 V 3-phase motor and an industrial gear-driven head, the DP-1500G delivers robust drilling capacity up to 1.5″ through mild steel with precision and repeatability.
Shop Versatility: Designed for fabrication shops and industrial machine shops, this drill press includes a variable speed range from 108 to 1800 RPM and an auto tapping feature for efficient threading work, plus large T-slot table surfaces for secure workholding.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: This drill press has a 20″ swing for drilling larger workpieces.

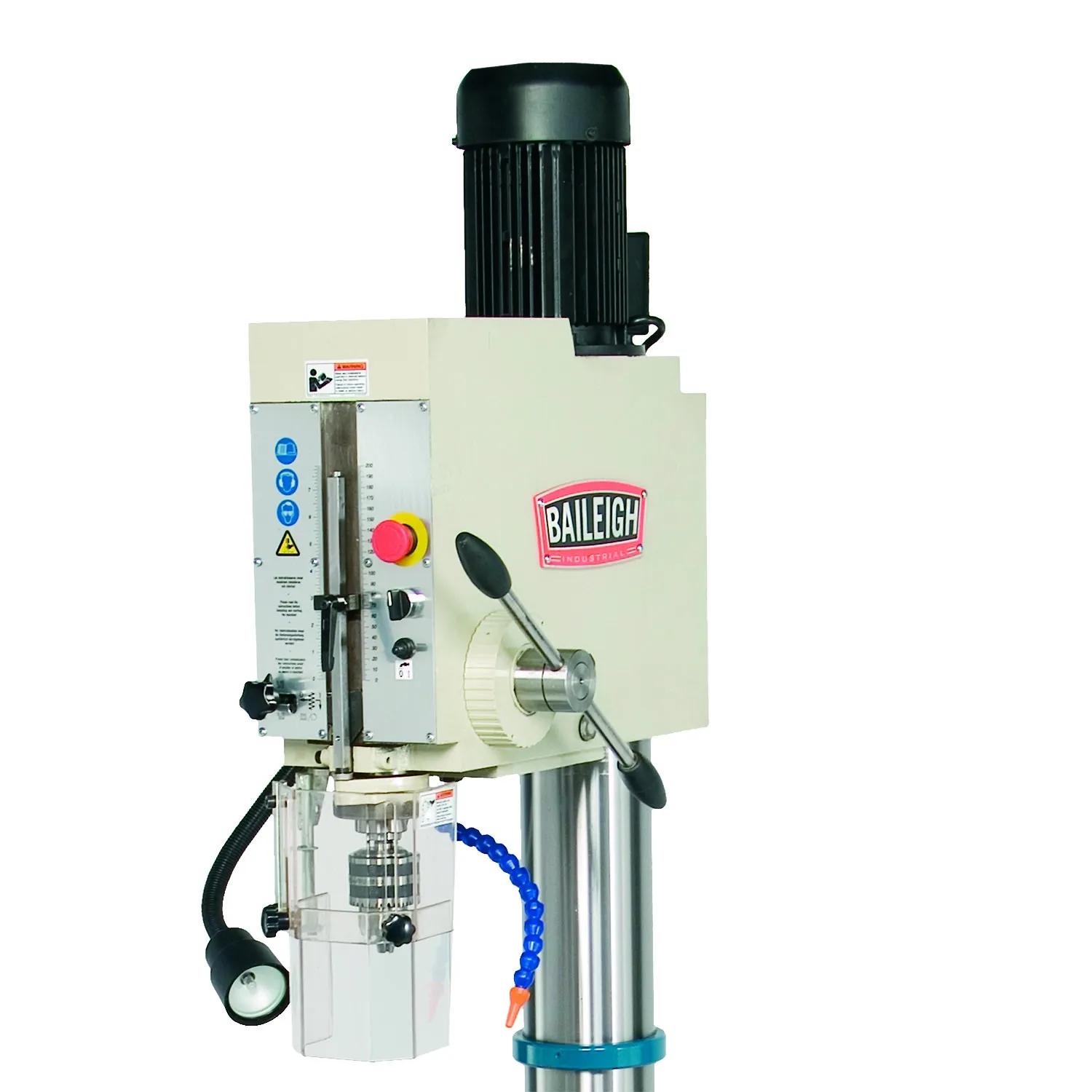

- Drill Capacity: The machine drills up to 1.5″ through mild steel.
- Motor Power: A 3.5 HP motor supplies drive power to the gear-driven head.
- Power Requirement: The unit operates on 220 V 3-phase power.

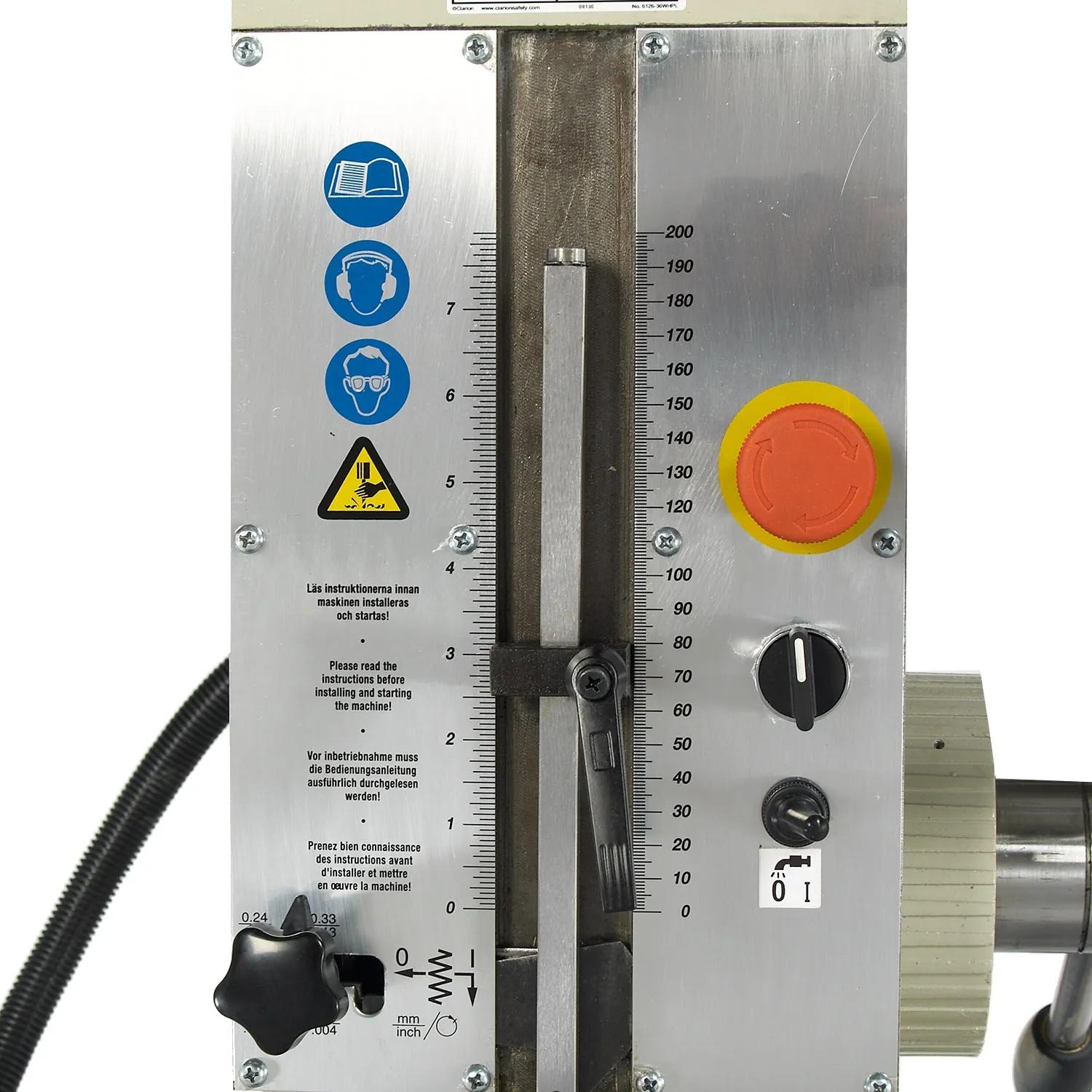

- Speed Range: Variable speeds from 108 to 1800 RPM allow selection for different materials and tooling.

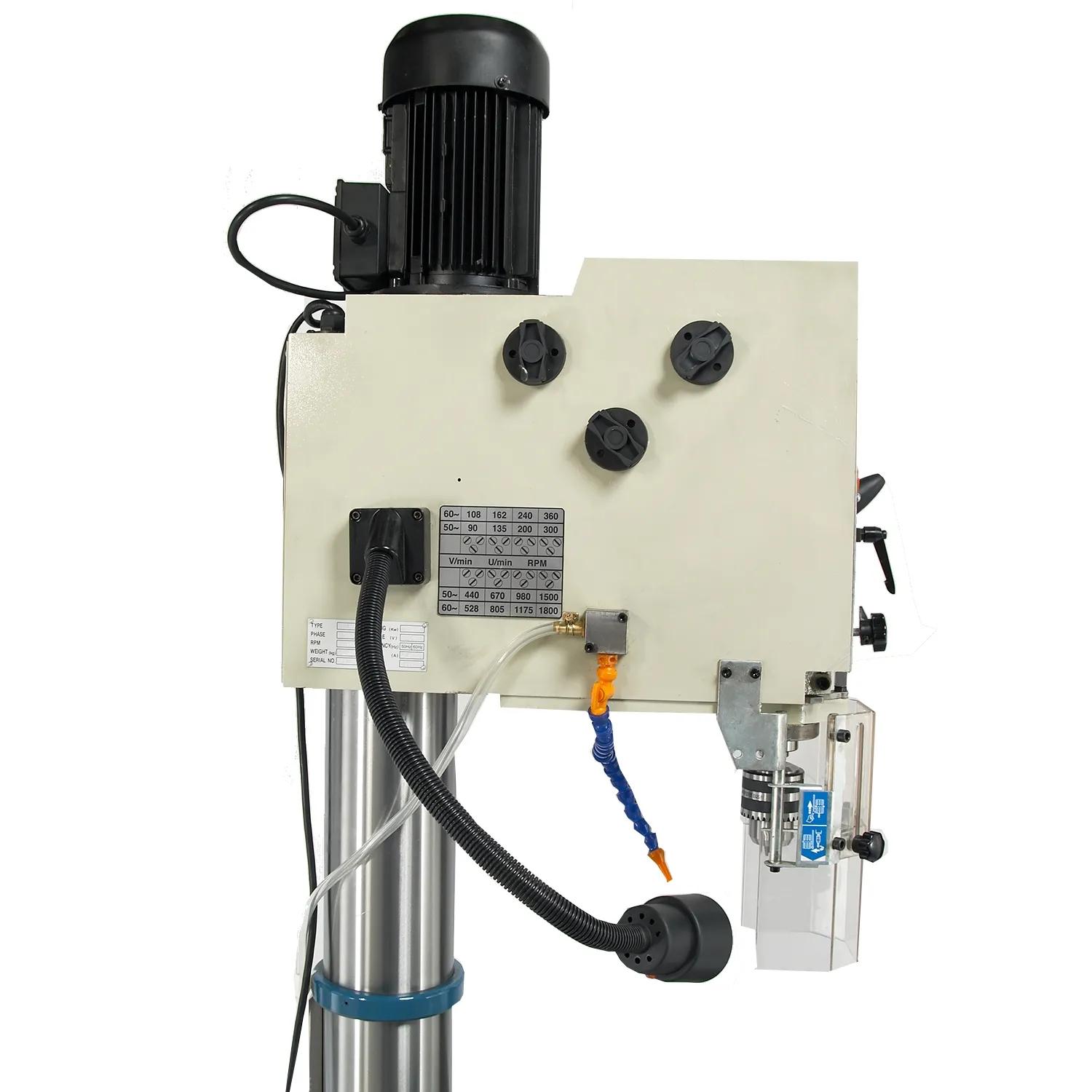

- Spindle Taper: The press uses a #4 Morse taper spindle for secure tooling engagement.

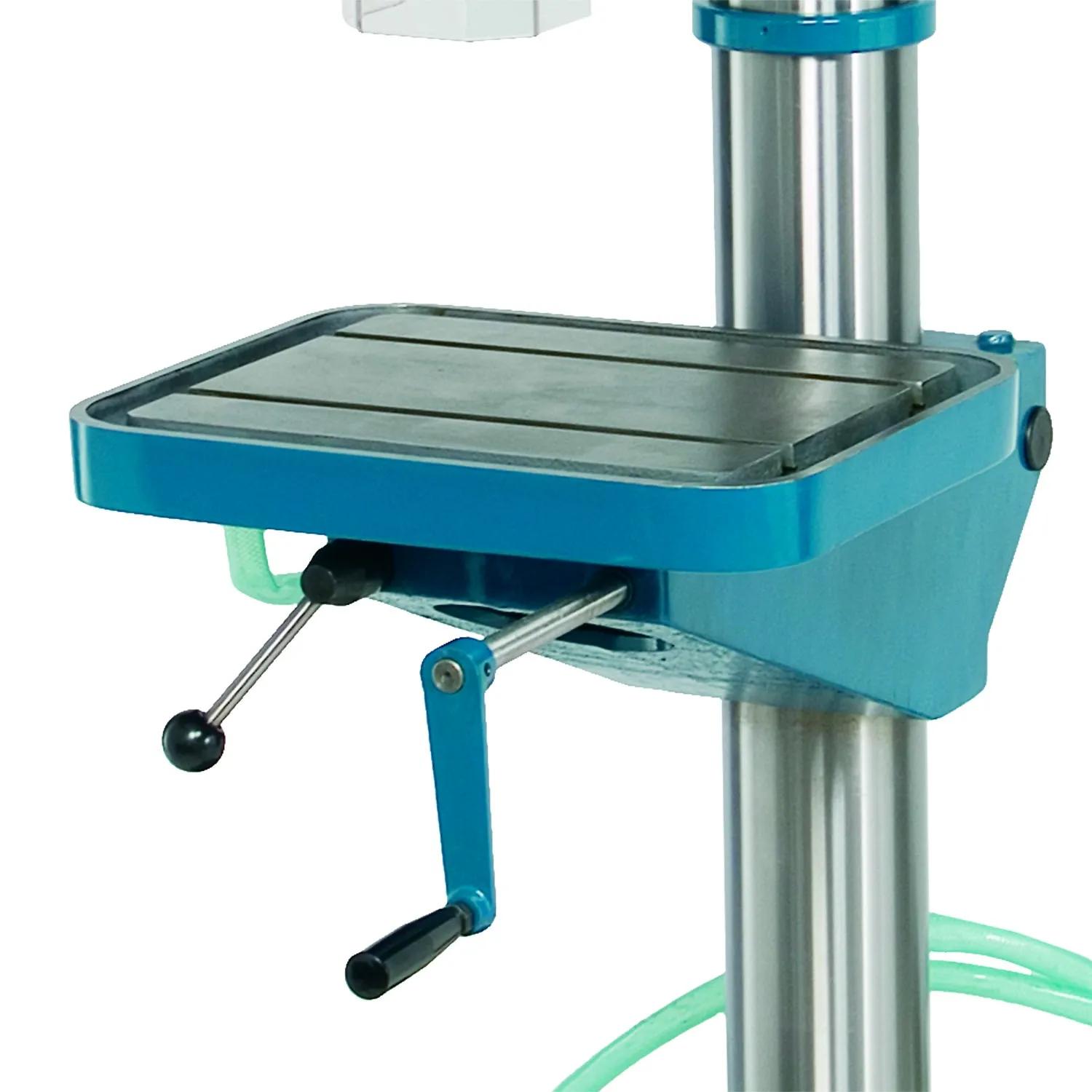

- Table Size: A 20″ x 16″ table with large T-slots supports fixtured workholding.

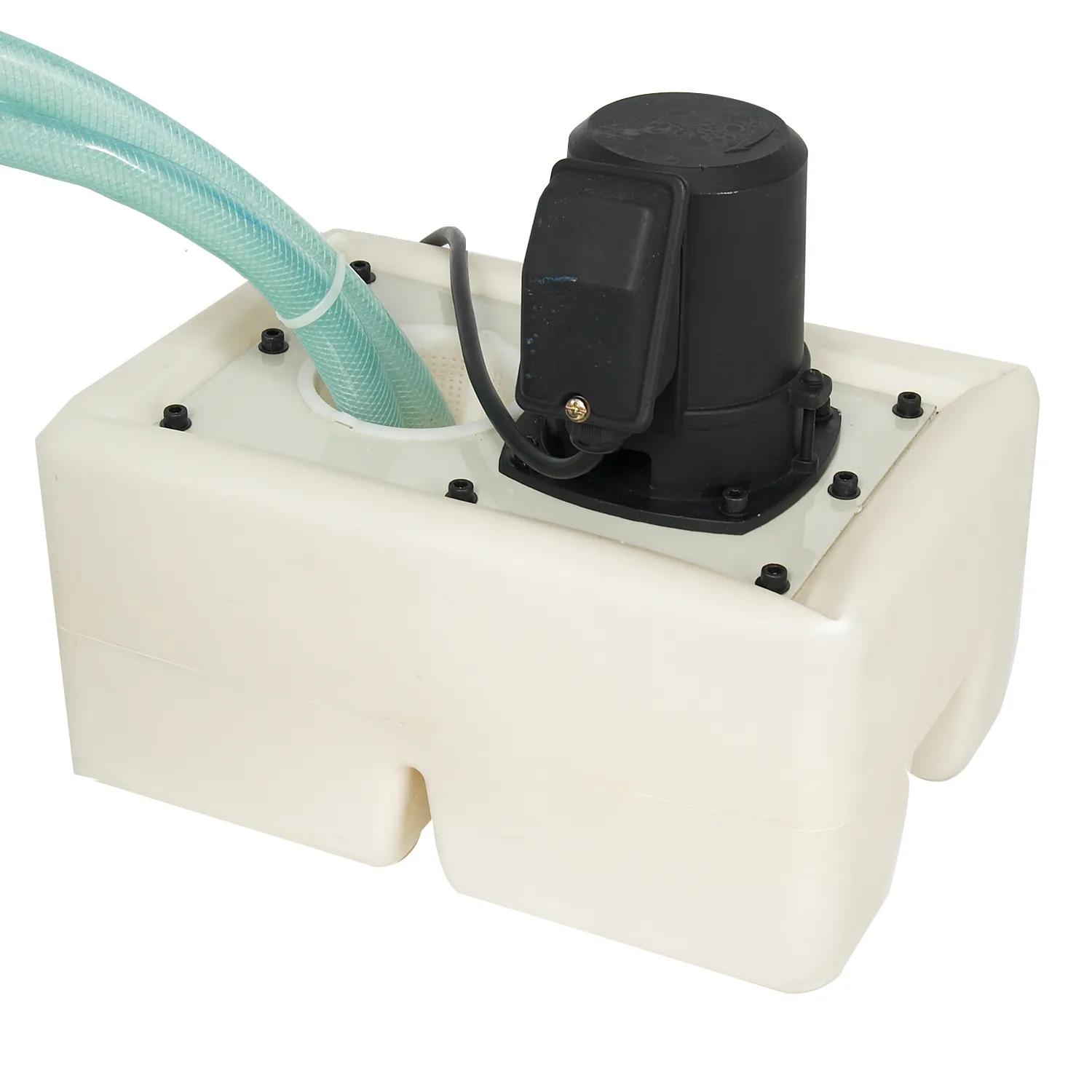

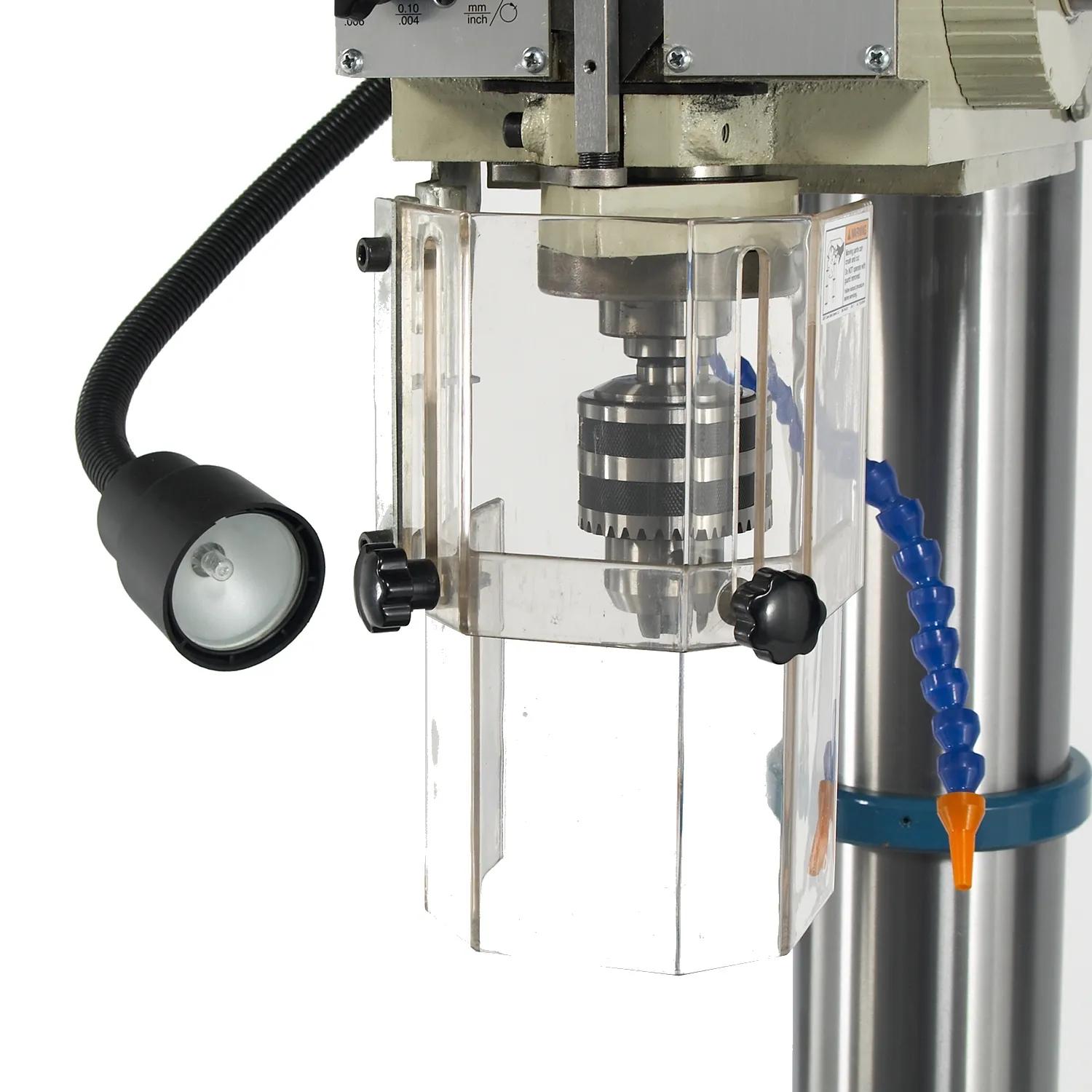

- Additional Features: A chuck, coolant system, halogen work light, and protective drill head shield are included standard.

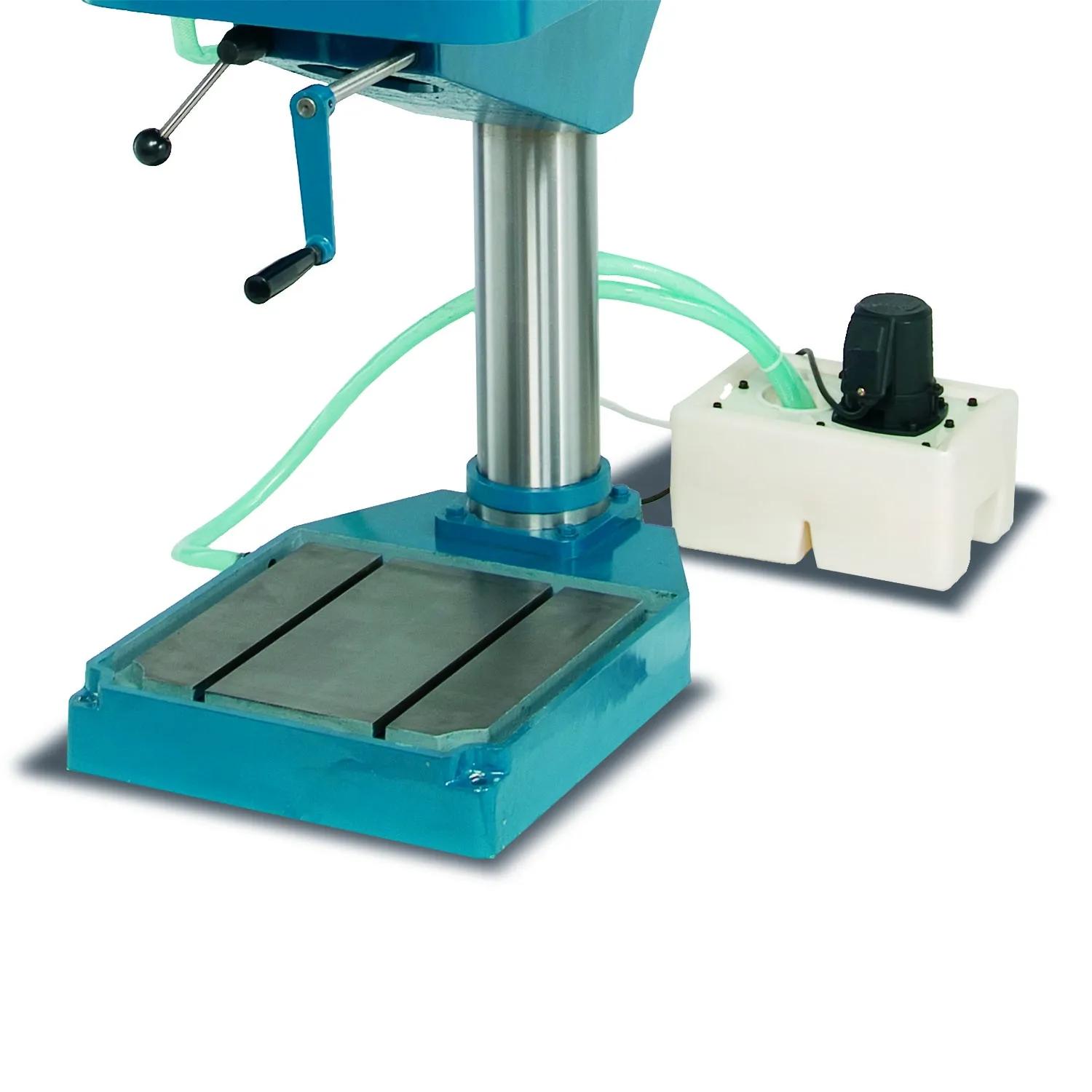

- Construction: The cast iron base and thick steel column offer rigidity under heavy feeds.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1002872
- Drilling Capacity Mild Steel1.5 in.
- Gross Weight990.0
- Horse Power (HP)3.5
- Input Power220V Single Phase
- Model NumberDP-1500G
- Motor HP3.5
- Motor PhaseThree
- Net weight990.0
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle Speeds108 to 1800 RPM
- Spindle TaperMT 4
- Swing20 in.
- Tapping Capacity Mild Steel1.3 in.
- Warranty1 Year
