Product Details
Industrial Construction: The Baileigh DP-4016B Bench Top Drill Press is a compact belt-driven machine built with a rigid cast iron base, head, and table to resist flex and provide durability in workshop environments.
Belt-Driven Power: Featuring a ¾ HP, 110 V single-phase motor and a five-speed pulley configuration, this drill press delivers smooth belt-driven power with speeds ranging from 250 to 2900 RPM for a variety of drilling tasks.
Shop Versatility: With a 16″ swing and drilling capacity up to ¾″ through mild steel, the DP-4016B includes a tilting table, wide steel column to minimize flex, and a safety shield around the drill head to protect the operator.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: This drill press provides a 16″ swing for drilling larger workpieces.
- Drill Capacity: This machine drills up to ¾″ through mild steel at full capacity.
- Motor Power: A ¾ HP motor drives the belt-driven head.
- Power Requirement: The unit operates on 110 V single-phase power.
- Speed Range: Five selectable speeds from 250 to 2900 RPM accommodate different materials.
- Belt Drive: The belt-driven head provides consistent torque and smooth speed changes.
- Column Support: A 2-3/4″ steel column minimizes flex under load.

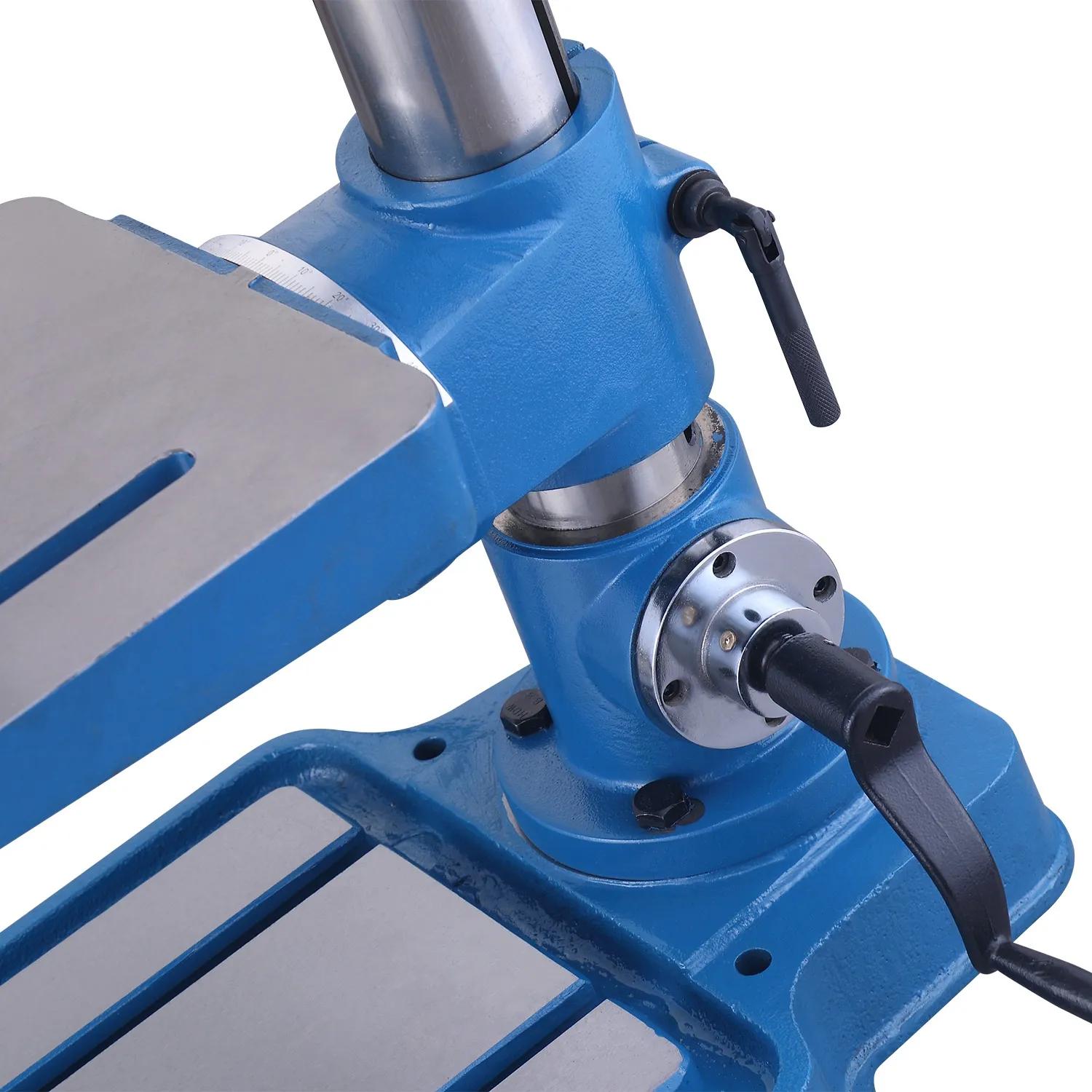

- Table Design: The cast iron table measures approximately 11″ x 10″ and tilts for angled drilling.
- Safety Shield: A protective shield around the drill head improves operator safety.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Related Products
DP-4016B-VS - 16" Variable Speed Bench Top Drill Press
Final Sale Price$3,299.00
Specifications
- SKUBA9-1228212
- Chuck Size (In.).03" - .625" (B16)
- Drilling Capacity Mild Steel.75 in.
- Gross Weight260.0
- Headstock MovementYes (360 degrees)
- Horse Power (HP)0.75
- Input Power110V
- Model NumberDP-4016B
- Net weight260.0
- Number of Spindle Speeds5
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM)250-2900
- Spindle Speeds0 to 2150 RPM
- Spindle TaperMT2
- Spindle Travel (In.)3.93 in.
- Swing16.14 in.
- Table MaterialCast Iron
- Tapping Capacity Mild Steel.50 in.
- Warranty1 Year
- Working Load Limit (Lbs.)132
