DP-1375VS-110 Variable Speed Drill Press

SKU: 1227902

Call for Availability

$3,852.00 $
Leasing starts at $88 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description

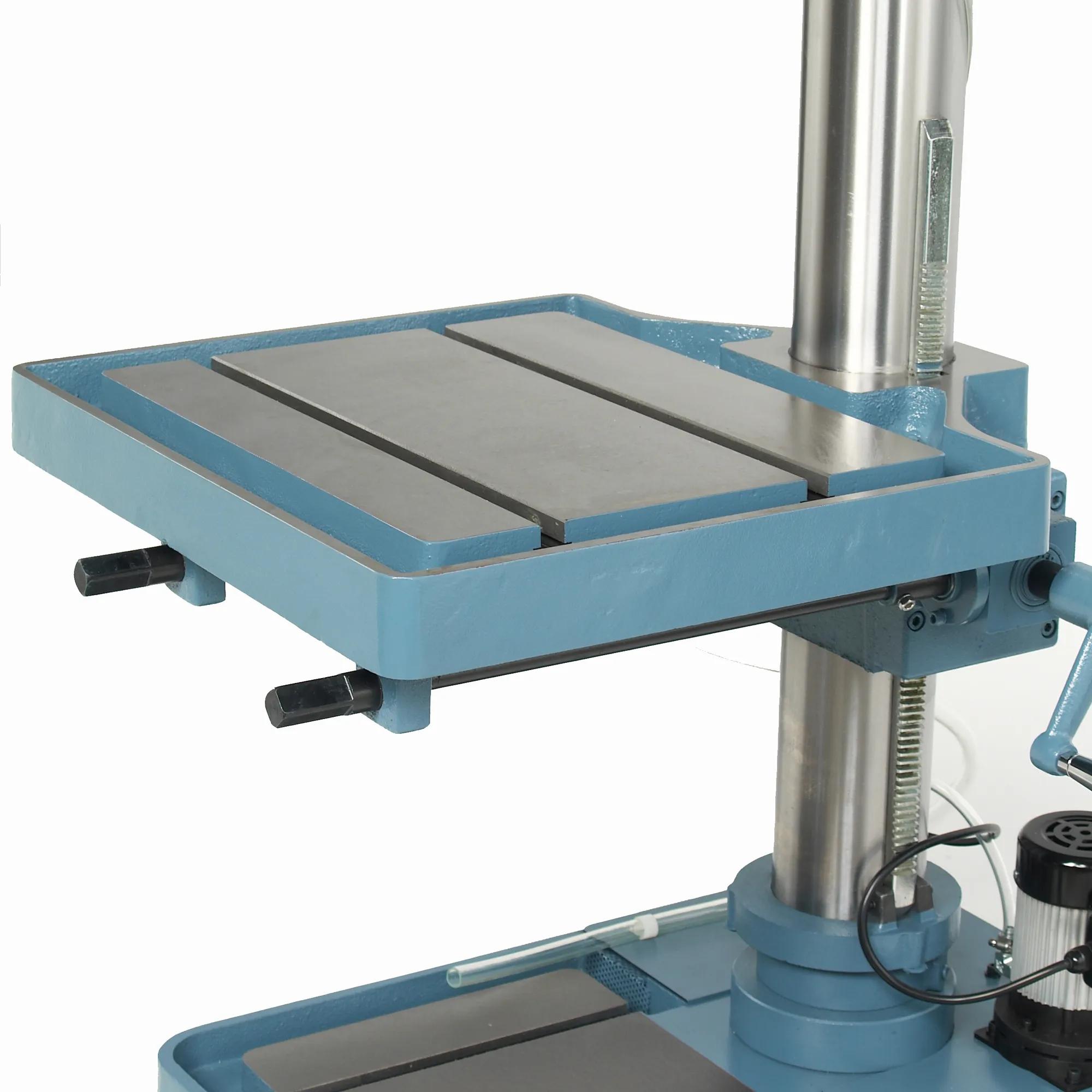

Sometimes you just need a high quality metalwroking drill press in am area that doeesnt have easy access to 220V power. That's where the Baileigh DP-1375VS-110 comes in. Like all of our drill presses, the DP-1375VS-110 is built to last for years because it draws strength from its sturdy base and column that won’t flinch during the heaviest drilling sessions. With a 22” swing, this variable-speed drill press will prove an ideal investment for any machinist or fabricator.



  • 2 hp motor runs on just 110 volt power.
  • Tackles a maximum drilling capacity of 1.1/16” mild steel.

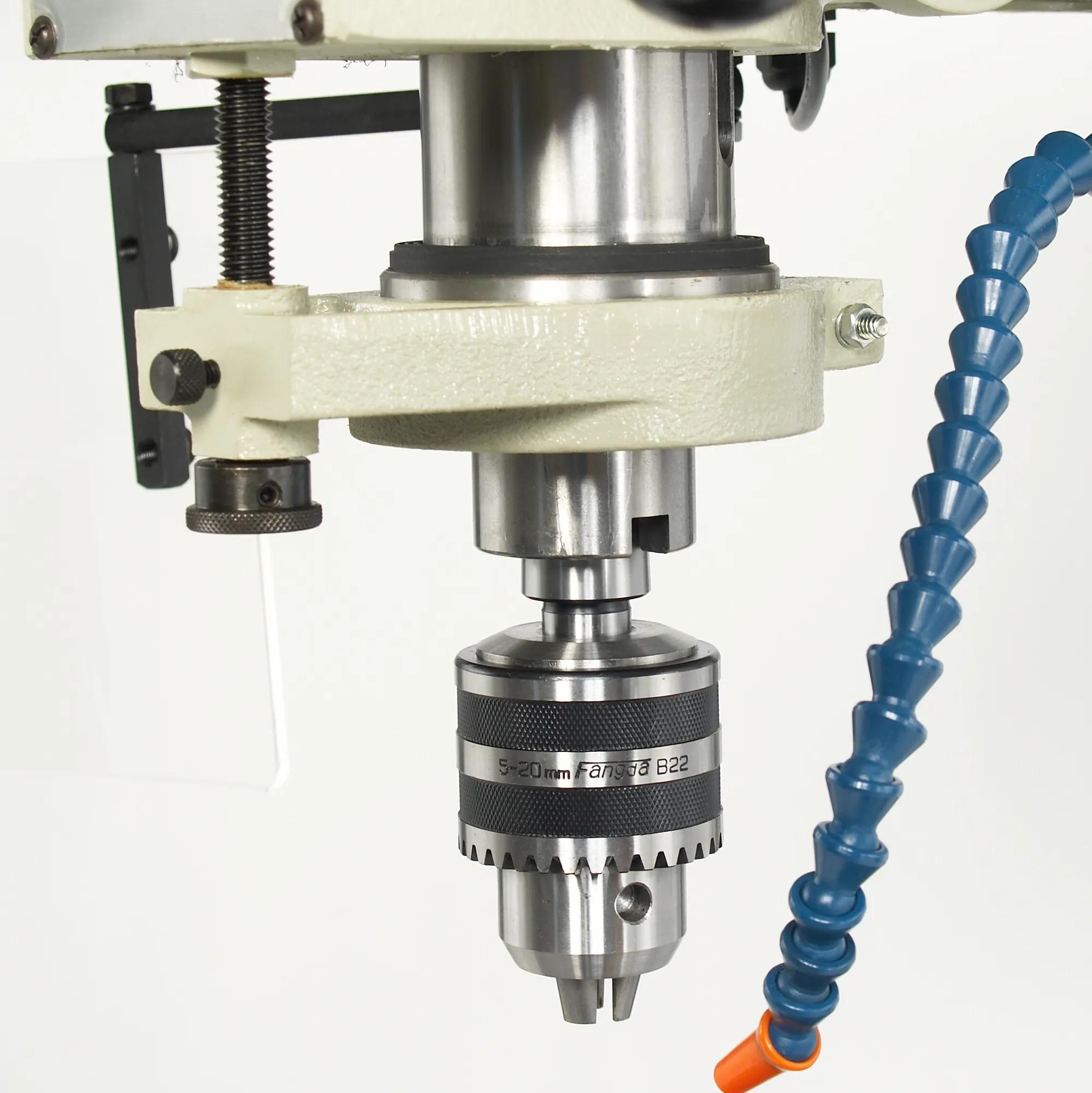

  • Heavy duty spindle transfers power to the #3 Morse taper tooling .
  • Speed potentiometer dial controls powerful inverter-driven head.
  • Variable drilling speed, ranging from 120 to 2000 rpm, lets you choose the right setting to suit your application.
  • Digital readout displays actual spindle rpm, ensuring precise results time after time.
  • Features an auto-reversing tap function with up to 5/8” capacity.
  • 4-1/2" Wide column provides extra support and rigidity to reduce flexing even during the toughest drilling sessions.

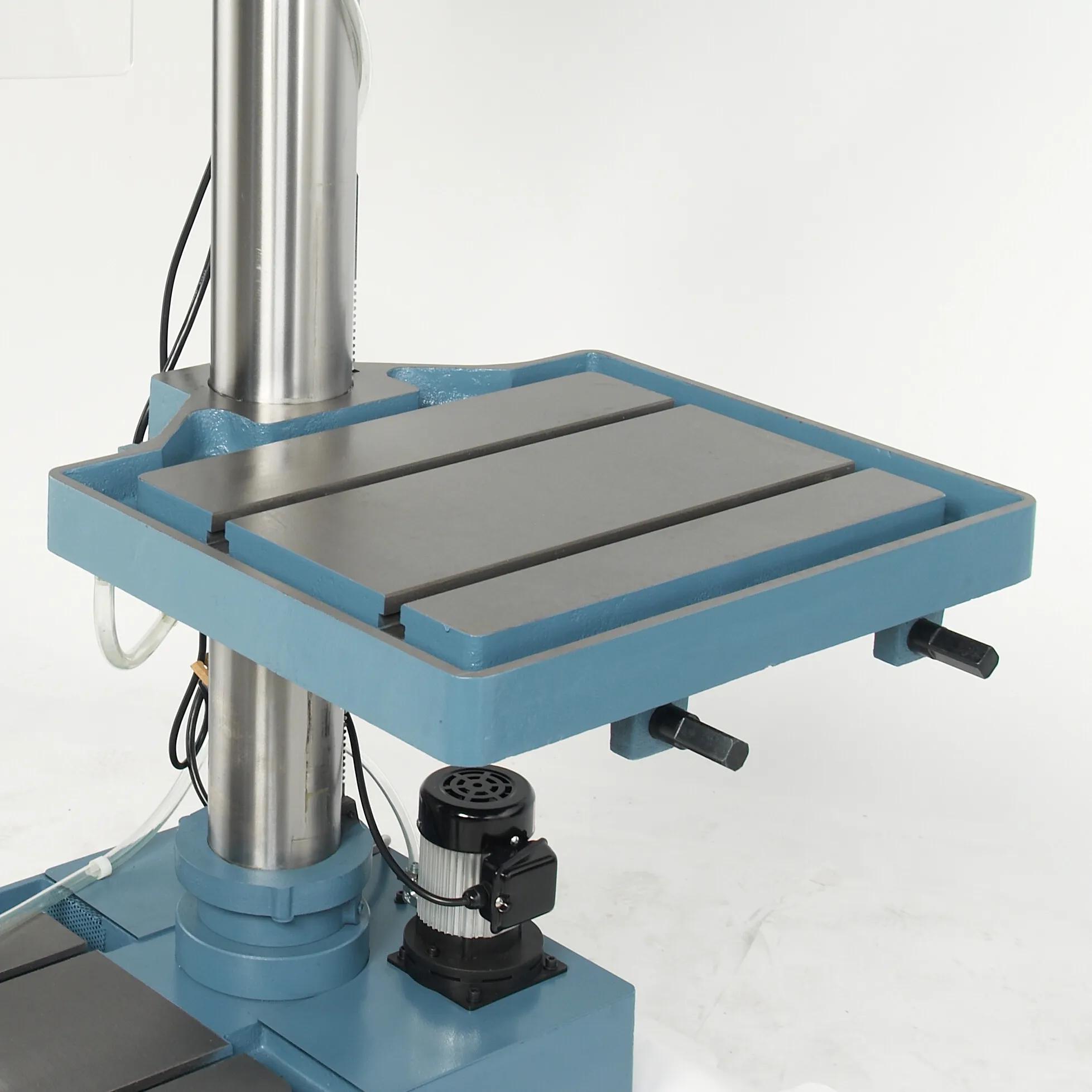

  • Base and 22” x 18.5” table are made of a heavy iron casting to increase rigidity.
  • Very large .625" T-slots let a vise or fixture securely hold your material.

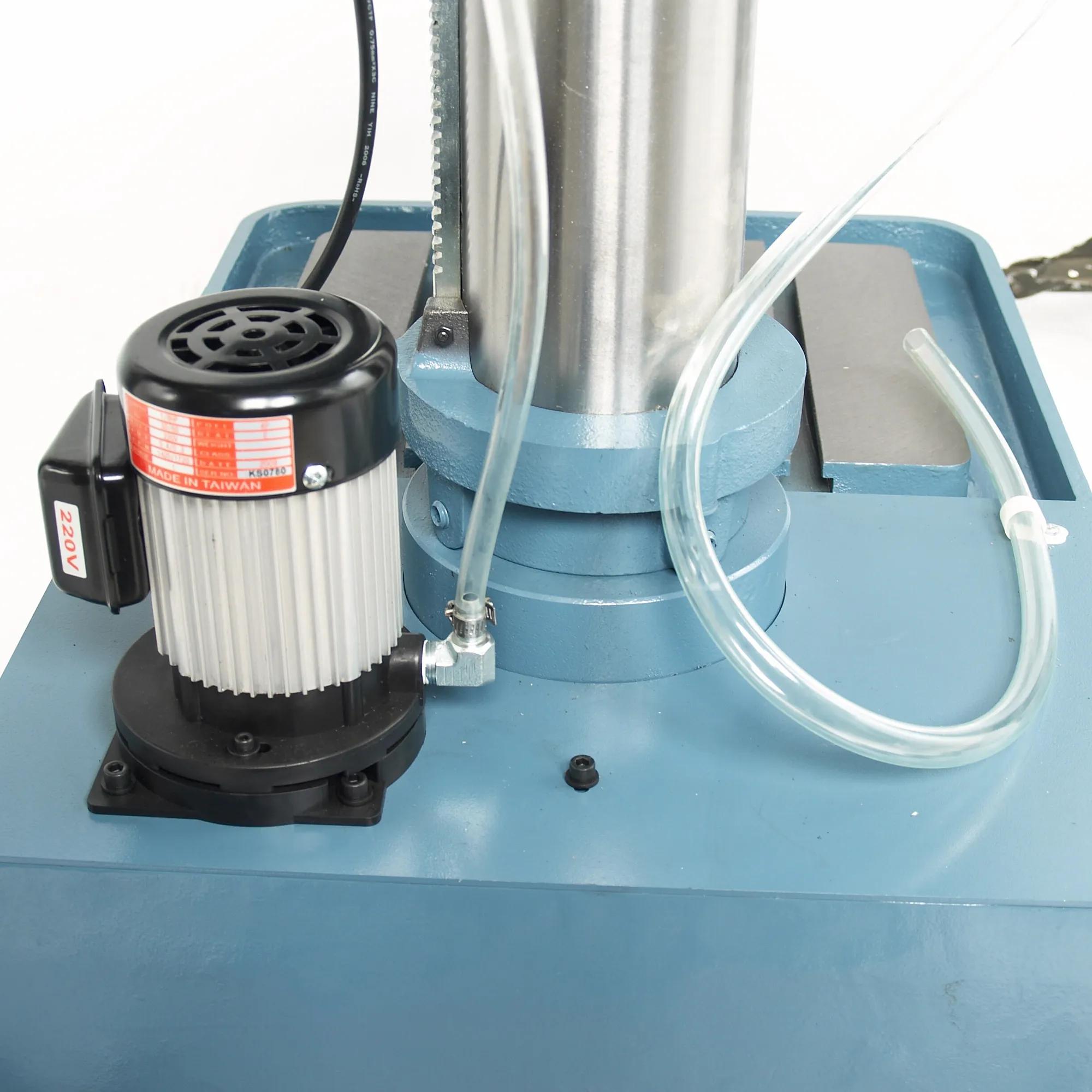

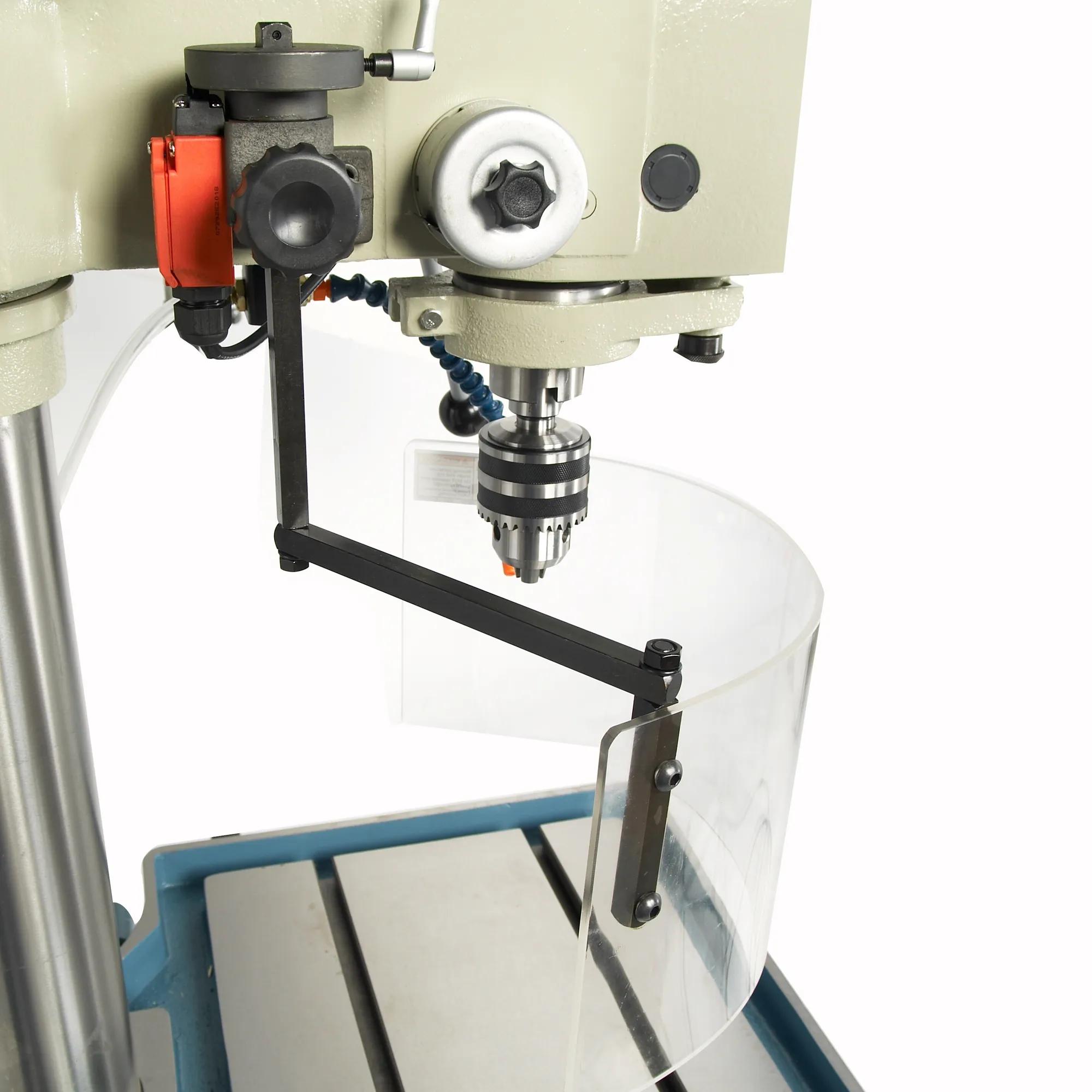

  • Coolant system, stored in the base, sprays out at the end of the spindle behind the splash and safety guard to extend drill bit and tap lifespan.
  • Covered by a 1-year parts warranty and lifetime technical support by phone from Baileigh’s team of experienced reps.
  • Need it soon? We typically keep the DP-1375VS-110 in stock for quick shipments.



Questions? Please give us a call at 1-920-684-4990.

Specifications

Item Number DP-1375VS-110
Spindle Speeds Inverter Driven Varialble
Max. Drill Capacity 1
Swing 20.8"
Spindle Travel 5.9"
Base Size 27" x 19"
Table Size 22" x 18.75"
Coolant System Yes
Spindle Nose to Table 33.5"
Spindle Nose to Base 46.875"
Spindle Speed 120 - 2000 rpm
Spindle Taper MT 3
Table Slot .625"
Tapping Capacity 5/8"
Table Load Capacity 154 lbs
Main Motor 2 hp
Motor Coolant 1/8 hp
Drill Capacity Cast Iron 1-1/16"
Drill Capacity Steel 1-1/4"
Power 110 Volt
Shipping Weight 579lbs
Drill Capacity 1.25"
Column Diameter 4.52"
Shipping Dimensions (Inches) 60x44x79

* specifications subject to change without notice.
