Product Details

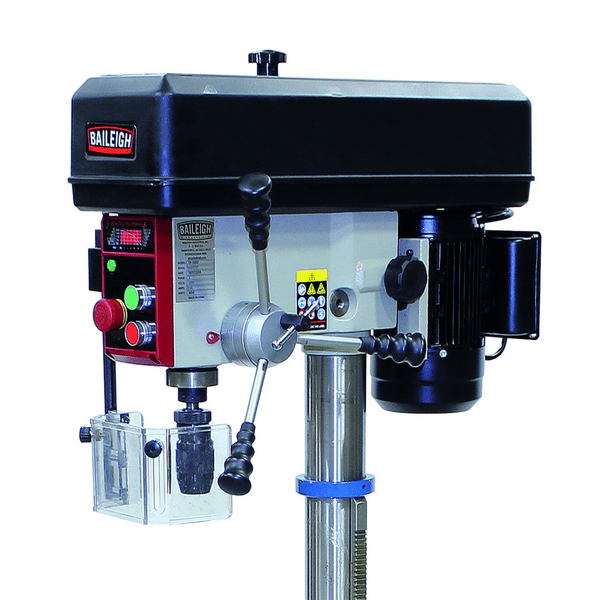

Industrial Construction: The Baileigh DP-1000E Belt Driven Drill Press is an economical belt-driven machine built with a rigid cast iron base, table, and headstock that reduce vibration and support consistent drilling performance.
Belt-Driven Power: Featuring a ½ HP, 110 V single-phase motor with a five-speed pulley configuration, this drill press provides controlled belt-driven power across a range of drilling tasks for mild steel and general fabrication.
Shop Versatility: With its 15.5″ swing and maximum drilling capacity of 1″ through mild steel, the DP-1000E includes a safety shield and stiff 3-1/8″ steel column to eliminate flexing even at full capacity.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Swing Capacity: This drill press offers a 15.5″ swing for drilling larger workpieces.
- Drill Capacity: This machine drills up to 1″ through mild steel.
- Motor Power: A ½ HP motor drives the belt-driven head.
- Power Requirement: The unit operates on 110 V single-phase power.
- Speed Range: Five pulley speeds from 250 to 2900 RPM suit various materials.
- Belt Drive: The belt-driven head helps extend tooling life and maintain torque.
- Column Support: A 3-1/8″ steel column minimizes flex under load.

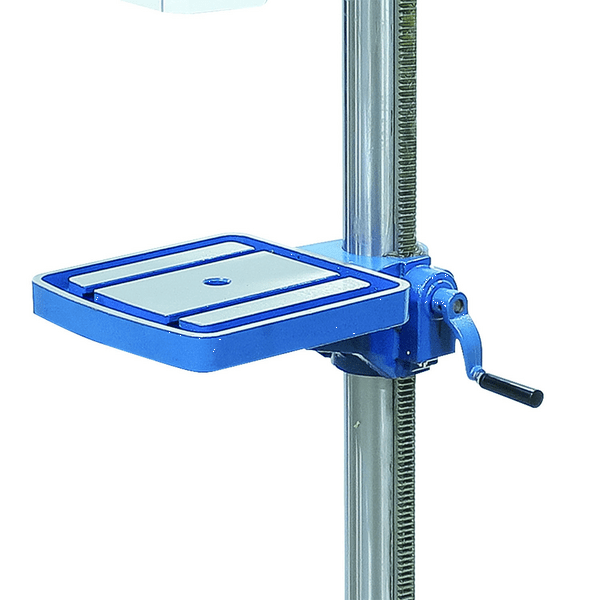

- Work Table: The cast iron table has 360° tilt for angled drilling.
- Safety Shield: A protective shield surrounds the drill head for operator safety.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1022128

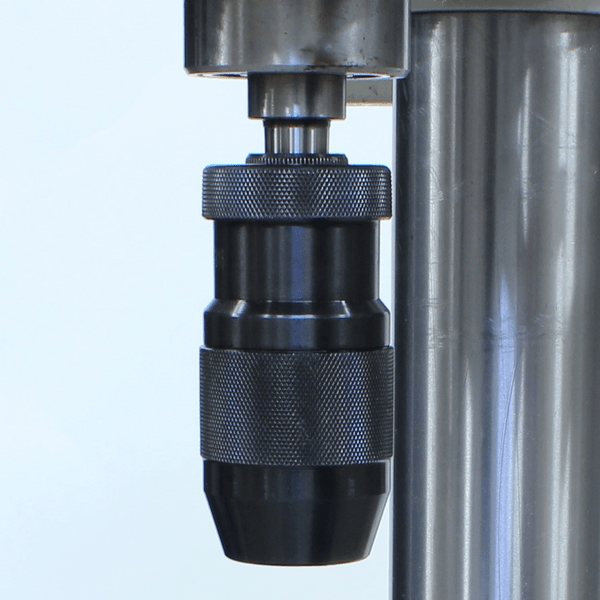

- Chuck Size (In.)B-16 1-16mm Keyless Chuck, MT2 to B16 Arbor, Drift Key
- Compliance TypeCE
- Drilling Capacity Mild Steel1 in.
- Gross Weight370.0
- Horse Power (HP)0.5
- Input Power110V
- Model NumberDP-1000E
- Motor HP0.5
- Net weight370.0
- Number of Spindle Speeds5
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Range of Spindle Speeds (RPM)250, 700, 1150, 1900, & 2900
- Spindle Speeds250 to 2900 RPM
- Spindle TaperMT2
- Swing15.5 in.
- Table MaterialCast Iron
- Tapping Capacity Mild Steel.625 in.
- Warranty1 Year
