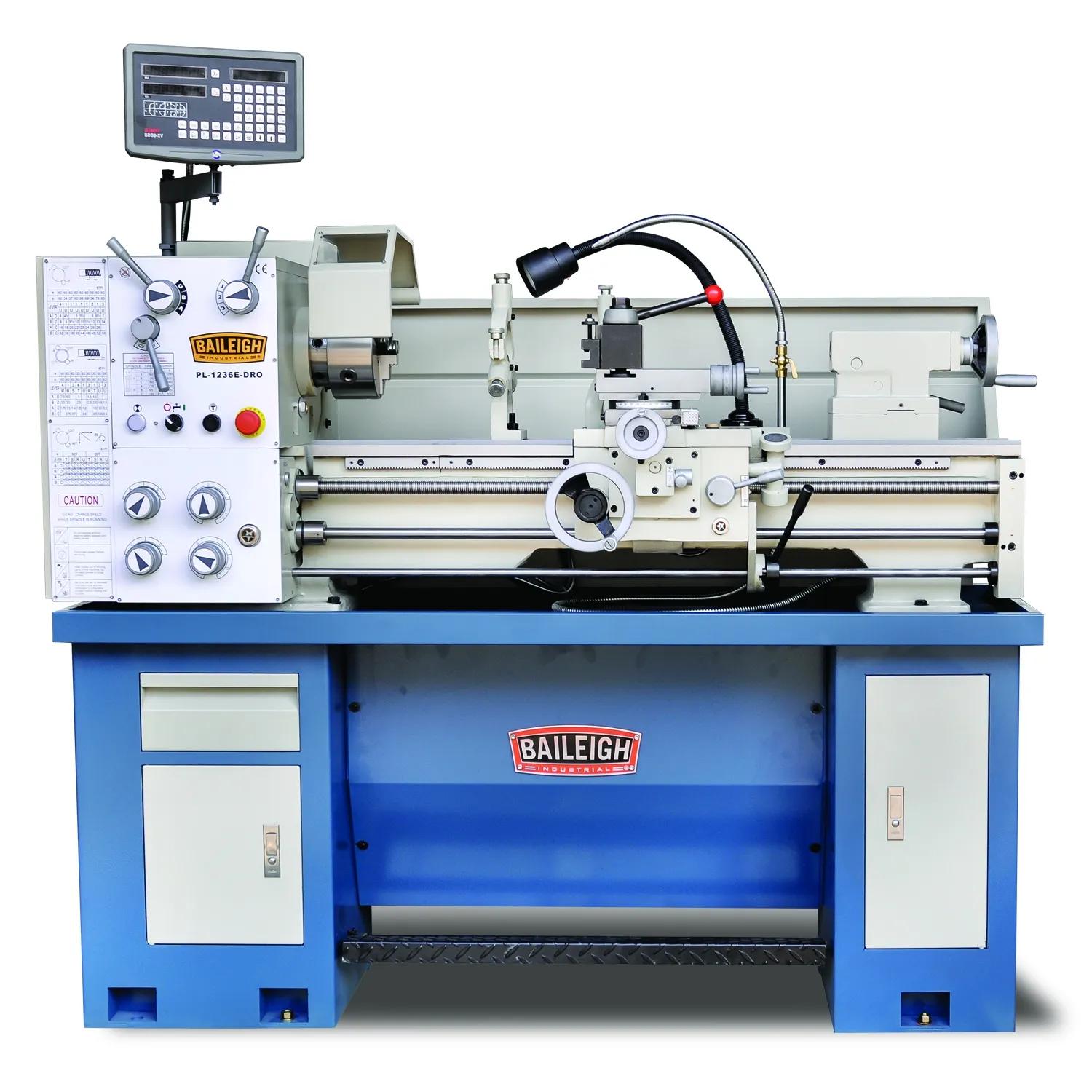

12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO)
12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO)

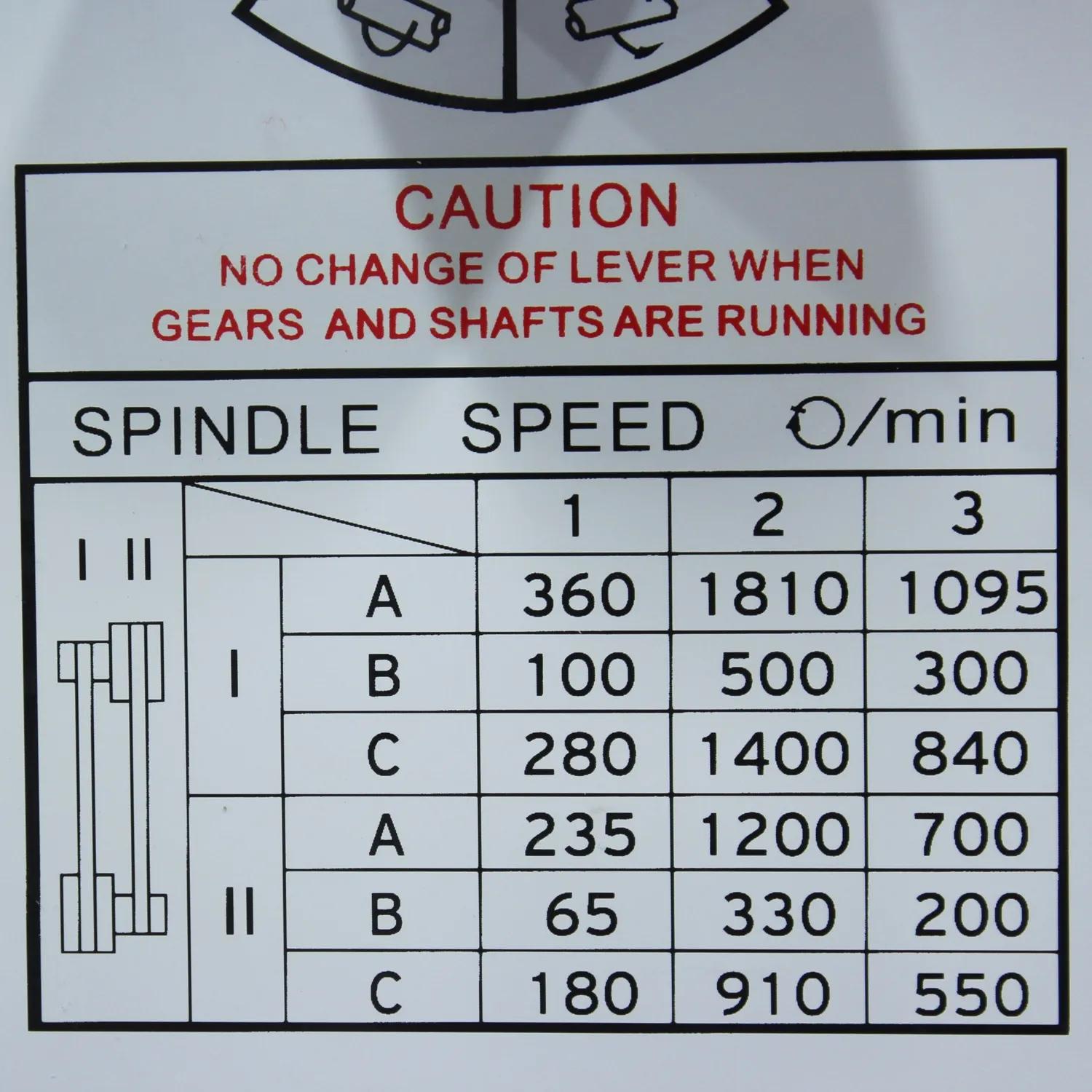

Spindle Speed Chart

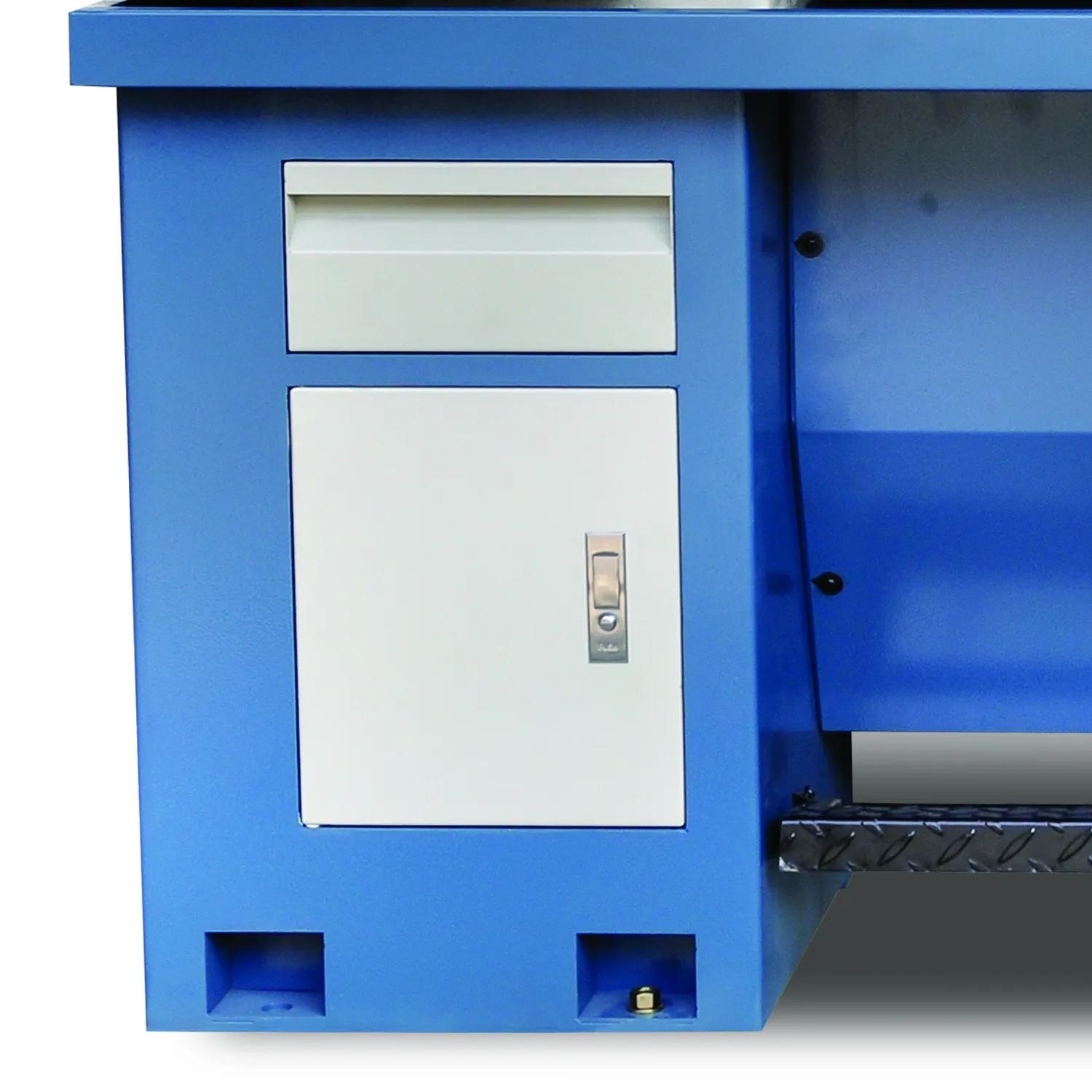

Drawer and Cabinet in the base

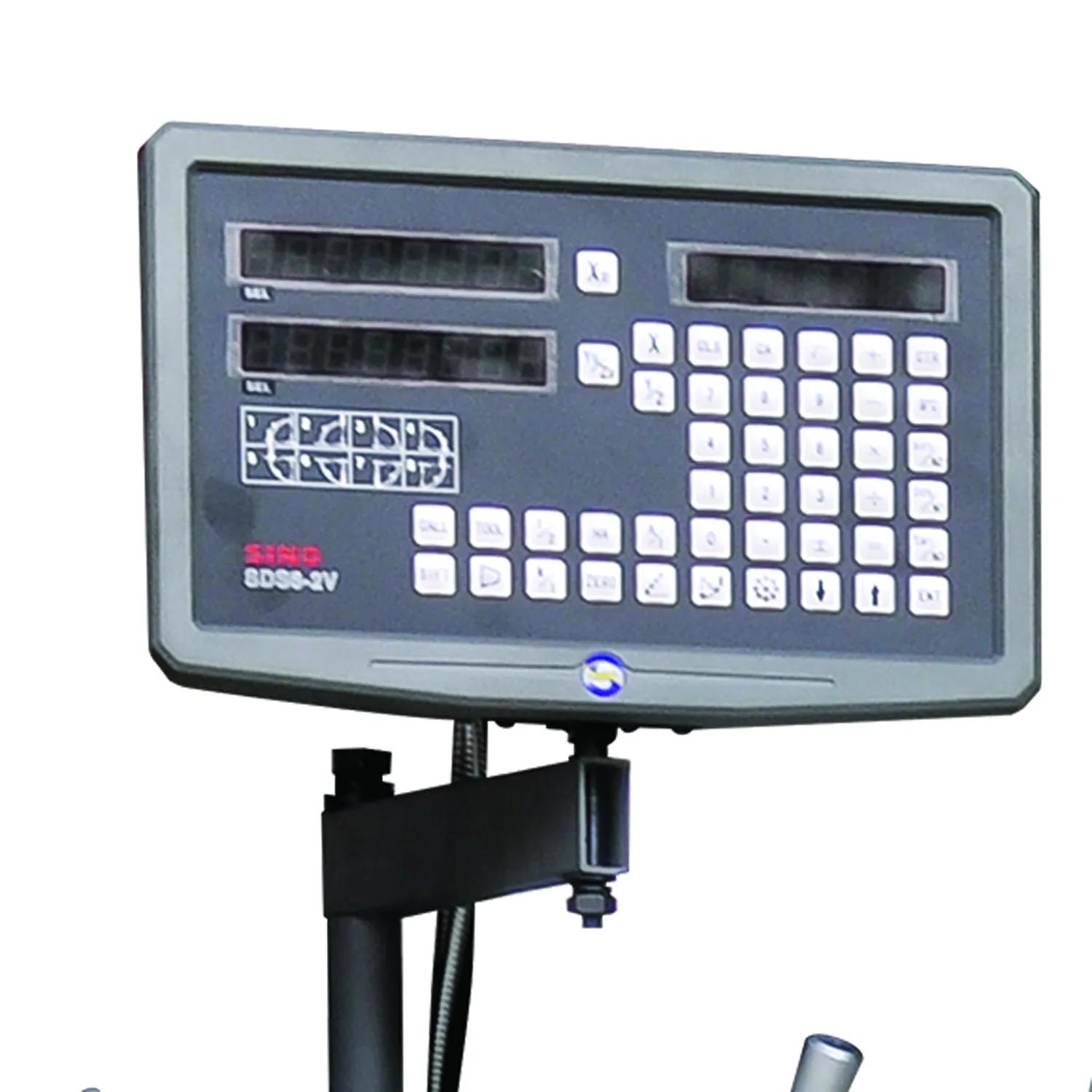

Integrated digital readout (DRO) helps you get repeatable results

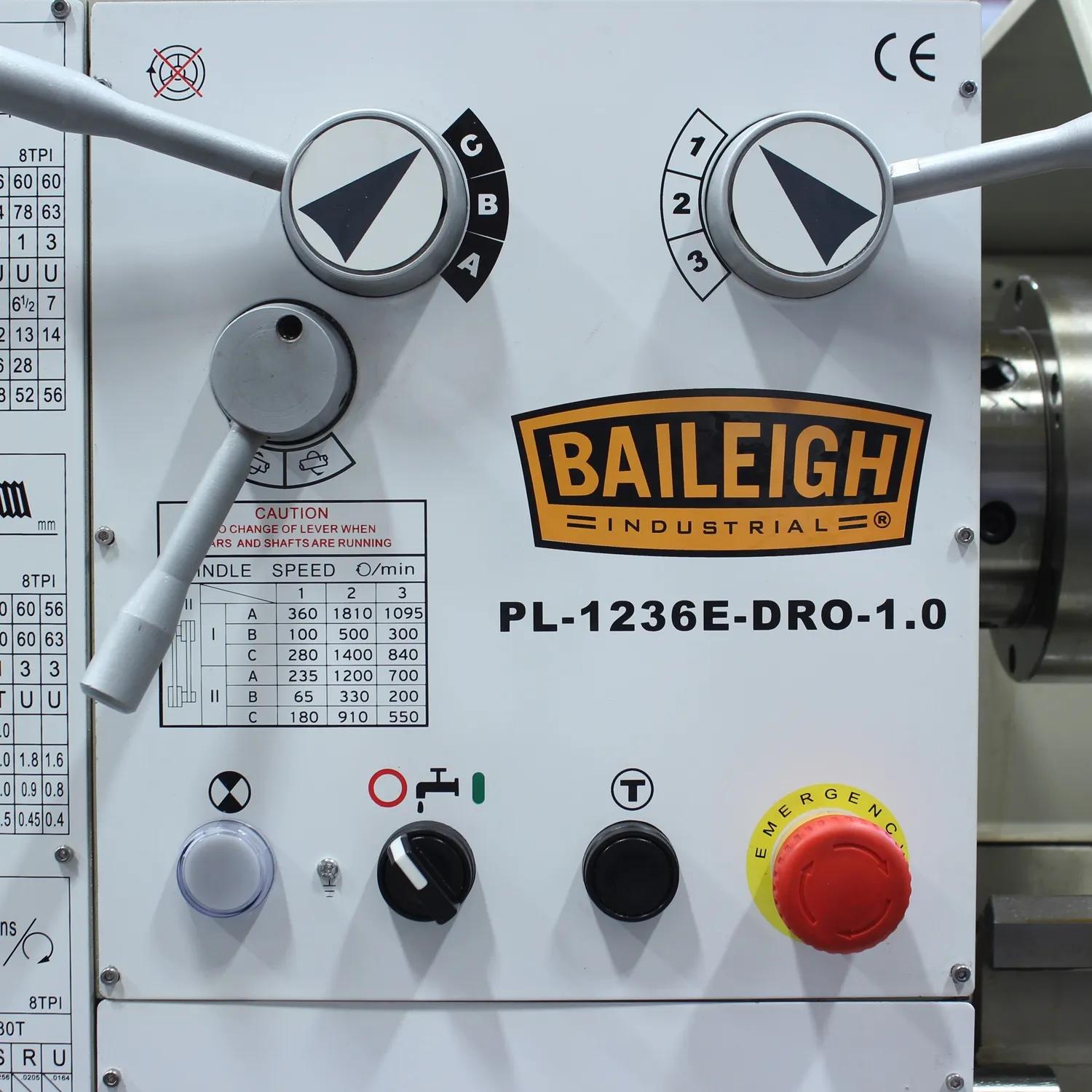

Operating controls
be changed.

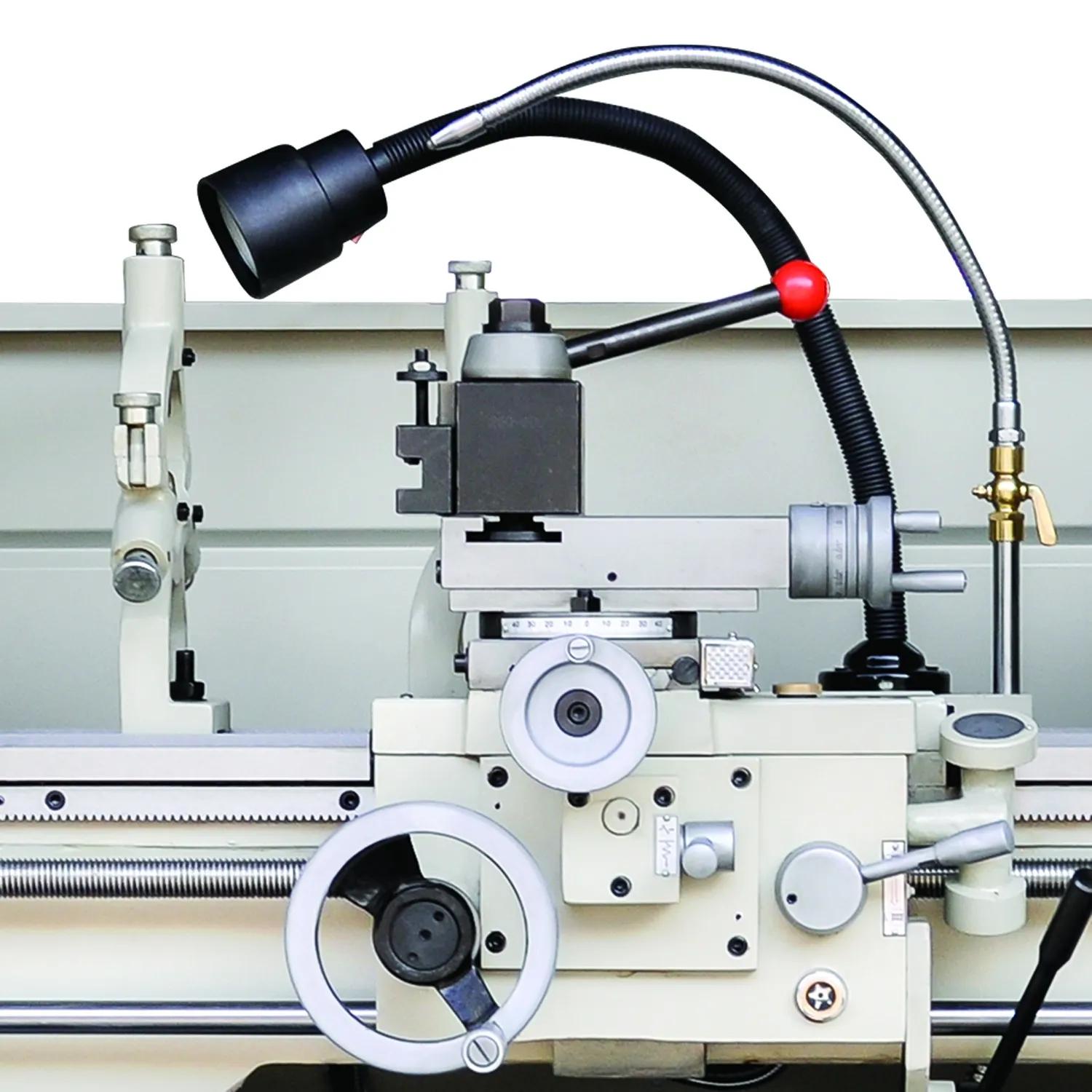

Carriage with halogen work light and coolant nozzle

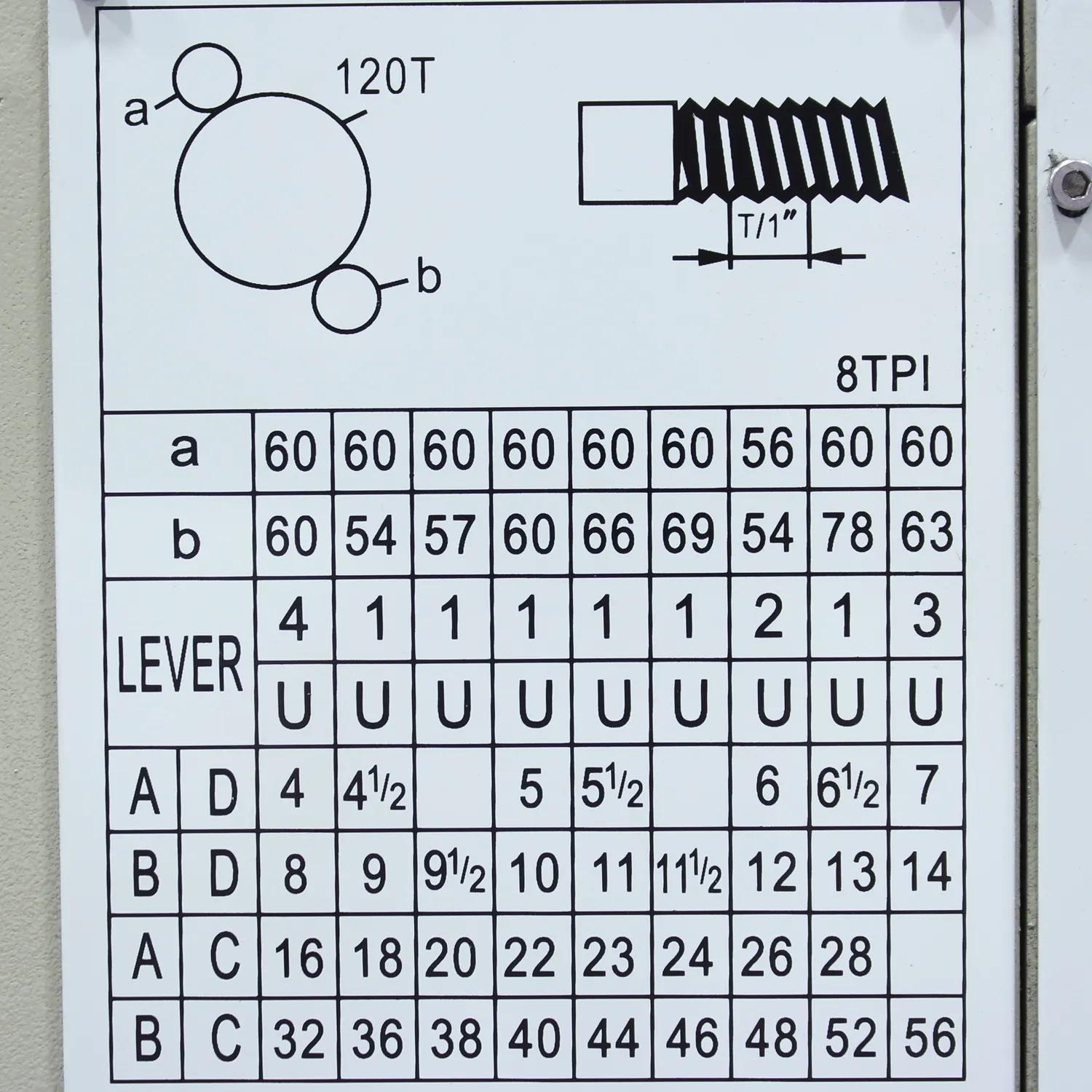

To cut threads as listed in the charts and set the longitudinal feed and crossfeed rates, the gears will need to

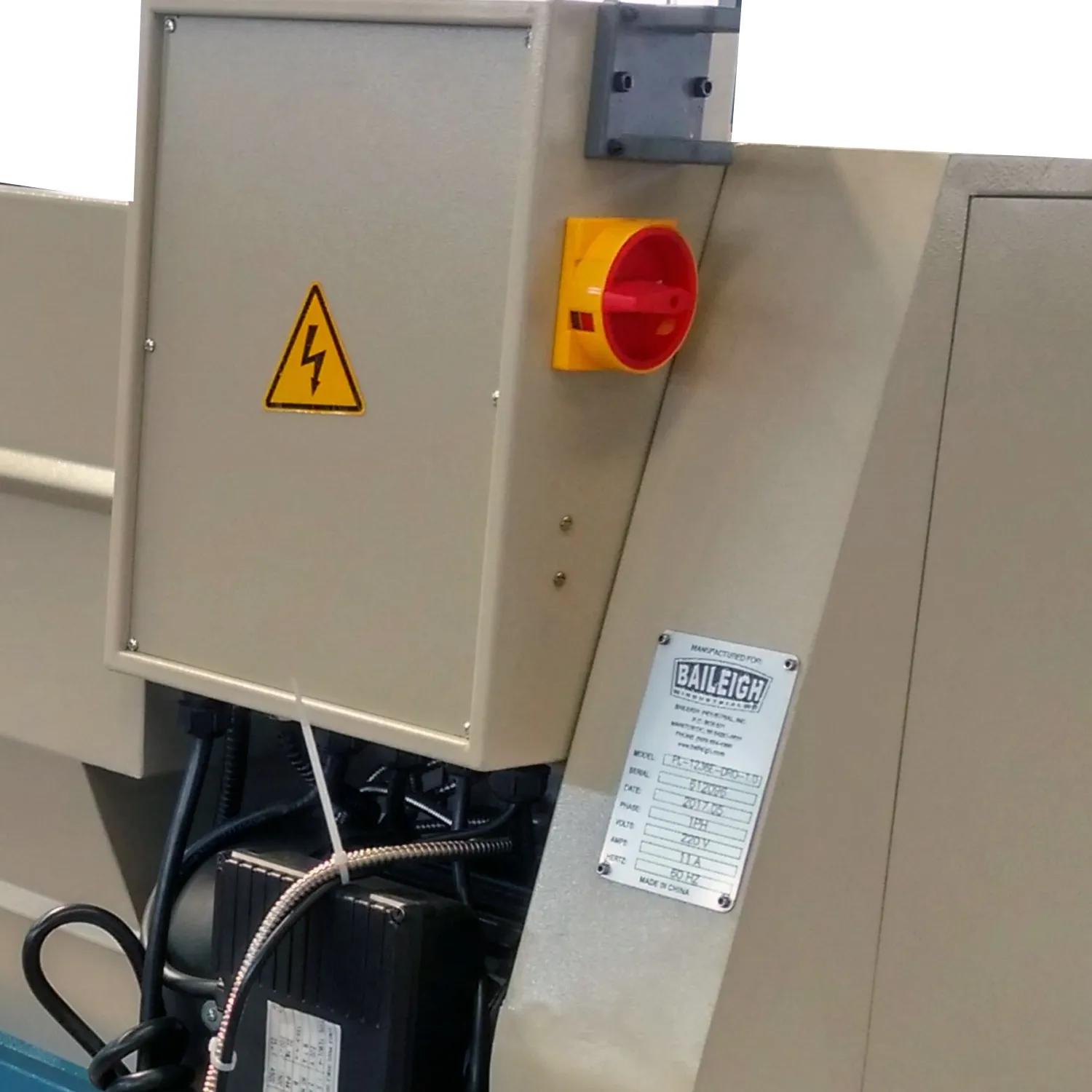

Back with the shut-off to the electrical

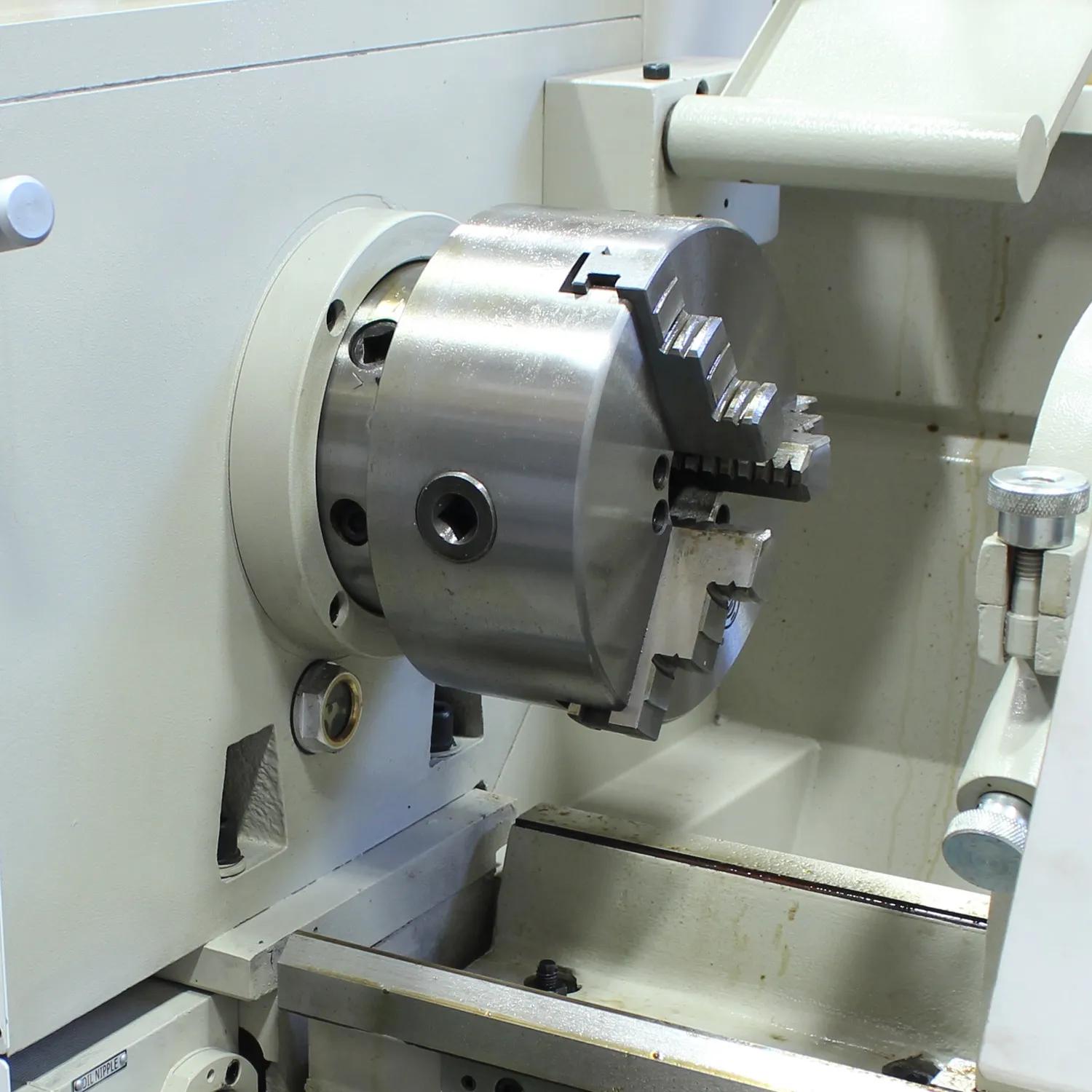

Comes with a 6-inch 3-jaw chuck already installed.

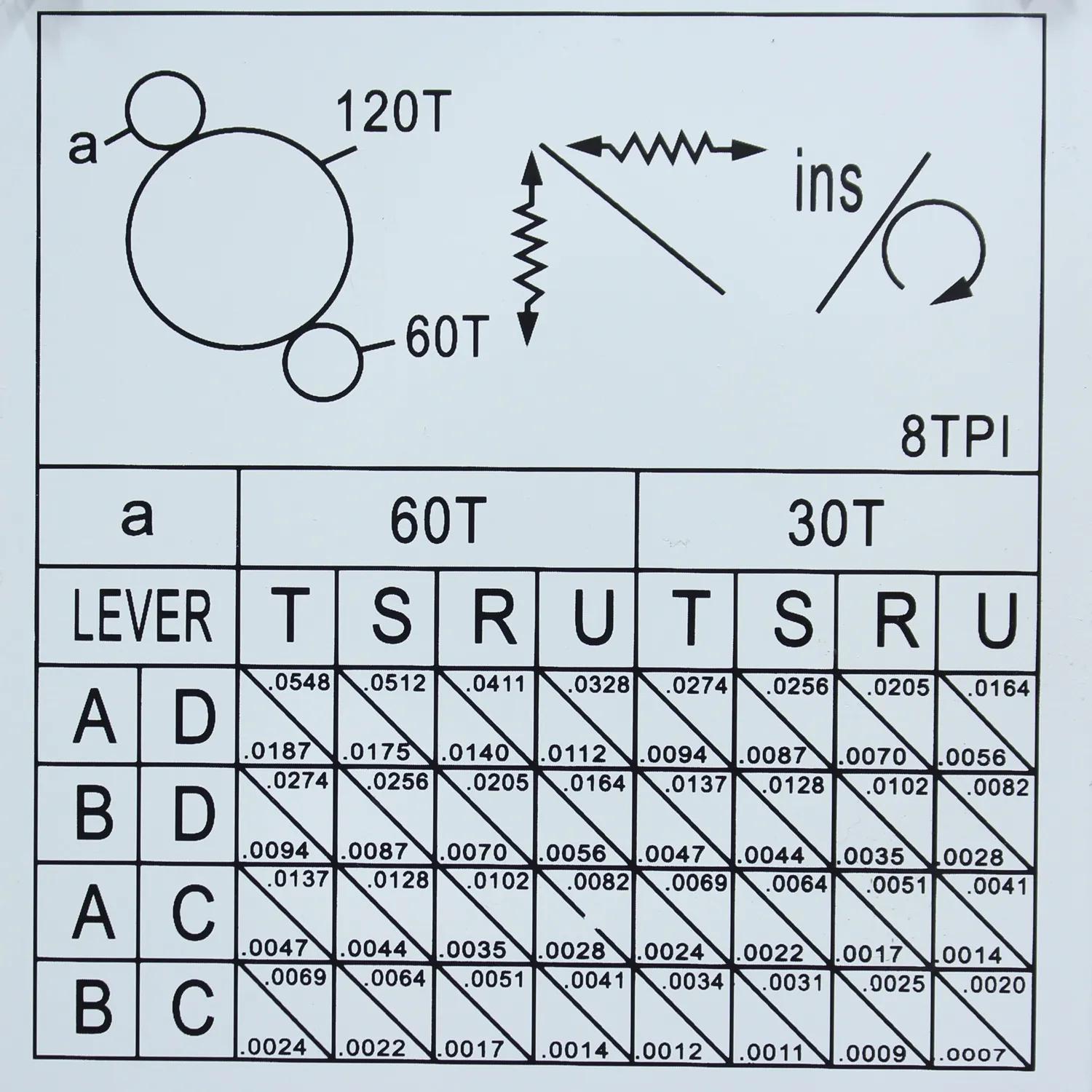

Feed rate charts show some of the more typical settings that may be used

12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO)

Stock Number: BA9-1016617

0 Reviews

No reviews yet.

  • Integrated DRO
  • 36" between centers
  • 70 to 1400 rpm
  • 220V 1-phase motor
$11,065.00

Financing Starting at $261 per month -

Contact a Specialist - (920) 684-4990
financing-banner

Product Details

12"x36" Geared Head Metal Lathe, X/Y-Axis DRO (PL-1236E-DRO)

Industrial Construction: The Baileigh PL-1236E-DRO integrates a rugged geared head metal lathe platform with a factory-installed digital readout (DRO) system on the X and Y axes to improve measurement accuracy and reduce setup errors.

Precision & Performance: Featuring a 2 HP, 220 V single-phase motor and a geared head with a geared speed range from approximately 70 to 1400 RPM, this lathe delivers smooth torque and consistent power across a wide range of turning operations.

Shop Versatility: Built with a rigid cast-iron frame and precision-ground ways, the PL-1236E-DRO supports a variety of machining tasks — from routine turning and facing to threading and contouring — making it suitable for small fabrication shops, maintenance departments, and training environments.

Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.

Features

  • Swing Capacity: This lathe has a 12″ swing over the bed for handling a range of workpiece diameters.
  • Between Centers: This machine provides 36″ between centers for longer workpieces.
  • Motor Power: A 2 HP motor supplies consistent machining power.
  • Power Requirement: The lathe operates on 220 V single-phase shop power.
  • Variable Speed: The geared head delivers a range of spindle speeds approximately 70 to 1400 RPM for versatile turning.
  • Digital Readout: Integrated digital readout (DRO) on X and Y axes enhances precision and repeats accuracy.
  • Spindle Bore: This lathe has a 1.50″ spindle bore to accept larger bar stock.
  • Spindle Taper: The spindle uses an MT3 taper for standard tooling.
  • Construction: Rigid cast-iron frame and precision-ground bed ways minimize vibration and maintain alignment.
  • Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications

  • SKU
    BA9-1016617
  • Assembled Dimensions
    69 in. x 44 in. x 64 in.
  • Digital Readout
    Yes
  • Distance Between Centers
    36 in.
  • Gross Weight
    1420.0
  • Horse Power (HP)
    2
  • Input Power
    220V Single Phase
  • Leadscrew Thread Pitch
    8 TPI
  • Length of Gap (In.)
    6 in.
  • Model Number
    PL-1236E-DRO-1.0
  • Motor Phase
    Single
  • Net weight
    1420.0
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Range of Cross Feeds (IPR)
    0.007 in. - 0.0187 in./rev
  • Range of Inch Threads (TPI)
    4 - 56 T.P.I.
  • Range of Longitudinal Feeds (IPR)
    0.002 in. - 0.0548 in./rev
  • Range of Metric Threads
    0.4 - 7 mm
  • Spindle Speeds
    70 to 1400 RPM
  • Spindle Taper
    MT3
  • Spindle Travel (In.)
    4 in.
  • Swing Over Bed
    12 in.
  • UPC
    731325462715
  • Warranty
    1 Year
