Equipped with a convenient tilt-frame feature, this band saw enables effortless angular cutting, making it ideal for a wide range of applications.
Equipped with a convenient tilt-frame feature, this band saw enables effortless angular cutting, making it ideal for a wide range of applications.

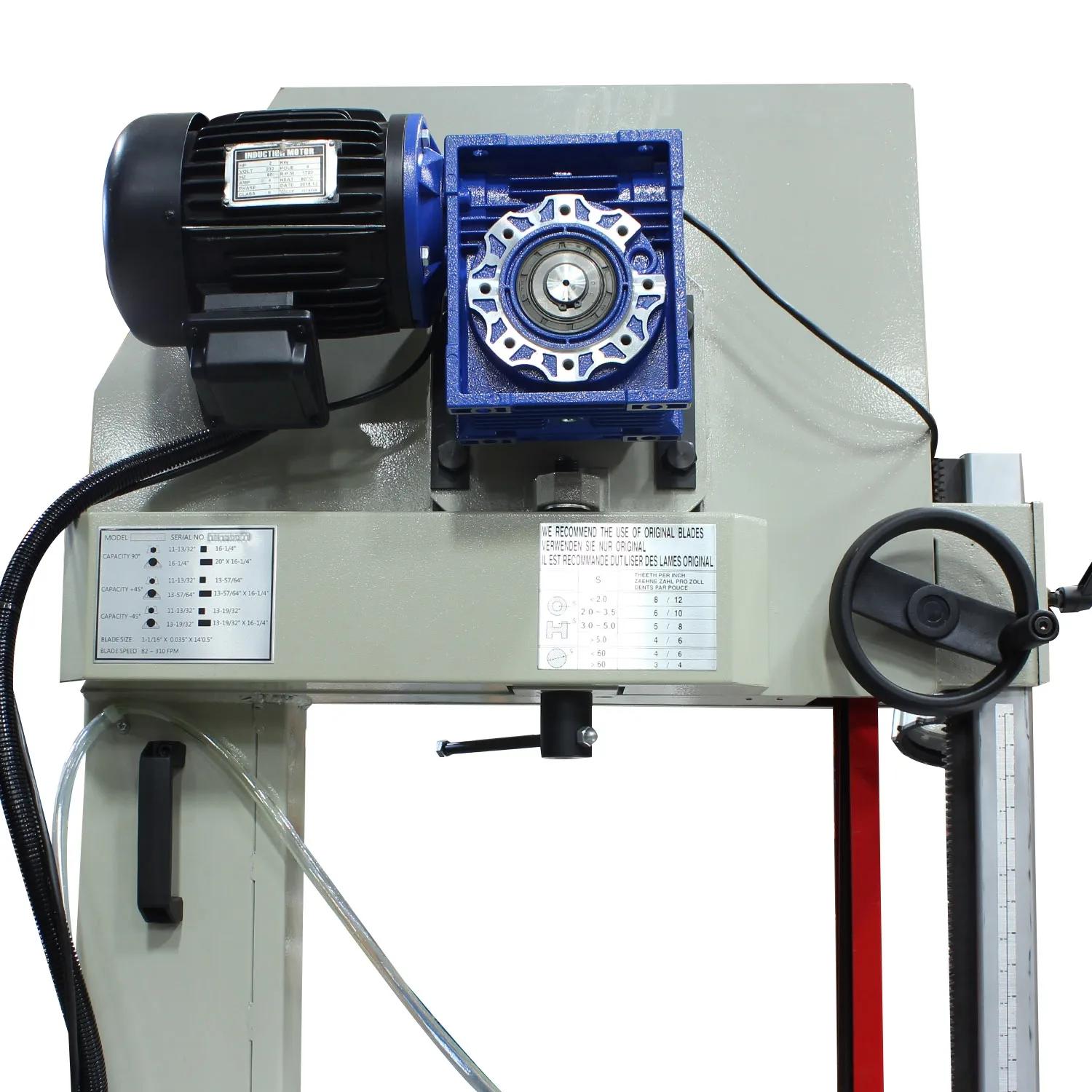

2 hp motor runs on 220-volt three-phase power

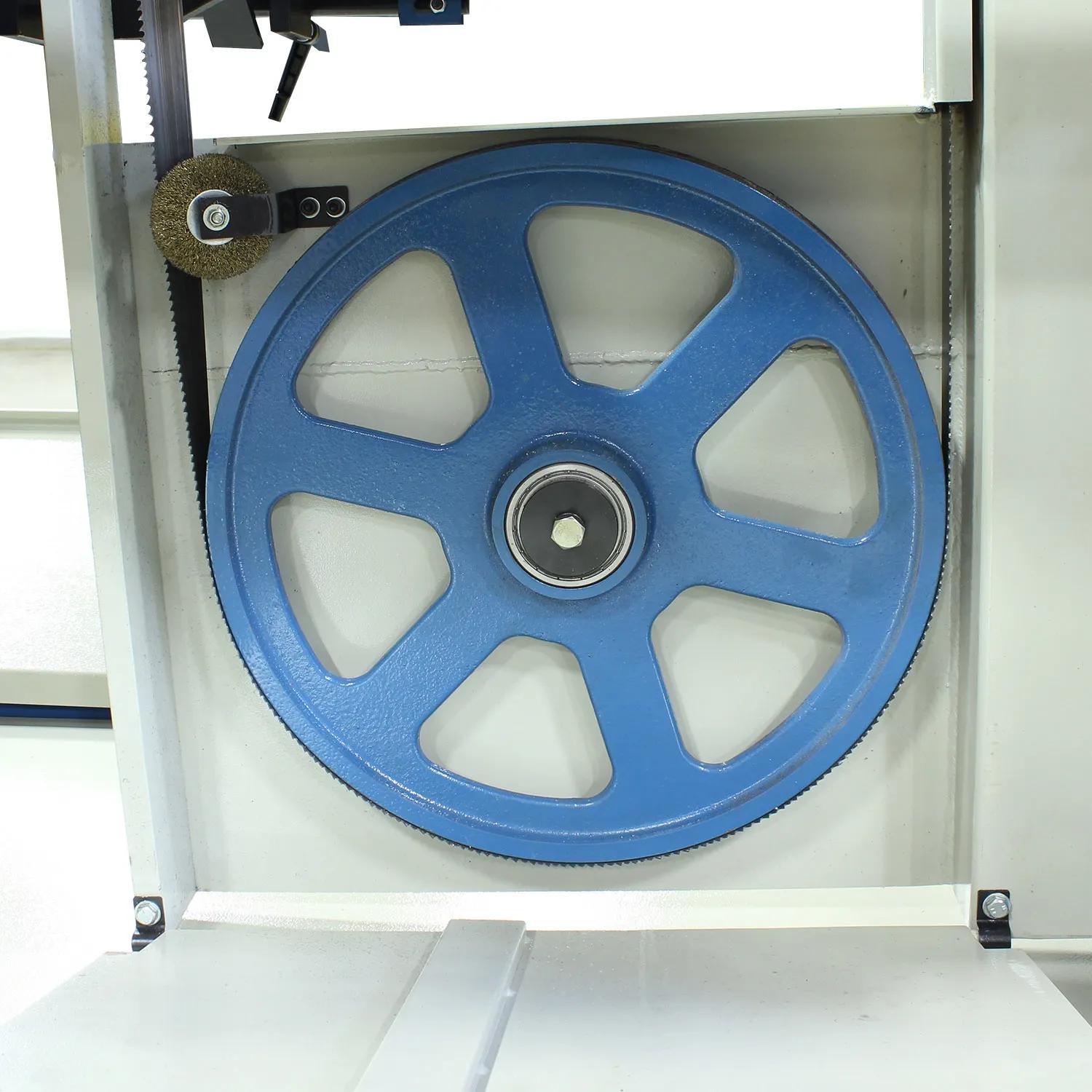

Accepts standard 1-1/16” blades.

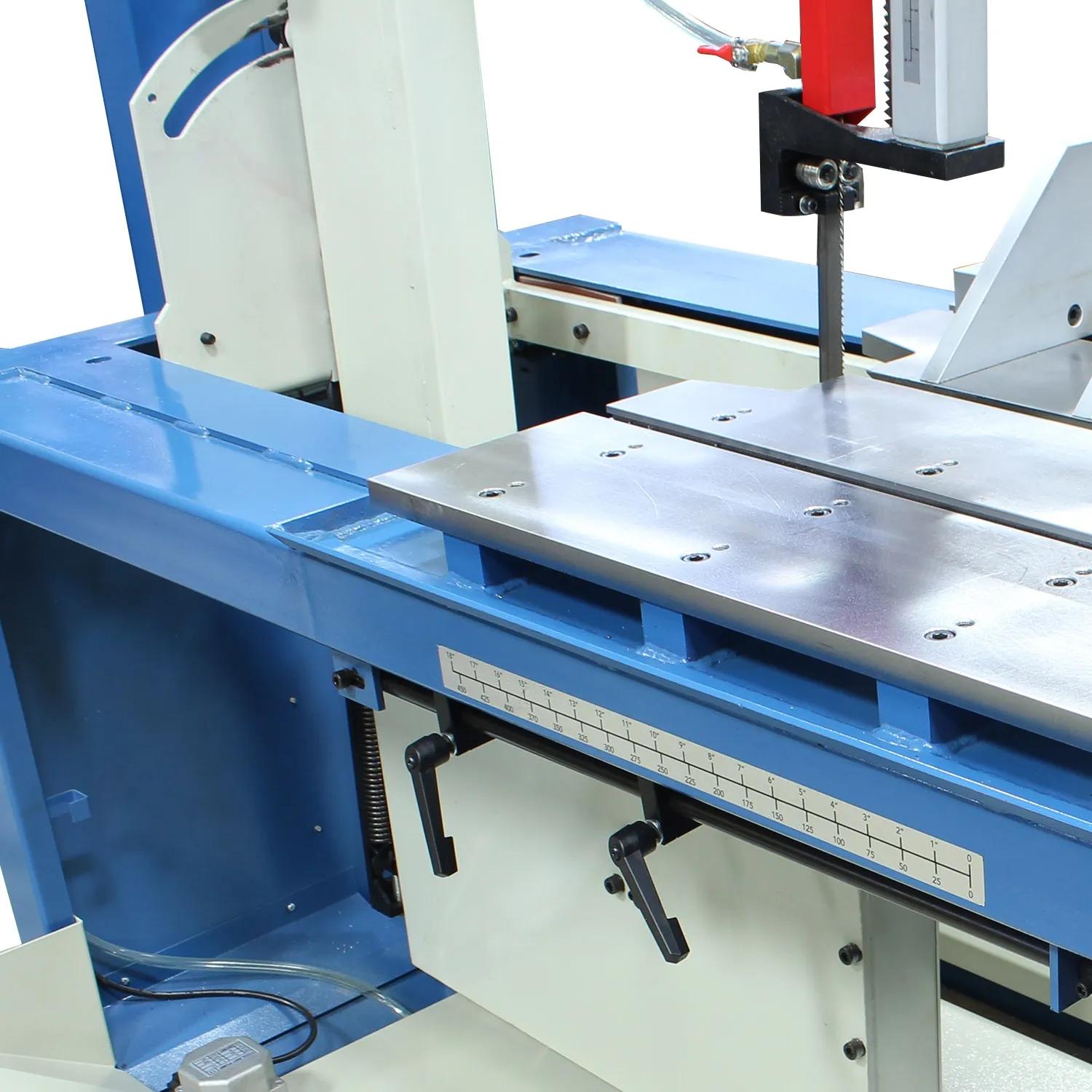

Two-piece table to support and hold the vise and the material to be cut.

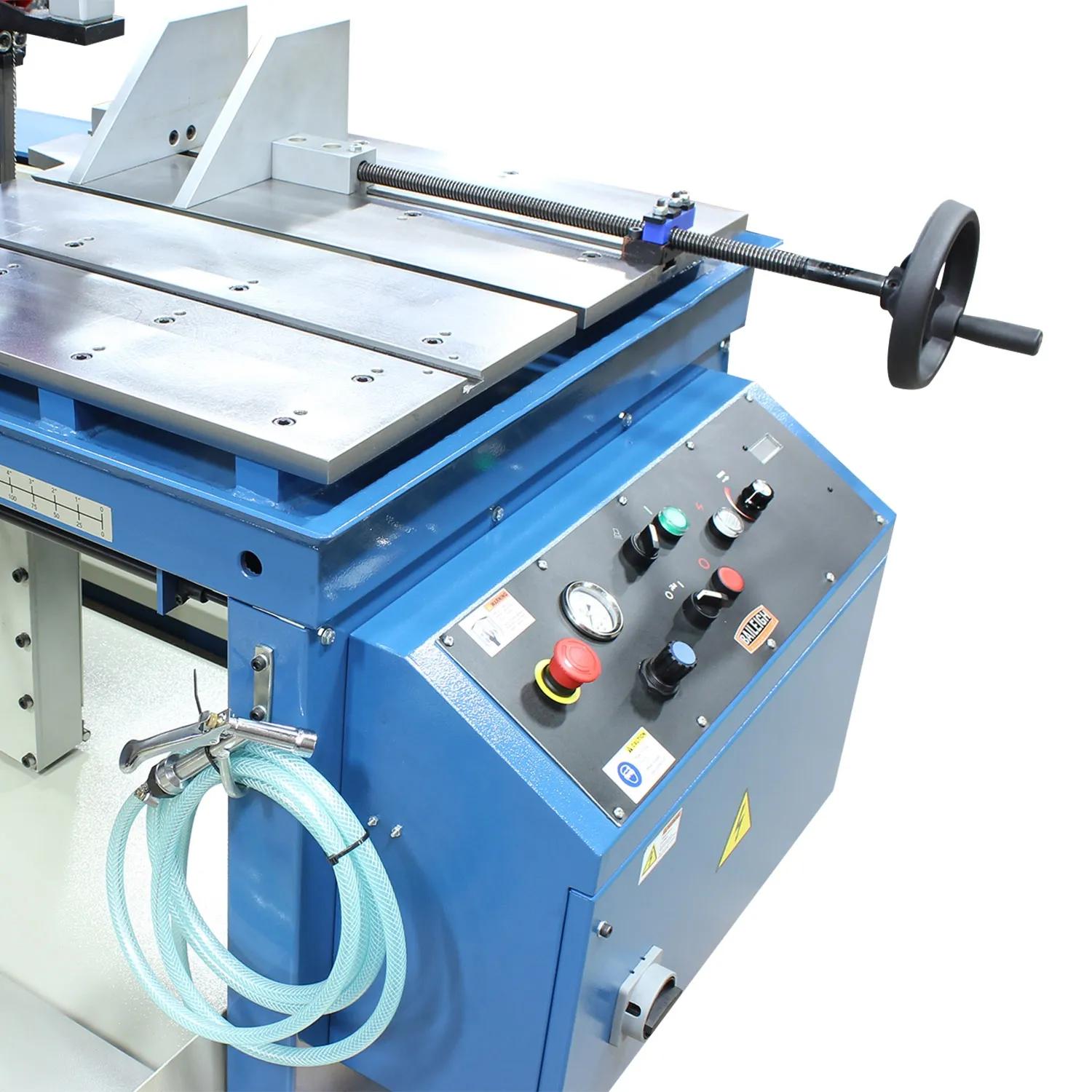

Designed with the operator in mind, this band saw offers intuitive controls and a user-friendly interface.

18-Inch Vertical Tilt Frame Bandsaw, 220V 3Ph (BSVT-18P)

Stock Number: BA9-1226643

0 Reviews

No reviews yet.

  • 2 HP motor (220 V)
  • 16.25″ throat depth
  • 45° tilt capacity
  • Hydraulic feed system
$24,979.00

Financing Starting at $455 per month -

Contact a Specialist - (920) 684-4990

Product Details

Industrial Power for Structural Metal Cutting:
The Baileigh BSVT-18P 18-Inch Vertical Tilt Frame Band Saw is an industrial-grade solution built for fabrication shops, structural steel work, and precision cutting environments where reliability and durability are essential. Equipped with a 2 HP motor running on 220 V three-phase power, this bandsaw delivers the robust torque and consistent output needed to handle thick steel, aluminum, and similar materials with confidence. Variable speed blade control lets operators optimize cutting conditions across a range of metals, increasing cut quality and extending blade life.

Enhanced Cutting Control with Tilt-Frame Capability:
Unlike fixed vertical saws, the BSVT-18P features a tilt-frame design that allows the cutting head to tilt up to 45° left or right without repositioning the material, improving workflow efficiency for angled and compound cuts. This, combined with a 16.25″ throat depth, generous cutting height, and hydraulic feed system, provides precise control and smooth operation — even on oversized stock. Heavy welded construction and vibration-minimizing design enhance accuracy and long-term reliability in demanding production settings.

Order Yours Today: Call 920-684-4990 to speak with a Baileigh product specialist for pricing, availability, and financing options.

Features

  • Motor Power: Industrial 2 HP motor with 220 V three-phase power for dependable cutting performance.
  • Throat Depth: Wide 16.25″ throat to handle large workpieces and wide stock.
  • Maximum Cutting Thickness: Up to 20″ maximum thickness for large material sections.
  • Tilting Frame: Cut at angles up to 60° without repositioning material.
  • Variable Speed Control: Blade speeds from 84 – 312 fpm for optimized cutting across materials.
  • Hydraulic Feed System: Smooth, consistent feed for cleaner, controlled cuts.
  • Coolant System: Extends blade life and enhances finish quality.
  • Heavy-Duty Welded Frame: Minimizes vibration for improved accuracy and durability.
  • Halogen Work Light: Illuminates the cut zone for better visibility.
  • Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications

  • SKU
    BA9-1226643
  • Assembled Dimensions
    82 x 38.2 x 87.7
  • Blade Guide
    Bearing and Carbide
  • Blade Size (In.)
    .035 x 356
  • Coolant Pump Motor
    1/8 hp
  • Gross Weight
    1540.0
  • Horse Power (HP)
    2
  • Input Power
    220V Three Phase
  • Max. Thickness
    20 in.
  • Max. Vise Opening (in.)
    18
  • Miter Angle Range
    45 R, 45 L
  • Model Number
    BSVT-18P
  • Motor HP
    2
  • Net weight
    1540.0
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Rectangle Capacity
    20" x 16-1/4"
  • Throat Depth
    16.25 in.
  • UPC
    731325510393
