Bead Roller BR-16E-36

SKU: BA9-BR36

In stock

USA Made

$7,469.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $148 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description

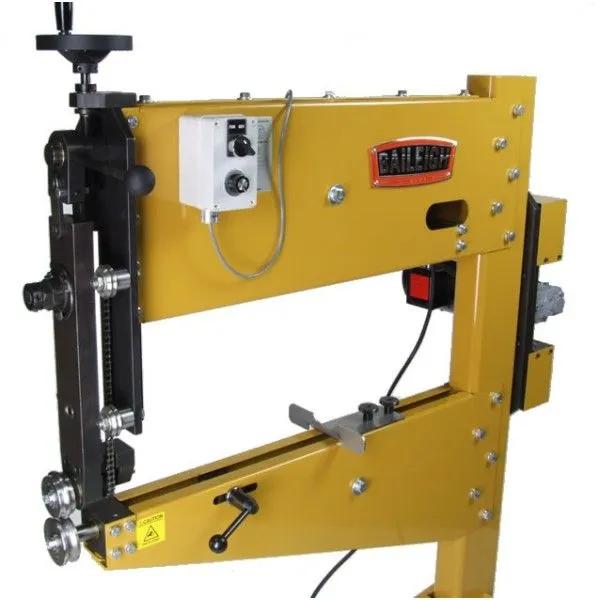

Made of rigid steel, this bead roller combines all the best features in one package. It offers a quick-release top die, adjustable shaft, variable-speed pedal, depth stops, and more.



  • Made in the USA.
  • 16 gauge mild steel maximum capacity.
  • 36” throat depth enables you to work on the middle of large panels.
  • Industrial .5 hp motor runs on 110-volt power. Plug it into any household outlet.
  • Both rolls are driven. Chain drive on the top roll prevents slippage.
  • Variable-speed foot pedal lets you slow down your feed rate for more delicate work.

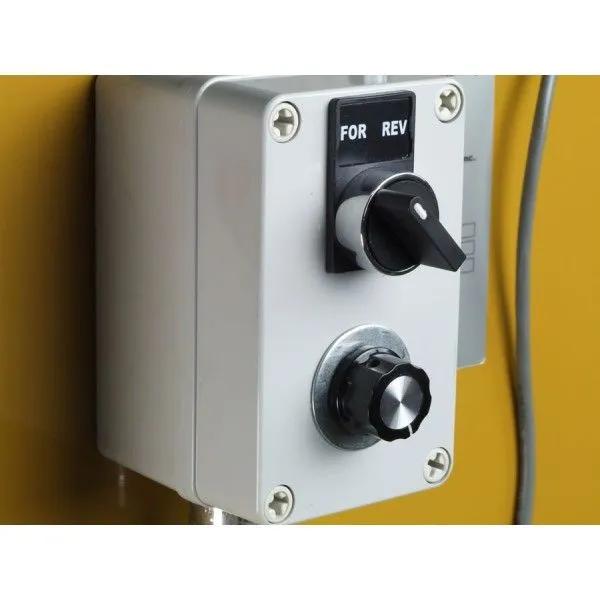

  • You can change the RPM of the rolls in real time by turning the dial on the side or lock the rolls at a constant speed.
  • Rollers can run forward or in reverse, so you can go over a pattern as needed.
  • Left- and right-hand controls are the same on both sides of the machine.

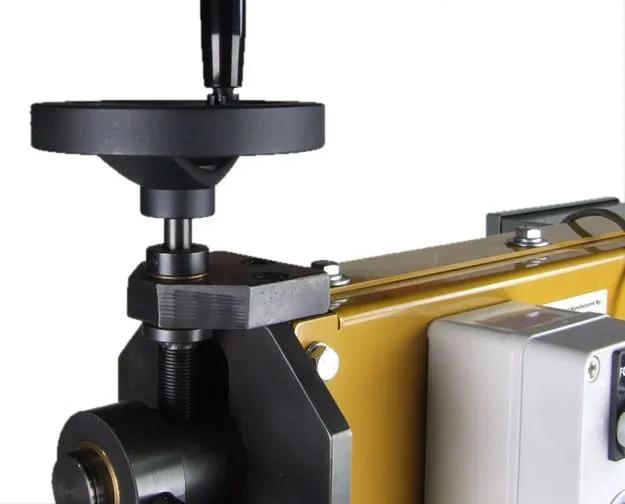

  • Adjust the forming depth by turning a hand wheel just above the working area.
  • Quick-release top die can open and close without altering the depth pressure.
  • You can begin or end a design in the middle of the panel and not worry if the depth is set correctly.
  • Depth stop allows you to easily make straight, repeable beads.
  • Comes standard with a ¼” round bead tooling set and a .05" step roll set.
  • Shaft is compatible with standard tooling. You could reuse rolls from another brand.
  • We stock a range of roll sets. See our bead roller dies for the BR-16E-36.

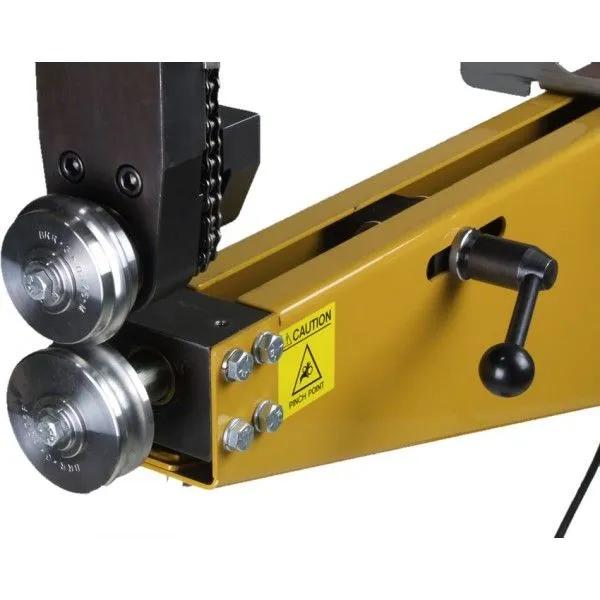

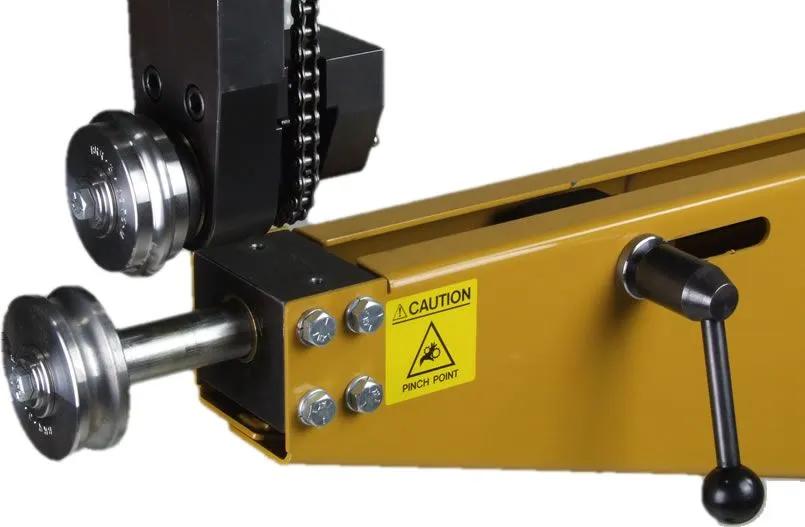

  • Bottom die can slide in or out, so you can create custom profiles by varying the offset.
  • All friction points turn on bronze bushings that last for decades. Grease fittings allow for convenient maintenance.
  • Heavy steel frame ensures accurate beads over many years of use and helps prevent flex.
  • Covered by a 1-year parts warranty.
  • We include lifetime technical support by phone from a team of expert metalworkers.
  • Bead roller, tooling, and replacement parts are usually in stock for fast shipping.



Questions? Not sure which bead roller is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.

Specifications

Item Number BR-16E-36
Country of Manufacture United States
Motor Hp 1/2
Mild Steel Capacity 16 ga.
Throat Depth 36"
Capacity (Mild Steel) 16 ga.
Aluminum Capacity 14 ga.
Power 110V
Shipping Weight 515lbs
Shipping Dimensions (Inches) 60x44x70

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

“it’s the best on the market”

Blake Clevenger of Flashback Kustoms decided to run step rolls all along a huge rear mounting flange to make sure the steps lined up. And BR-16E-36 tackled it without a problem.


“Thank the world for this Baileigh Industrial bead roller,” Blake wrote on Instagram, “it’s the best on the market, in my opinion.”

Visit Flashback Kustoms’ website.

“Gets Quite a Workout” and “Never Lets Us Down!”

Forsyth County Customs wrote: “Shoutout to Baileigh Industrial for the top-notch equipment they provide. This bead roller gets quite a workout here in the shop, and it never lets us down!”

Visit Forsyth County Customs' website.

World-Class Support and Speedy Custom Tooling

Brandon's company needed special tooling to add a groove to a cylindrical piece of metal. After receiving his specifications, the Baileigh team quickly developed custom male and female tooling for the BR-16E-36 industrial bead roller to fit Brandon's needs.

Read the full story

Custom Bead Rolling Application

My company needed to apply a groove to a cylindrical object. (similar to the one pictured below) After many failed attempts we contacted the custom industrial application team at Baileigh Industrial. The team did a great job developing custom male and female tooling to fit the BR-16E-36 industrial bead roller. We sent them our specifications and they were able to provide samples rather quickly.

The machine was in stock and ready for shipment. After receiving the machine, our employees were trained and running production within 24 hours. We have had the roller in production since June 2013 with absolutely no issues.

Thanks Baileigh team!

Brandon, Manufacturing Engineer

Q & A

What bead roller dies do I need?

That depends on your application, but here’s our recommended list of bead roller dies that every shop should have:


Those tooling profiles should cover most projects. For more specific advice about bead roller tooling, call us at 1-920-684-4990.


Do you have bead roller tooling made of materials other than metal?

Yes, we have many nylon bead roller dies available. For details, give us a call at 1-920-684-4990.
