Product Details

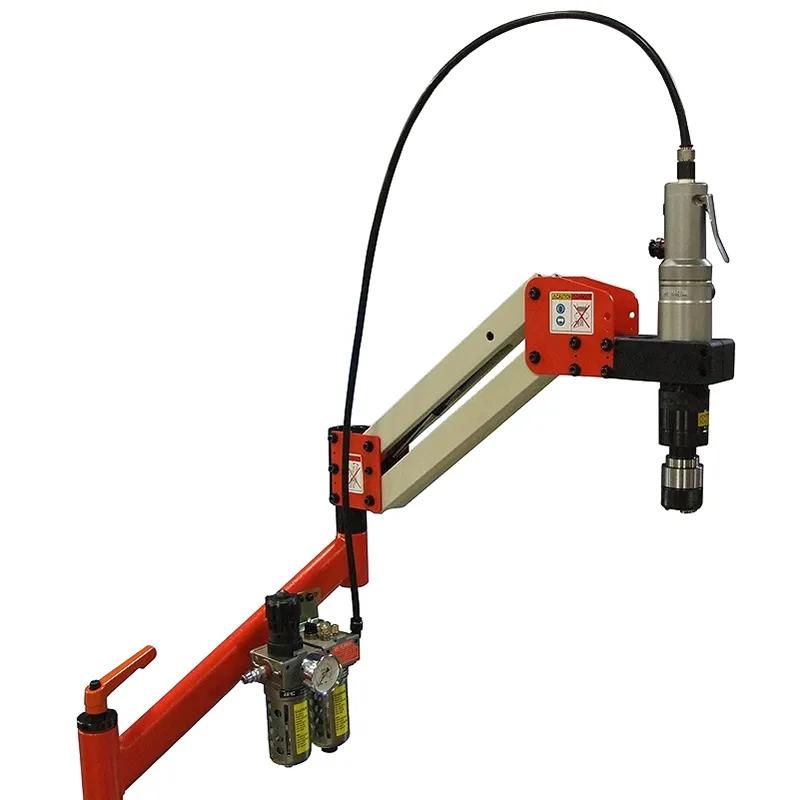

Industrial Construction: The Baileigh ATM-27-1000 Pneumatic Tapping Arm is a heavy-duty articulating tool support arm designed to provide fingertip control for demanding tapping tasks in industrial fabrication and machining operations. Its sturdy cast iron swing arm and heavy gauge construction neutralize vibration and torque reaction during use.

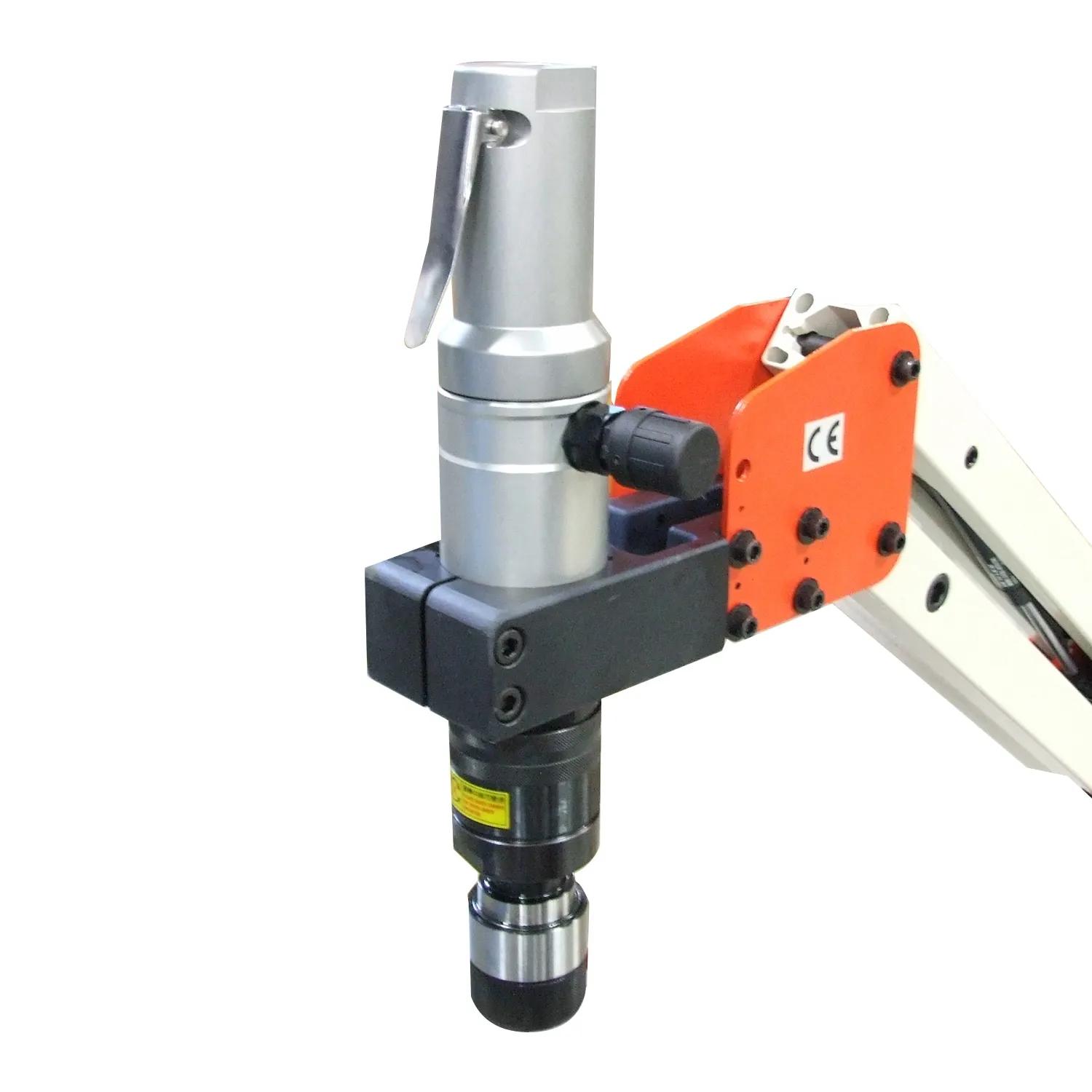

Power & Performance: Powered via a pneumatic spindle delivering approximately 220 rpm, the ATM-27-1000 supports efficient air-powered tapping without the need for electrical power. The ergonomic design reduces operator fatigue over long production runs and enhances precision in repetitive tapping work.
Capacity & Versatility: With a tapping range from .11" to 1" and a work range spanning 3.93" to 39.3", this articulating arm accommodates a broad variety of part sizes and positions. The package includes multiple tap holders to support common sizes for standard tap applications.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Input Power: Pneumatic operation for air-powered tapping performance.
- Tapping Range: Supports tapping from .11" to 1" diameter.
- Spindle Speed: Pneumatic spindle delivers approximately 220 rpm for efficient tapping.
- Work Range (Min): Minimum working reach of 3.93".
- Work Range (Max): Maximum working reach of 39.3".

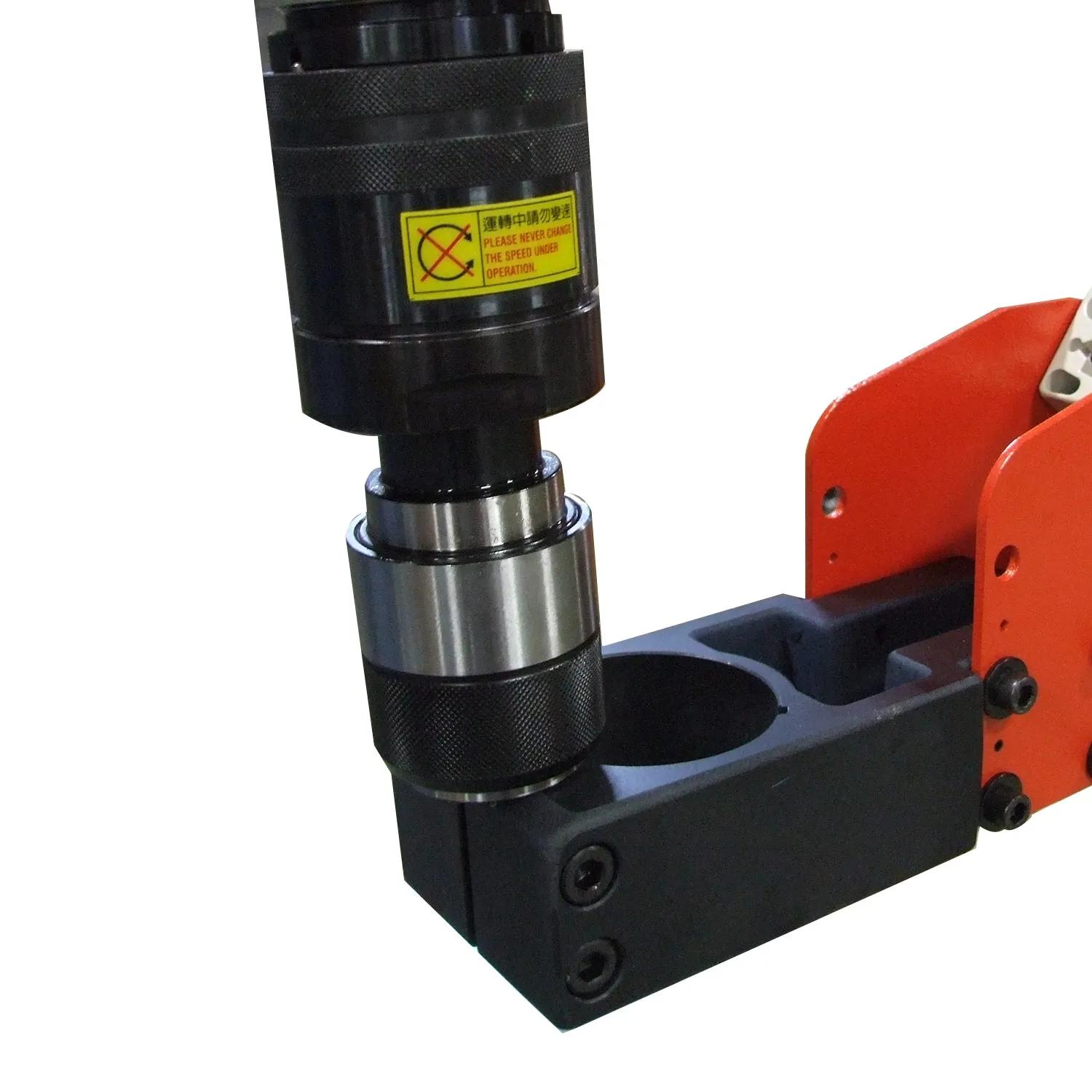

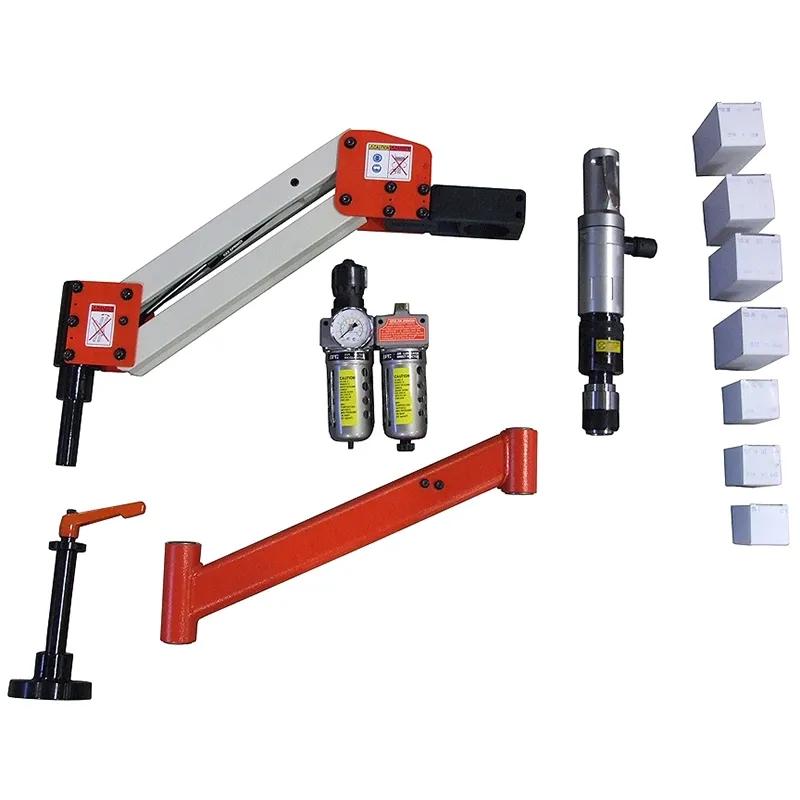

- Included Tap Holders: Comes with six tap holders sized 1/4", 3/8", 1/2", 5/8", 3/4", and 7/8".
- Mounting: Table mount system for stable installation in workshop environments.
- Construction: Heavy cast iron and aluminum articulated arms to resist vibration and torque reaction.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1000326
- Gross Weight55.0
- Input PowerPneumatic
- Minimum Work Range3.93
- Model NumberATM-27-1000
- Motor HP7.5
- Net weight55.0
- Number of Spindle Speeds220 rpm
- Product TypeMachines
- Prop 65Cancer and Reproductive Harm
- Spindle OperationPneumatic
- Spindle Speeds70 to 220 RPM
- Tapping Capacity Mild Steel1 in.
- Tapping Range.11" to 1"
- Warranty1 Year
