Product image is only a representation, actual product appearance may differ slightly

  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C
  • Two Station Hydraulic Press HSP-30M-C

Description



With its additional work stationsturdy plate steel construction and piston-style hydraulic pump, this hydraulic H-frame press offers one of the best values on the market.



    • 30-ton capacity on main press.
    • 15-ton capacity on side press.
    • 27.5” working width.
    • 5.74” diameter cylinder with 9.8” stroke on main press.
    • 2.76” diameter cylinder with 7.75” stroke on side press .
    • 3 hp motor runs on 200-volt single-phase power.

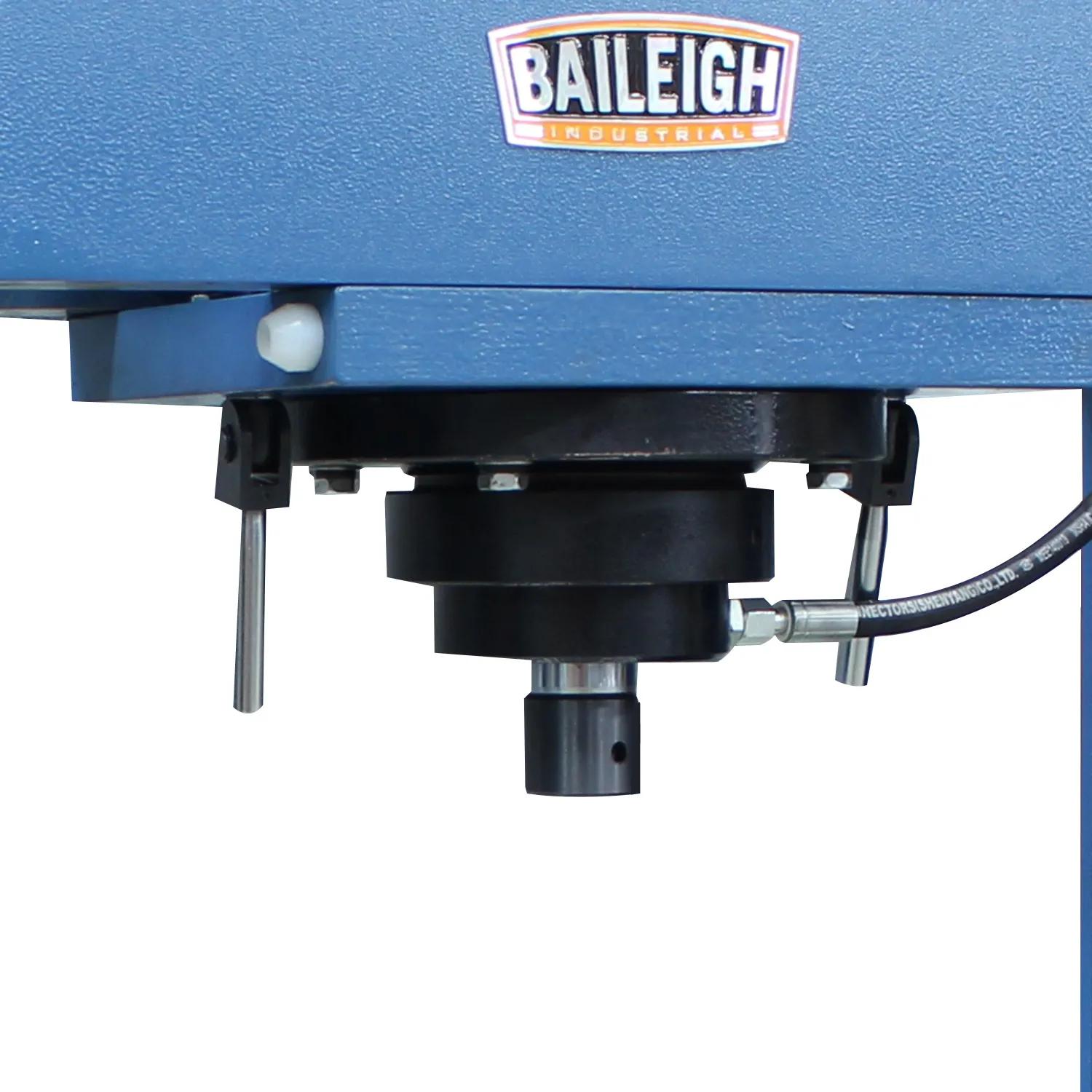

    • Main cylinder can move left and right within the frame to deliver pressure at the point where you need it for off-center projects.

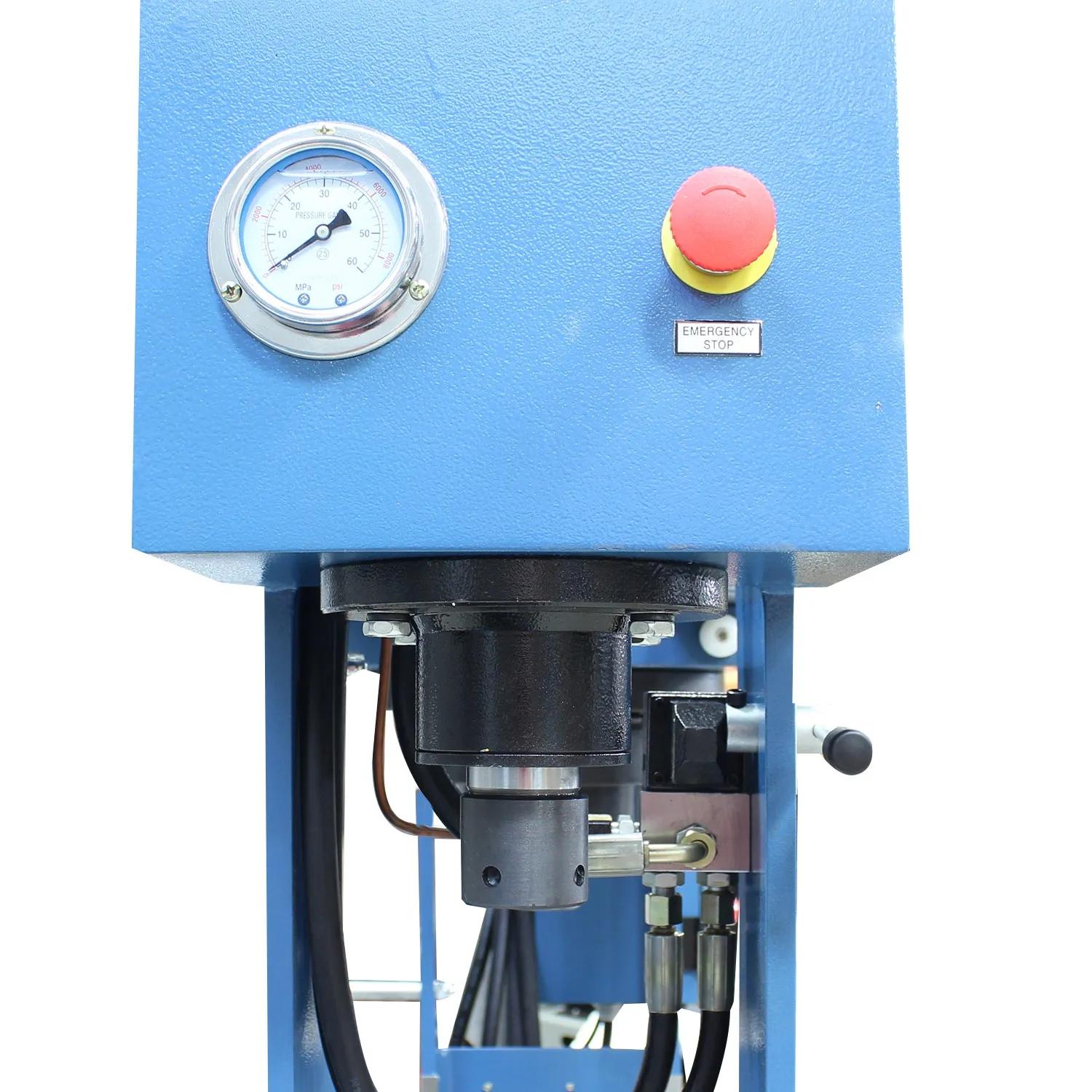

    • Comes standard with dual pressure gauges.

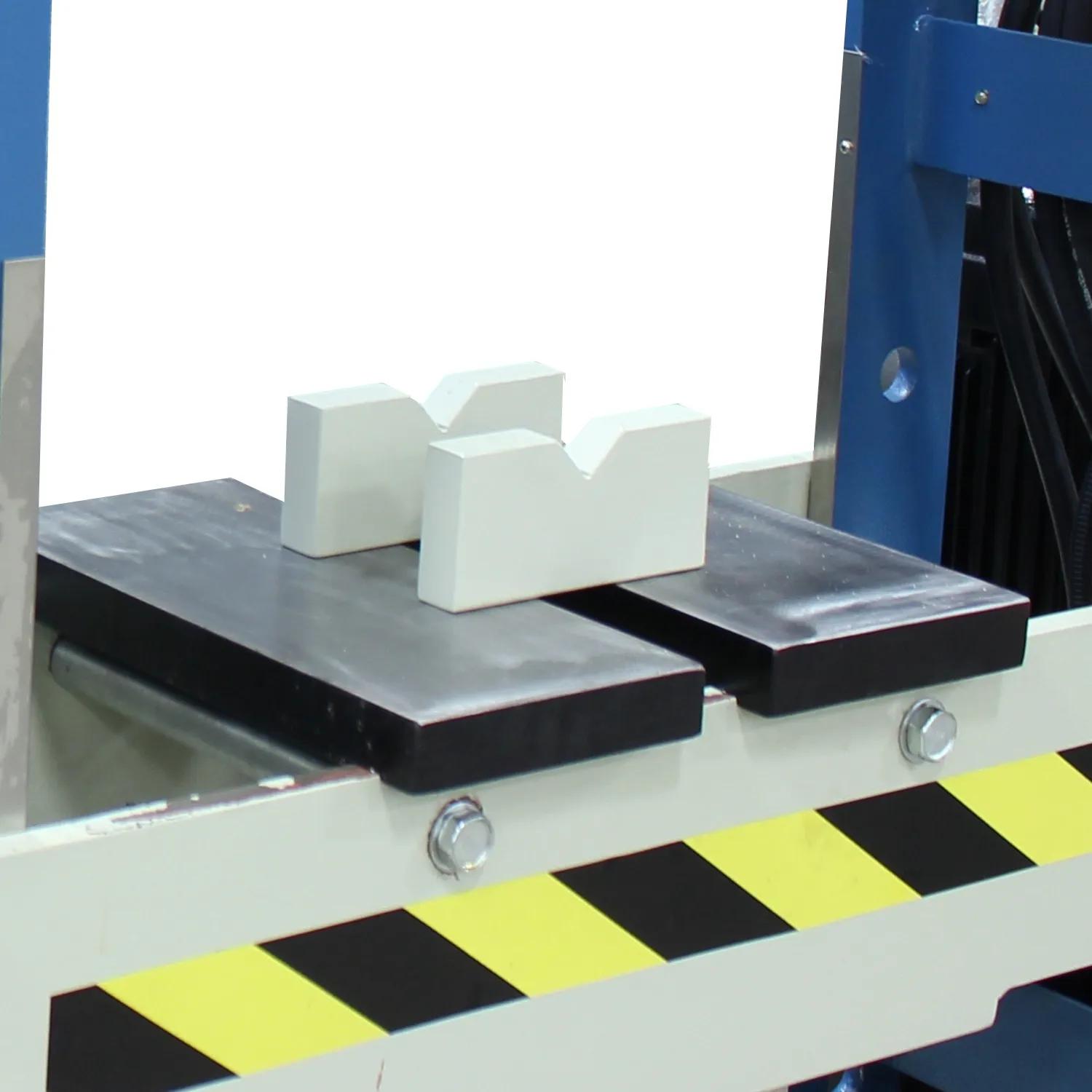

    • Includes 2-piece V-block.

Fully-welded steel frame

    enables you to use the machine’s force at full capacity without worrying about flexing.
  • Baileigh covers this hydraulic shop press with a 1-year parts warranty as well as lifetime technical support by phone.



Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.

Read More Read Less

Specifications

Item Number HSP-30M-C
Return Speed .30" / sec. (Main), .60"/ sec. (Side)
Motor 3 hp
Piston Head Diameter 2" (Main), 1.97" (Side)
Pump Speed .95 gal/min
Oil Capacity 13 gal.
Working Speed .25" / sec. (Main), .78" / sec. (Side)
Working Width 27.25"
Maximum Capacity 30 ton (Main), 15 ton (Side)
Cylinder Stroke 9.8" (Main), 7.75" (Side)
Cylinder Movable Yes (Main)
Cylinder Diameter 5.74" (Main), 2.76" (Side)
Distance From Table To Ram Min. 8.25" - Max. 40.25" (Main), Min. 7.25" - Max. 43.25"
Power 220 Volt Single Phase
Shipping Weight 1060lbs
Shipping Dimensions (Inches) 78x48x80

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Two Station Hydraulic Press HSP-30M-C

SKU: 1019289

In stock

$6,195.00 $
Leasing starts at $109. Calculate your monthly lease price
SHARE PRINT Questions? 1-844-477-7707
