Tube Notcher TN-250
SKU: BA9-METN250
In stock
USA Made
Description
The best hole saw notcher in the world: a big claim, but customers say the Baileigh TN-250 lives up to it. It’s the only hole saw pipe notcher on the market that’s always centered.

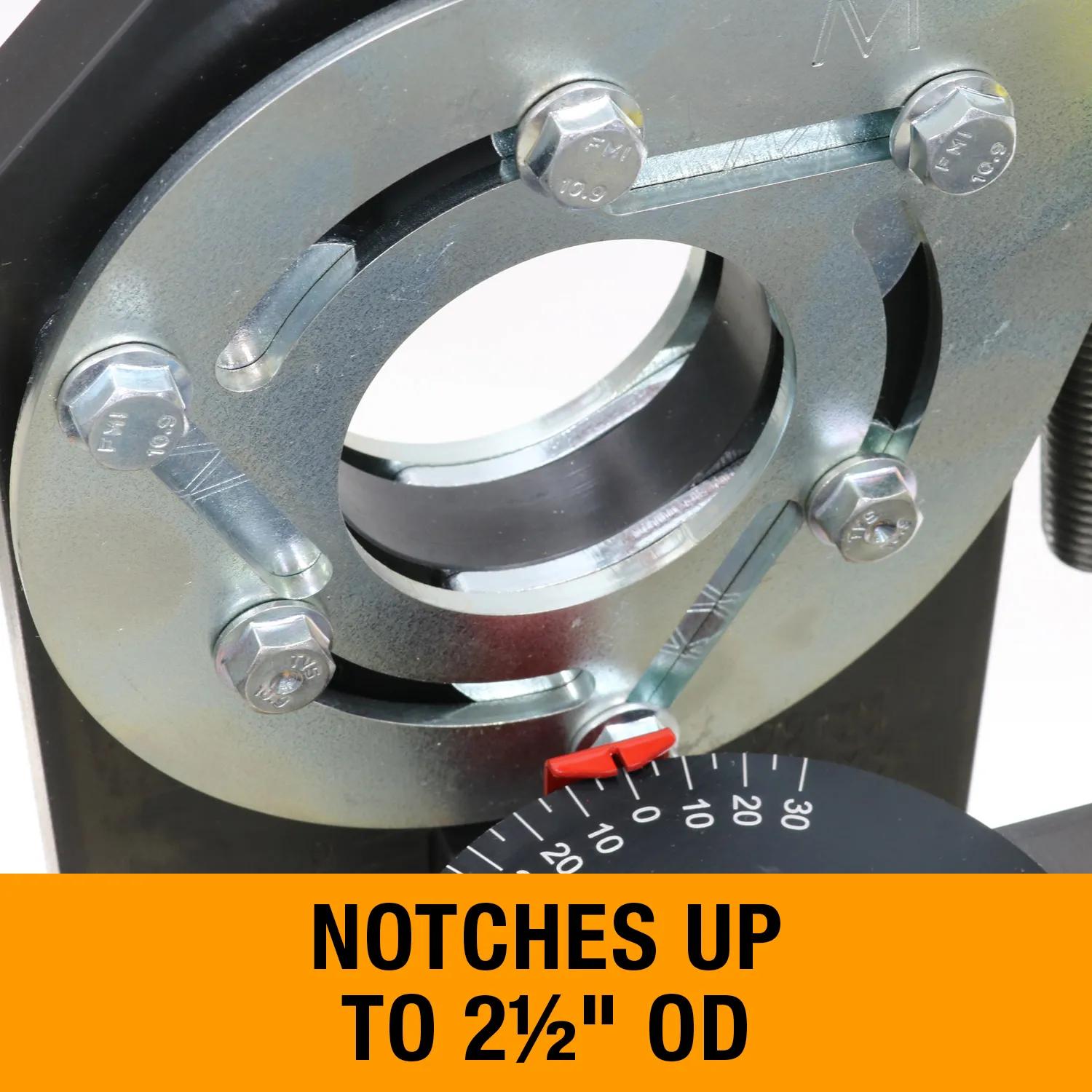

- Notches up to 2.5” OD.

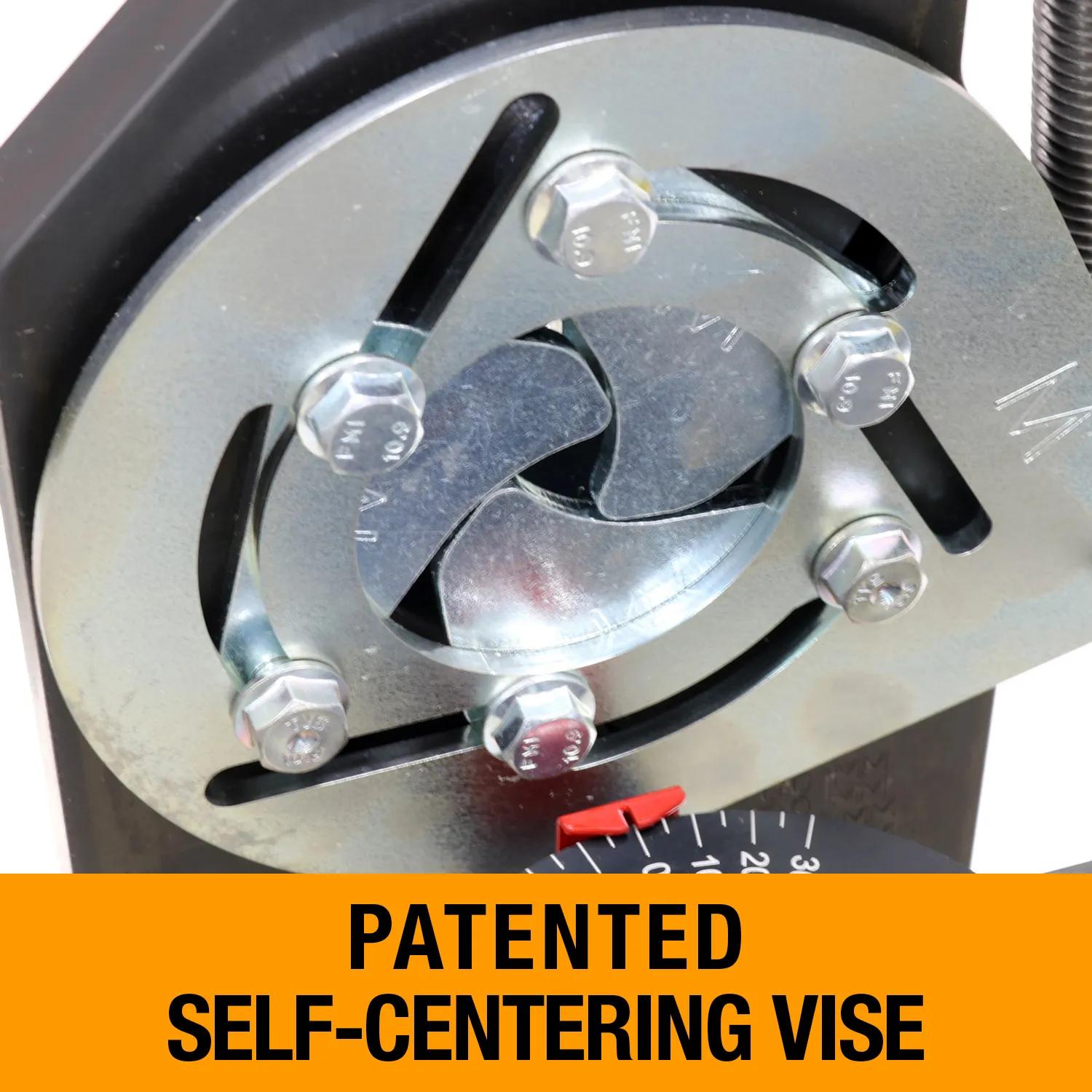

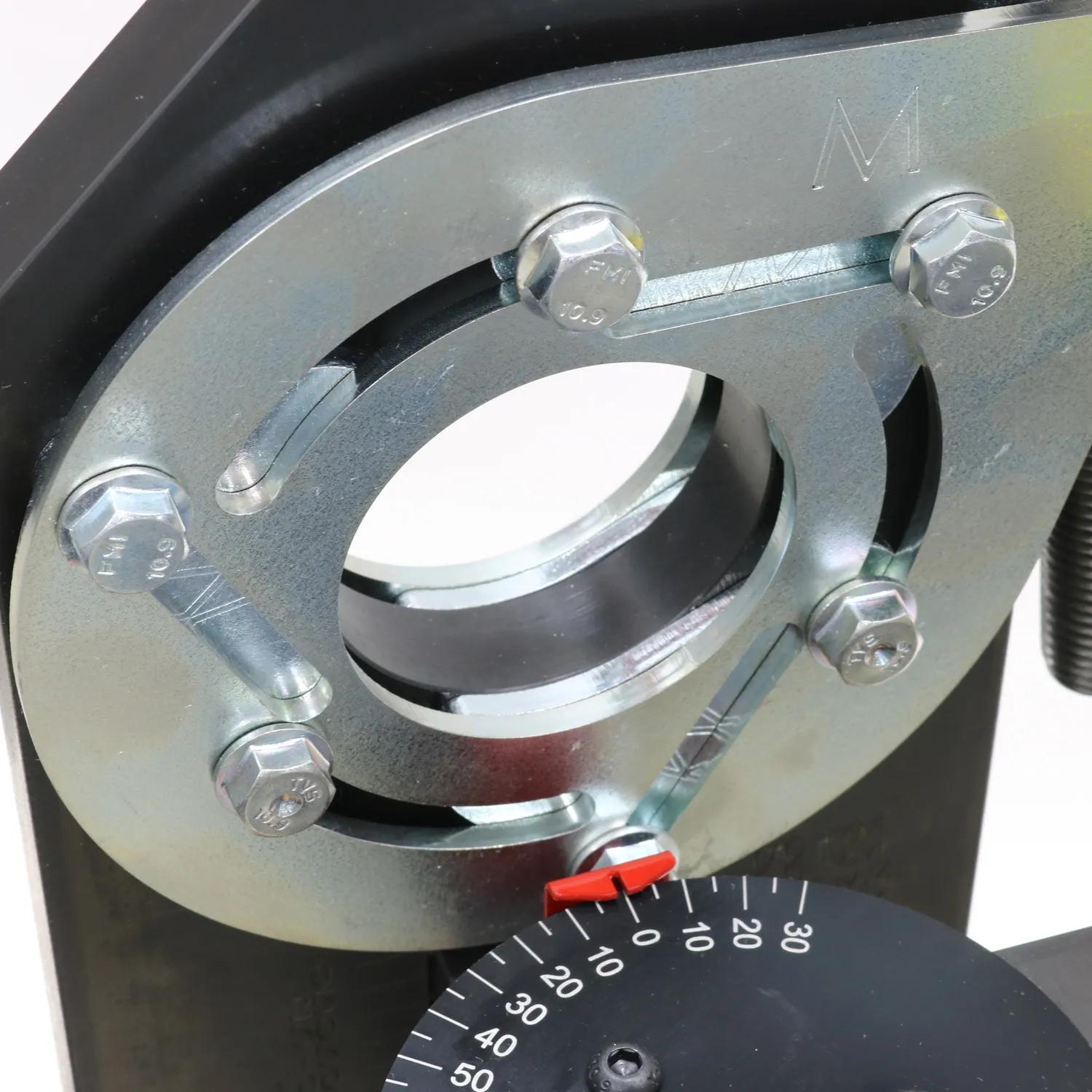

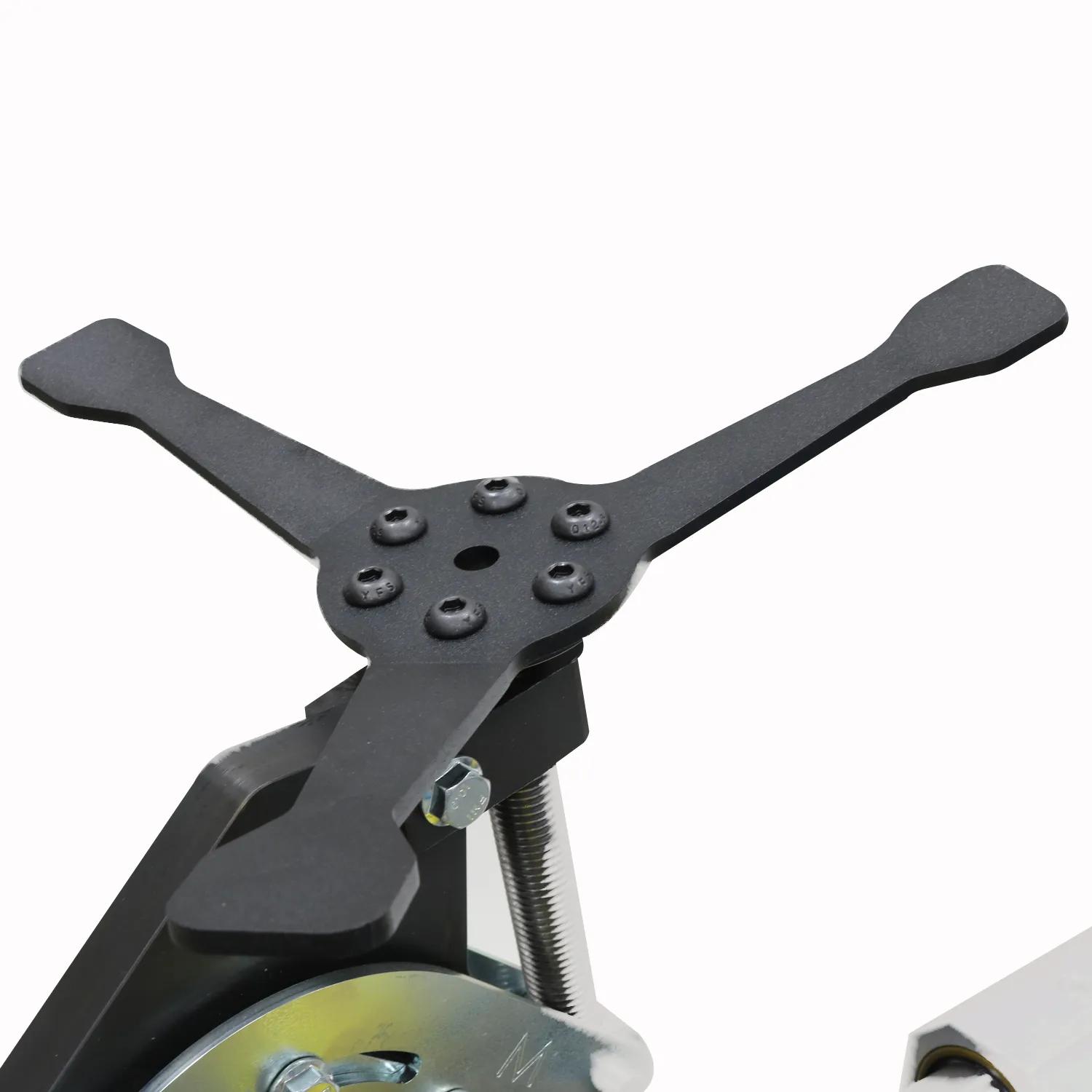

- Our patented self-centering vise can clamp down anywhere on tube, including the middle of bends.
- Fully-adjustable axis accommodates almost any notch combination.

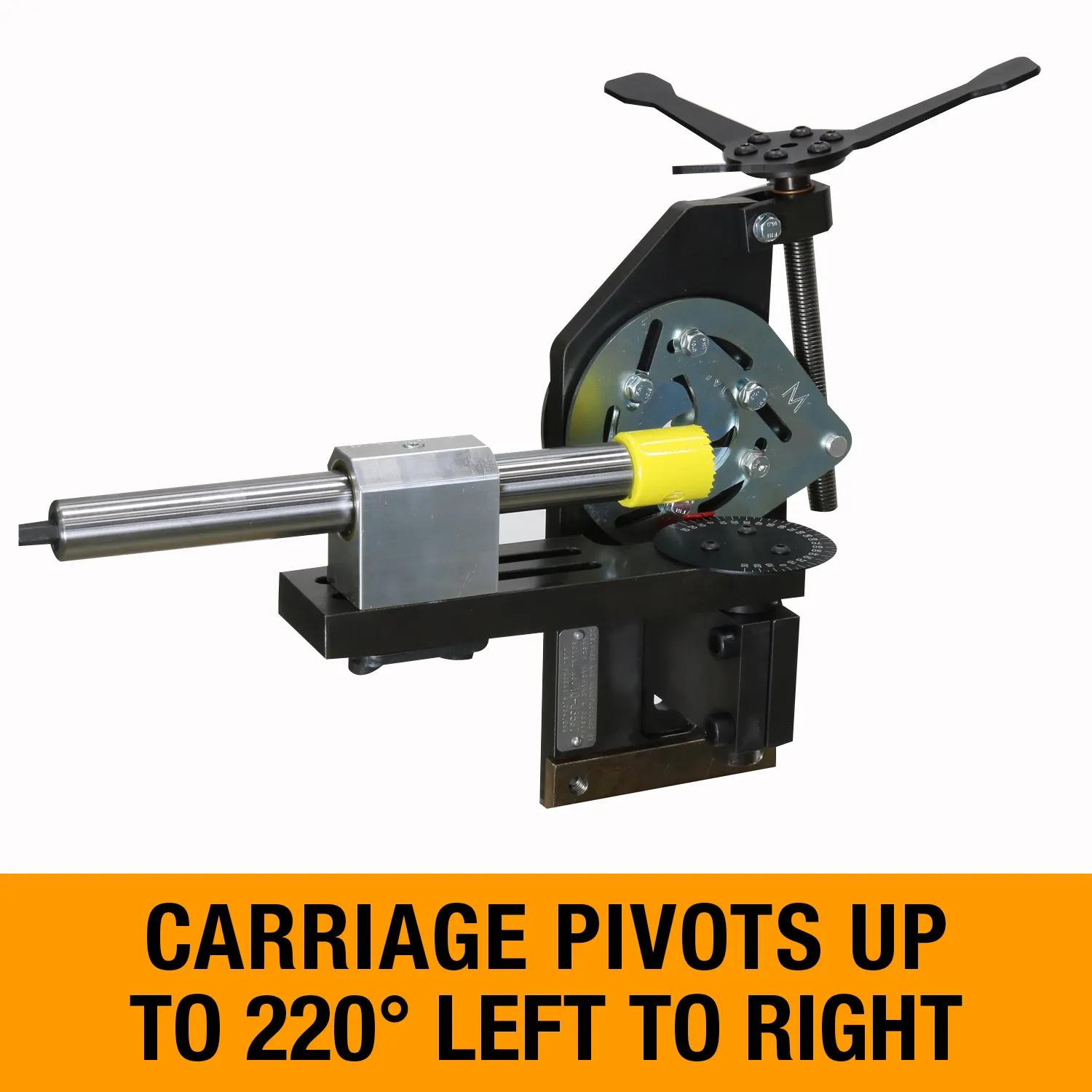

- Carriage pivots up to 220° left to right, so you can come from the “back side” of the notch.
- 2 slotted mounting rails move up and down with scales for offset notches up to 1” and allow for almost any position of the bearing block.

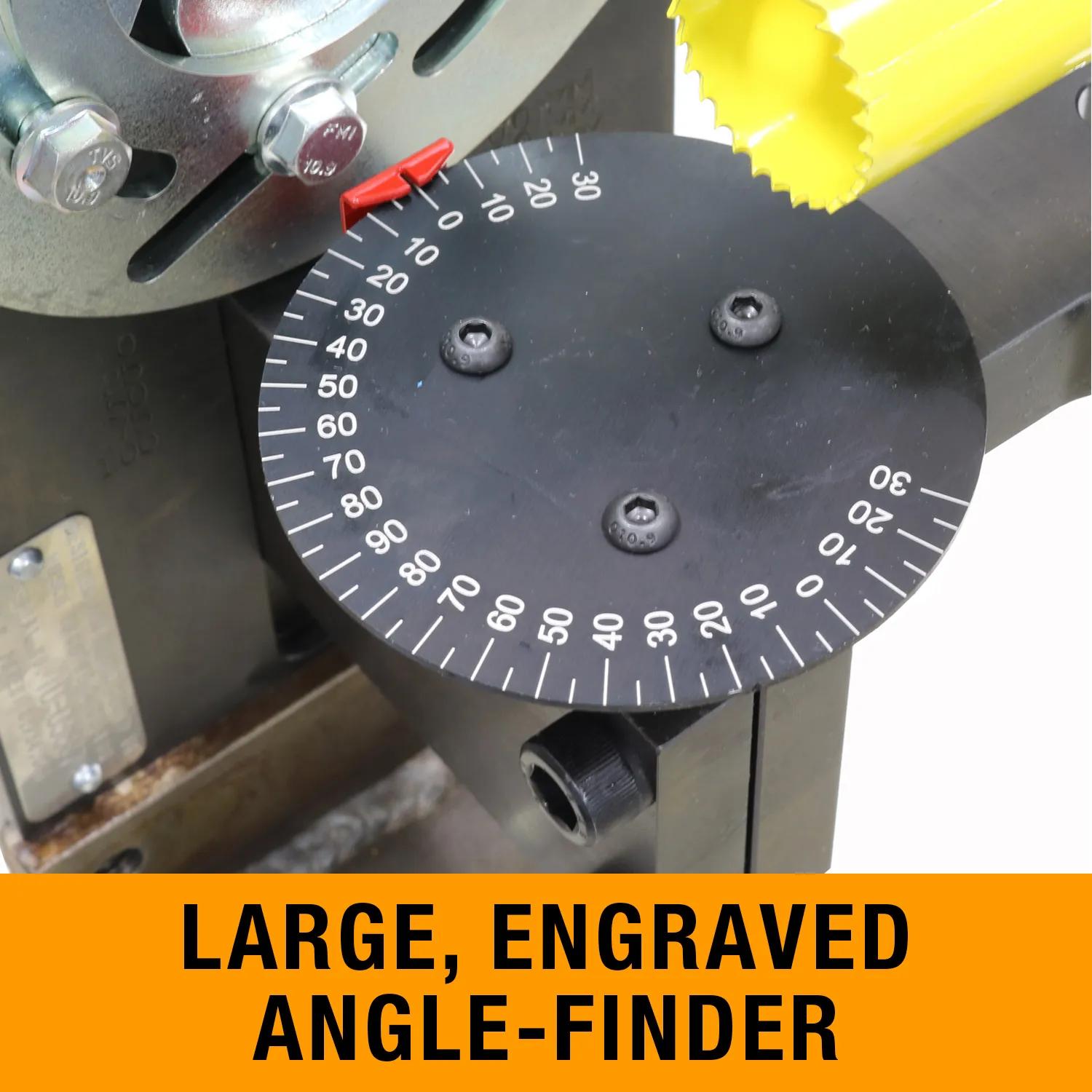

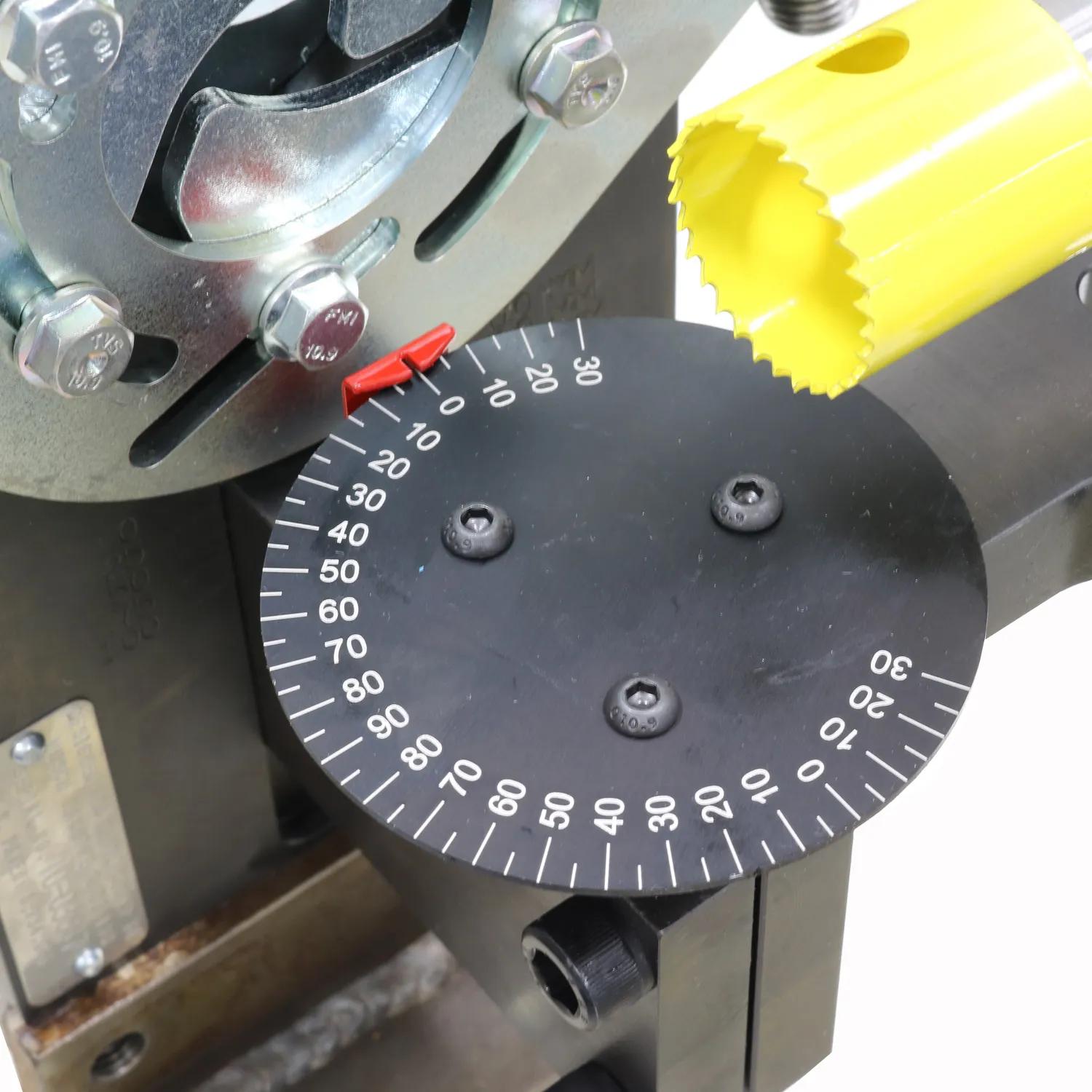

- Large engraved degree dial (or angle-finder) helps you get those back-side notches lined up.

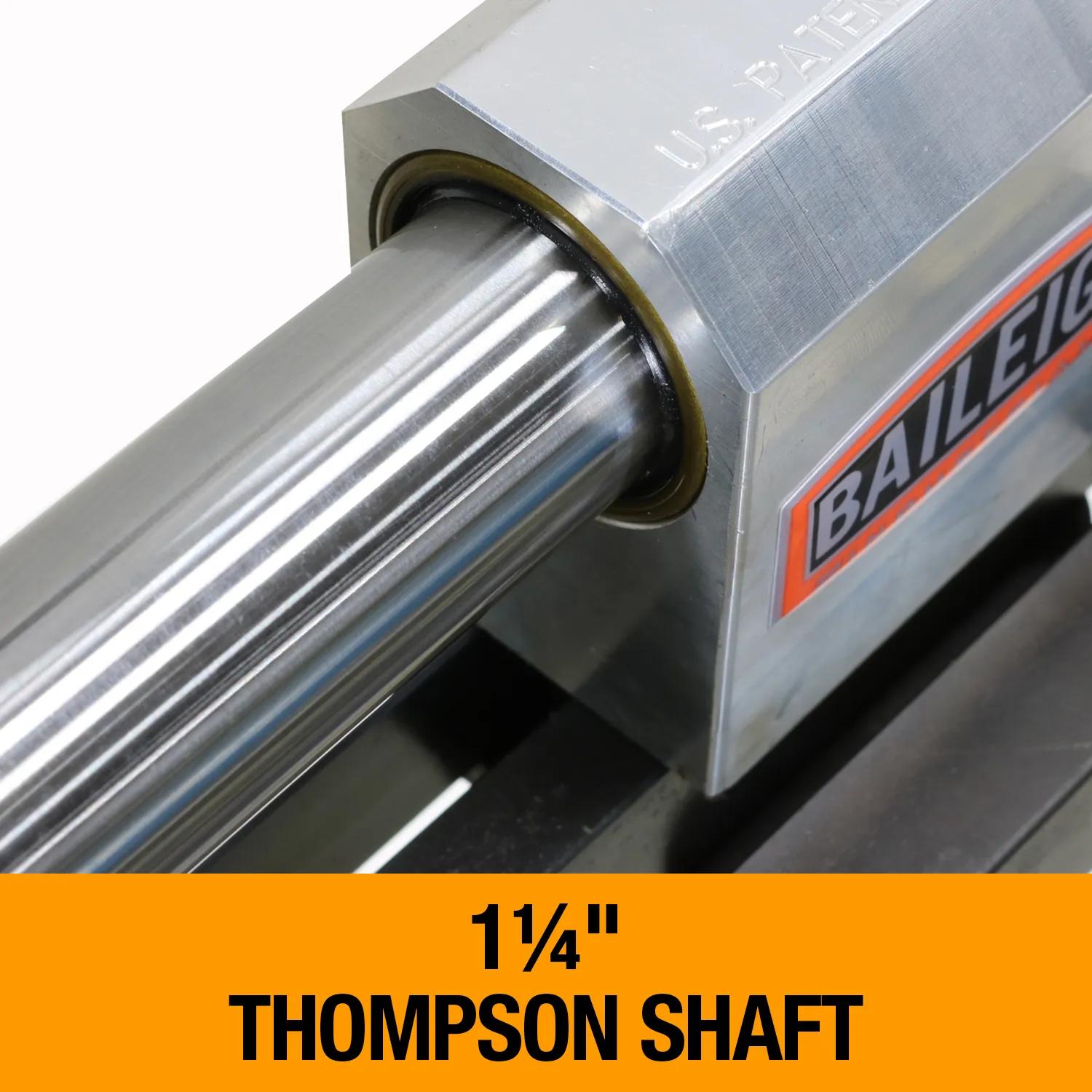

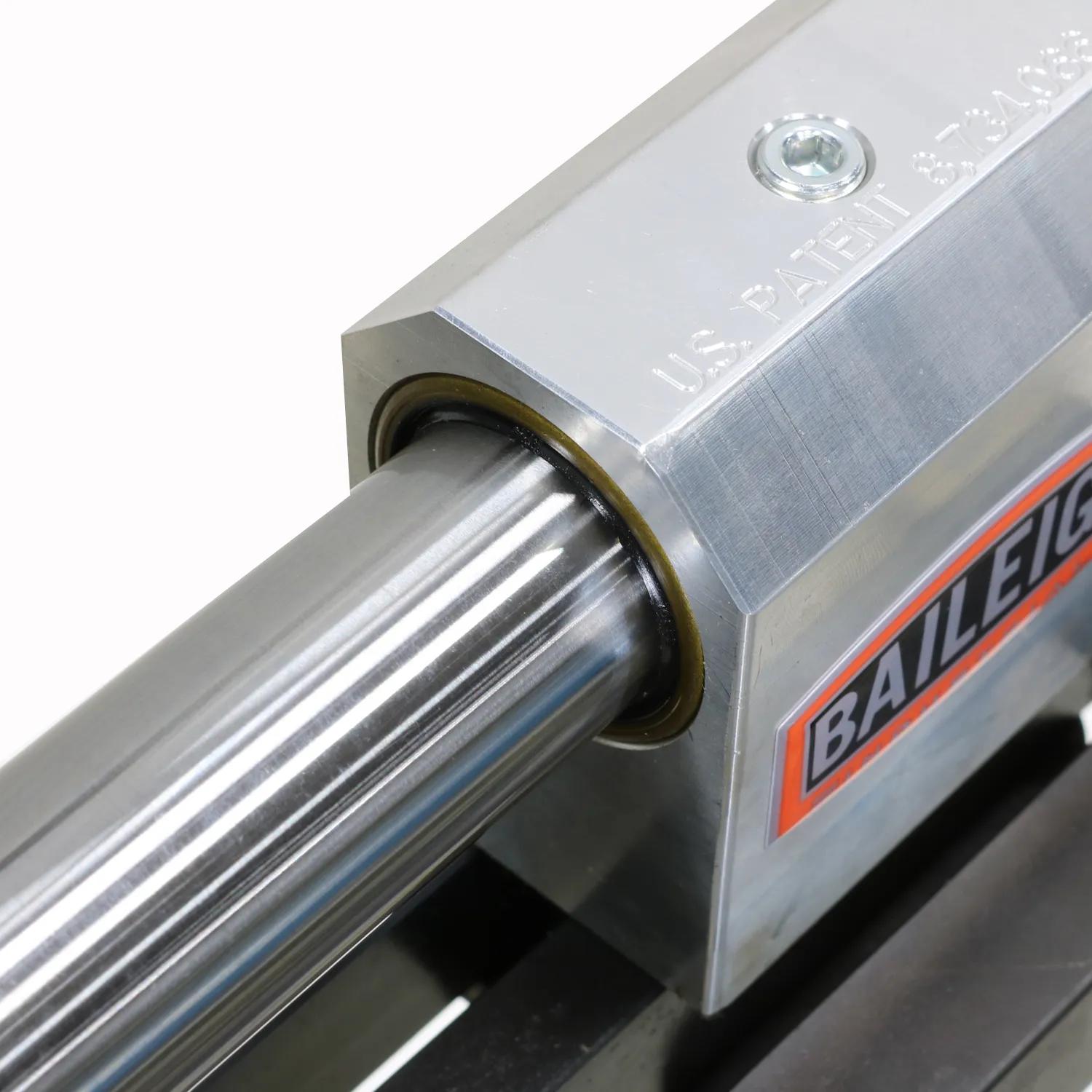

- 1.25” Thompson® shaft rides in sealed and oiled needle bearings for smooth performance.

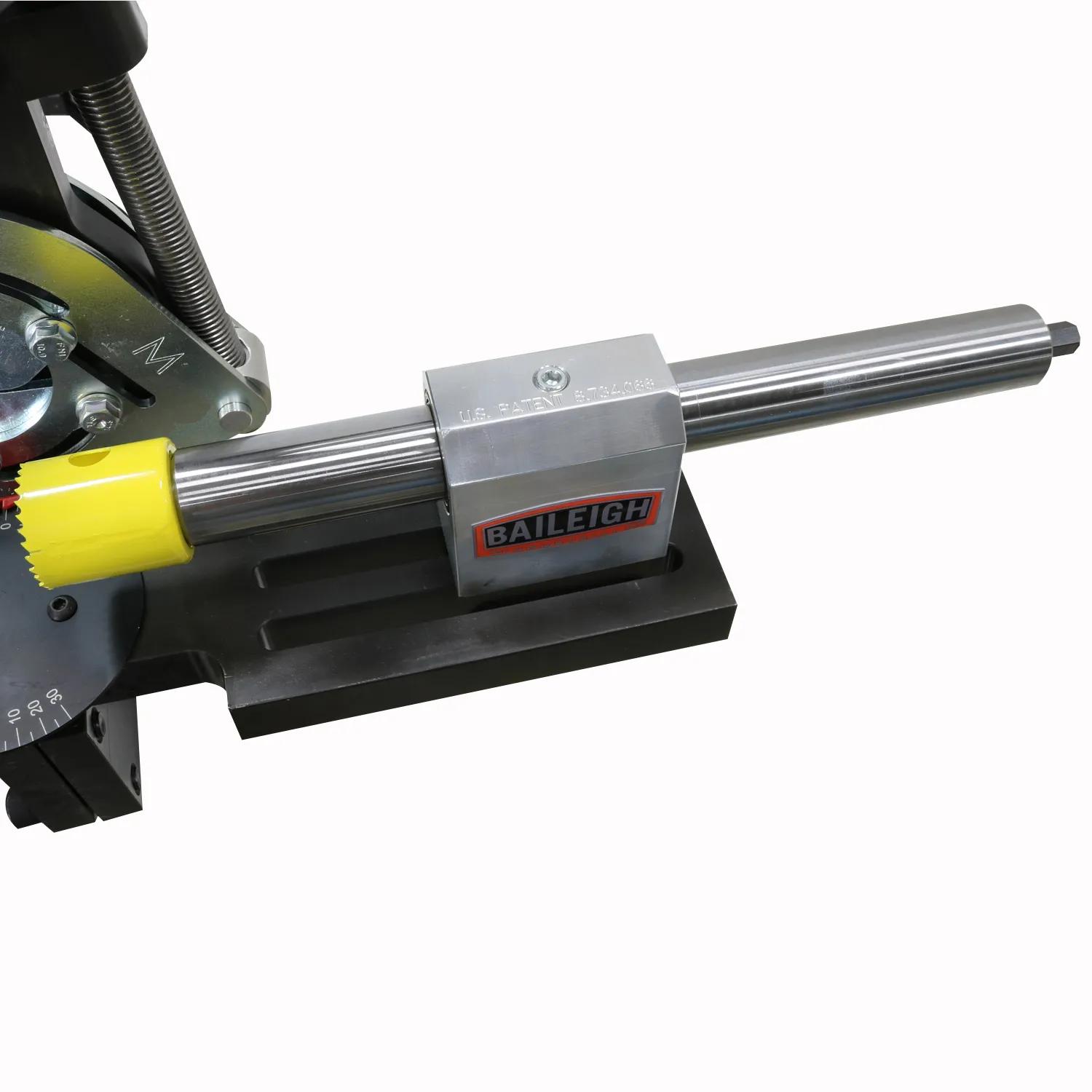

- Both ends of the shaft are completely replaceable to save you time and money.
- Heavy-duty .75” steel plate backbone and all-interlocking components create a rigid platform that reduces vibration and prolongs the life of the hole saws.
- All slots include caps to last longer.
- The Baileigh TN-250 tube notcher is covered by a 1-year parts warranty plus lifetime technical support by phone from Baileigh’s team of experienced reps. Call us up anytime for advice or troubleshooting.
*Patent #8,734,066
Questions about this tube notching tool? Give us a call at (920) 684-4990.
Specifications
| Item Number | TN-250 |
|---|---|
| Country of Manufacture | United States |
| Notching Capacity (OD) | 1/2" - 2 1/2" |
| Angle Adjustment | 0 – 220° |
| Power | 1/2" (12.7 mm) Hand Drill |
| Shipping Weight | 43lbs |
| Shipping Dimensions (Inches) | 19x11x14 |
* specifications subject to change without notice.
Stories & Testimonials
Professional-Quality Notching Every Time
Michael Brandt from Garage Bound knows he can depend on the TN-250. According to Brandt, “It is one of the most well-built and versatile tubing notchers on the market. From off-center notches to various angled notches, we get the best, most professional notch every time, without fail!”
Precise Alignment for Building Offroad Vehicles
Brett Jerome used his TN-250 to help create the tube chassis of an offroad rock crawler. Our notcher's radial vise allowed for perfect alignment and repeatability. As a result, Brett didn't need any software, just his Baileigh machines and a plan.
Thanks for building a great product!
I have built 4 buggies with a another notcher and bender and it served me very well. However, I wish I bought one of your notchers a long time ago. It is in a whole other world compared towhat I was using and I can't even tell you how many times I nearly lost some body parts trying to notch a tube in it that it was not designed to do (in a bend).
The TN-250 has turned one of the most hated jobs I had in cage building into one of the easiest.
I think you guys over build your tools as much as I like to try and over build my trucks!
Great Machine
I have a Baileigh TN-250 Tube notcher, it's awesome. So worth every penny I paid and then some.
What I like about this thing is it's heavier than a dump truck. You could sell it for scrap, and get your money back.
This unit is worth it’s weight in gold
This notcher holds the piece solid and allows for notching in any direction, This is a man’s toy and the guy’s love it. One guy is even thinking of purchasing one for his shop in Ca. Thanks for your quick action and shipping on this unit; it’s earning it’s money right now, Thanks again.
PJ Gaffers in Carolina, Puerto Rico…
