Rdb175 Tube Bender

Product image is only a representation, actual product appearance may differ slightly

  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender
  • Rdb175 Tube Bender

Description

Made in the USA, this hydraulic rotary draw bender improves on our breakthrough RDB-150 with patented* additional features to streamline your bending jobs.


  • Maximum capacity of 2” schedule 40 pipe and up to 2.5” tubing with a wall thickness of .120” mild steel.
  • Rotary draw executes 180° bends in a smooth single motion.
  • Bends almost 300% faster than the RDB-150, making quick work of round tube, pipe, and square tubing.
  • Auto-stop programming lets you achieve the desired bend angle without worrying about accuracy.
  • Easy-to-read digital degree indicator to monitor bend progress and check angles.

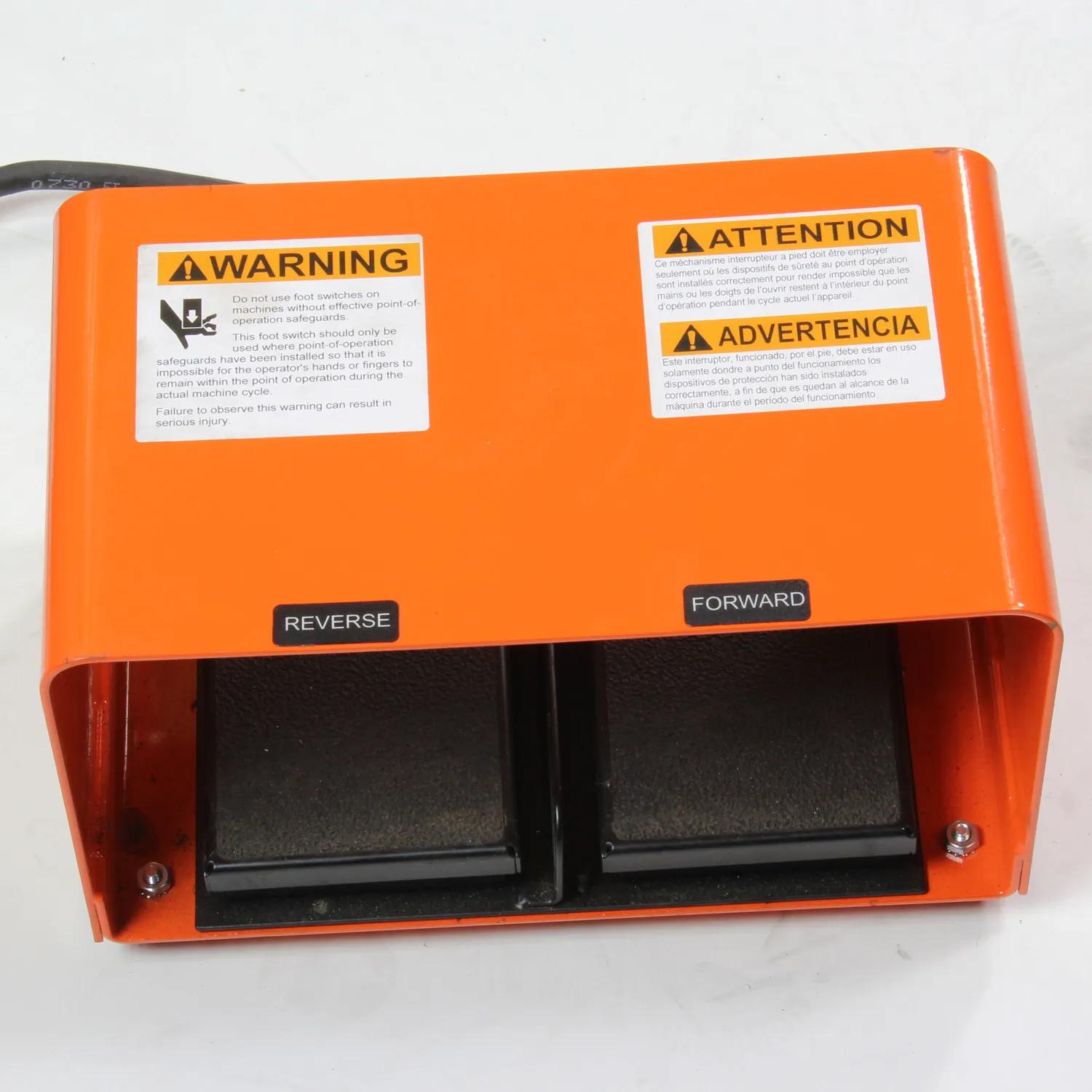

  • Convenient foot pedal controls the movements of the bender, leaving your hands free to guide the material.
  • Works with up to a 9’’ centerline radius to accommodate 90% of applications.

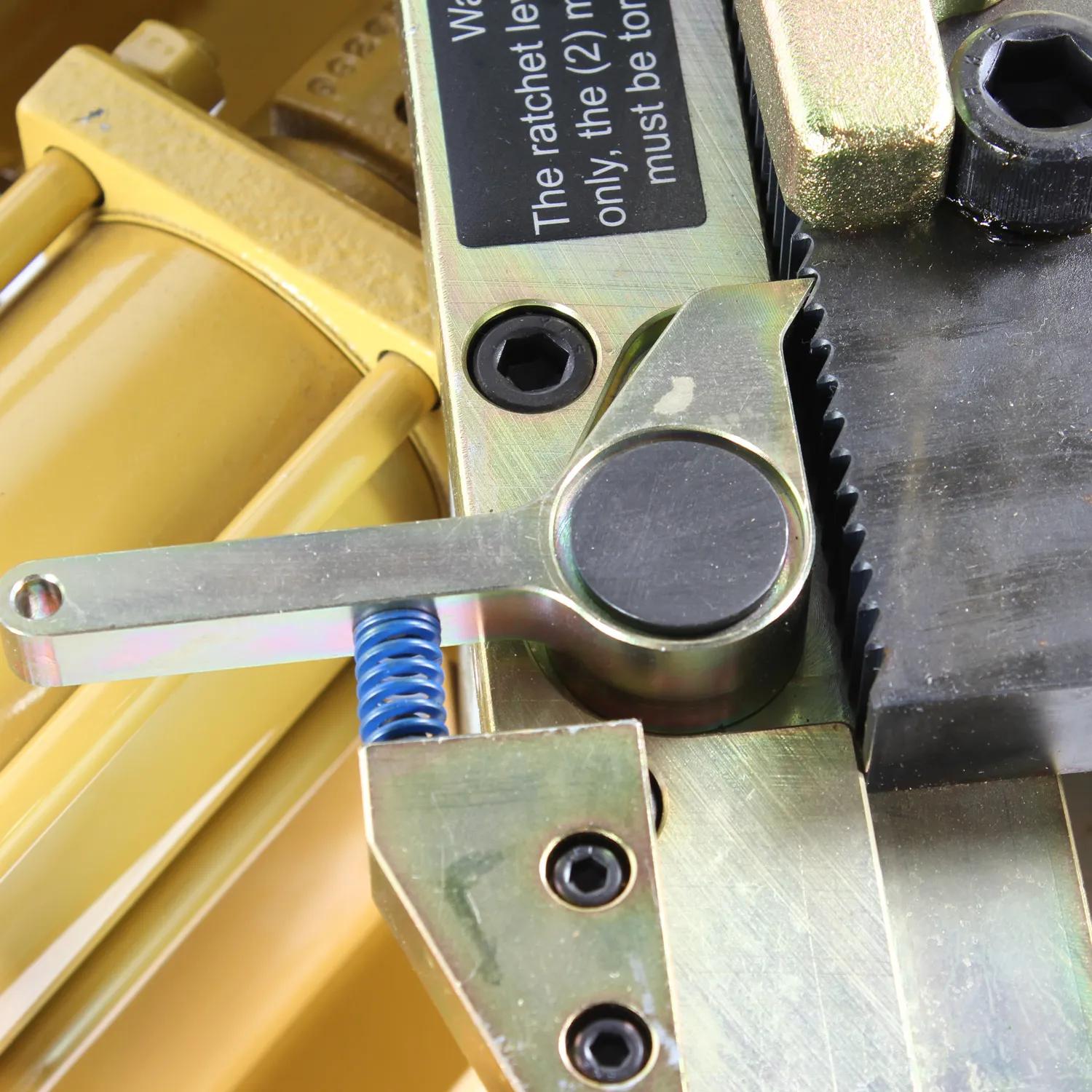

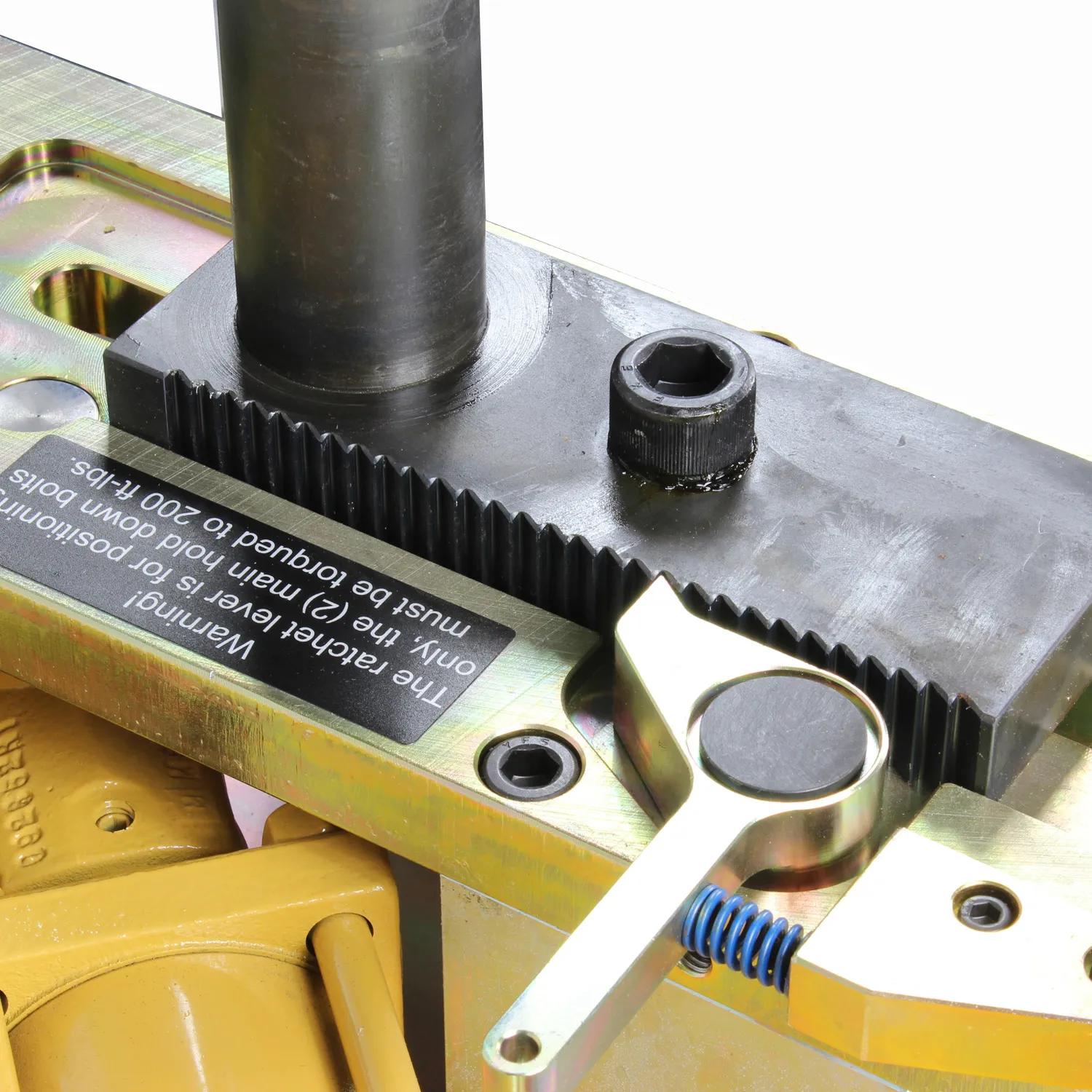

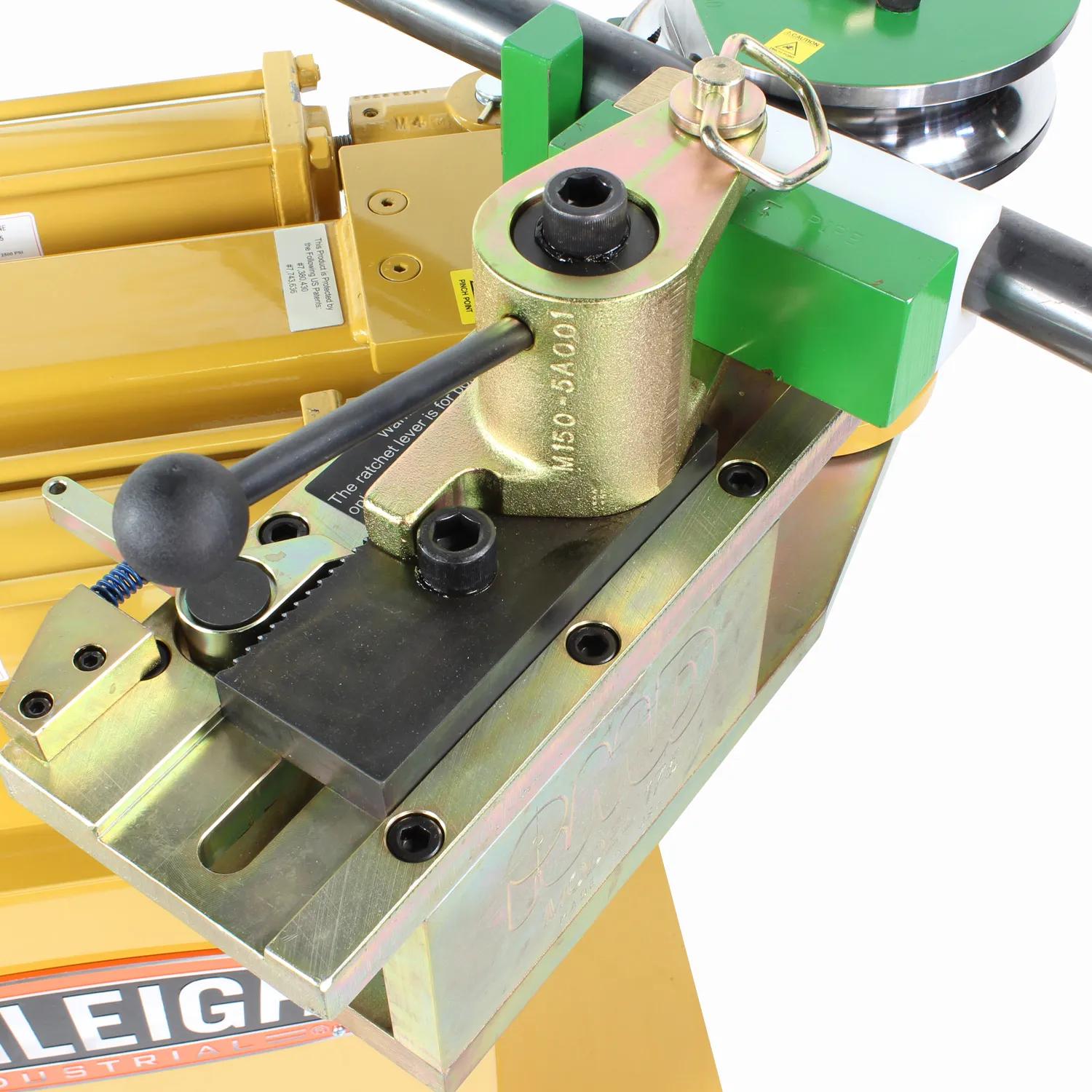

  • Ratcheting counter die adjustment allows for quick tooling changes.
  • No valves on top, leaving plenty of open space for complex bends.
  • Backed by a 1-year parts warranty and lifetime technical support.

Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.


Why choose the RDB-175 over similar machines?


  • Improved-accuracy digital readout package measures bend angle on the die head or spindle instead of cylinder placement to get a true reading.
  • You can count on the extreme speed and reliability of the RDB-175 to eliminate delays.
  • Accepts a wide range of quality tooling options from Baileigh, with over 5000 die sets available.
  • Limitless after-sale support from Baileigh representatives with hands-on experience is just a phone call away.

Feel free to call us at 1-920-684-4990 to talk to a customer service representative or fill out our contact form.


*U.S Patent No. 7,380,430 / U.S Patent No. 7,743,636.


Sample Tooling List

Discount Tooling Packages


Read More Read Less

Specifications

Item Number RDB-175
Country of Manufacture United States
Minimum CLR .5"
Minimum OD .25"
Mild Steel Solid Rod 1.25"
Mild Steel Pipe Schedule 40 2"
Mild Steel Round Tube Wall 2.5" (.125)
Mild Steel Square Tube (Wall) 2" (.125)
Stainless Steel Pipe Schedule 40 1.5"
Stainless Steel Round Tube Wall 2.375" (.125)
Chromolly Round Tube Wall 2" (.125)
Aluminum Round Tube Wall 2.5" (.156)
Maximum Center Line Radius Clr 9"
Power 110V
Shipping Weight 700lbs
Special Notes Tooling not included, contact Baileigh at 920-684-4990 for correct sizing.
Shipping Dimensions (Inches) 60x44x77

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

Easy to program and “dead-on every time”

Evan Favaro from Speakeasy Motors wrote on Instagram, “The programmable settings make production work super easy and dead-on every time, especially when doing pieces with multiple different bends. If you can set an alarm clock, you can program this machine!

Visit Speakeasy Motors’ website.

Creating Unique, All-Terrain Wheelchairs for Active Individuals

Tim Swenson created the Action Chair to help individuals with disabilities lead more active lifestyles. Baileigh's RDB-175 was an ideal economical option for creating the chair frames at the quality and speed needed.

Read the full story

First-Class Precision for Quick Repeat Projects

John Martins of Zephyr Engineering needed an automated bender for repeating parts with high precision. Baileigh's RDB-175 was the right tool for the job, completing its first production job in a matter of minutes.

Read the full story

Q & A

Q. What Tooling is right for you?

A. Baileigh Industrial makes tooling for just about every application possible of rotary draw bending. For this reason, it is important to understand what material you are bending to get the correct die set for your application. Click either link below for a simple description of our tooling to aid you in making this determination.

What is the difference between Pipe and Tube? Click here

What is center line radius? Click here


Tube Bender - RDB-175

SKU: 1006785

In stock

USA Made

$7,395.00 $
Leasing starts at $169 . Calculate your monthly lease price
