TN-700 Tube Notcher

Product image is only a representation, actual product appearance may differ slightly

  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher
  • TN-700 Tube Notcher

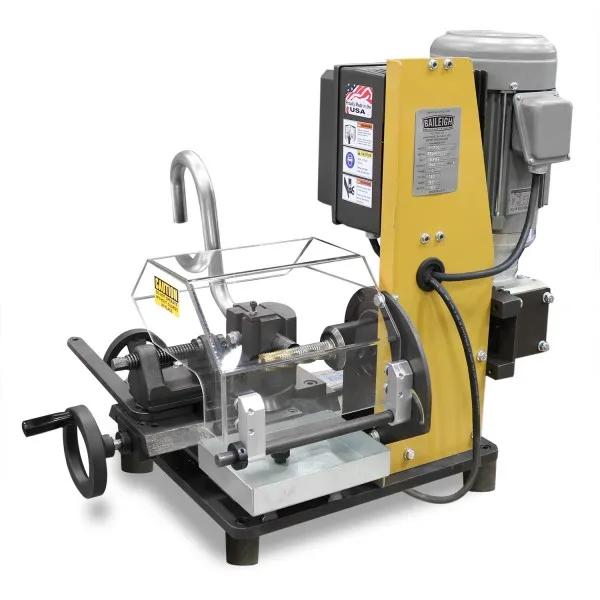

TN-700 - Tube and Pipe Notcher

SKU: BA9-TN700

USA Made

$6,579.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $139 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description



The TN-700 Tube and Pipe Notcher is a great alternative to tying up your vertical mill with that pesky tube and pipe notching.

  • Made in the USA.
  • 2 hp motor runs on 115-volt power. You can operate it almost anywhere, including in the field.
  • Notches up to 60°.

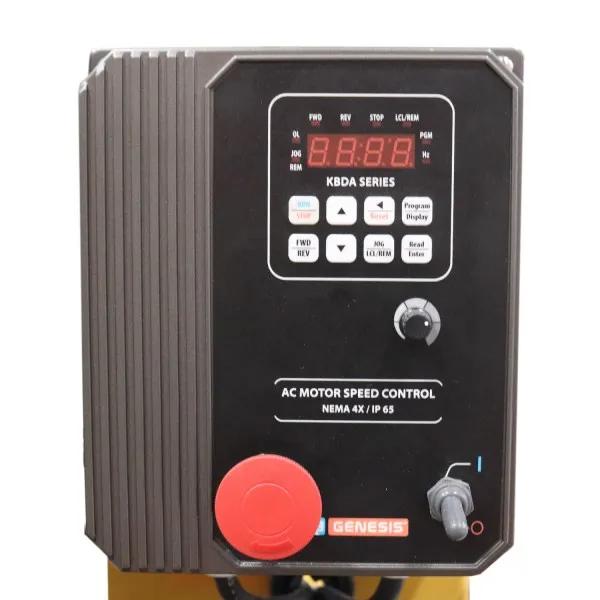

  • Inverter driven variable speeds allow for the optimum milling speed that balances cutting power with long machine life and low wear and tear.
  • Digital readout for RPM, included

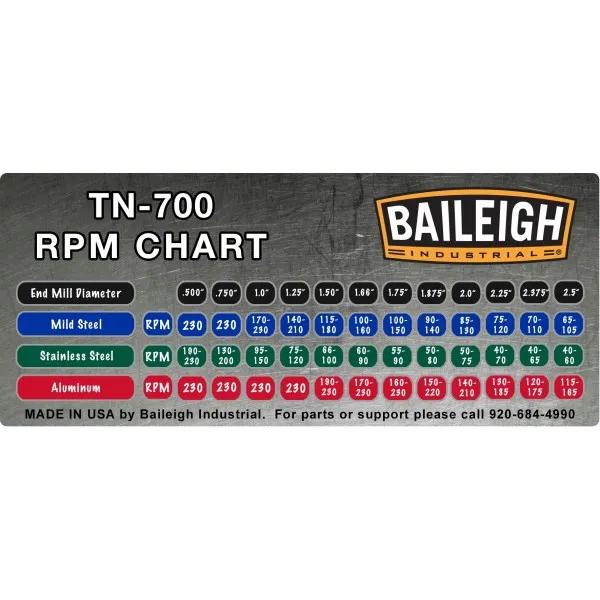

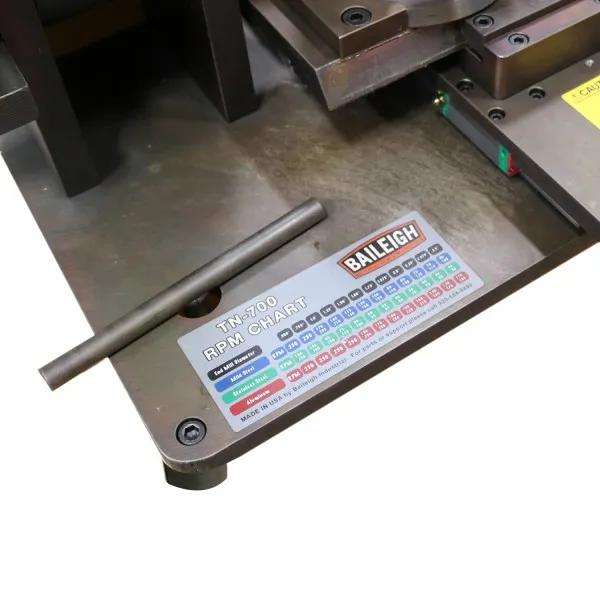

  • Included speed chart helps dial the perfect speed for your cut.

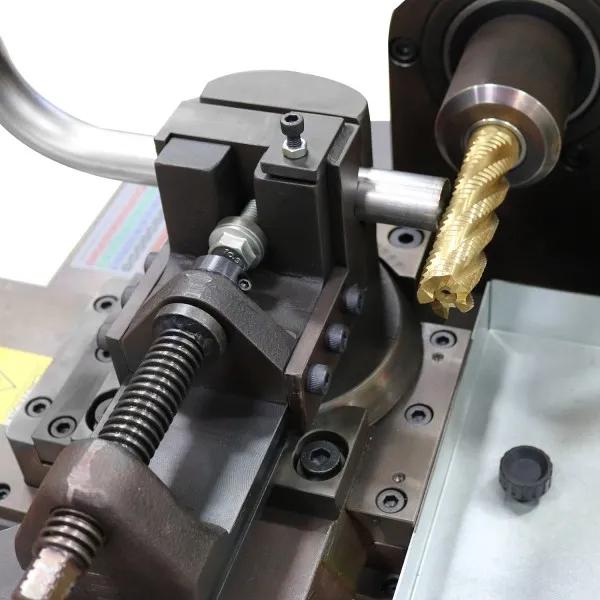

  • Vise adjusts in just about every way possible, featuring X- and Y-axis control to ensure a good cutting position.

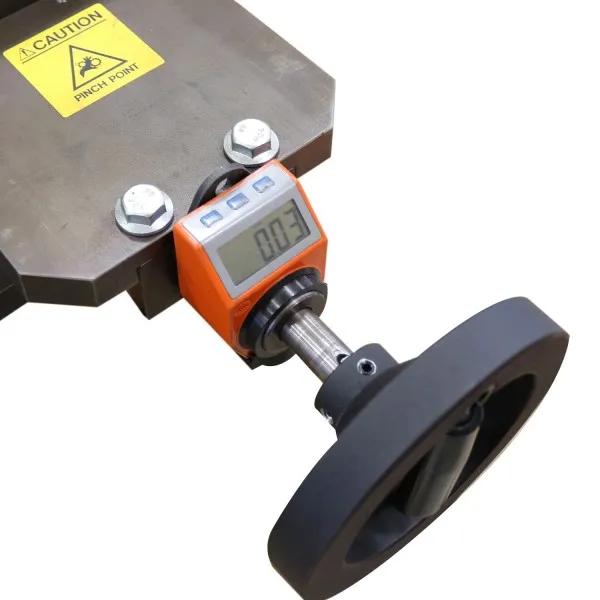

  • Degree or angle-finder makes it simple to check the angle and ensure repeatability.
  • If you want a more traditional notch, the cam lock enables you to set your degrees; just move it in either direction to angle the notch.
  • Heavy-duty cast iron framework reduces vibration, prolongs machine life, and delivers more accurate results.
  • Optional portable cart with wheels, so that when you’re not using the TN-700 you can roll it out of the way.
  • Baileigh covers this end mill tube and pipe notcher with a 1-year parts warranty and lifetime technical support by phone.



Recommended for: Structural work, racing and off-road chassis, steam pipe, and many more applications.



Questions about this end mill tubing notcher for sale? Give us a call at (920) 684-4990.

Specifications

Item Number TN-700
Country of Manufacture United States
Speed Control Inverter
Speed Range 40 to 230 rpm
Shank Hole 1.25"
Motor 2 hp
Mill Speed Variable rpm
Notching Capacity (OD) .5" - 2.5" with optional end mills
Angle Adjustment 0 – 60°
Digital Readout Yes, for rpm
Power 115V
Shipping Weight 340 lbs
*Optional Tooling .5" to 2.5" end mills are available
Special Notes To use end mills smaller that 1.25" a spacer sleeve is included with machine.
Things to Know Before Purchase Does not come with end mill, optional rolling stand is available
Shipping Dimensions (Inches) 31" x 48" x 32"

* specifications subject to change without notice.
