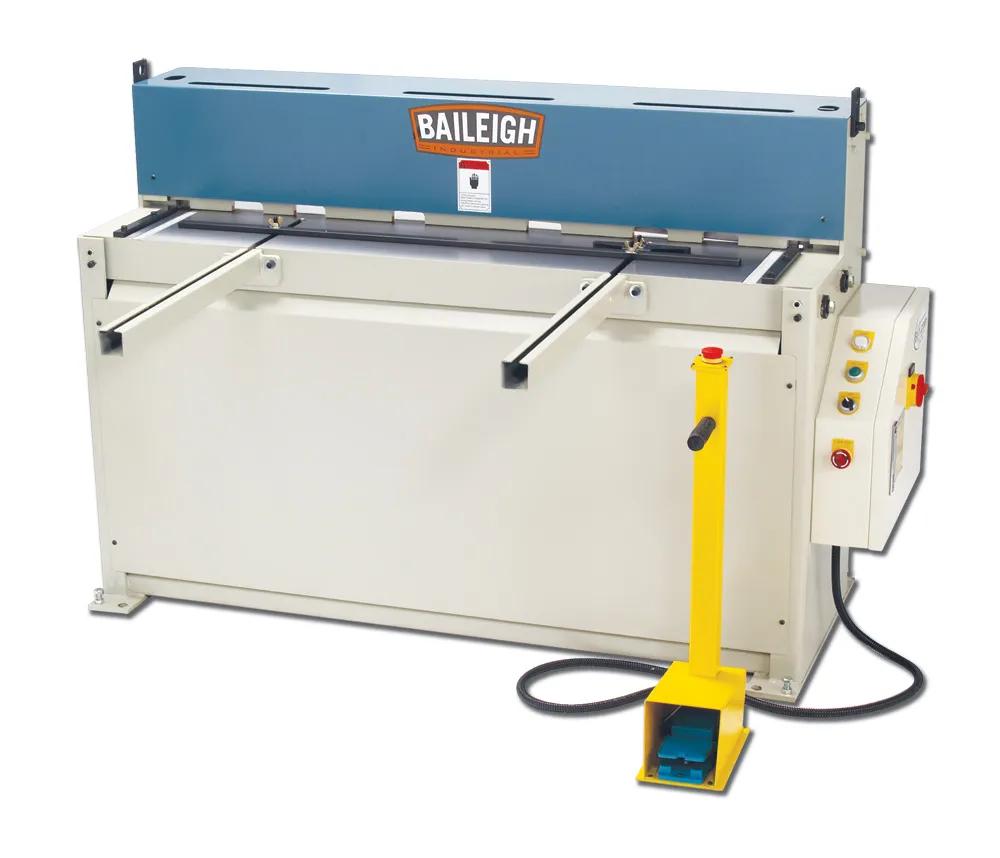

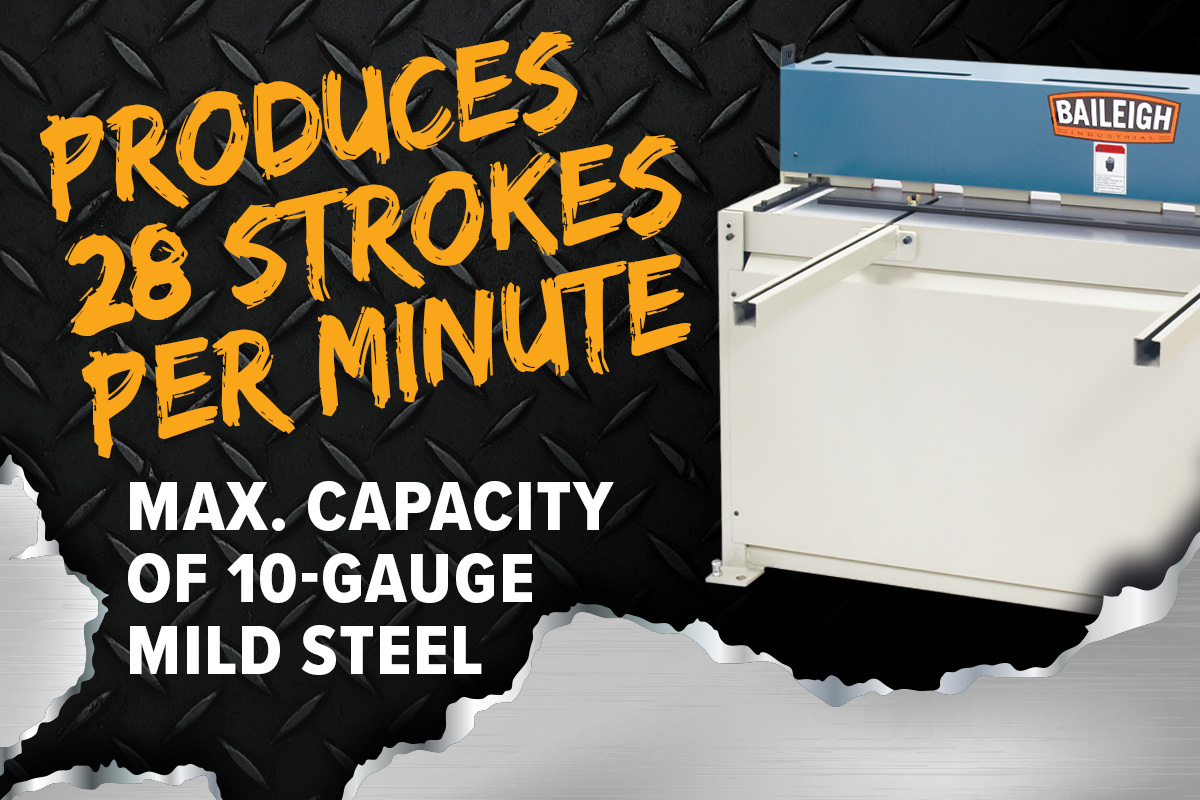

Sheet Metal Shear SH-5210

This hydraulic shear was one of the machines that got us started and built Baileigh’s quality reputation. With its welded steel frame, the SH-5210 sheet metal shear makes perfect cuts every time.

• 52” length.
• 10 gauge mild steel maximum capacity.
• Minimum capacity of 24 gauge mild steel.
• 5 hp motor runs on 220-volt single-phase power.
• Up to 28 strokes per minute.

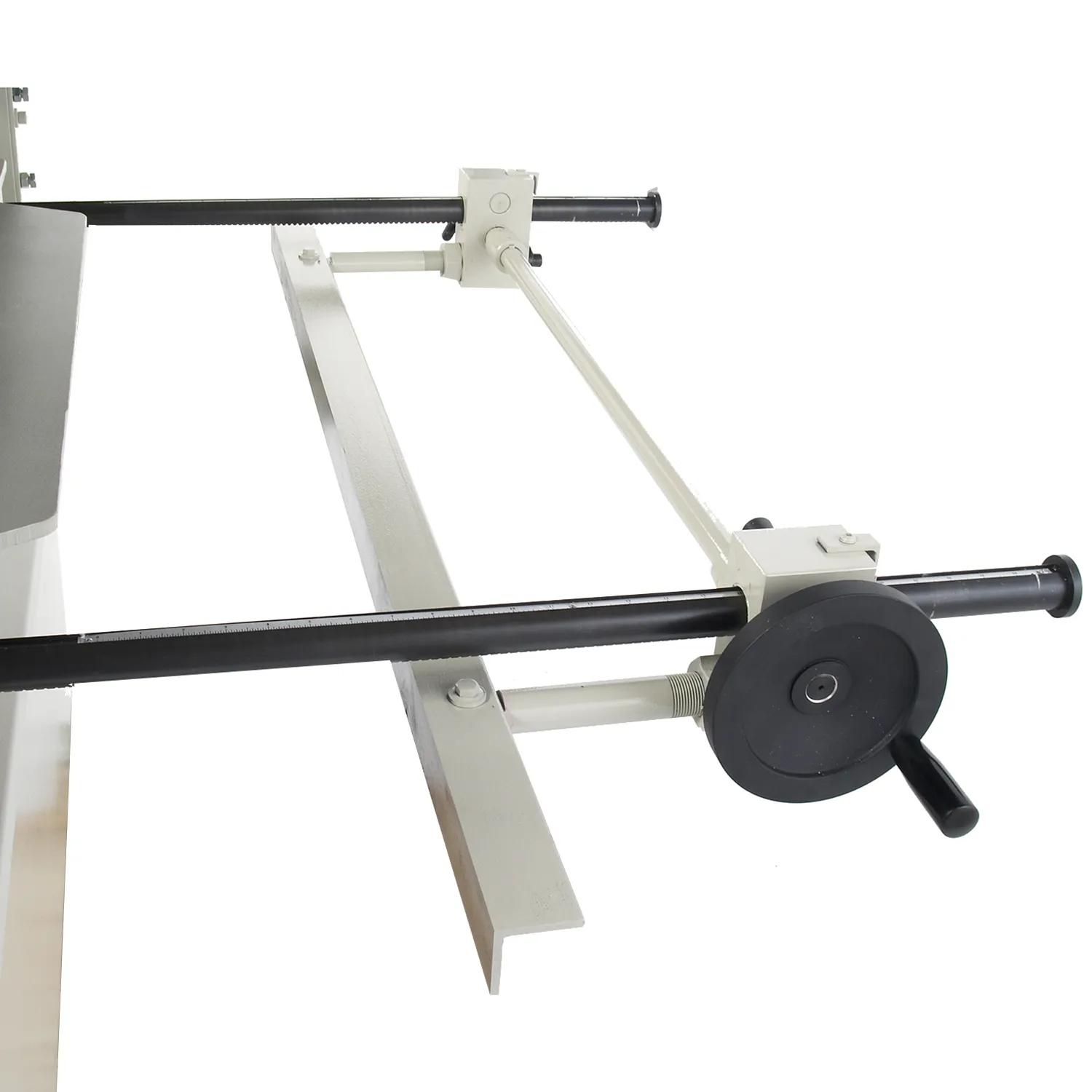

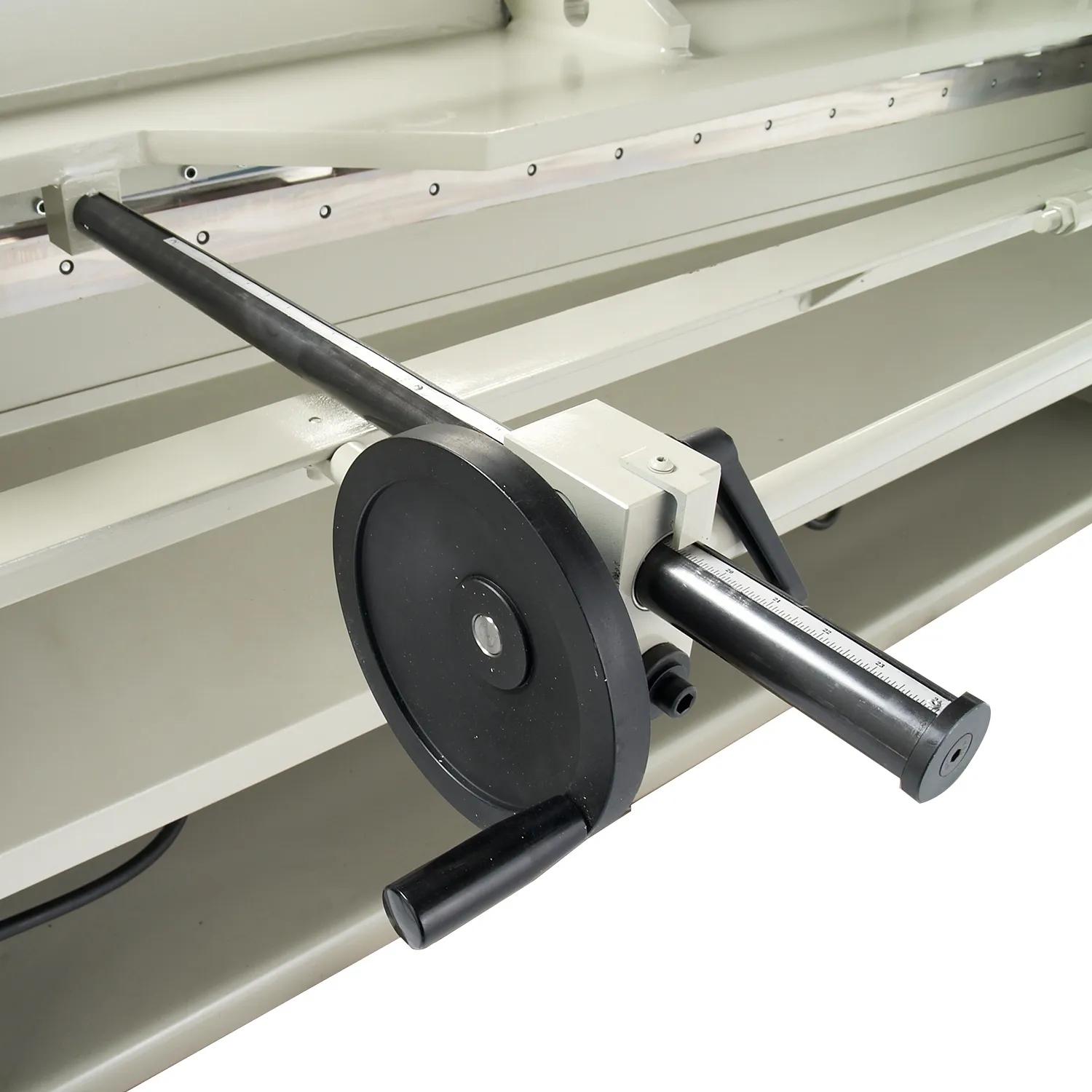

• Adjustable 24” backgauge ensures precise repeatability.

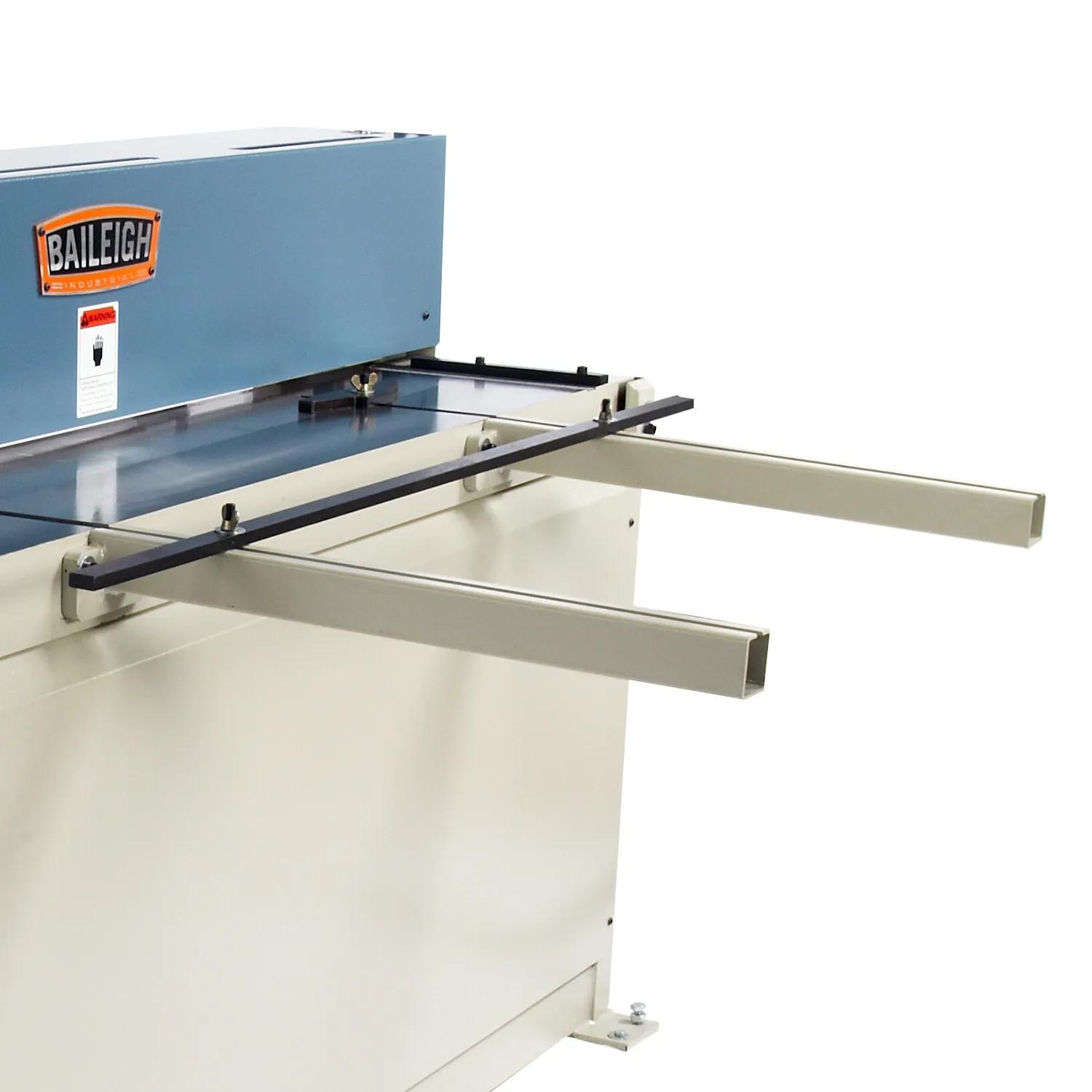

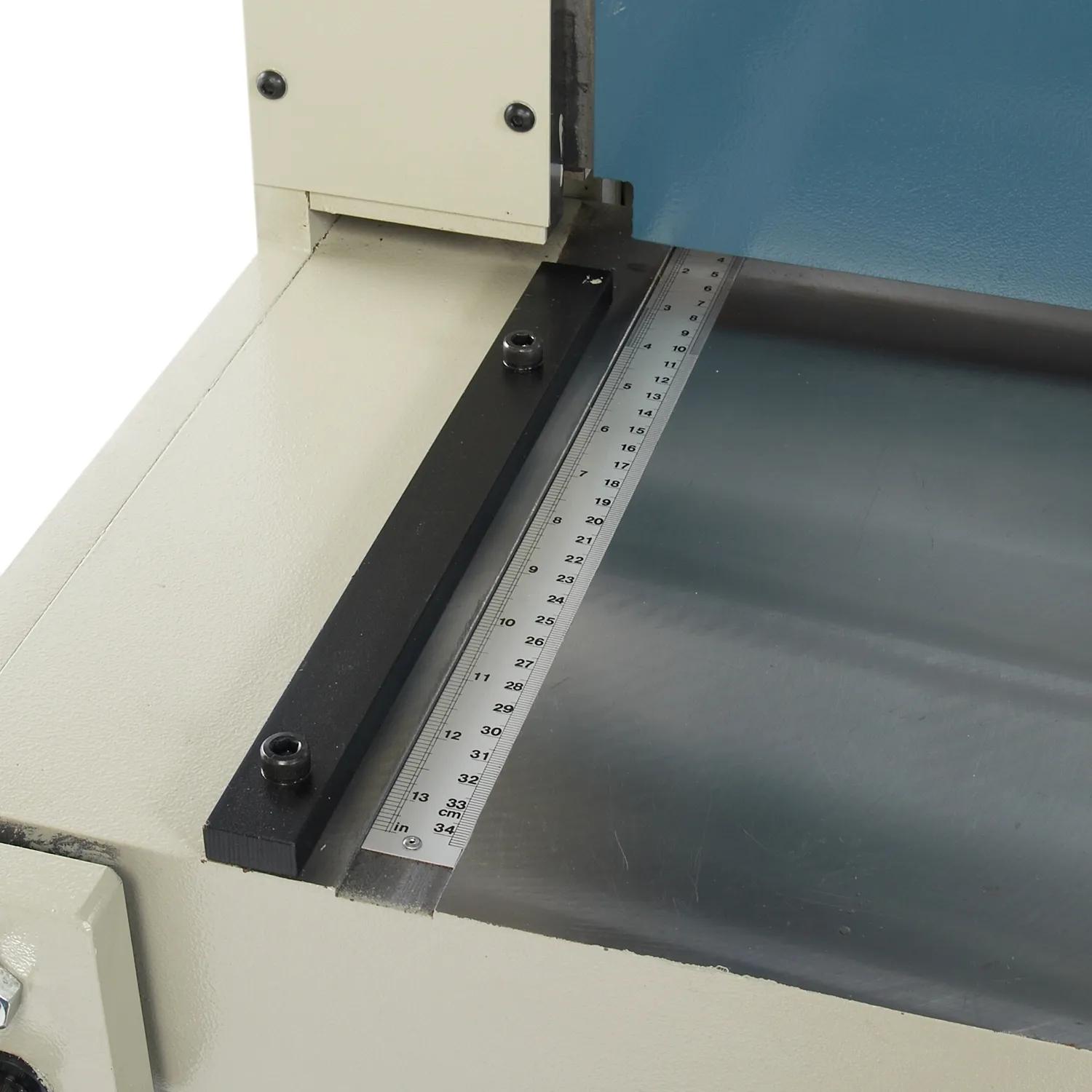

• Front support arms and table guides keep the material square to the blade.

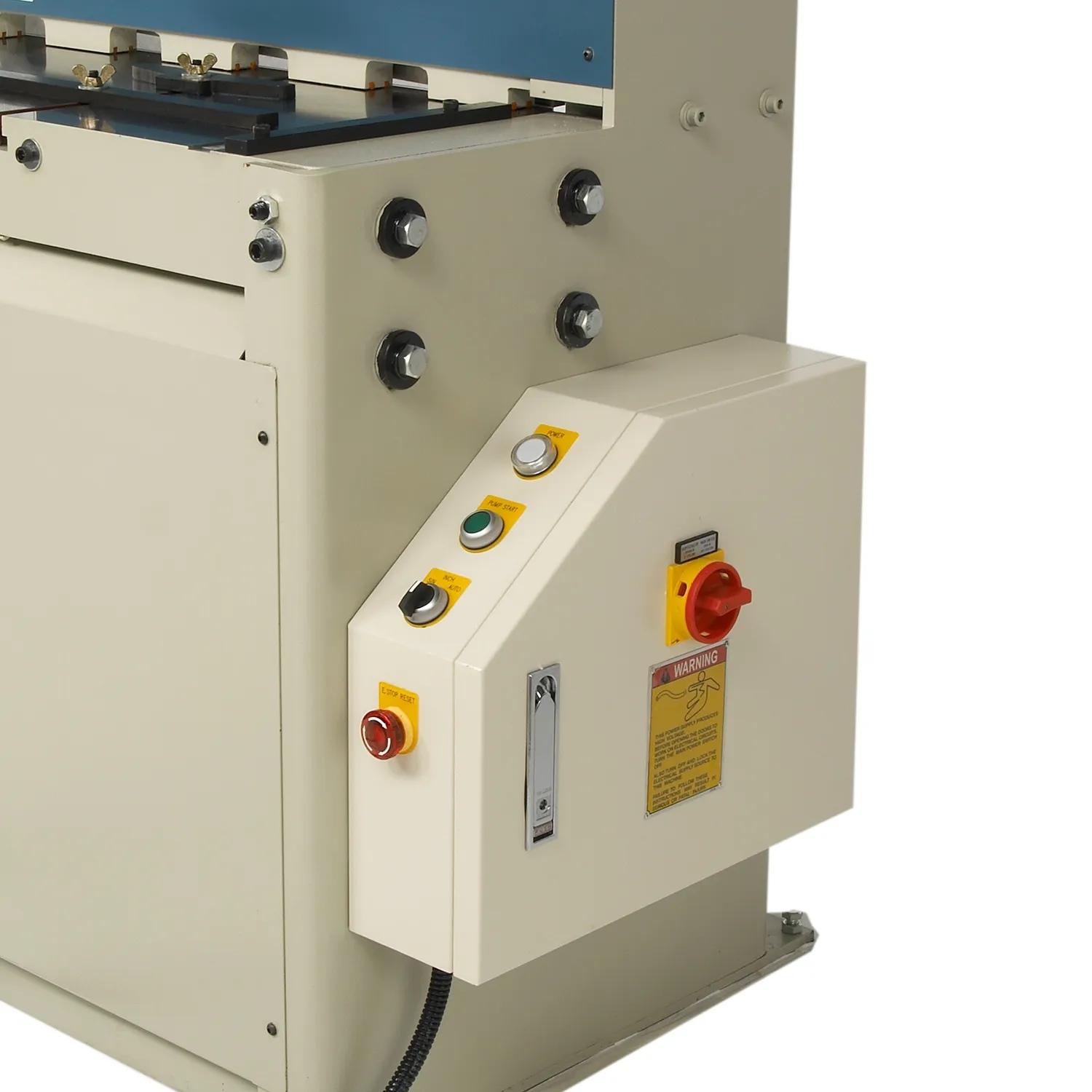

• 3 modes on the operator console:
  • Inch mode: Jog the control and ease the blade down to the material.

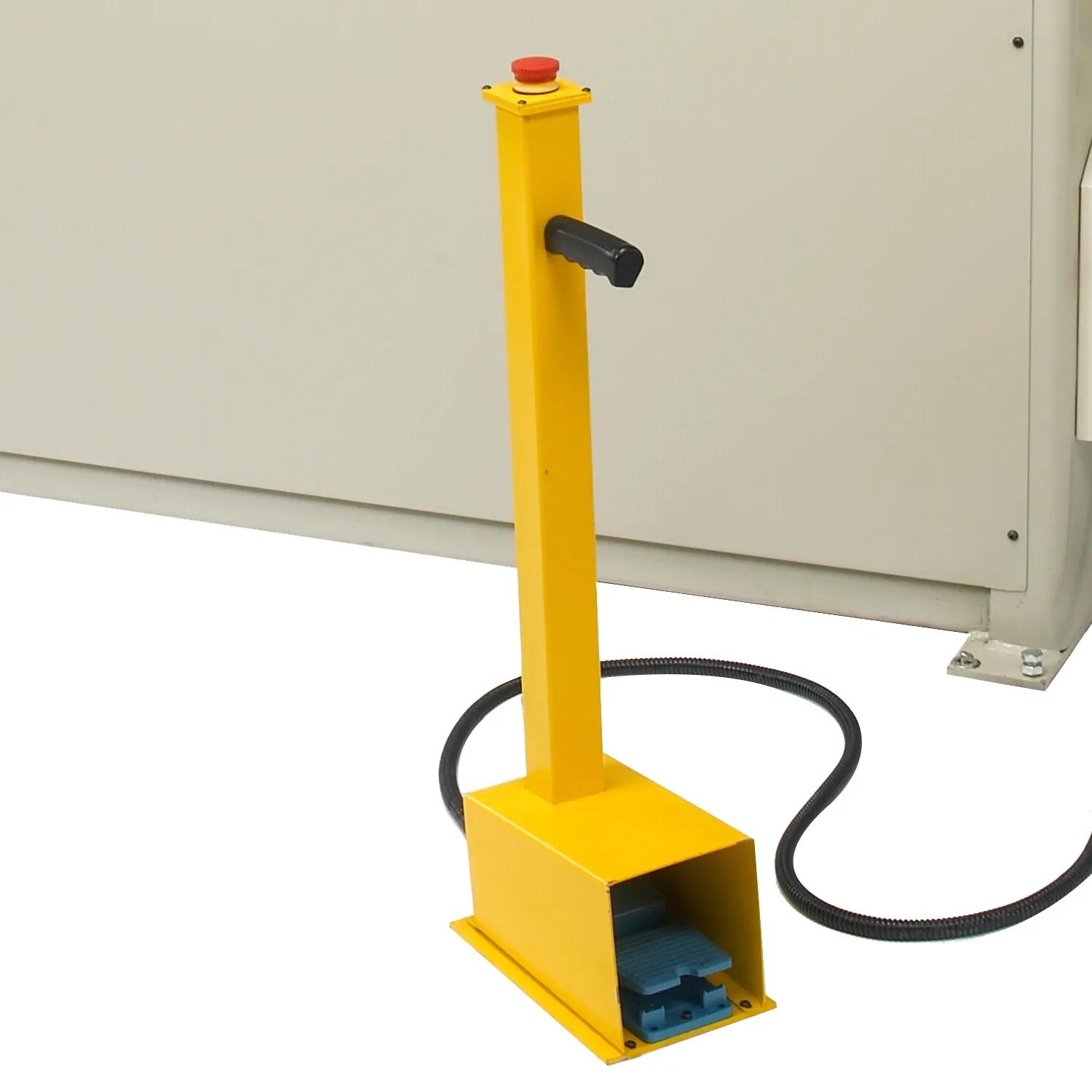

  • Single mode: Make one cut cycle per foot pedal push.
  • Auto mode: Continue cycling as you hold the pedal down.
• This hydraulic shear comes standard with high carbon chromium blades.
• Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
• Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.

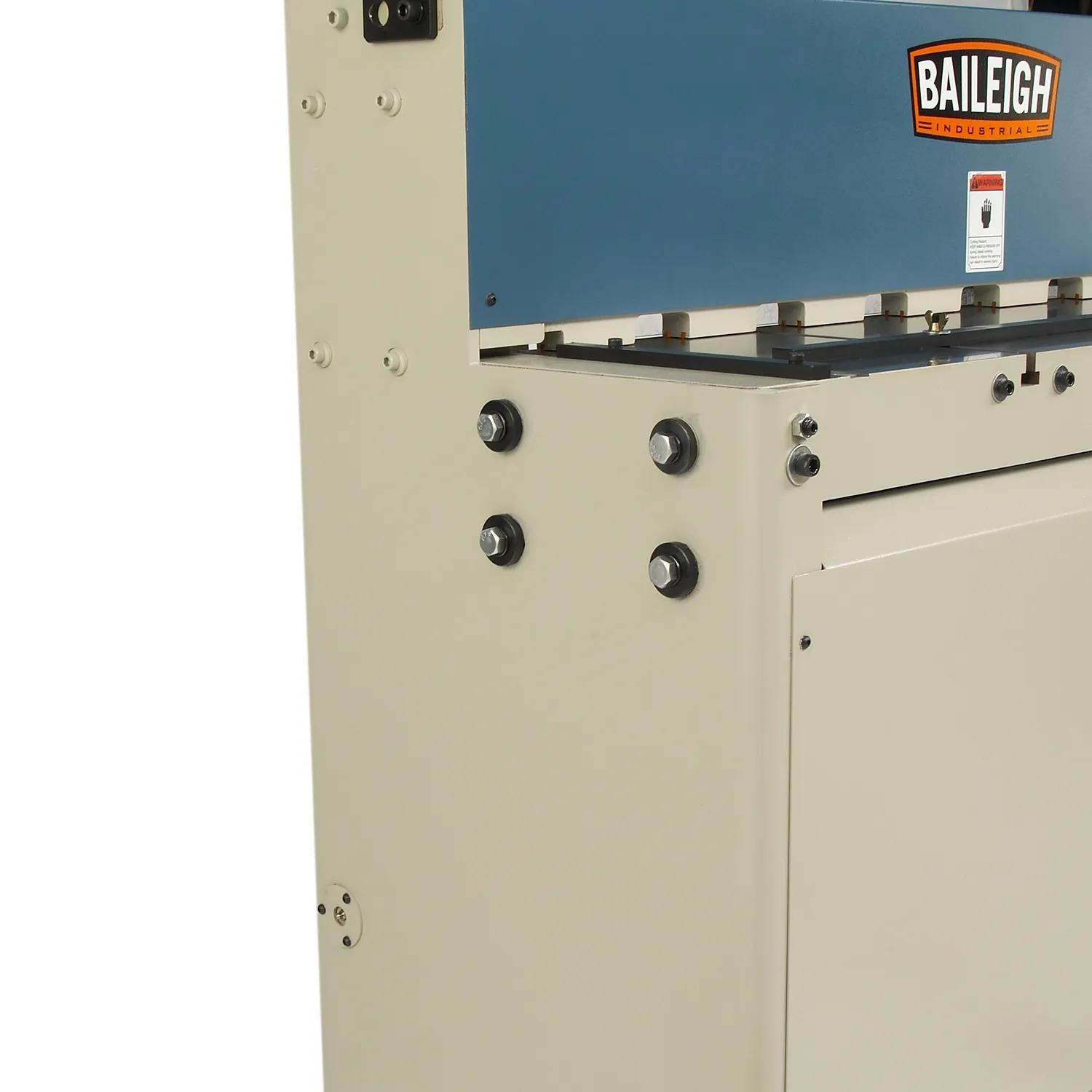

• Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.
• This 10 gauge sheet metal shear is covered by a 1-year parts warranty.
• We stock replacement parts, including blades, in house for fast shipping.
• Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Also available in a 52”-long, 14-gauge version and a 60”-long, 10-gauge capacity model.

Questions about this Baileigh sheet metal shear? Not sure which sheet metal shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.
