Hydraulic Shear Sh12014

Product image is only a representation, actual product appearance may differ slightly

  • Hydraulic Shear Sh12014

Description

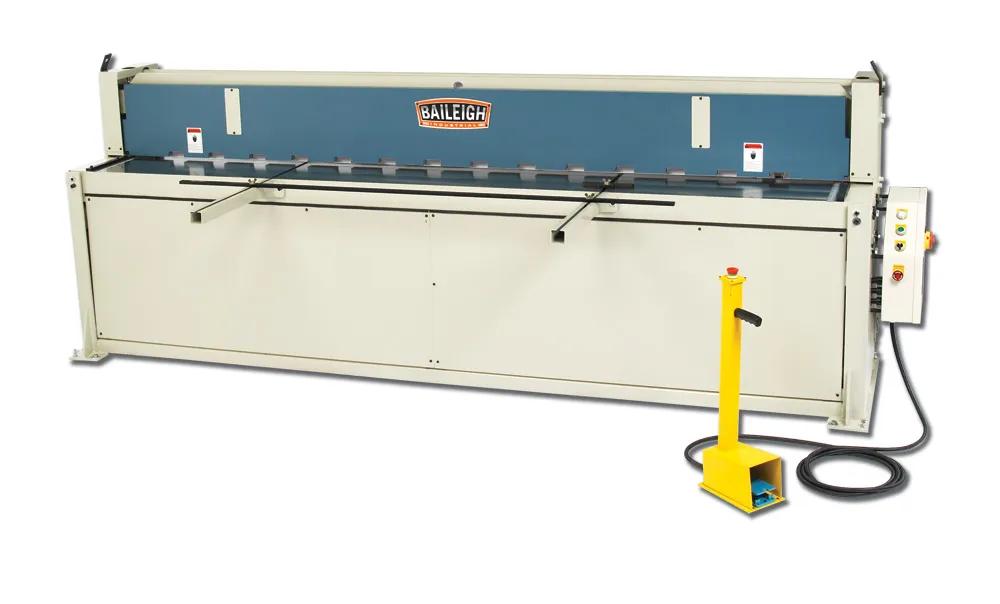

This 120” hydraulic shear lets you cut full sheets the long way. Built with a plate steel carriage, the rigid and simple SH-12014 will give you decades of dependable service.


  • 14 gauge mild steel maximum capacity.
  • Minimum capacity of 24 gauge mild steel.
  • 5 hp motor runs on 220-volt 3-phase power.
  • Powerful industrial-grade hydraulics produce smooth movements that prolong blade life.
  • Up to 20 strokes per minute
  • Adjustable 24” backgauge helps ensure repeatability.
  • Front support arms and table guides keep the material square to the blade.
  • 3 modes on the operator console:
    • Inch mode: Jog the control and ease the blade down to the material.
    • Single mode: Make one cut cycle per foot pedal push.
    • Auto mode: Continue cycling as you hold the pedal down.
  • Comes standard with high carbon chromium blades.
  • Blades have 4 shearing edges, so you can turn them when an edge gets dull to extend blade life and save money.
  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Fully welded steel construction helps prevent flex and maintain accuracy for many years.
  • Covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Also available in 60”-long and 80”-long versions (both with 14 gauge capacity). We also offer an 120” shear with a 10 gauge capacity.


Questions? Not sure which sheet metal shear is right for you? Call 1-920-684-4990 and talk to a Baileigh expert.


Read More Read Less

Specifications

Item Number SH-12014
Country of Manufacture Taiwan
Blade Rake Angle 2 degrees
Back Gauge Length 24"
Shear Length 120"
Motor 5 hp
Thickness (SS) 14 ga. (18 ga.)
Strokes Per Minute 20
Front Gauge Length 24"
Blade Angle
Power 220V / 3-phase
Shipping Weight 5930lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 150x44x60

* specifications subject to change without notice.
