Hydraulic Press Hsp 75A 10

Product image is only a representation, actual product appearance may differ slightly

  • Hydraulic Press Hsp 75A 10
  • Hydraulic Press Hsp 75A 1
  • Hydraulic Press Hsp 75A 3
  • Hydraulic Press Hsp 75A 4
  • Hydraulic Press Hsp 75A 5
  • Hydraulic Press Hsp 75A 6
  • Hydraulic Press Hsp 75A 7
  • Hydraulic Press Hsp 75A 8
  • Hydraulic Press Hsp 75A 9
  • Hydraulic Press Hsp 75A 10

Description

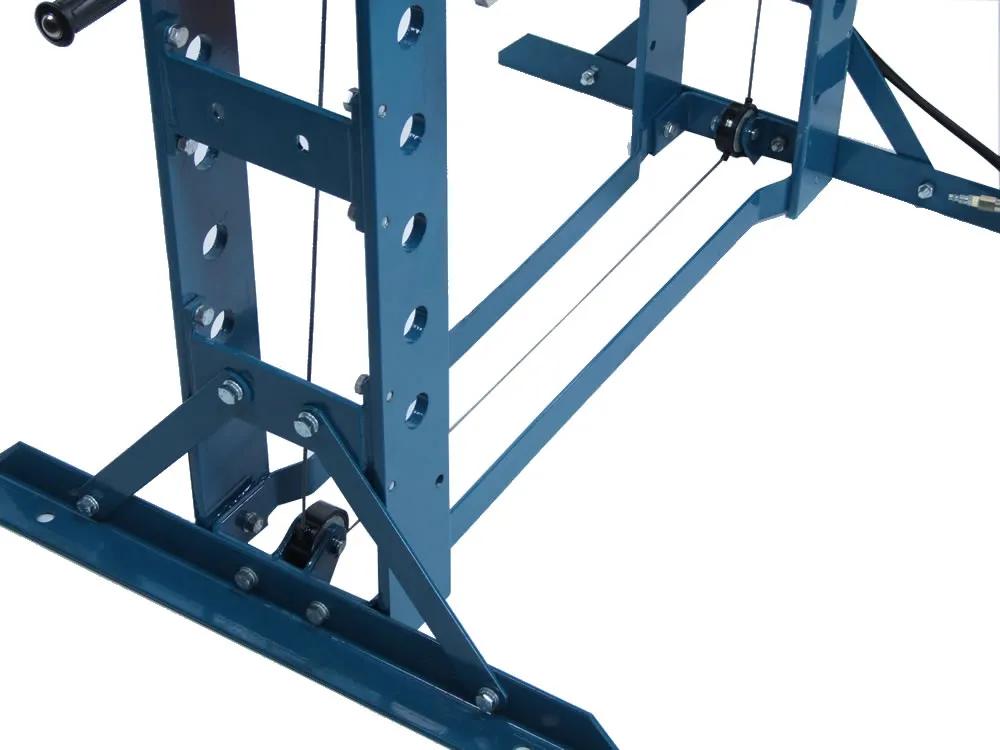

This H-frame press maintains accuracy with fully-welded steel main frame. Go ahead and use its full 75 tons of force. This air-powered shop press won’t flex or buckle on you!


  • 31.5” working width.
  • Large 9” diameter cylinder with a 9.8” stroke.
  • Requires a 90 to 115 psi compressor.

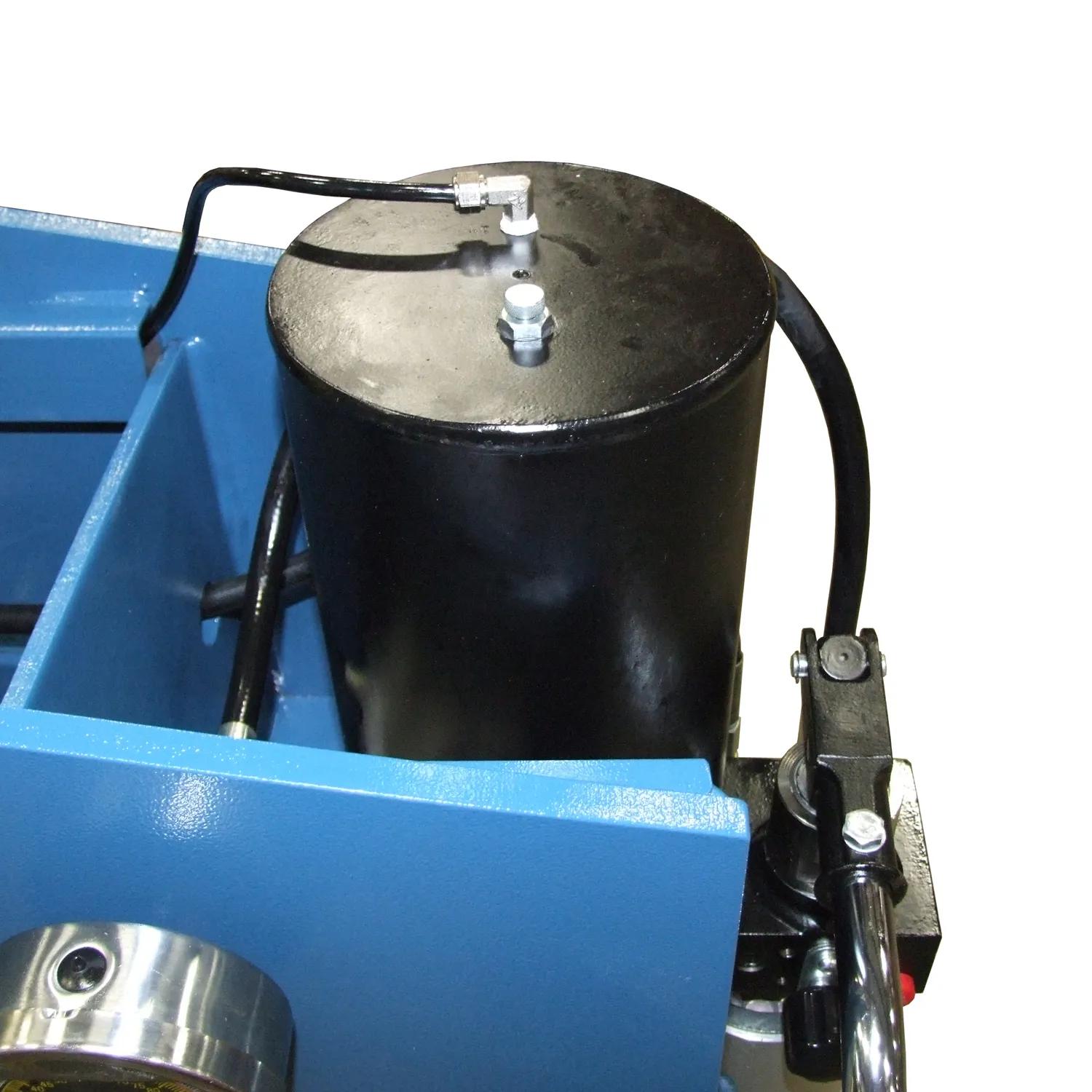

  • Industrial-grade hydraulics help the machine last and run smoothly for many years of productivity.

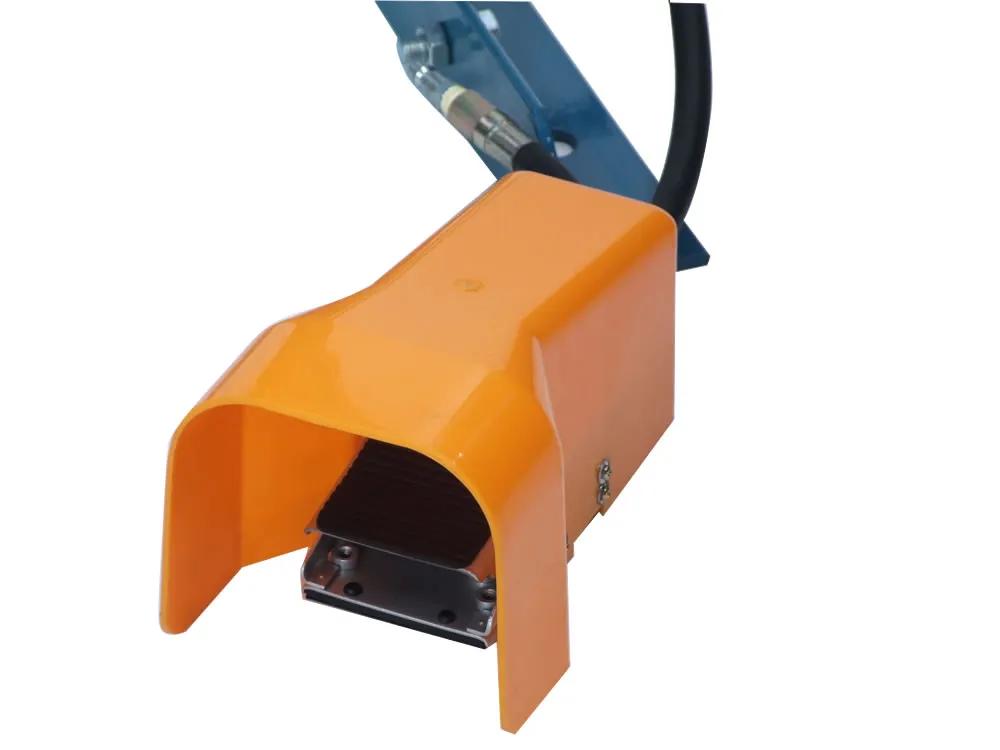

  • Integrated foot pedal makes this H-frame press easy to control.
  • If you’d like more delicate control, you can choose the manual hand pump located on the side of the HSP-75A.

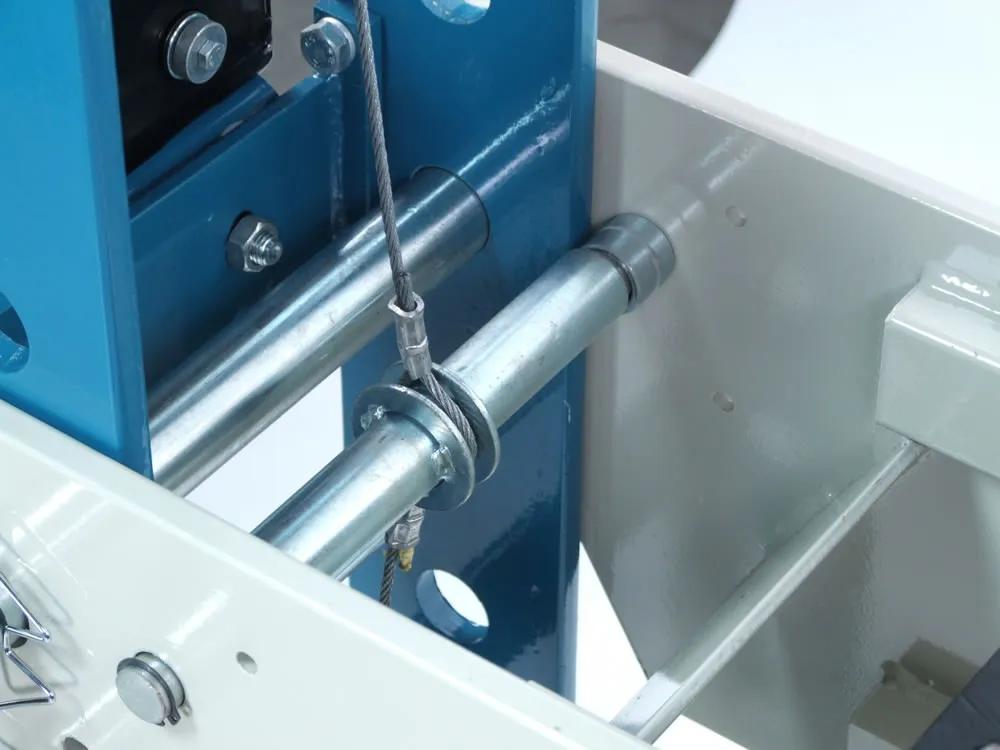

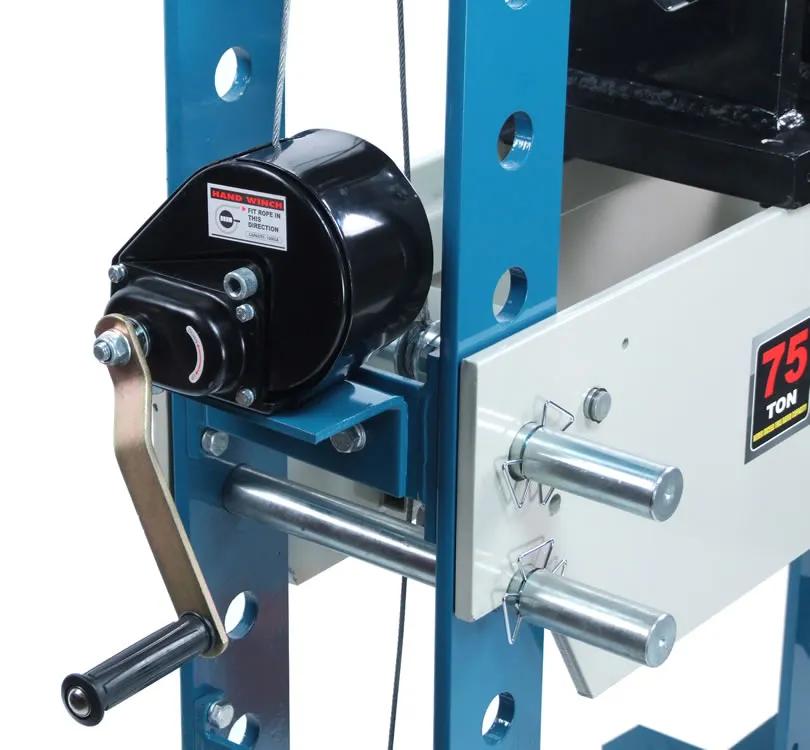

  • Winch and pulley system will save time when lifting and lowering the working table. (It also saves strain on your back muscles.)

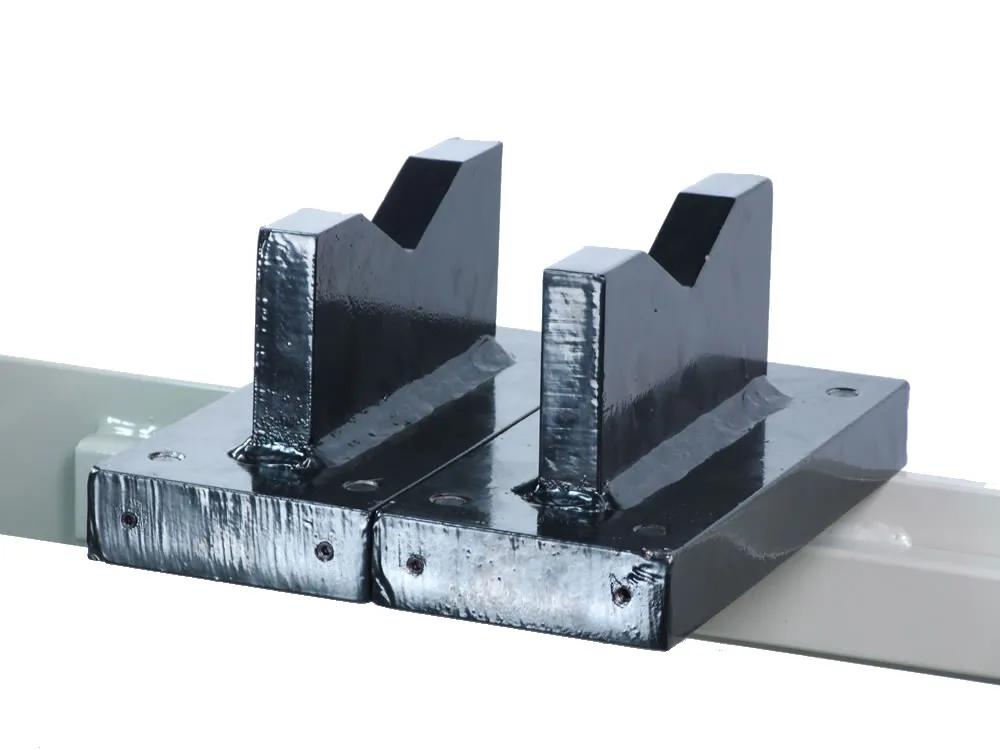

  • Comes standard with a V-block set.
  • You can count on Baileigh for a 1-year parts warranty as well as lifetime technical support by phone.

Questions? Call us at 1-920-684-4990 and talk to a Baileigh expert.


Read More Read Less

Specifications

Item Number HSP-75A
Piston Head Diameter 3"
Movable Cylinder Yes
Working Width 31.5"
Maximum Capacity 75 tons
Cylinder Stroke 9.8"
Cylinder Diameter 9"
Distance From Table To Ram Min. 6.69" - Max. 34.80"
Power Pneumatic / Manual
Shipping Weight 1110lbs
Shipping Dimensions (Inches) 83x44x16

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

The Perfect Combination of Power and Finesse

Levi Green of Hammerfab uses his HSP-75A to create specialty fabricating tools and parts. “Not only can this press handle 75 tons without breaking a sweat... it has a hair trigger that moves thousandths of an inch at a time.”

Read the full story

Pneumatic Shop Press HSP-75A

SKU: 1004859

In stock

$4,195.00 $ - July 4th Sale! Save 17.76% in Cart
