ORG-3600

Product image is only a representation, actual product appearance may differ slightly

  • ORG-3600
  • ORG-3600
  • ORG-3600

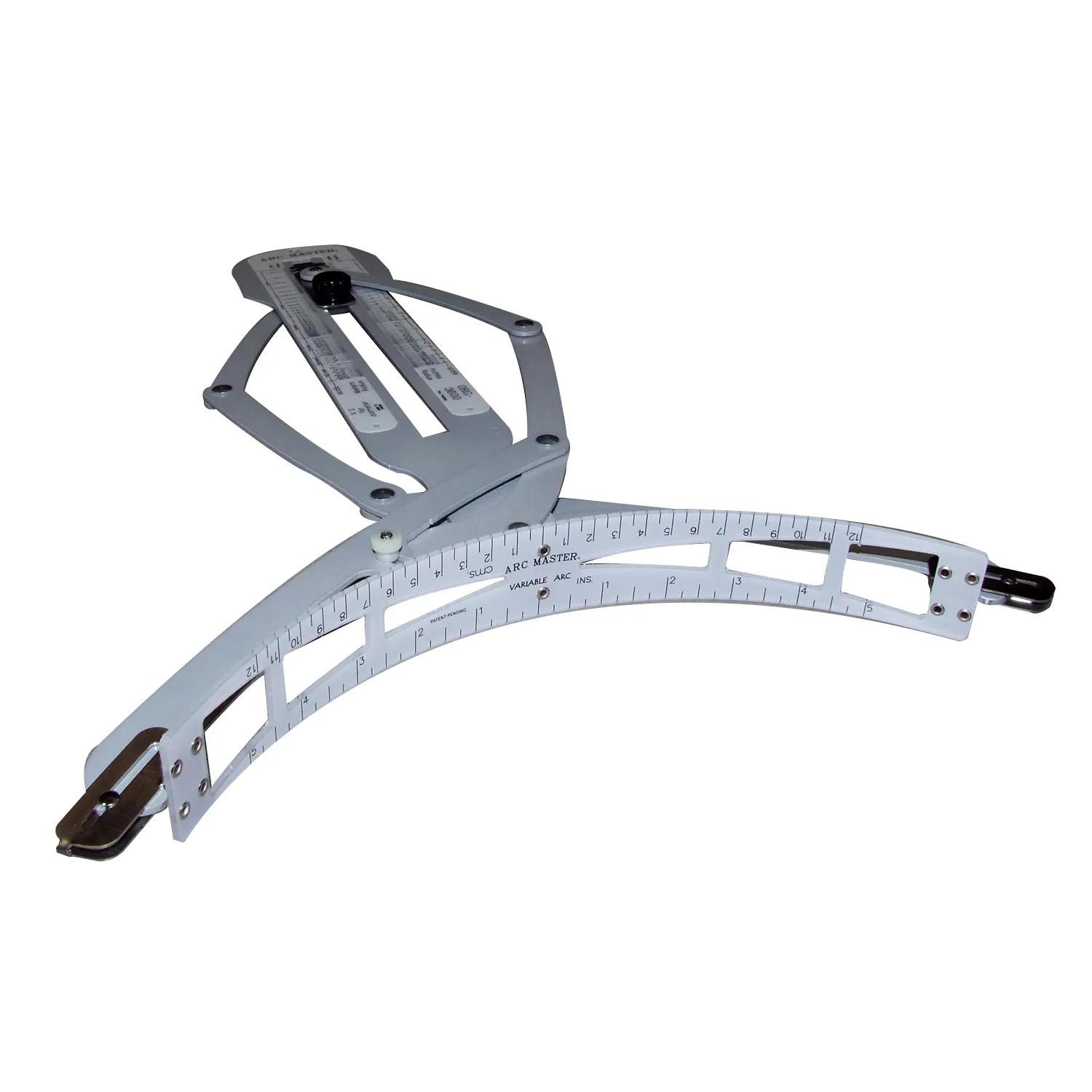

Outside Radius Gauge ORG-3600

SKU: BA9-1005905

Call for Availability

$323.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
SHARE PRINT

Questions? 1-844-477-7707

Description

Baileigh Industrial is proud to introduce our Universal Ring Roller and Plate Roll Radius Gauges with Variable Arc.

It is now possible to measure the curvature of an arc quickly, easily, and accurately. With this large outside radius gauge, you can instantly measure anything from hand-railing to doorway arches, or anything that is curved.

These outside radius gauges are the perfect complement to your new piece of Baileigh Industrial machinery.  With its help it is easy to replicate curves with radii between 6" and 144" made on machines such as Ring Rollers and Plate Rolls.

Included with each outside radius gauge that Baileigh Industrial sells is the variable arc attachment. Used together with either the inside radius gauge or the outside radius gauge, the variable arc will allow the user to transfer any arc to another medium easily by tracing along the variable arc.



Call us at 1-920-684-4990 with any questions you have about this large radius gauge from Baileigh Industrial.

Specifications

Item Number ORG-3600
Accuracy +/- 5%
Construction Aluminum
Measuring Length 11-12 inches
Range 6-144 inch radii
Included Accesories Included Accesories
Shipping Weight 2lbs
Special Notes Able to measure outside radii from 7" to 144"
Shipping Dimensions (Inches) 17x6x2

* specifications subject to change without notice.
