RM10E Roll bender

Product image is only a representation, actual product appearance may differ slightly

  • RM10E Roll bender

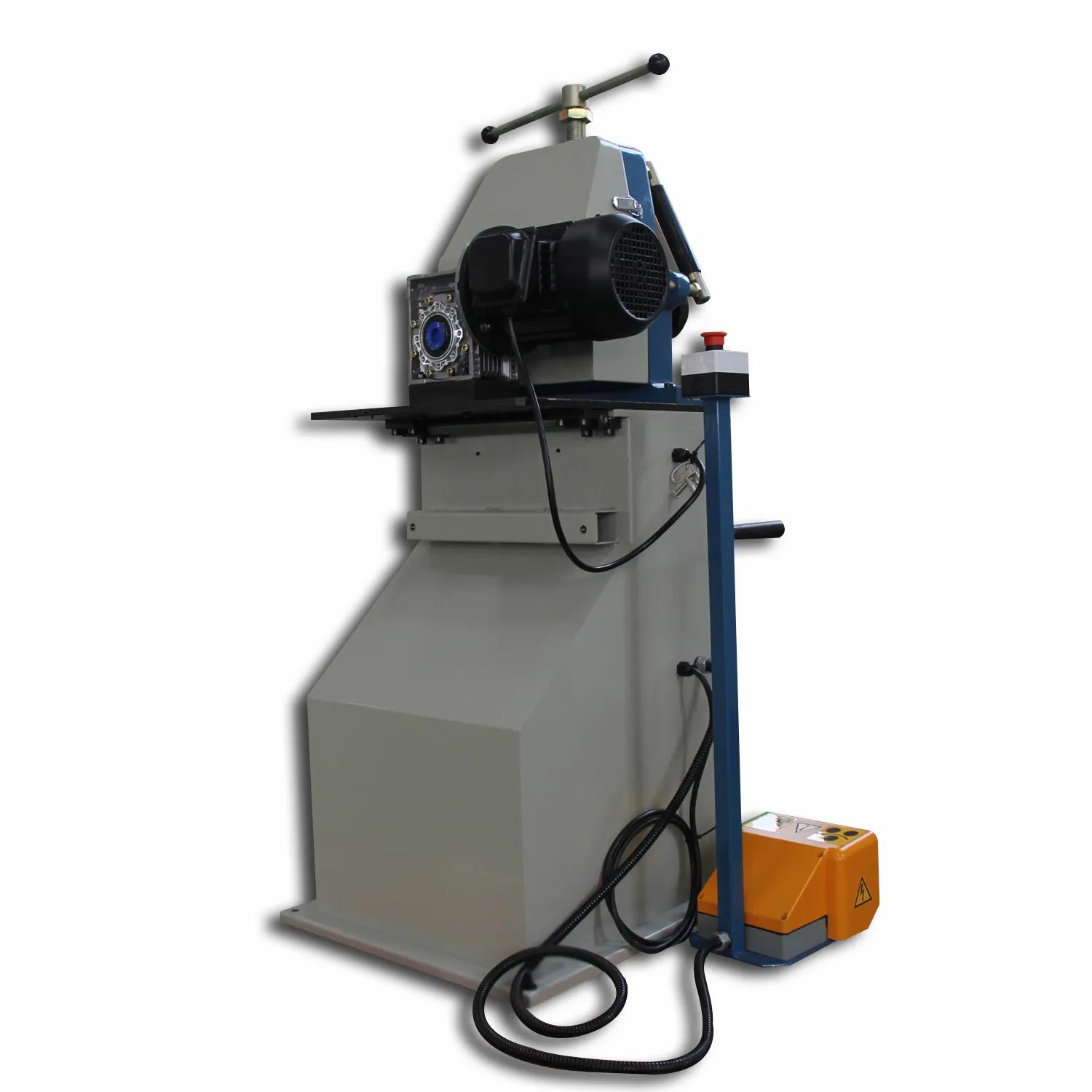

  • RM10E Roll bender back
  • RM10E Roll bender
  • RM10E Roll bender
  • RM10E Roll bender
  • RM10E Roll benderRM10E Roll bender
  • RM10E Roll bender
  • RM10E Roll bender

Manual Roll Bender R-M10E

SKU: BA9-1013217

In stock

$3,509.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $70 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description



Baileigh introduced the manual roll bender R-M10E as an answer to our customer’s wants. This electric ring roller has proved to be a lifesaver for fabrication shops that need more production than the R-M10 can provide.



  • 220-Volt 3-phase Electric Ring Roller
  • Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
  • Open-face design allows you to roll in full circles.

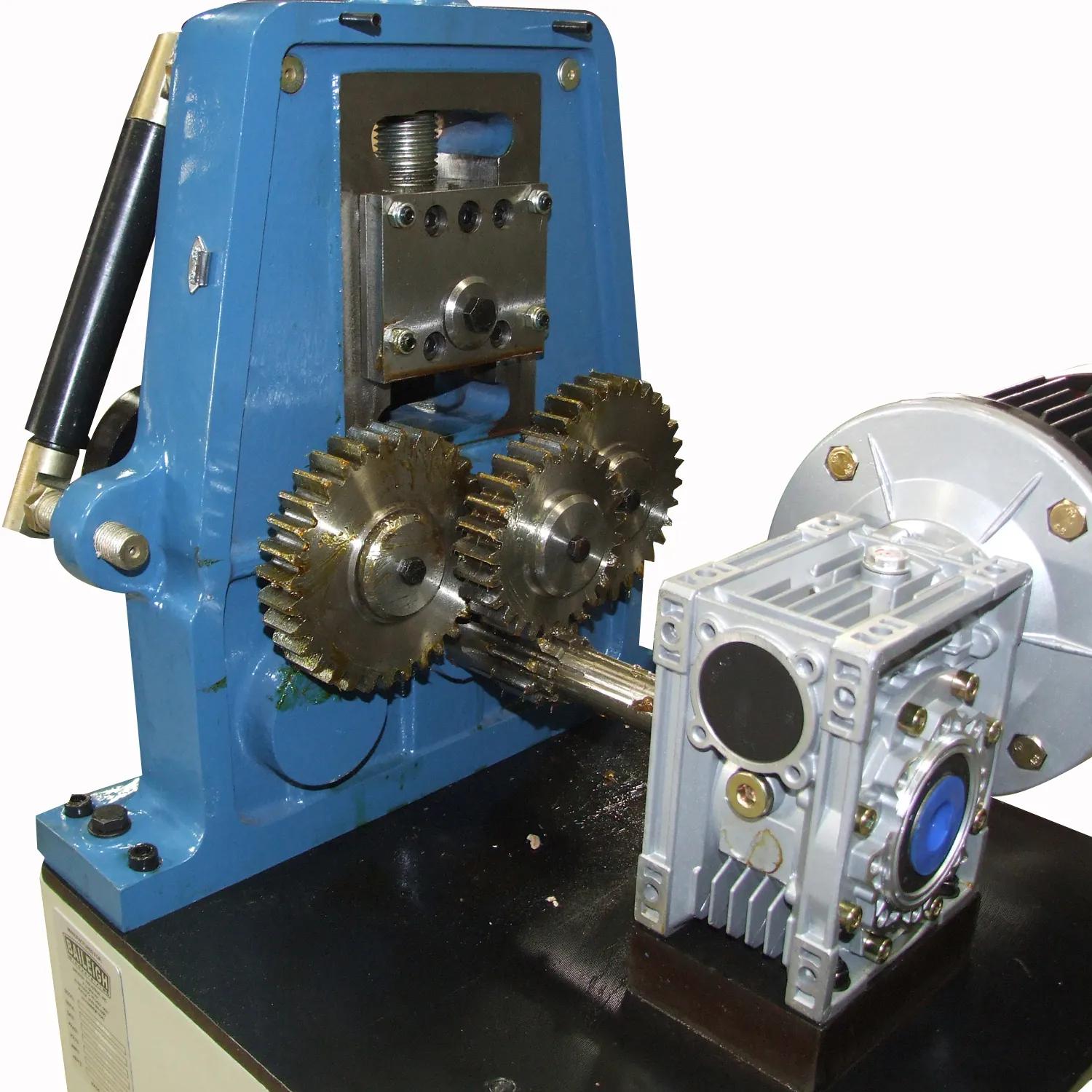

  • Manual drive includes a reduction gearbox to cut down on physical effort.

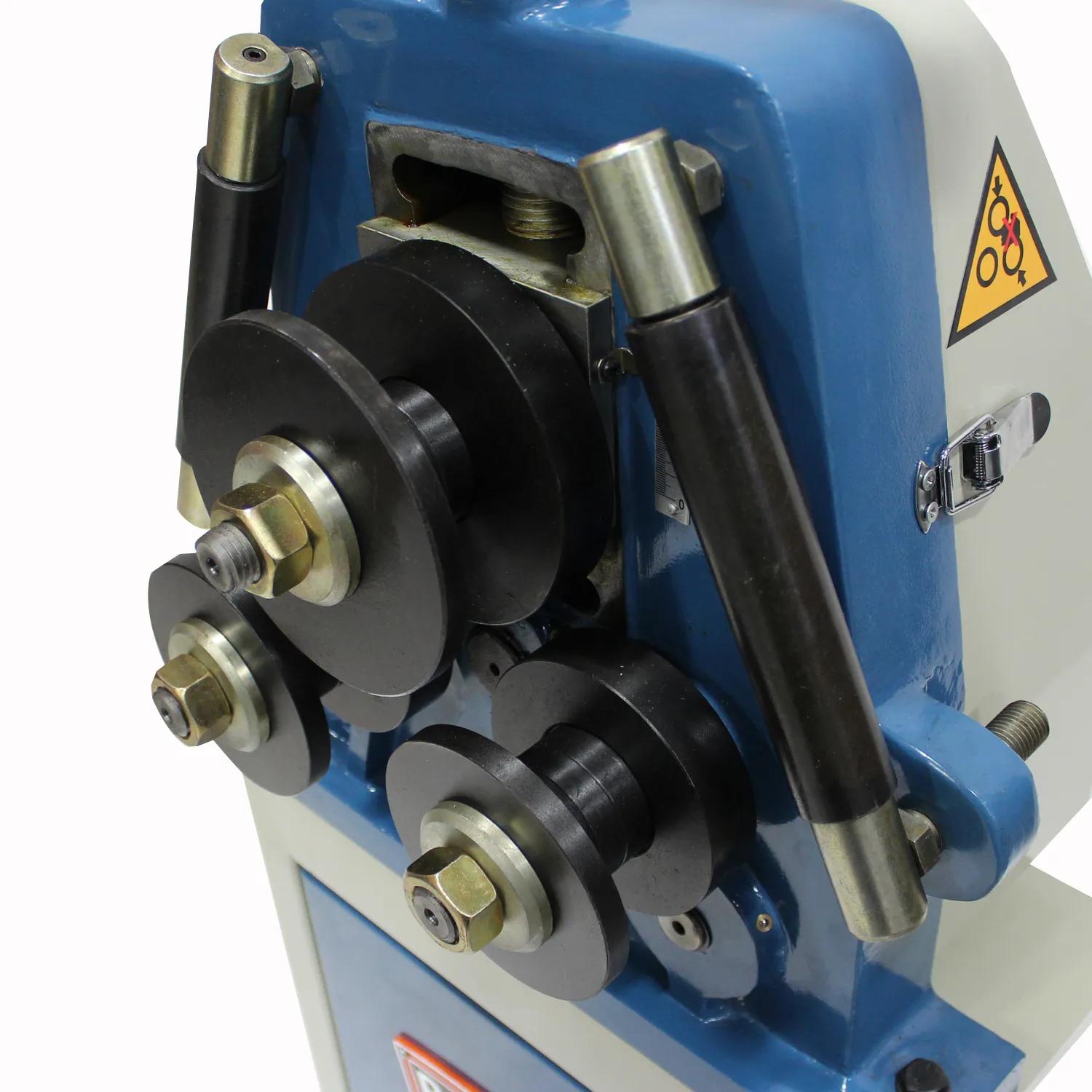

  • Comes equipped with various segment rolls for different types of flat bars, angle iron, and square tubing.
  • Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.

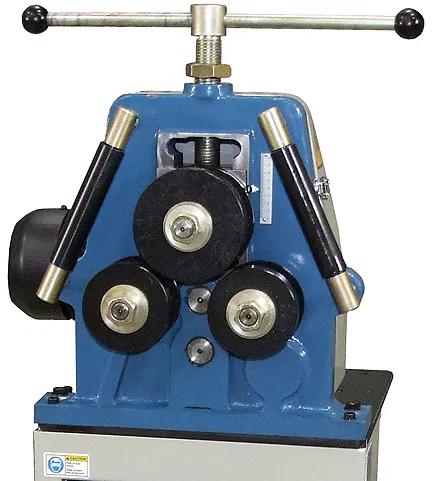

  • Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
  • Machine base opens to a handy storage cabinet.
  • Many optional tooling sizes are available for round tubes and pipes, among other profiles.
  • Backed by Baileigh’s 1-year parts warranty and lifetime technical support.



Questions about this electric ring roller? Please give us a call at 1-920-684-4990 and talk to a Baileigh expert.

Specifications

Item Number R-M10E
Motor Hp 2
Roll Adjustment Manual
Pipe Capacity Size: 1" (sch. 40) / Min. Dia.: 28"
Round Tube Capacity Size: 1.25" (.078") / Min. Dia.: 31.5"
Square Tube Capacity Size: 1.25" (.078") / Min. Dia.: 35"
Solid Round Capacity Size: .875" / Min. Dia. 20"
Flat Bar Easy Way 1.96" (.39") / Min. Dia.: 15.75"
Flat Bar Hard Way 1.18" (.39") / Min. Dia.: 19.685"
Angle Iron Capacity Size: 1.25" (.157") / Min. Dia.: 30"
Shaft Diameter 1.181"
Shaft Center Distance 6.7"
Lower Roll Dia. 4.65"
Pinch Single
Power 220 Volt Three Phase
Shipping Weight 635lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 38x32x53

* specifications subject to change without notice.
