Rm 10 Rollbender

Product image is only a representation, actual product appearance may differ slightly

  • Rm 10 Rollbender
  •   R M10 Zoom
  • Rm 10 Rollbender
  • Rm 10 Rollbender

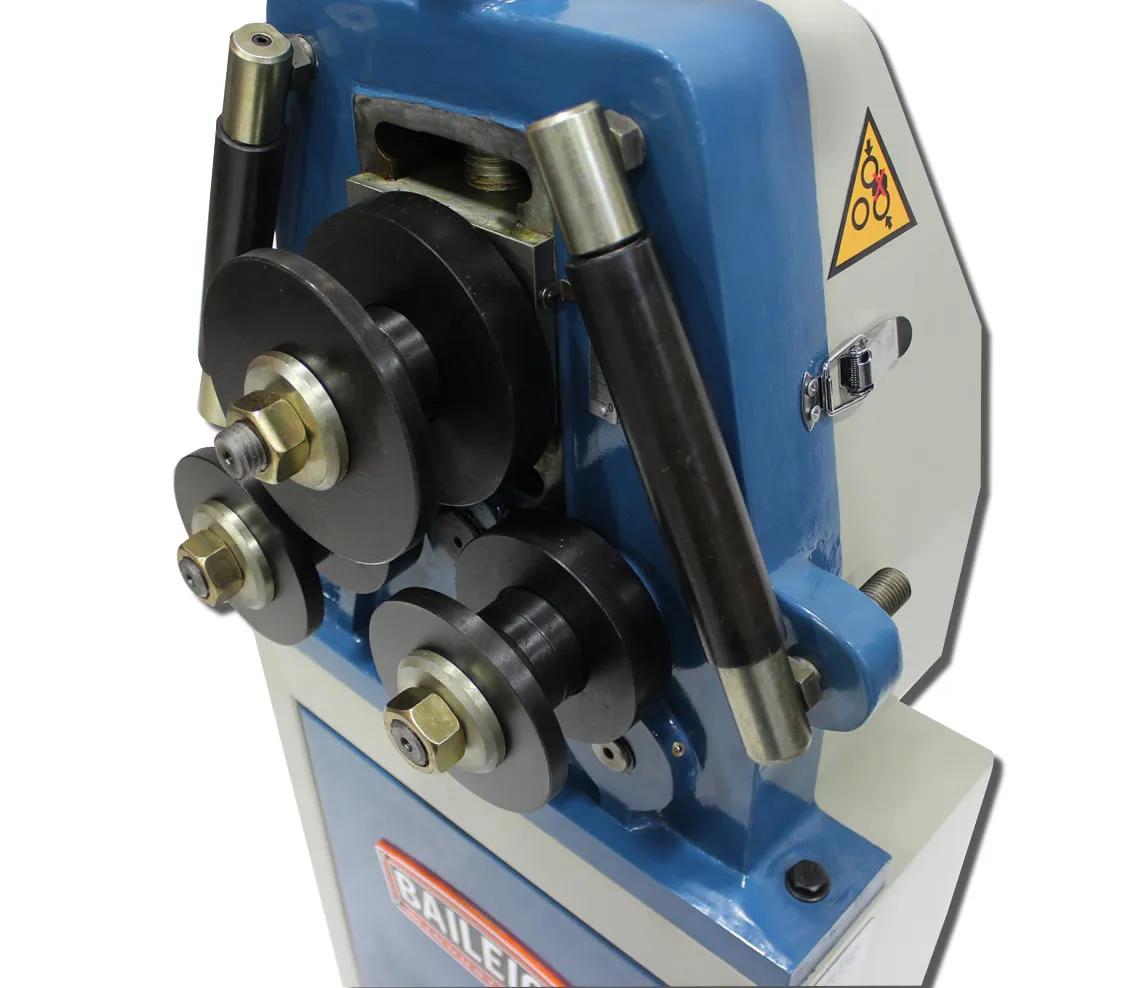

Manual Roll Bender R-M10

SKU: BA9-1006846

In stock

$2,339.00 $ Shopping cart is currently undergoing maintenance, please call 920-684-4990 to order. Thank you
Leasing starts at $47 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description


Since we introduced the Baileigh R-M10 manual roll bender in 2004, this metal ring roller machine has proved it does almost everything larger roll benders can—for a fraction of the price..


  • Maximum capacity of 1.25” (.078” wall) mild steel round tubing and 1” schedule 40 pipe capacity.
  • Open-face design allows you to roll full circles.

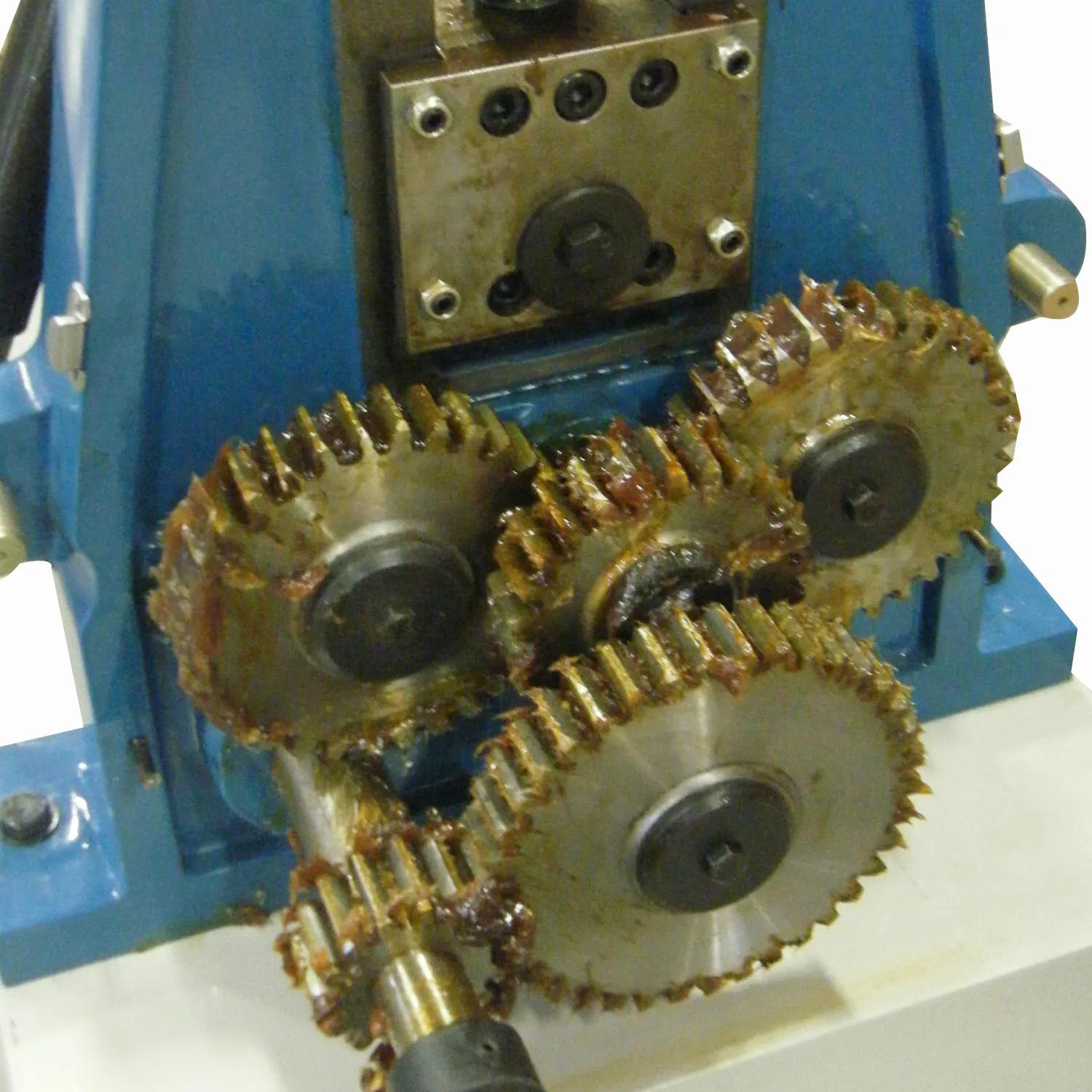

  • Manual drive includes reduction gearbox to cut down on physical effort.
  • Comes equipped with various segment rolls for different types of flat bar, angle iron, and square tubing.
  • Hardened rolling shafts turn on bronze bushings, ensuring that the machine will last for years and wear well.
  • Cast steel head, machined to exacting tolerances, maintains accuracy when bending at full capacity.
  • Machine base opens to a handy storage cabinet.
  • Many optional sizes of tooling are available for round tube and pipe, among other profiles.
  • The Baileigh R-M10 manual roll bender is backed by our 1-year parts warranty and lifetime technical support..

Questions? Please give us a call at 1-920-684-4990 and talk to a Baileigh expert.


Specifications

Item Number R-M10
Roll Adjustment Manual
Pipe Capacity Size: 1" (sch. 40) / Min. Dia.: 28"
Round Tube Capacity Size: 1.25" (.078") / Min. Dia.: 31.5"
Square Tube Capacity Size: 1.25" (.078") / Min. Dia.: 35"
Solid Round Capacity Size: .875" / Min. Dia. 20"
Flat Bar Easy Way 1.96" (.39") / Min. Dia.: 15.75"
Flat Bar Hard Way 1.18" (.39") / Min. Dia.: 19.685"
Angle Iron Capacity Size: 1.25" (.157") / Min. Dia.: 30"
Shaft Diameter 1.181"
Shaft Center Distance 6.7"
Lower Roll Dia. 4.65"
Pinch Single
Power Manual
Shipping Weight 460lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 31x25x39

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Stories & Testimonials

Easy to Use

My school district purchased the RM-10 Roll Bender through a grant process. Since we have received the machine my students have learned a great deal and are excited about using it. The RM-10 is so easy to use even for beginners. I would recommend it to anyone.

Sidney ISD
