Manual Cold Saw Cs350P

Product image is only a representation, actual product appearance may differ slightly

  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • Manual Cold Saw Cs350P
  • 90degree slot

Description



Ever wish you had an extra hand to help clamp material in a vise? This saw offers a foot pedal-controlled pneumatic vise to solve that problem and speed up production.



  • Accepts a 14” blade.
  • Maximum capacity of 4.25” round tube at 90°.
  • 2 blade speeds: 26 or 52 rpm.
  • Choice of rpm lets you switch speeds to fit your material and get a better cut.

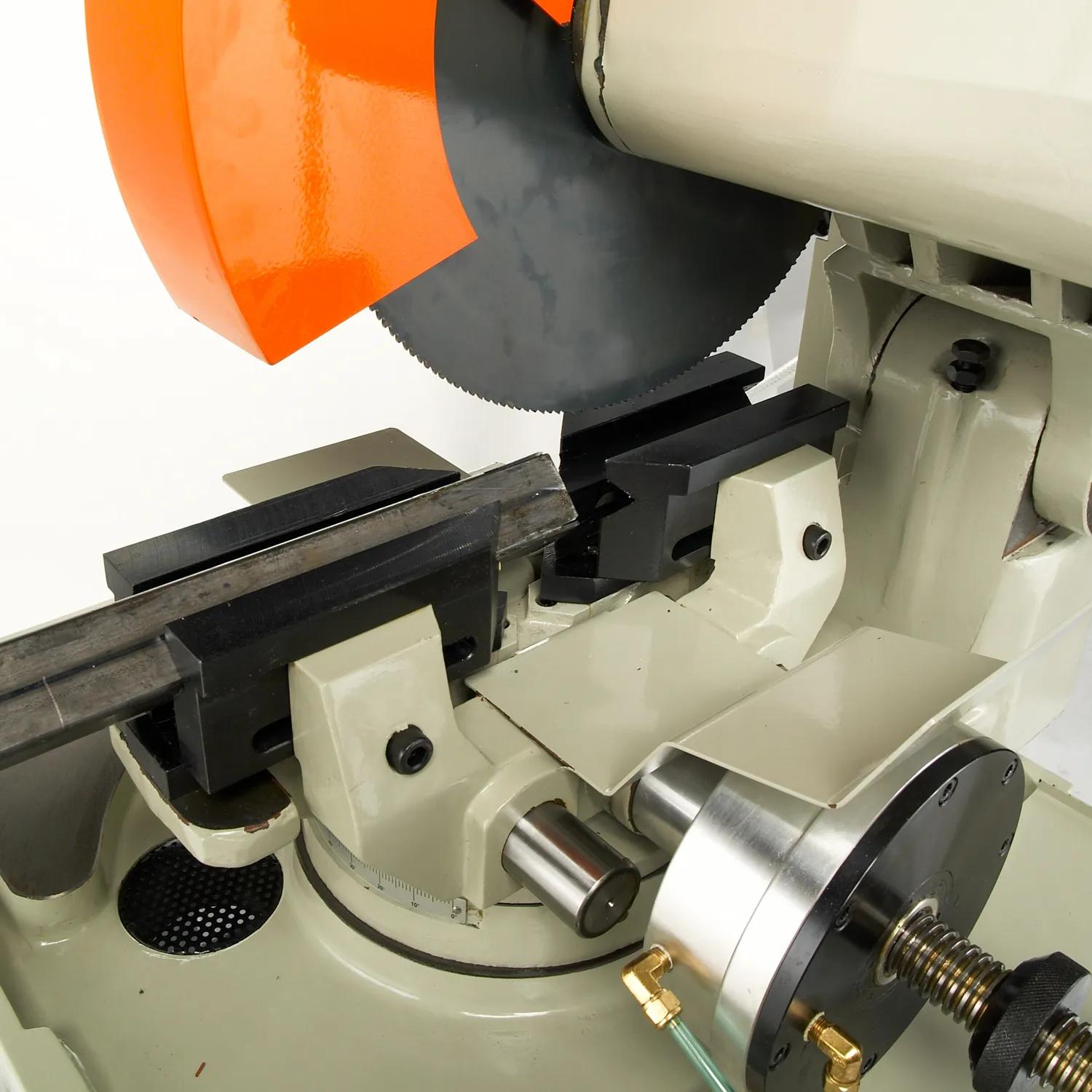

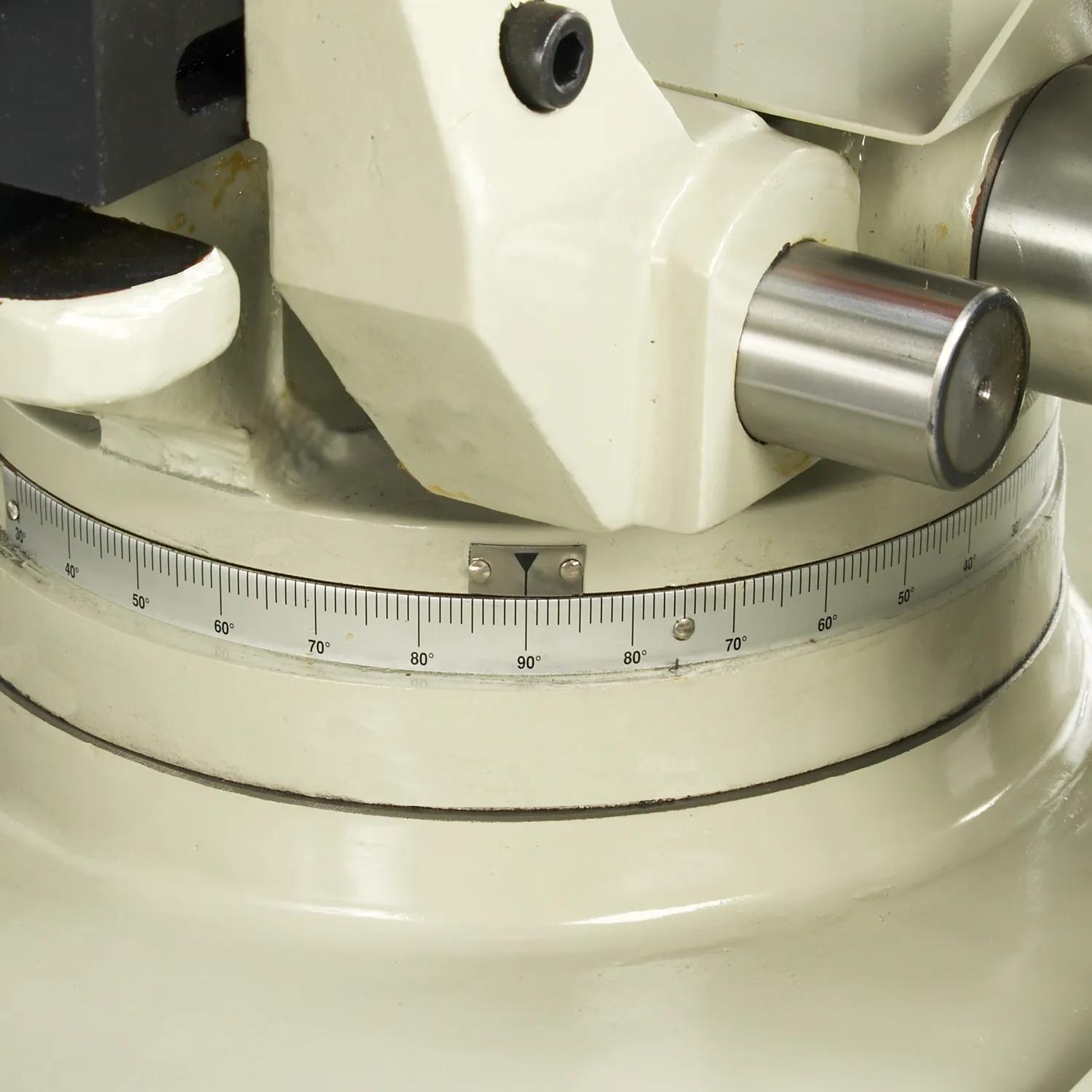

  • Miters 45° left and 90° right, a total of 135°, great for jobs that involve slotting.
  • 4 hp motor runs on 220-volt 3-phase power.

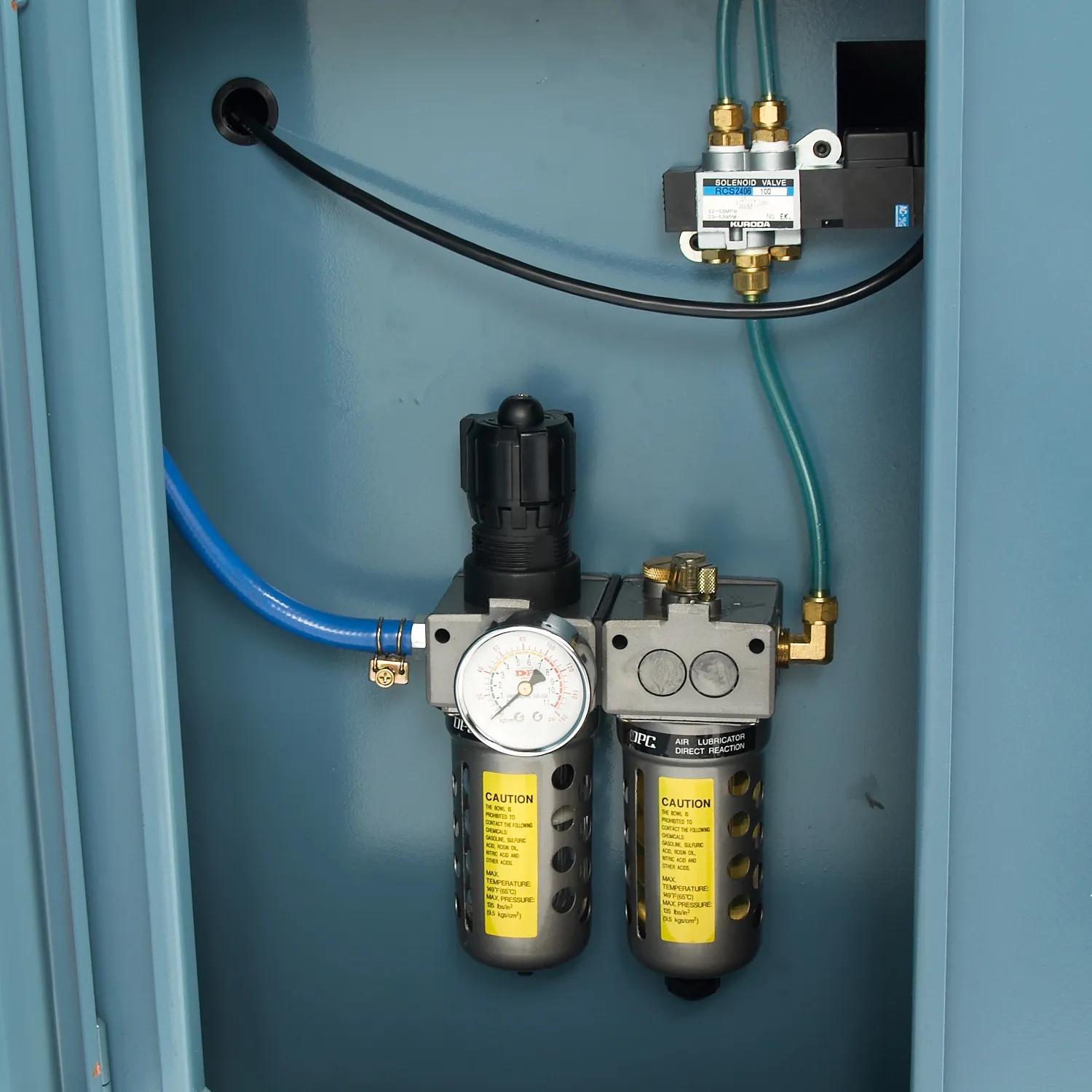

  • Air-powered vise lets you clamp the material by tapping the included foot pedal.
  • Vise stays under pressure until you tap the foot pedal again. No need to worry whether the material is clamped tight enough!
  • Stop rod ensures that you’re cutting a repeatable length each time, perfect for production runs.
  • Movable safety guard comes standard.

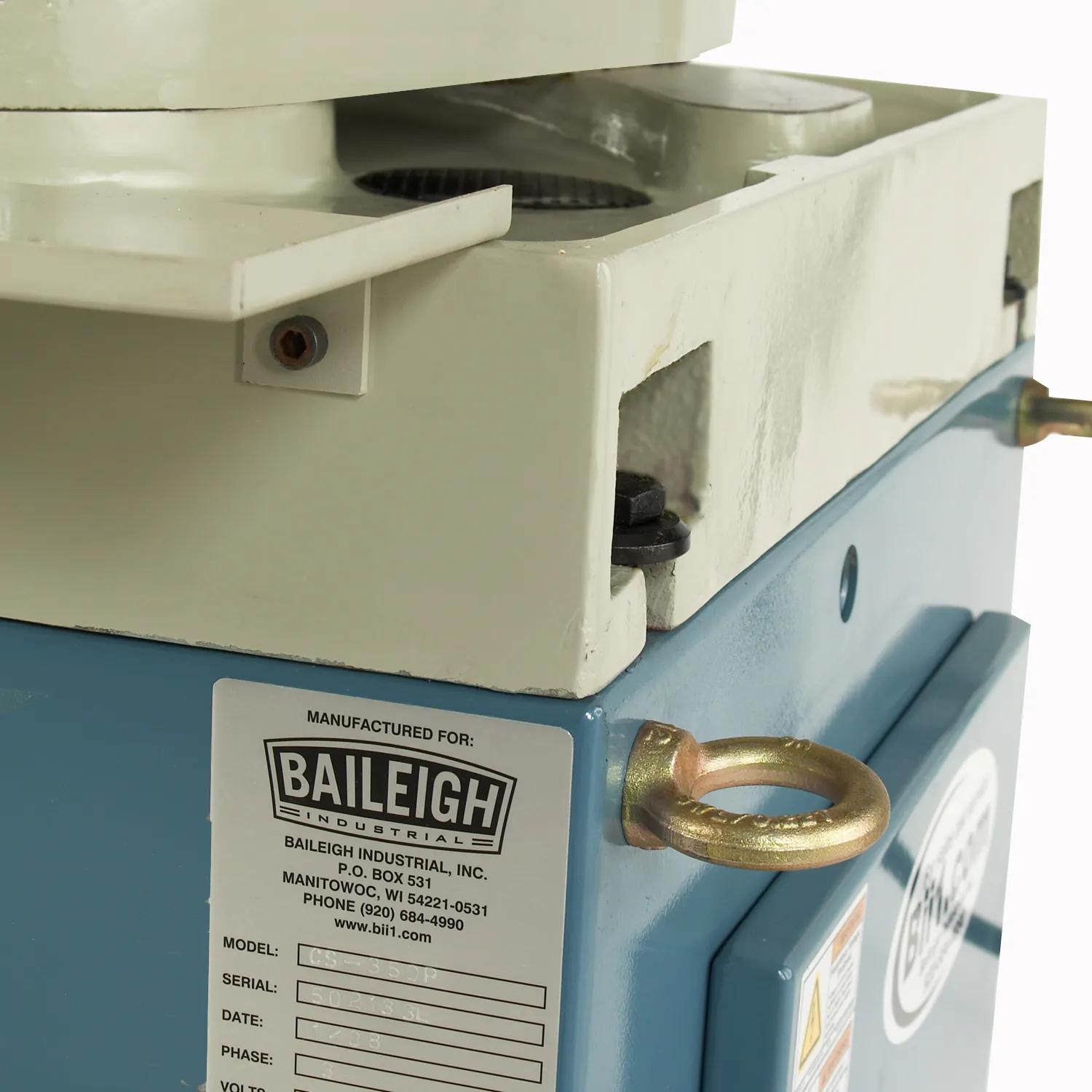

  • Cast iron saw base resists vibrations, so that the saw gives you clean, accurate cuts for many years.
  • Robust folded steel stand stabilizes the machine and keeps the saw at a comfortable cutting height.

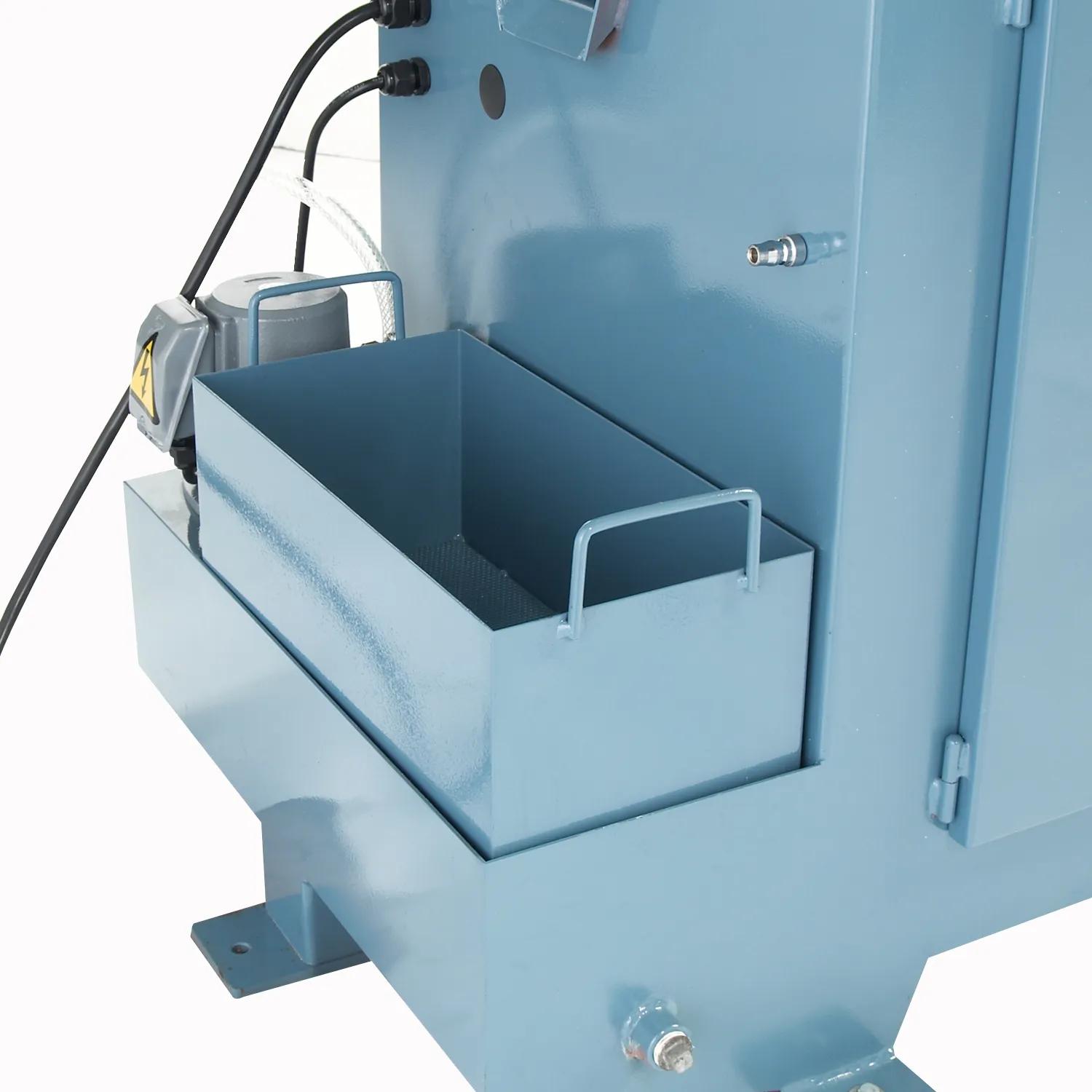

  • Flood coolant system helps blades last longer, makes the machine easier to operate, and gives you smooth, burr-free cuts.
  • We keep replacement parts in stock for fast shipping.
  • Covered by a 1-year parts warranty.
  • Our team of reps—all with hands-on machine experience—are here to provide lifetime technical support by phone.



Recommended for:

  • Marine rails
  • Playground equipment
  • Hand railing
  • Chassis applications
  • Many more fabrication cutting jobs



Questions? Not sure which cold saw is right for you? Call us at 1-920-684-4990 and talk to a Baileigh expert.

Read More Read Less

Specifications

Item Number CS-350P
Country of Manufacture Taiwan
Max. Blade Diameter 14"
Operation Manual with Pneumatic Vice
Round Solid at 45° 1.575"
Square Tube at 45° 2.953" x 2.953"
Round Tube at 45° 2.953"
Rectangle Tube at 45° 2.953" x 2.362"
Round Solid at 90° 2.362"
Rectangle Tube at 90° 4.25" x 3.5"
Square Tube at 90° 4.25" x 4.25"
Round Tube at 90° 4.331"
Coolant System Yes
Slotting Capable Yes, Left and Right
Vice Style Dual Action, Self Centering
Max. Vice Opening 6.5"
Head Style Pivot
Arbor Size 1.26"
Motor 4.0 / 3.0 hp
Power 220V / 3-phase
Shipping Weight 834 lbs.
Shipping Dimensions 60" x 44" x 48"

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Q & A

Which is right for me: a cold saw or a band saw?

That choice depends on 3 main factors: cut quality, material size, and production speed.

Need to make the highest quality cuts with clean, mirror-like edges? Then you probably need a cold saw.

However, band saws can usually cut larger pieces of material than cold saws in the same price range. Band saws also cut more quickly than cold saws.


How long do cold saw blades last?

A blade usually lasts 3 weeks to a month if you’re using it for an 8-hour shift with a correct setup.
