Angle Roller Rh85

Product image is only a representation, actual product appearance may differ slightly

  • Angle Roller Rh85
  • Rh 85 Rollbender
  • Rh 85 Rollbender Zoom
  • Rh 85 Roll Bender Rolls
  • Rh 85 Roll Bender Controls
  • Rh 85 Rollbender Baileigh
  • Rh 85 Roll Bender Wires

Description


Losing too much money on scrap metal? Hone your shop’s efficiency and reduce waste with this fast and accurate double-pinch ring roller.


  • Runs on 220-volt 3-phase power.
  • Bends up to 4" round tube, 3” schedule 40 pipe, and 3.375” x 3.375” x .25” angle iron.
  • 3 rolls driven by industrial-grade hydraulic transmission.

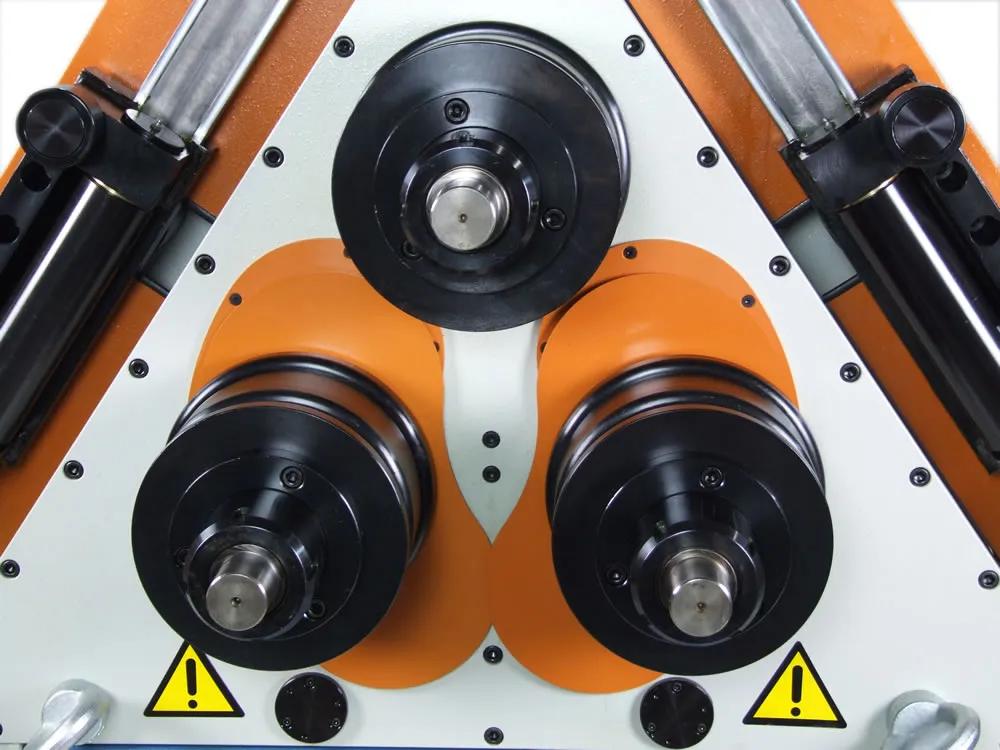

  • Double-pinch design consists of 1 fixed top roll plus 2 bottom rolls moved by independent hydraulic cylinders.
  • Hydraulic encoders communicate exact roll positioning to integrated digital readout programmers, making repeatability a cinch.

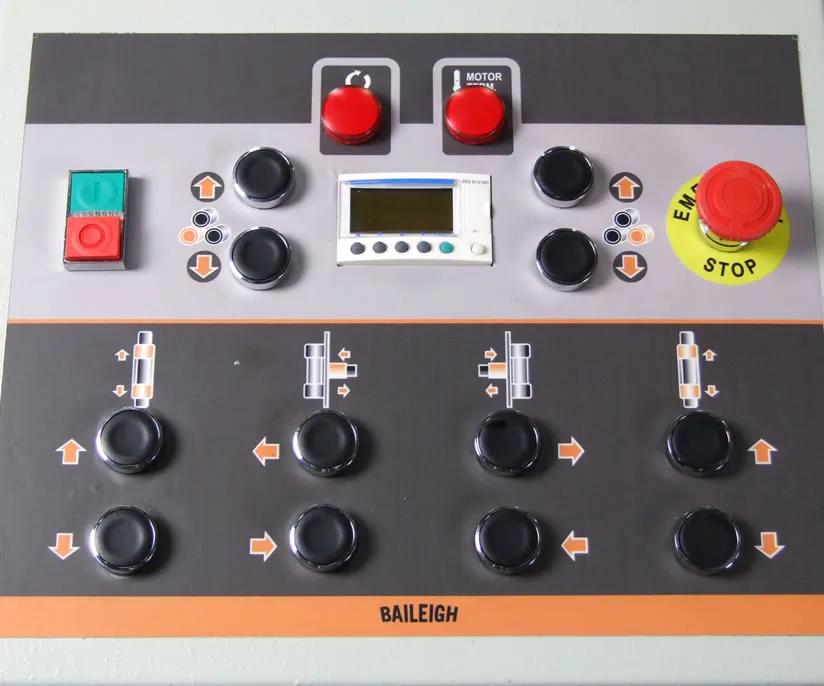

  • You can control all machine movement of the machine from the podium-mounted operator panel with attached foot pedal.

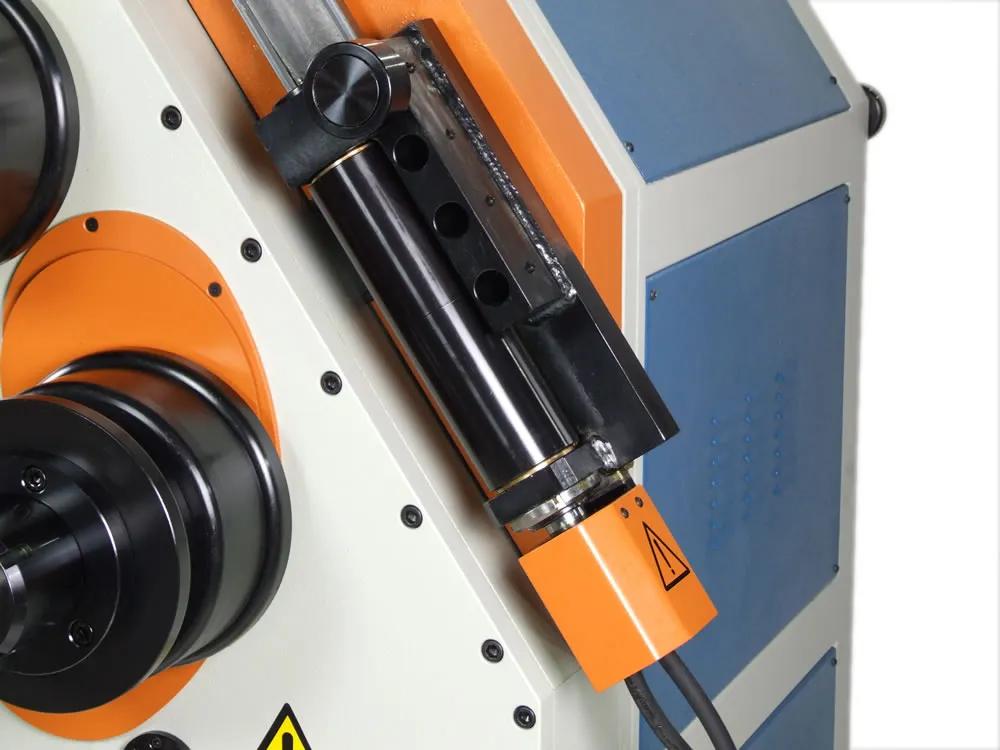

  • Hydraulic lateral guide rolls prevent the material from twisting and correct bend angles.
  • We bolt and weld the heavy steel plate frame for structural strength so that it won’t flex even at full capacity.
  • Baileigh covers this tubing roller with a 1-year parts warranty and lifetime technical support by phone.

Why choose the Hydraulic Roll Bender R-H85 over similar machines?


  • Cut out those costly straight segments at the start and finish of bends with our double-pinch system, allowing you to pre- and post-bend the material.
  • You won’t find many roll benders on the market that can match the robust steel construction of the R-H85.
  • No more worrying about checking angles for repeat parts during production runs, thanks to the machine’s programmable stop.
  • If you ever run into a problem with the R-H85 or want some advice on a project, you can call Baileigh’s team of knowledgeable reps anytime.

Questions? Please give us a call at 1-920-684-4990 and talk to a Baileigh expert.


Read More Read Less

Specifications

Item Number R-H85
Country of Manufacture Portugal
Roll Adjustment Hydraulic
Pipe Capacity Size: 3" (sch. 40) / Min. Dia.: 68"
Round Tube Capacity Size: 4" (.120") / Min. Dia.: 118"
Square Tube Capacity Size: 2.75" (.157") / Min. Dia.: 118"
Solid Round Capacity Size: 2.375" / Min. Dia. 40"
Flat Bar Easy Way Size: 5" (1") / Min. Dia. 24"
Flat Bar Hard Way Size: 4" (.787")/ Min. Dia.: 83"
Angle Iron Capacity Size: 3.375" (.250")/ Min. Dia.: 68"
Shaft Diameter 3.15"
Lower Roll Dia. 9.65"
Pinch Double
Digital Readout Yes
Power 220V / 3-phase
Shipping Weight 3550lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 72x72x72
Dimensions L x W x H 60" x 60" x 68"

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Hydraulic Roll Bender R-H85

SKU: 1006841

$37,195.00 $
Leasing starts at $988 . Calculate your monthly lease price
