Roll Bender Rh45

Product image is only a representation, actual product appearance may differ slightly

  • Roll Bender Rh45
  • Roll Bender Rh45
  • Roll Bender Rh45
  • Roll Bender Rh45
  • Roll Bender Rh45
  • Roll Bender Rh45

Description


The R-H45 hydraulic ring roller won’t flinch while bending large radii out of tough materials. This tubing roller’s programmer controls also simplify production runs.


  • Runs on 220-volt single-phase power and will work at just about any fabrication shop or job site.
  • Bends up to 2” square x .120” wall tubing and 2” schedule 40 pipe, among other materials.

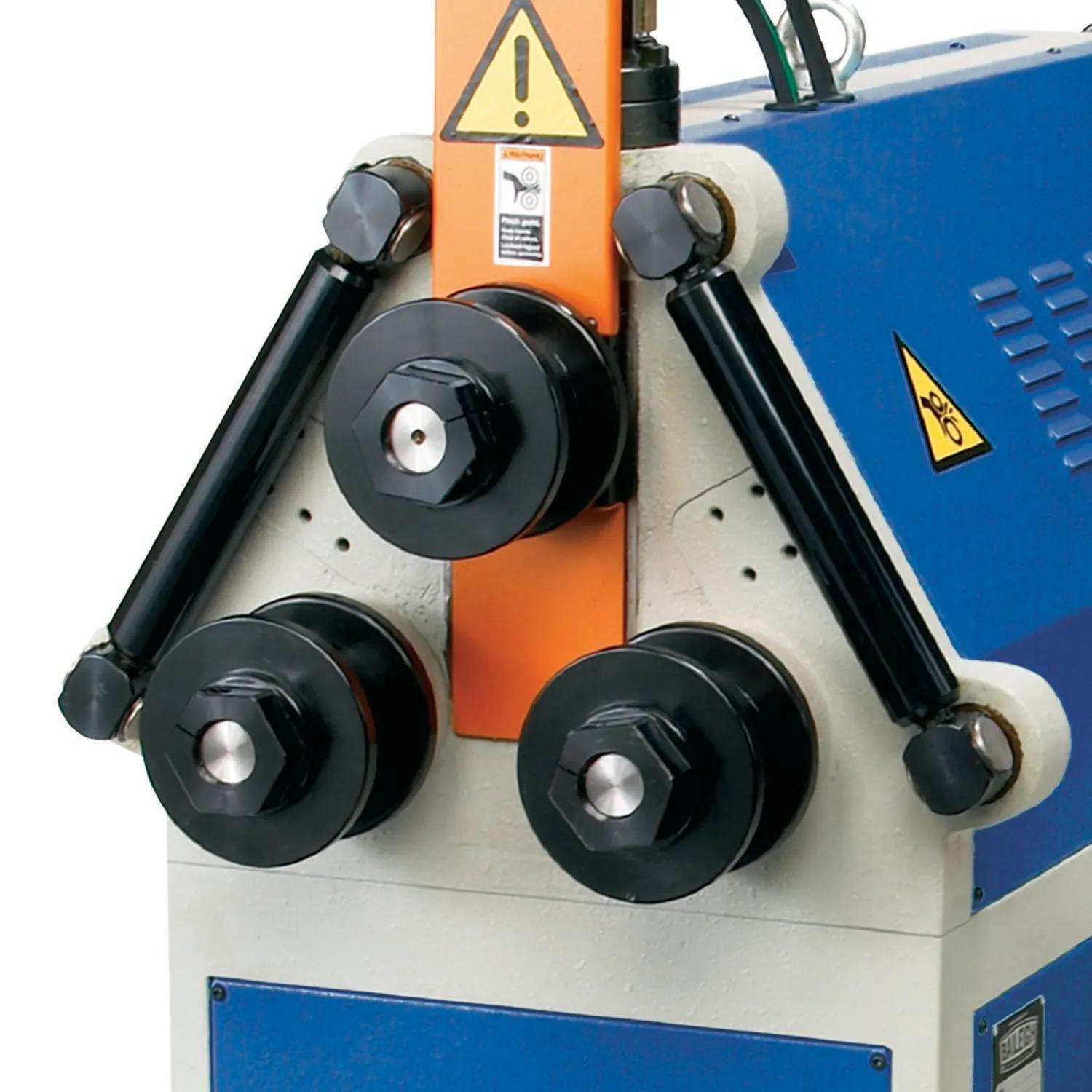

  • All 3 rolls turn on industrial motor and transmission.

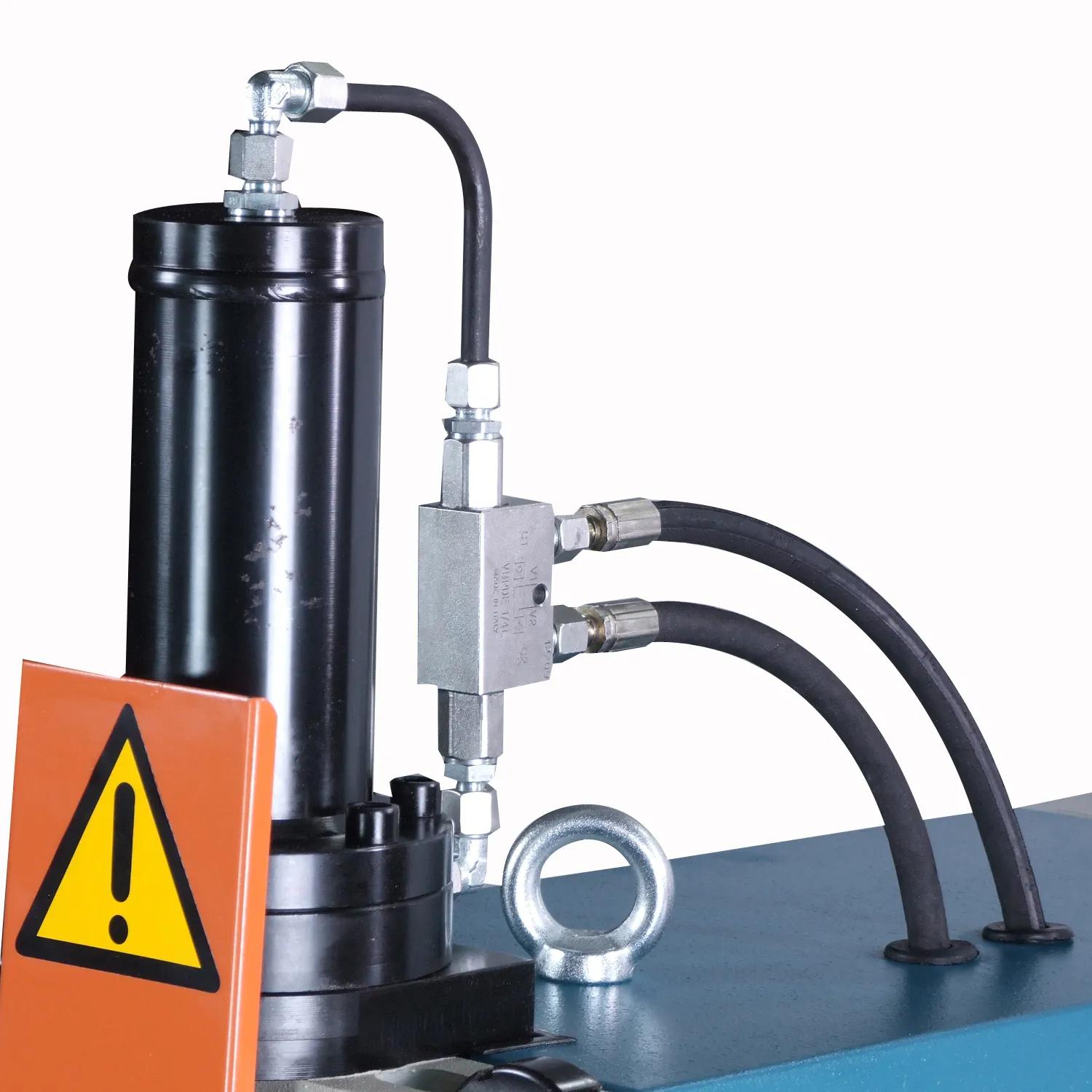

  • Industrial-grade hydraulics power the top forming roll’s movement for seamless adjustment.

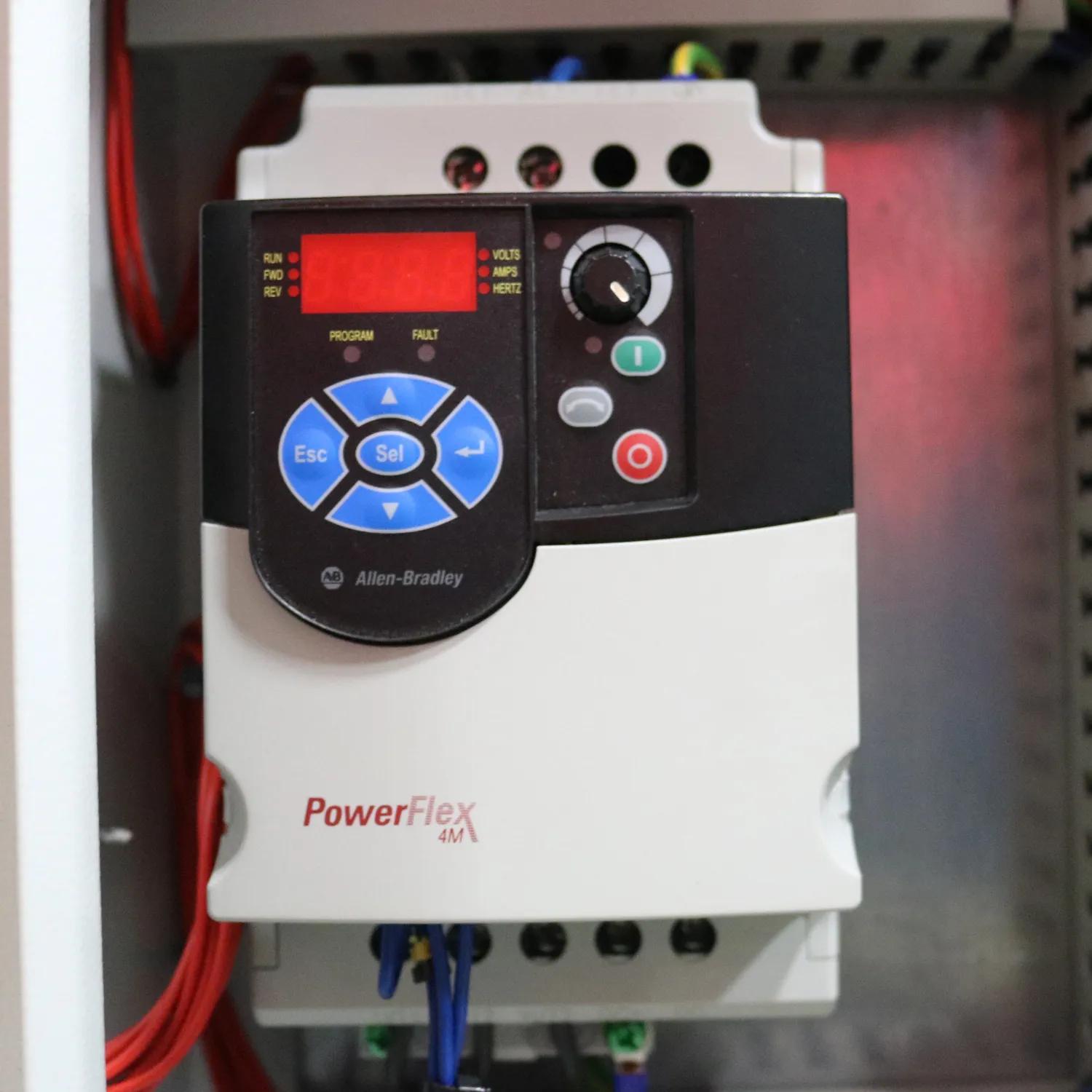

  • Digital readout with programmable stop controls upward and downward roll position for easy repeatability.
  • Siemens inverter drive enables soft start-ups to prolong motor life.

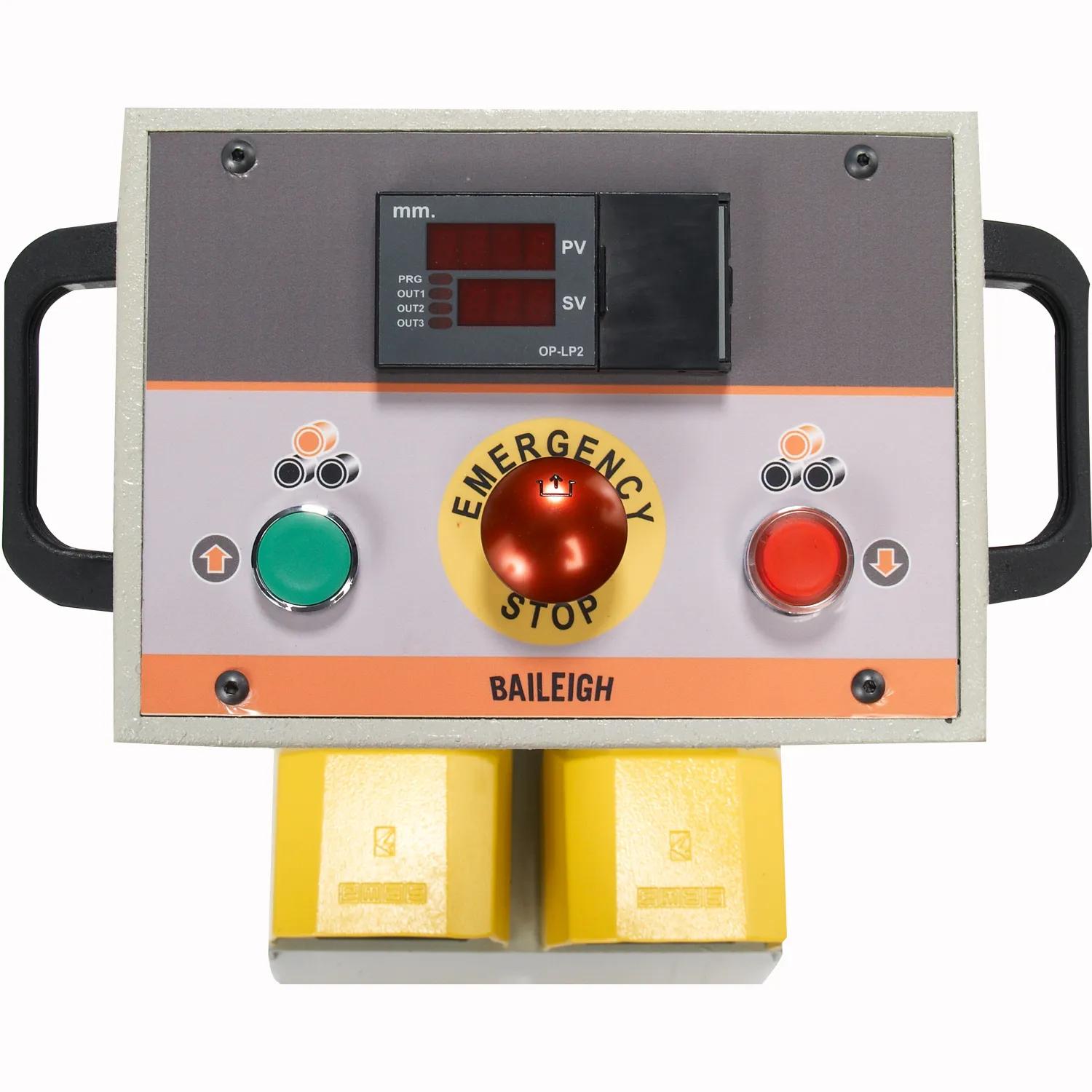

  • Operator podium includes foot pedal, allowing you to stop and start the machine with ease.
  • You can safely tip this pipe bender backward into a horizontal position when rolling larger diameters.
  • Fully-welded steel plate frame adds strength to the machine and minimizes flex.
  • Backed by a 1-year parts warranty and lifetime technical support by phone from our knowledgeable team.

Why choose the Hydraulic Roll Bender R-H45 over similar machines?


  • Heavy steel construction ensures that the R-H45 will deliver accurate bends at maximum capacity for years.
  • We use only the highest-quality components. For example, the Siemens brand inverter offers overload protection, keeps machinery from wearing out, and helps this pipe bender to last longer.
  • Comes equipped with segment rolls, lateral roll guides for coiling, and an operator pendant—features that some other companies might count as upgrades.
  • Accepts durable tooling options, made and stocked by Baileigh, to suit a variety of applications.
  • Expert assistance and advice is always a phone call away! Baileigh’s experienced team of reps is on-call to troubleshoot as long as you’re using the R-H45.

Questions? Please give us a call at 1-920-684-4990.


Read More Read Less

Specifications

Item Number R-H45
Country of Manufacture Portugal
Roll Adjustment Hydraulic
Pipe Capacity Size: 2" (sch. 40) / Min. Dia.: 48"
Round Tube Capacity Size: 2.75" (.083") / Min. Dia.: 60"
Square Tube Capacity Size: 2" (.120") / Min. Dia.: 51"
Solid Round Capacity Size: 1.5" / Min. Dia. 28"
Flat Bar Easy Way Size: 4" (.75") / Min. Dia. 28"
Flat Bar Hard Way Size: 3.25" (.375")/ Min. Dia.: 32"
Angle Iron Capacity Size: 2" (.250")/ Min. Dia.: 36"
Shaft Diameter 1.772"
Shaft Center Distance Lower Rolls 9.562"
Lower Roll Dia. 5.827"
Pinch Single
Power 220V Single Phase
Shipping Weight 1000lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 60x44x77

* specifications subject to change without notice.

California Proposition 65

California Proposition 65

Click HERE for More Information

Hydraulic Roll Bender R-H45

SKU: 1006835

In stock

$14,395.00 $
Leasing starts at $393 . Calculate your monthly lease price
