Roll Bender Rh150

Product image is only a representation, actual product appearance may differ slightly

  • Roll Bender Rh150

Description


The programmable double-pinch design of this tube roller lets you make repeatable bends and complex parts with ease.

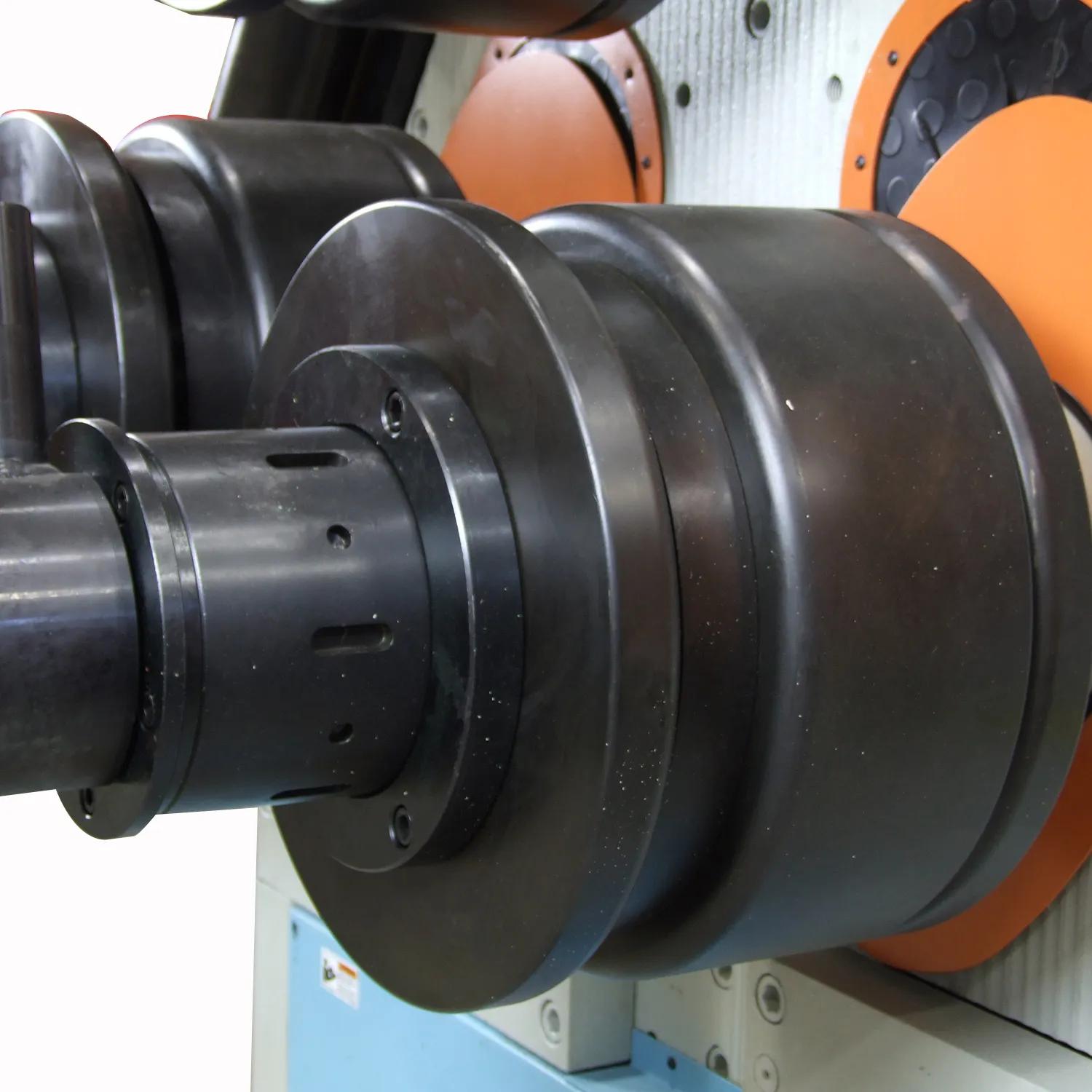

  • 3 driven rolls run on 220-volt 3-phase power.
  • Rolls up to 6.25” round tube and 4.75” x 4.75” x 0.5” angle iron.

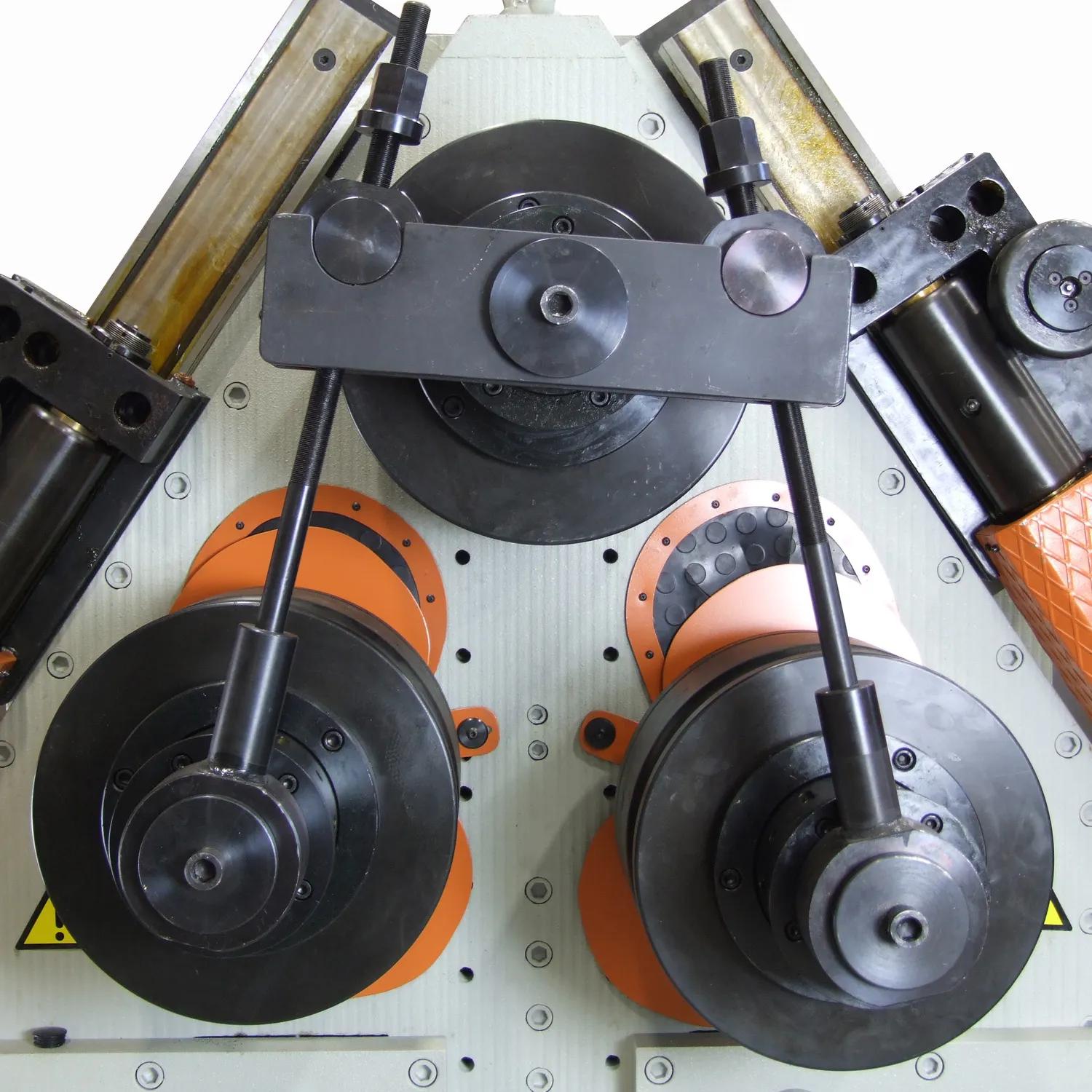

  • Hydraulic cylinders connected to 2 bottom rolls accomplish pre- and post-bending to cut down on material waste.
  • Digital readout displays positions of bottom rolls.
  • You can program stops for each shaft for precise results.

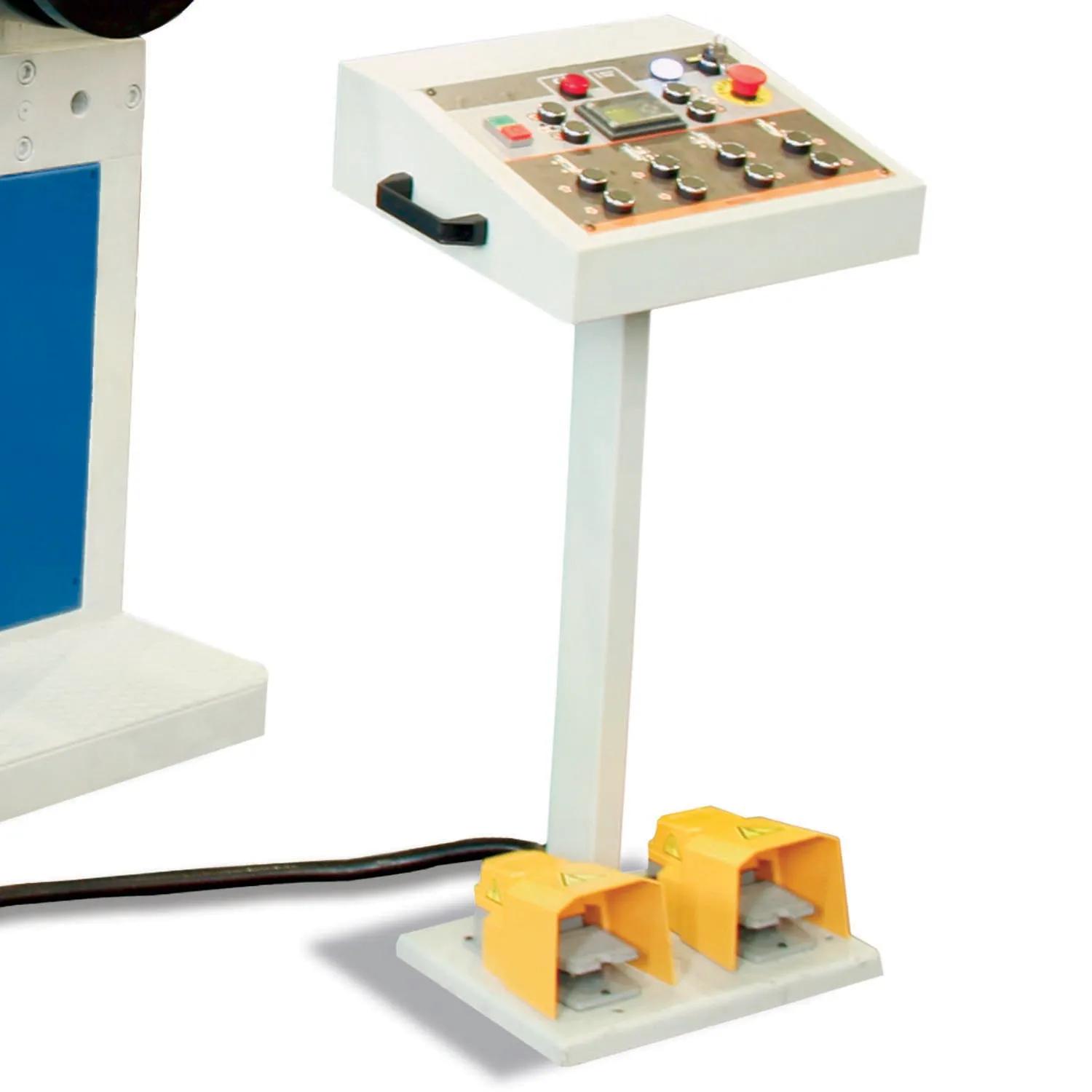

  • Movable operator podium includes control buttons and attached foot pedals to specify roll direction.
  • Operate this ring roller in vertical position or lay it on its back, in horizontal position, for large radius jobs and long material sections.
  • The machine’s heavy steel plate frame, bolted and welded together, minimizes flex and ensures accuracy over years of profitable production.
  • Baileigh backs this tubing roller with a 1-year parts warranty and lifetime technical support by phone.

Recommended for: Structural applications, playgrounds, shipyard building, or any high-production, low-waste project.


Why choose the R-H150 hydraulic roll bender over similar machines?


  • Double-pinch design eliminates wasted length of straight material at the ends of parts, a problem associated with most roll benders—but not this one!

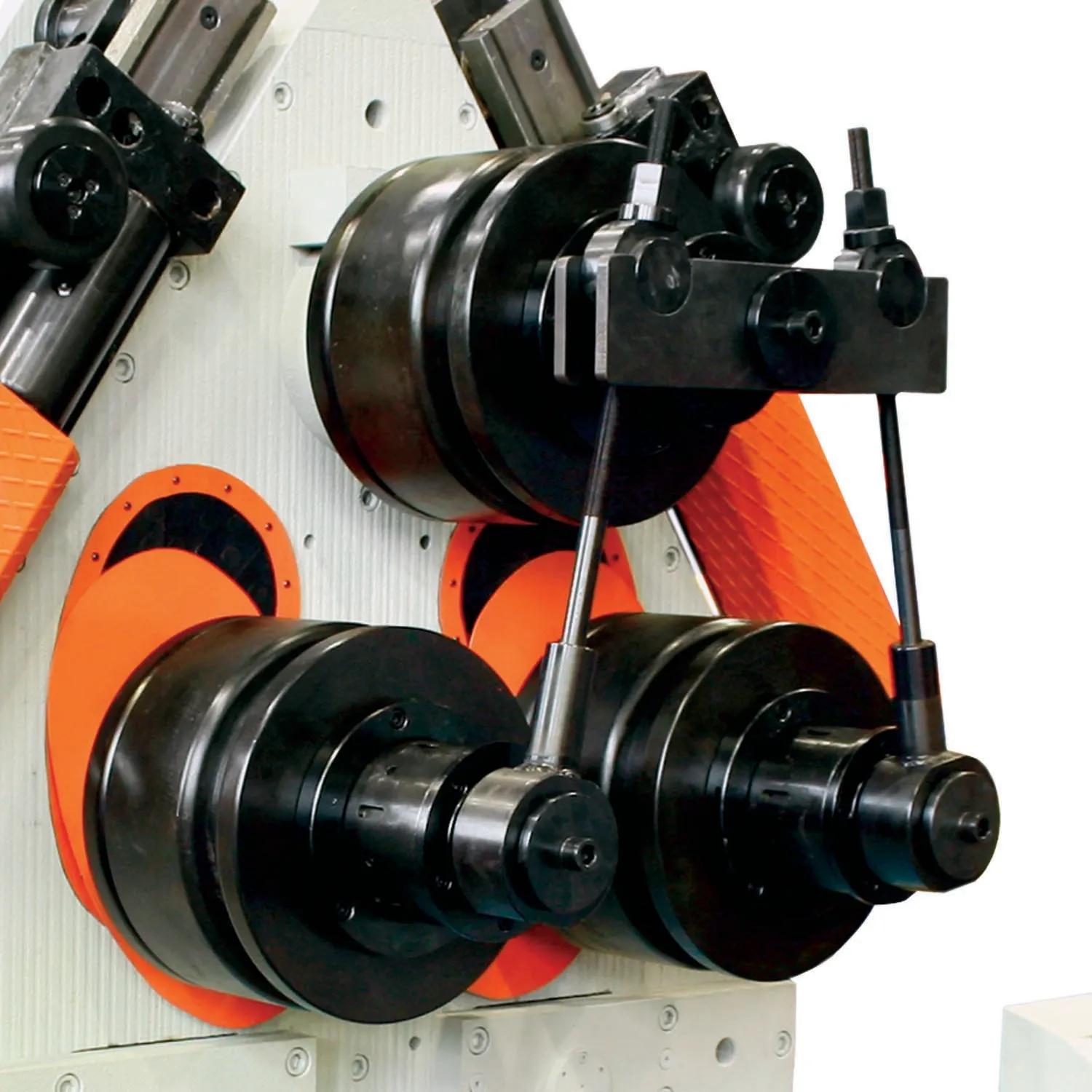

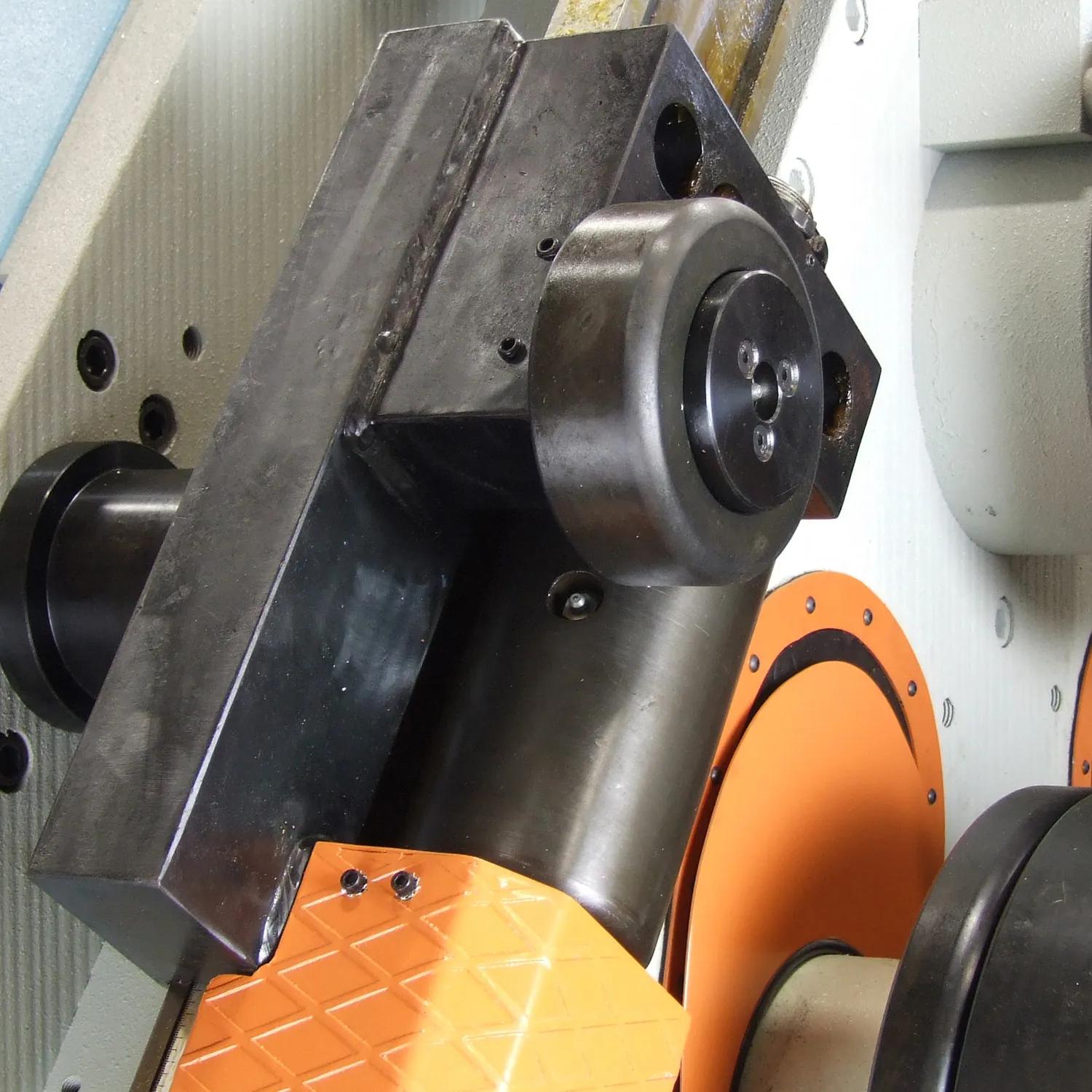

  • The R-H150 comes standard with lateral guide rolls for smooth angle correction, a feature that our competitors charge for as an upgrade.
  • Digital readout helps you monitor precision, so you can take on production runs without hassle.
  • We manufacture and stock optional tooling sets to fit many applications. Ask us which one would work best for your jobs!
  • You can count on Baileigh’s team of experienced customer service reps for machine troubleshooting and project hacks—just a phone call away.

Questions? Want to request a full proposal? Talk to a Baileigh expert: 1-920-684-4990. Let our specialists engineer a solution to your specific application.


Read More Read Less

Specifications

Item Number R-H150
Country of Manufacture Portugal
Roll Adjustment Hydraulic
Pipe Capacity Size: 5.5" (sch. 40) / Min. Dia.:73"
Round Tube Capacity Size: 6.250" (.125") / Min. Dia.: 118"
Square Tube Capacity Size: 4" (.196") / Min. Dia.: 118"
Solid Round Capacity Size: 3.375" / Min. Dia.: 36"
Flat Bar Easy Way Size: 7.875" (2") / Min. Dia.: 40"
Flat Bar Hard Way Size: 5.5" (1.125") / Min. Dia.: 118"
Angle Iron Capacity Size: 4.75" (.5") / Min. Dia.: 60"
Shaft Diameter 4.724"
Lower Roll Dia. 15.354"
Pinch Double
Digital Readout Yes
Power 220V / 3-phase
Shipping Weight 10400lbs
Material Type All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel.
*Optional Tooling Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details.
Shipping Dimensions (Inches) 58x79x81

* specifications subject to change without notice.
