Hydraulic Roll Bender - (R-H120)
Hydraulic Roll Bender - (R-H120)

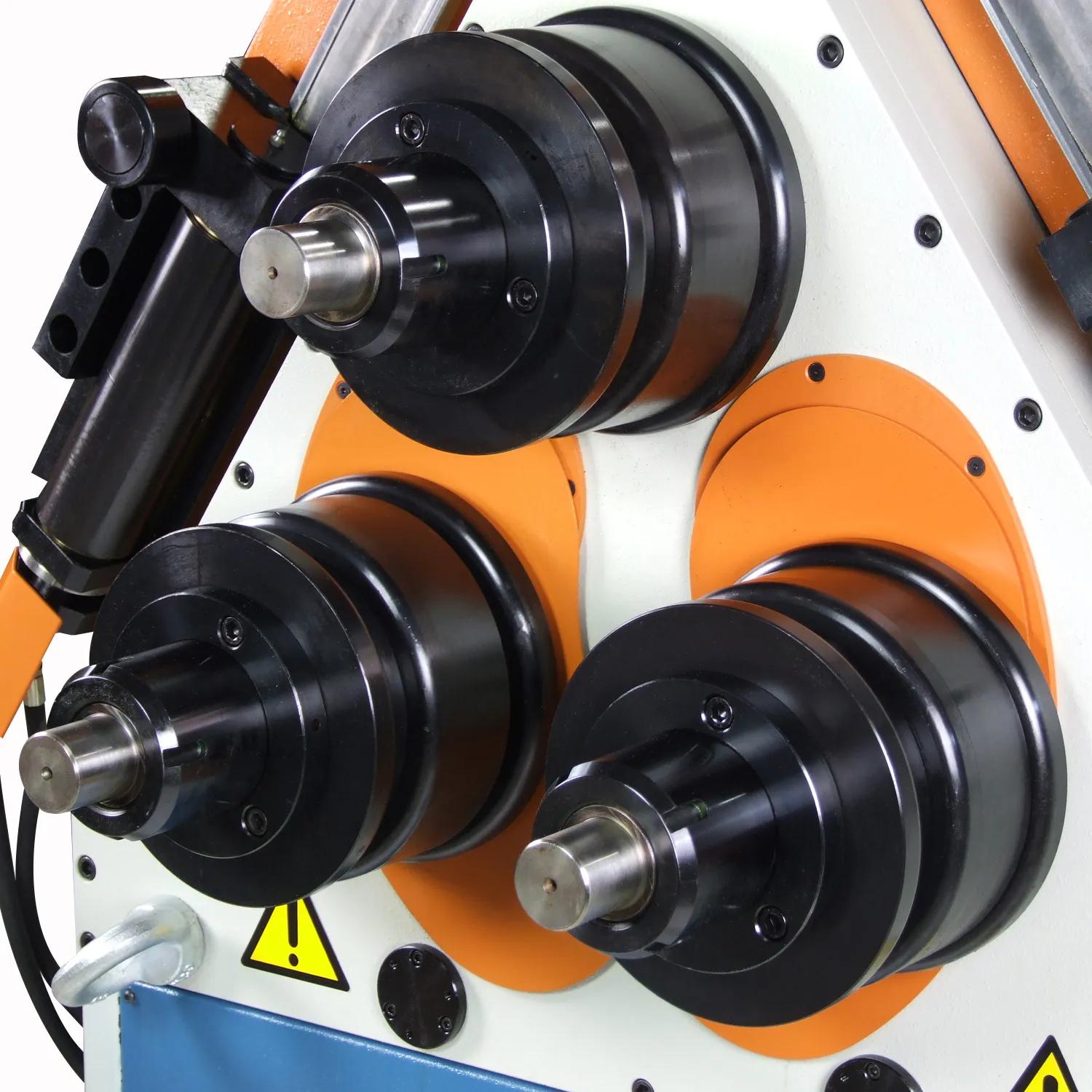

Roller Heads

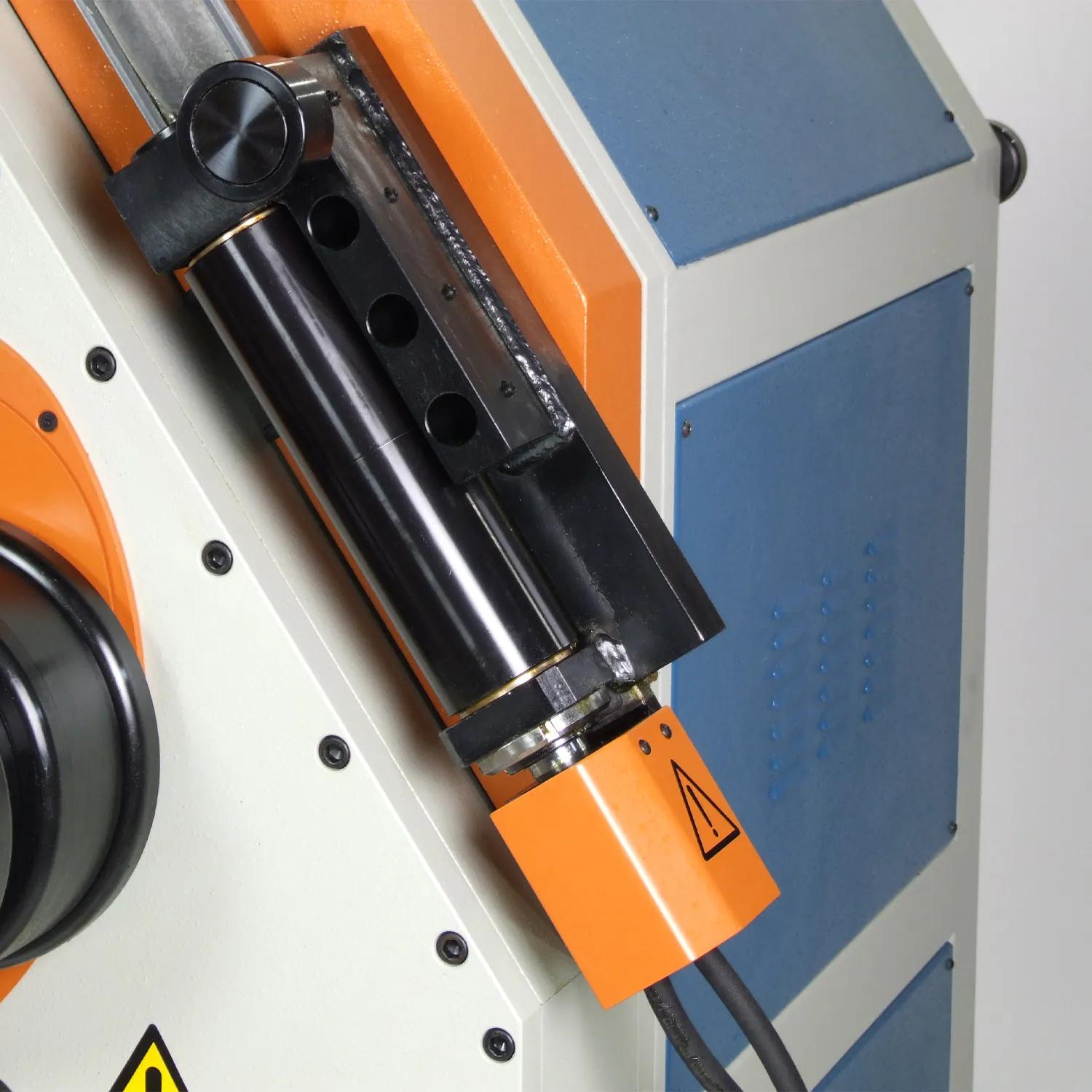

Use the guide rolls to assist in developing the desired bend result

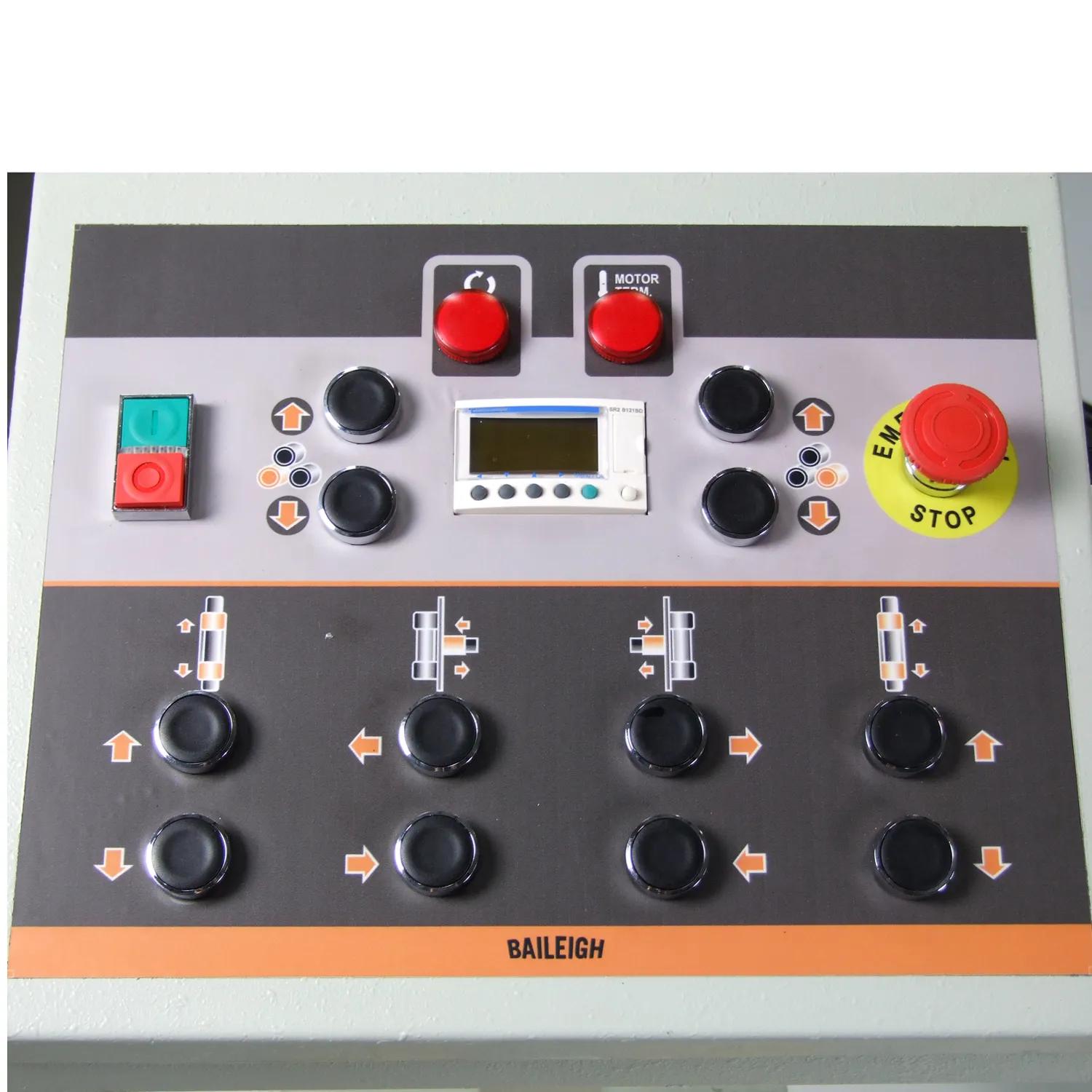

Controller

Hydraulic Roll Bender - (R-H120)

Stock Number: BA9-1006829

0 Reviews

No reviews yet.

  • 220V 3-phase power.
  • 4.5 " schedule 40 pipe maximum capacity.
  • 3 rolls: 1 fixed 2 on hydraulic cylinders.
  • Double-pinch hydraulic design
$73,699.00
Call 920-654-4052 for availability

Financing Starting at $1341 per month -

Out of Stock

Contact a Specialist - (920) 684-4990

Product Details

Double-Pinch Hydraulic Roll Bender: The Baileigh R-H120 Hydraulic Roll Bender uses a double-pinch system with two independent hydraulic bottom rolls and one fixed top roll to minimize wasted straight material at the start and end of bends and maintain precise forming control. Its welded heavy steel plate frame prevents flex even at full capacity for reliable production bending.

Digital Controls & Versatile Operation: Powered by 220 V 3-phase electricity compatible with standard industrial shops, the R-H120 includes a digital readout for roll positions, hydraulically driven lateral guides, and a movable operator podium with foot pedals for forward and reverse control. It can be used in both vertical and horizontalorientations depending on the desired radius and material requirements.

Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.

Features

  • Input Power: 220 V 3-phase electrical requirement.
  • Driven Rolls: 3 rolls with two hydraulic bottom rolls and one fixed top roll.
  • Double-Pinch System: Double-pinch design reduces wasted straight material.
  • Maximum Round Tube Capacity: 5.5″ OD.
  • Maximum Pipe Capacity: 4.5″ schedule 40 pipe.
  • Controls: Movable operator podium with foot pedals for forward/reverse control.
  • Digital Readout: Digital display for roll positions for repeatable bends.
  • Lateral Guides: Hydraulically driven lateral roll guides for improved alignment.
  • Operational Modes: Can be operated in vertical or horizontal positions.
  • Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.

Specifications

  • SKU
    BA9-1006829
  • Bend Capacity
    5.5 in. OD
  • Gross Weight
    5000.0
  • Horse Power (HP)
    15
  • Input Power
    220V Three Phase
  • Model Number
    R-H120
  • Motor Phase
    Three
  • Net weight
    5000.0
  • Product Type
    Machines
  • Prop 65
    Cancer and Reproductive Harm
  • Warranty
    1 Year
