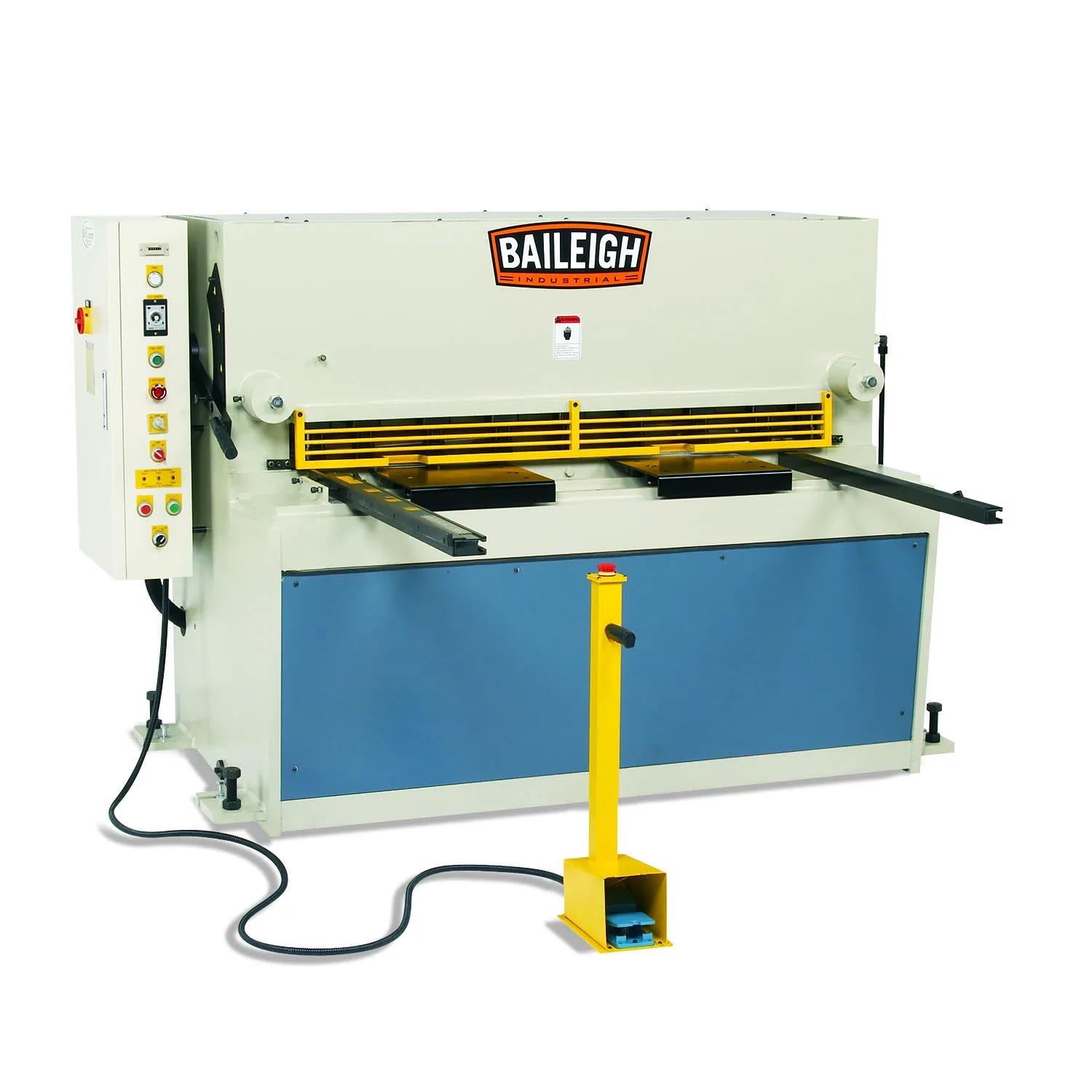

Hydraulic Metal Shear SH-5203-HD

Product image is only a representation, actual product appearance may differ slightly

  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD
  • Hydraulic Metal Shear SH-5203-HD

Hydraulic Metal Shear SH-5208-HD

SKU: 1007099

In stock

$32,079.00 $
Leasing starts at $581 with Marlin Capital Solutions.
Calculate your monthly lease price
SHARE PRINT

Questions? 1-844-477-7707

Description


This workhorse hydraulic plate shear runs at 28 strokes per minute for fast production. Its length and capacity are perfect for those 4’ x 8’ sheets commonly found at steel suppliers.


  • 52” length hydraulic cutting shear.
  • 8 gauge mild steel maximum capacity.
  • 10 hp motor runs on 220-volt 3-phase power.

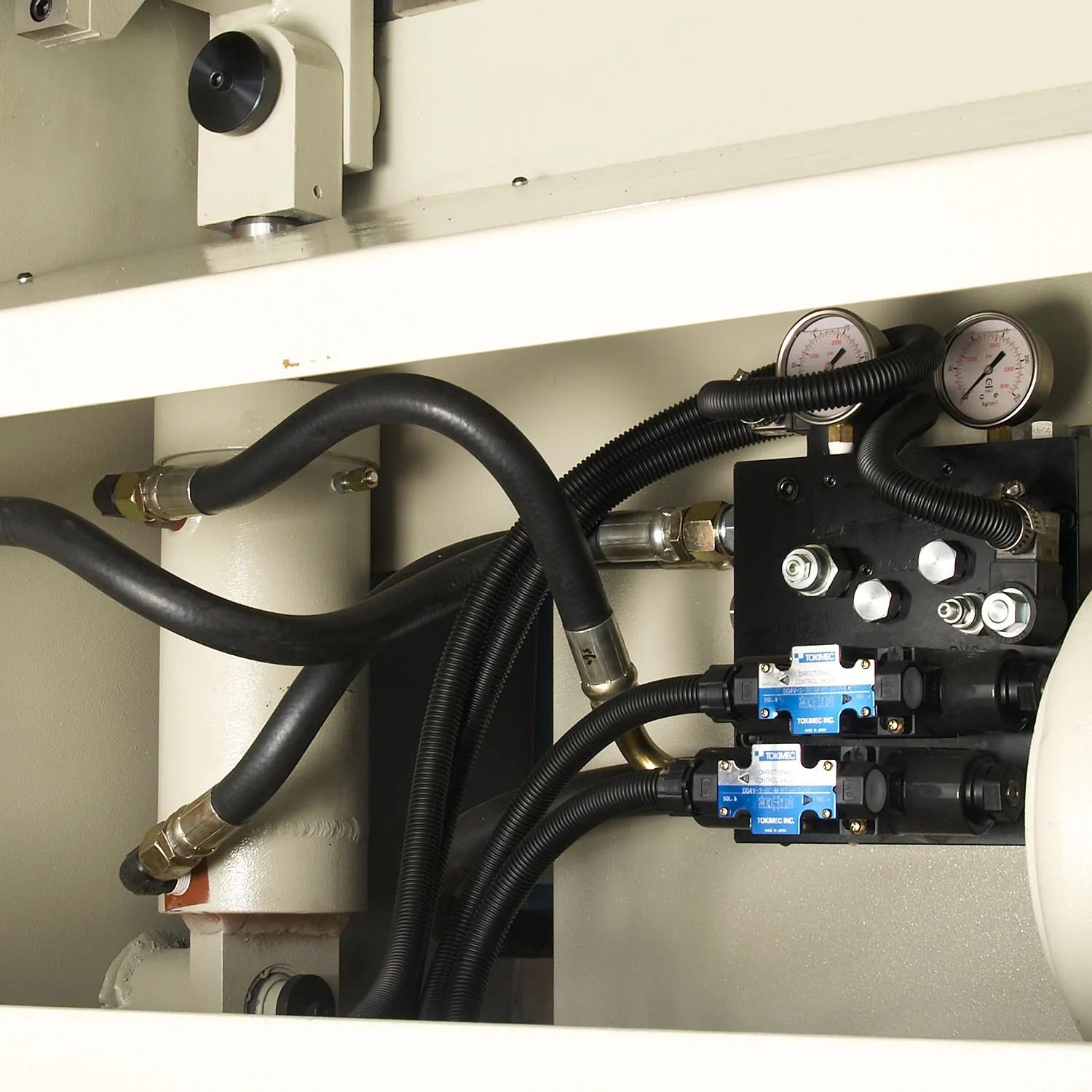

  • Industrial-grade hydraulic system is located in the front for easy fluid changes.

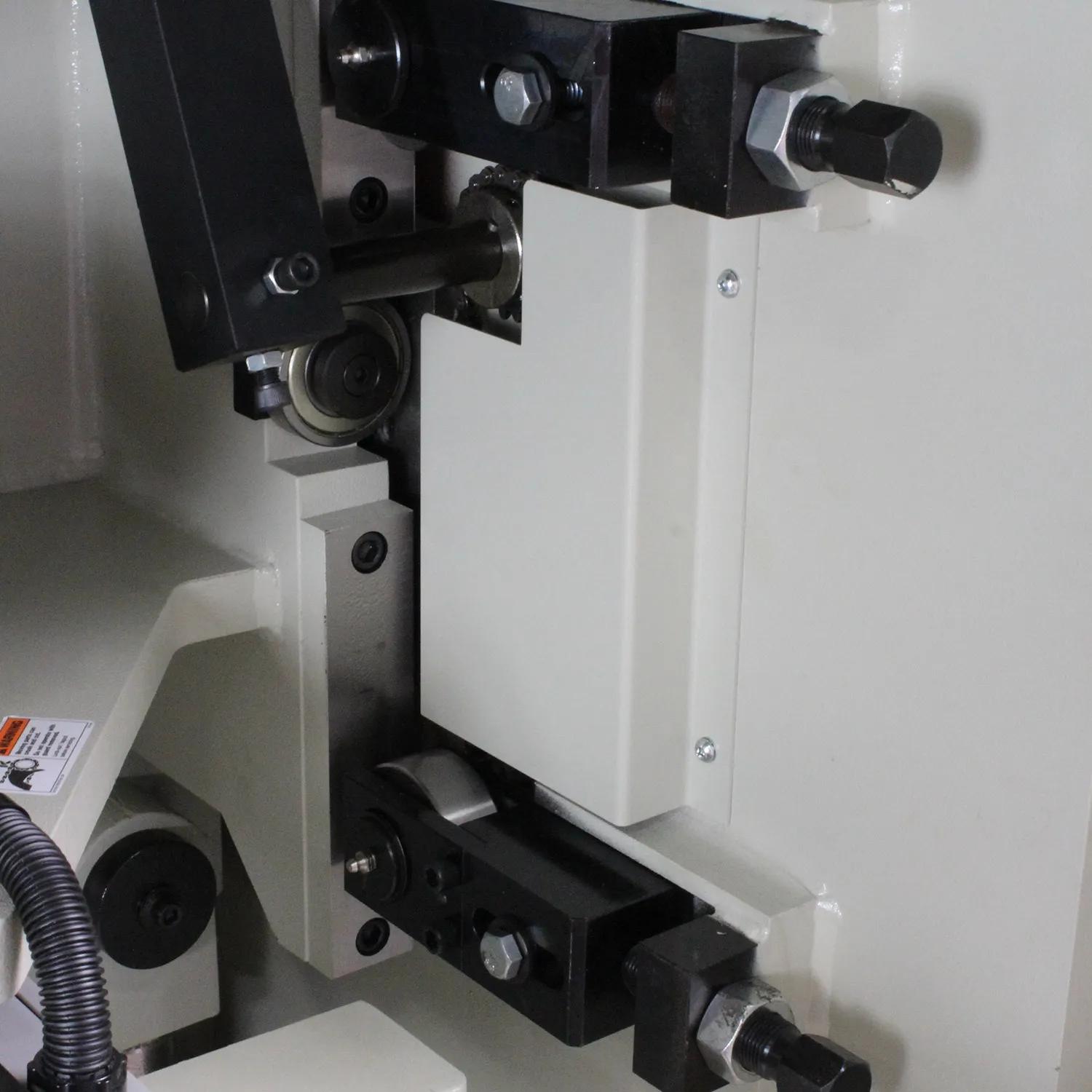

  • Shearing carriage rides on hardened ways and uses heavy-duty bearings to reduce friction.

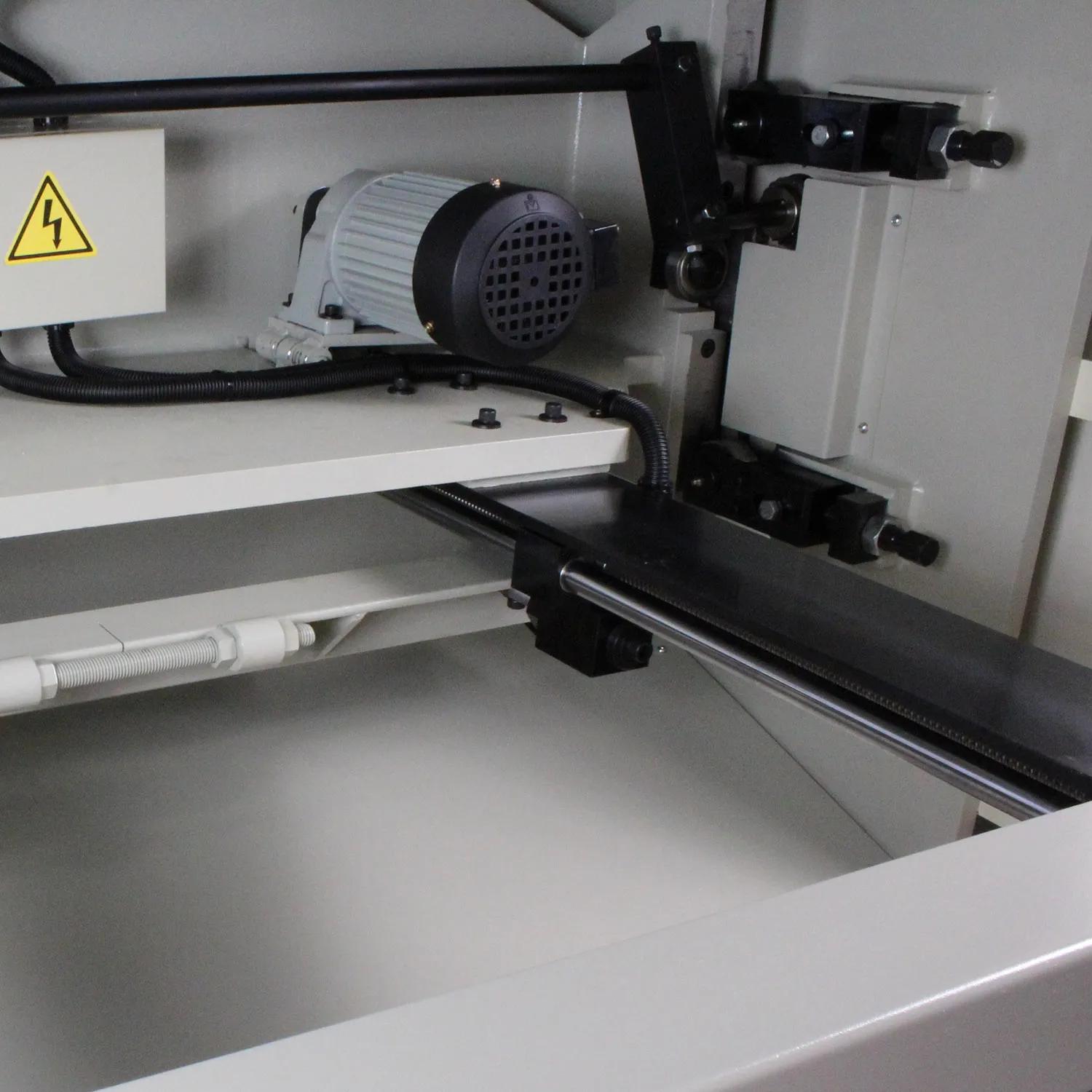

  • Manually adjustable 23.62” backgauge ensures precise repeatability.

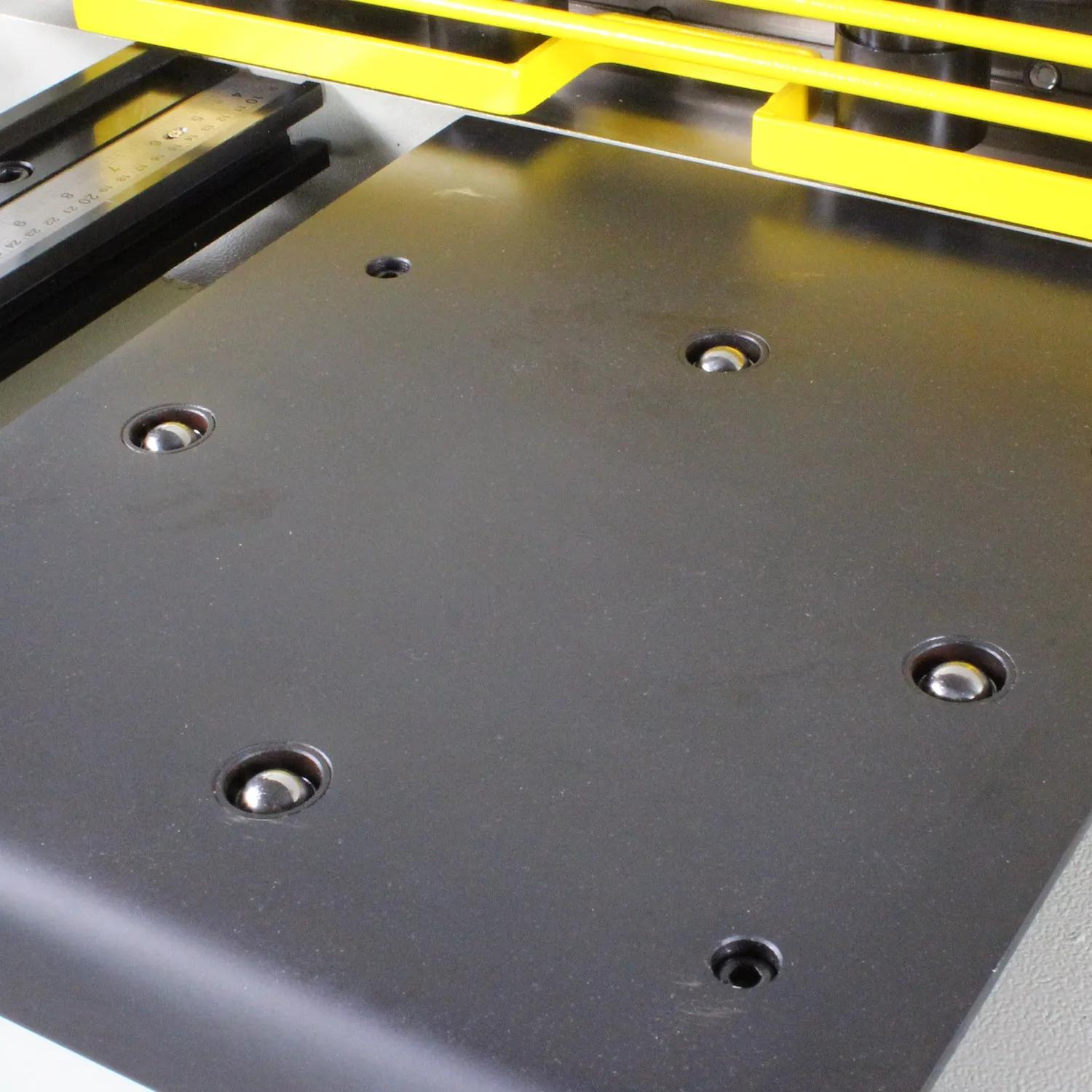

  • Heavy duty table with roller bars slides material into the machine more easily.

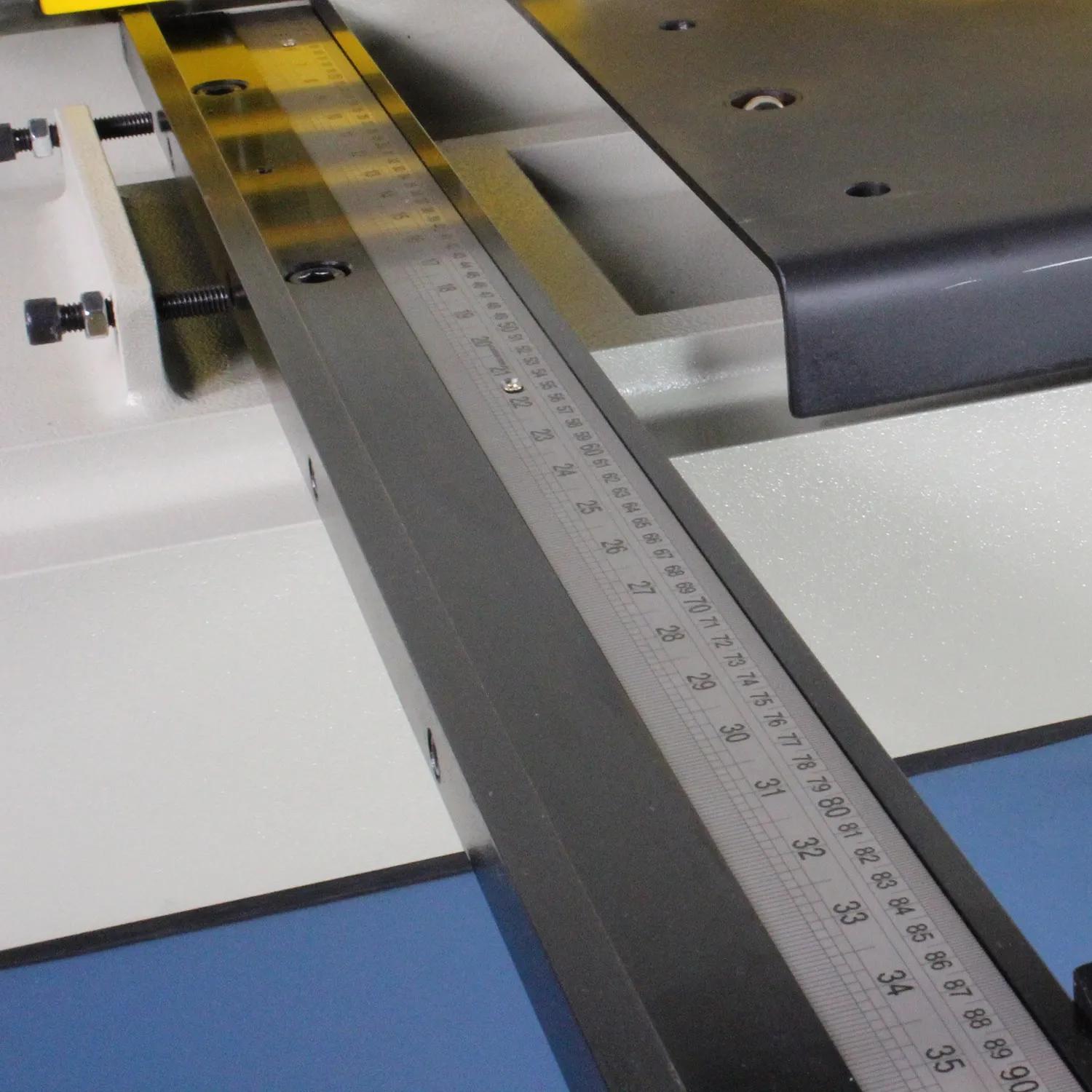

  • Side gauges keep the cut at 90° (if you so choose) without you needing to make a guiding line on the material.
  • Switch between 3 modes as needed:
    • Jog mode: Inching the blade down to the material.
    • Single cycle mode: One cut for one pedal push.
    • Automatic cycling mode: Continuously cutting for production runs.

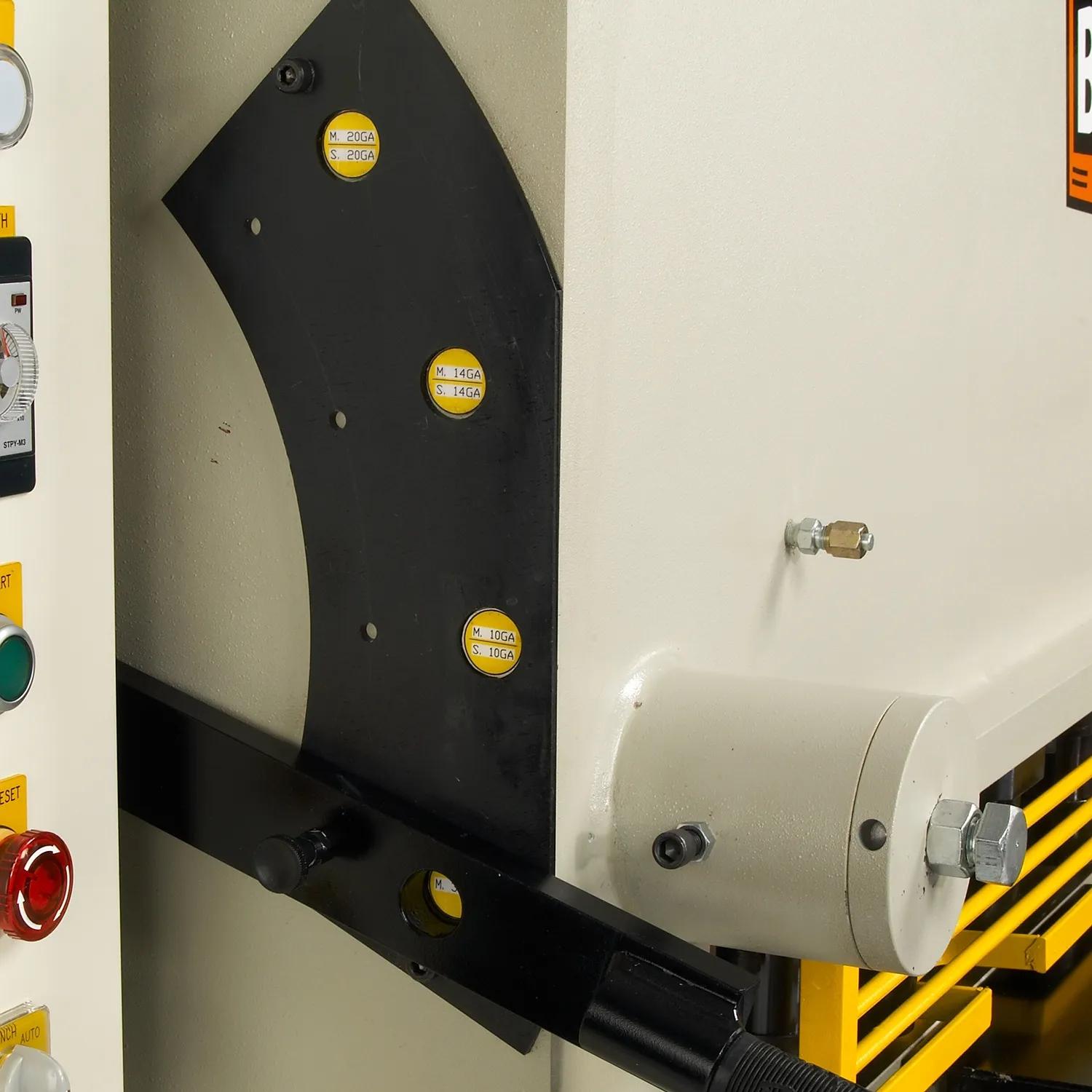

  • Adjustable rake angle dial makes it easy to fit your material thickness to minimize burr and put less strain on hydraulics.
  • Convenient blade gap adjustment lets you eliminate folding and twisting.
  • Comes standard with high carbon chromium blades.
  • 2-sided upper blades and 4-sided lower blades can be flipped and resharpened as needed, saving money.

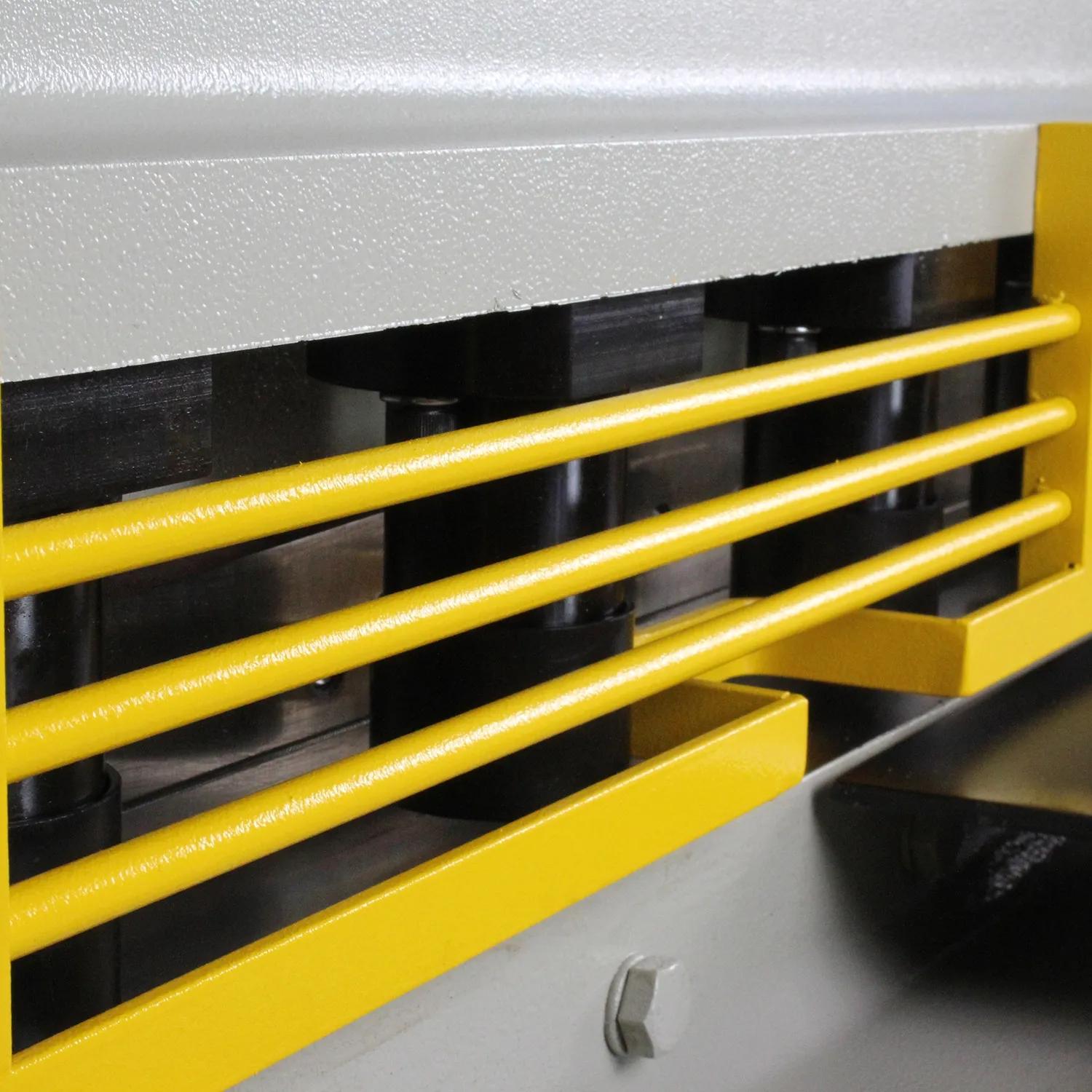

  • Hydraulic hold-downs clamp the sheet solidly to the table, eliminating material lifting and improving blade life.
  • Rigid, fully welded steel plate construction helps prevent flex and gives you many years of accuracy.

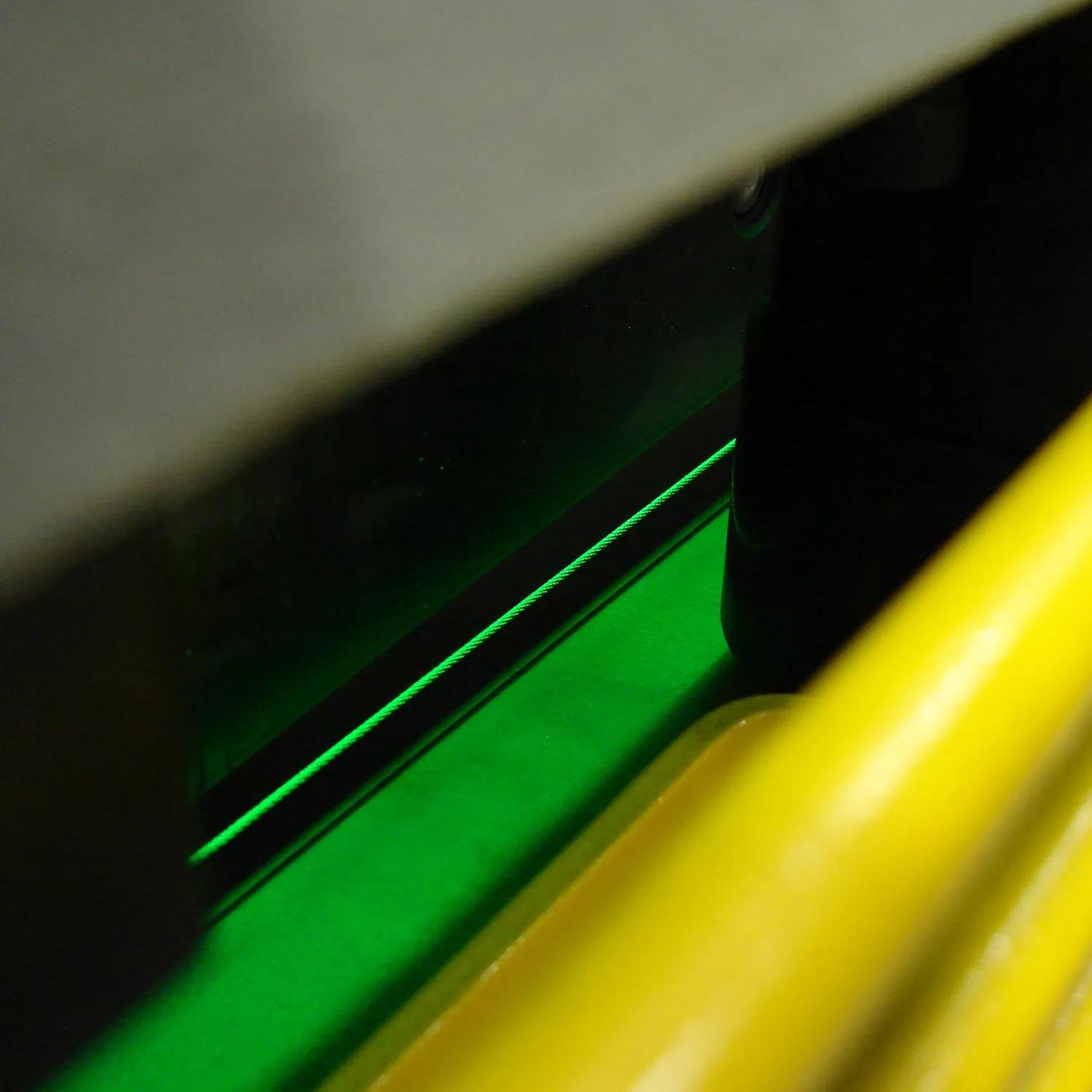

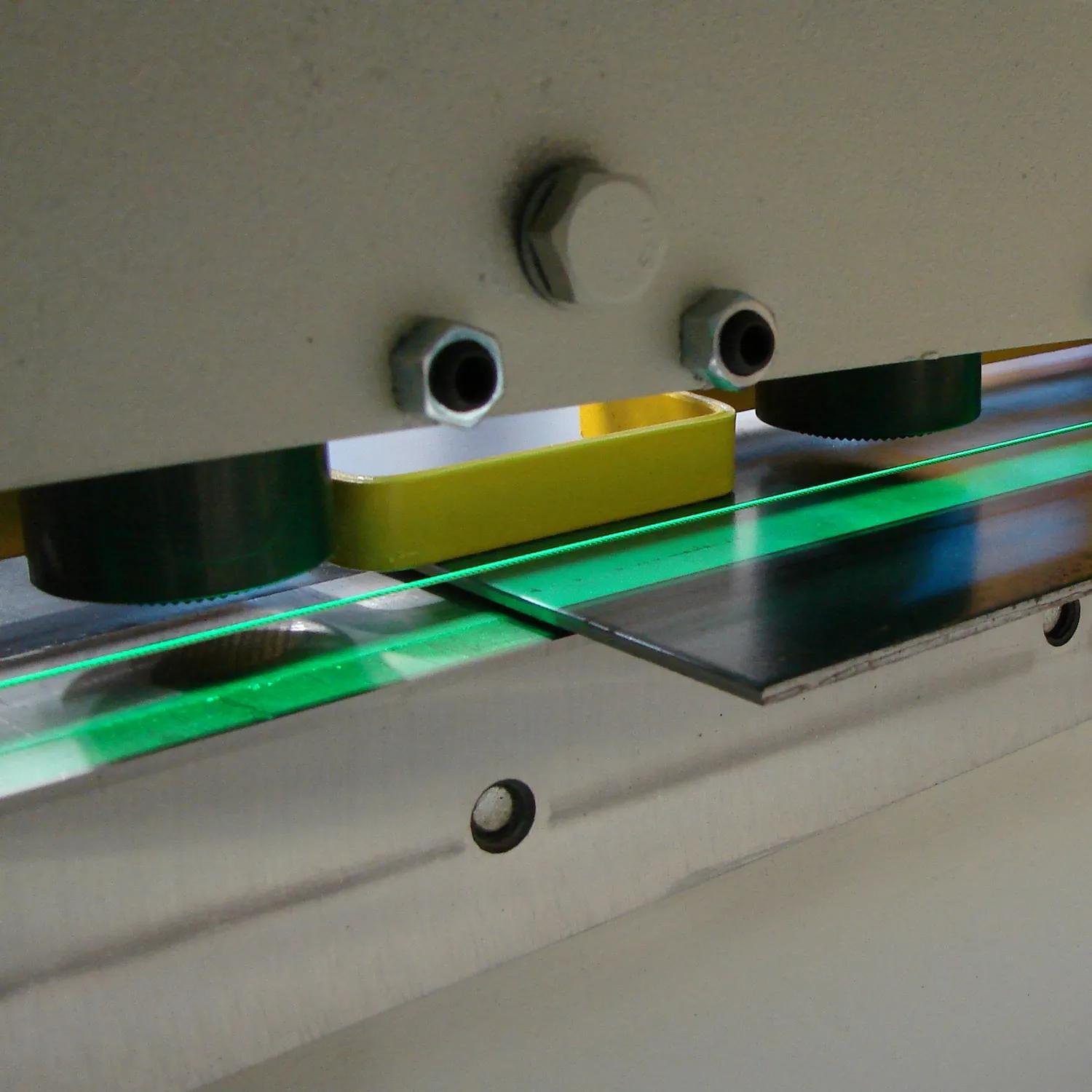

  • Shadow line creates a reference line on the material so you know exactly where the cut will be.
  • The SH-5208-HD hydraulic plate shear is covered by a 1-year parts warranty.
  • We stock replacement parts, including blades, in house for fast shipping.
  • Includes lifetime technical support by phone from a team of reps with hands-on metalworking experience.

Also available in a 10-gauge model of the same length and a 80”-long, 8-gauge model.


You can add an optional sheet support system to this model. Please call us for details.


Questions? Not sure which is the best sheet metal shear for you? Call 1-920-684-4990 and talk to a knowledgeable Baileigh rep.

Specifications

Item Number SH-5208-HD
Blade Rake Angle .5 to 2.0 degrees
Back Gauge Length 23.62"
Shear Length 52"
Motor 10 hp
Thickness (SS) 8 ga. (12 ga.)
Strokes Per Minute 30 – 42
Front Gauge Length 39.37"
Blade Angle 1/2° – 2° Adjustable
Blade Gap Adjustment Manual, Lever Acuated
Power 220V / 3-phase
Shipping Weight 4400lbs
Minimum Material Thickness 24ga
Shipping Dimensions (Inches) 91x50x66

* specifications subject to change without notice.
