Product Details

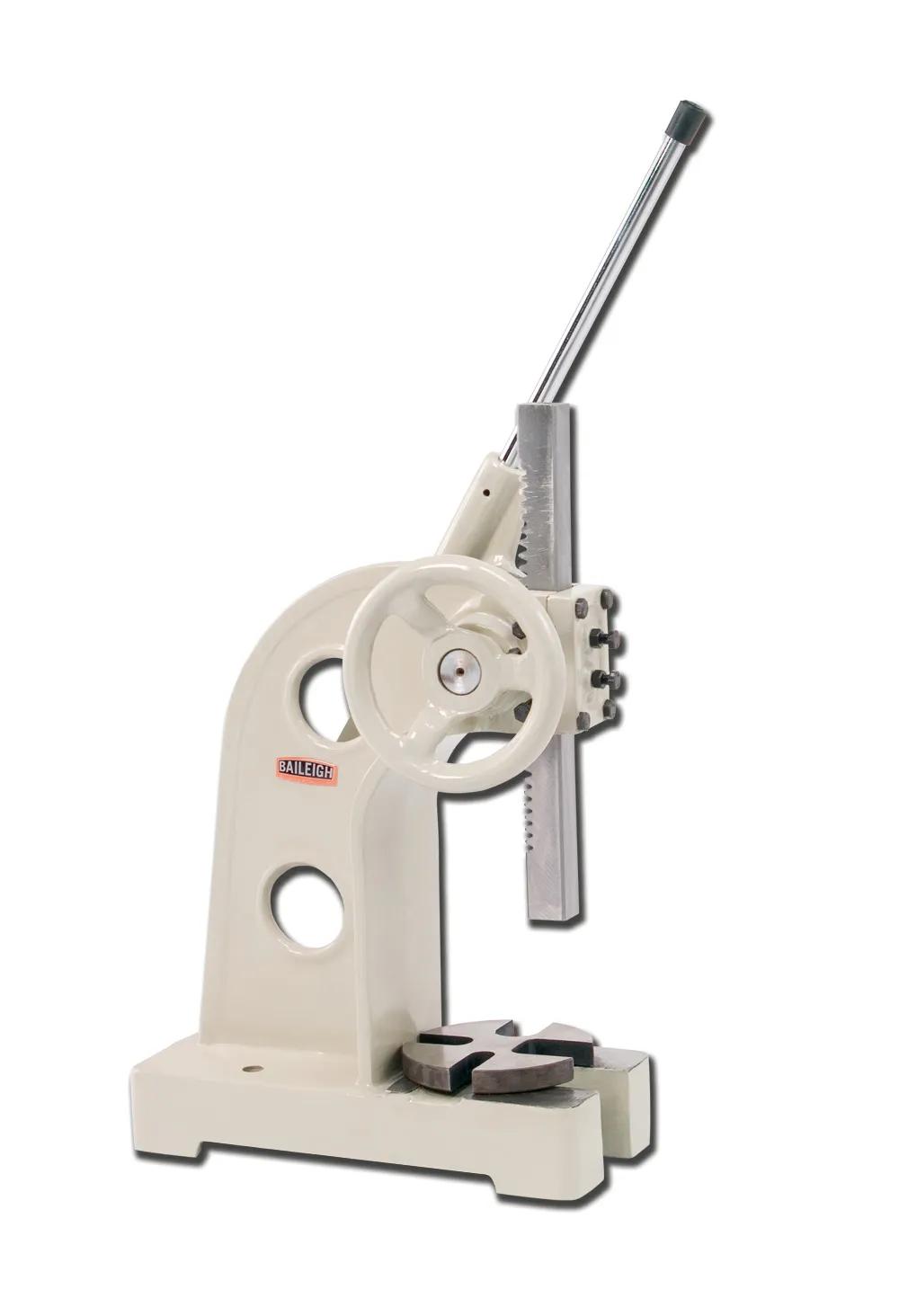

Industrial Construction: The AP-3R Horizontal Arbor Press is built with a rigid cast-iron frame engineered to deliver long-lasting performance and resist flex under load. Designed for workshop and fabrication use, it stands up to repetitive pressing tasks with consistent precision.
Manual Ratchet Operation: This manual arbor press uses ratchet leverage and a rapid-transfer flywheel to provide fine control and quick adjustment of the ram position. The solid, case-hardened 1.5″ square ram executes smooth, accurate presses for assembly, riveting, and broaching operations.
Capacity & Reach: With a 3 ton rated capacity, 5″ throat opening, and 11″ maximum material height, the AP-3R handles a wide range of manual press tasks. The machined 4-position die plate lets operators secure workpieces precisely for repeatable results.
Order Yours Today
Call 920-684-4990 to speak with a Baileigh specialist for pricing, availability, and to place your order today.
Features
- Manual capacity: Manual arbor press with 3 ton rated force.
- Throat depth: 5″ throat opening for workpiece access.
- Max material height: 11″ maximum height capacity.

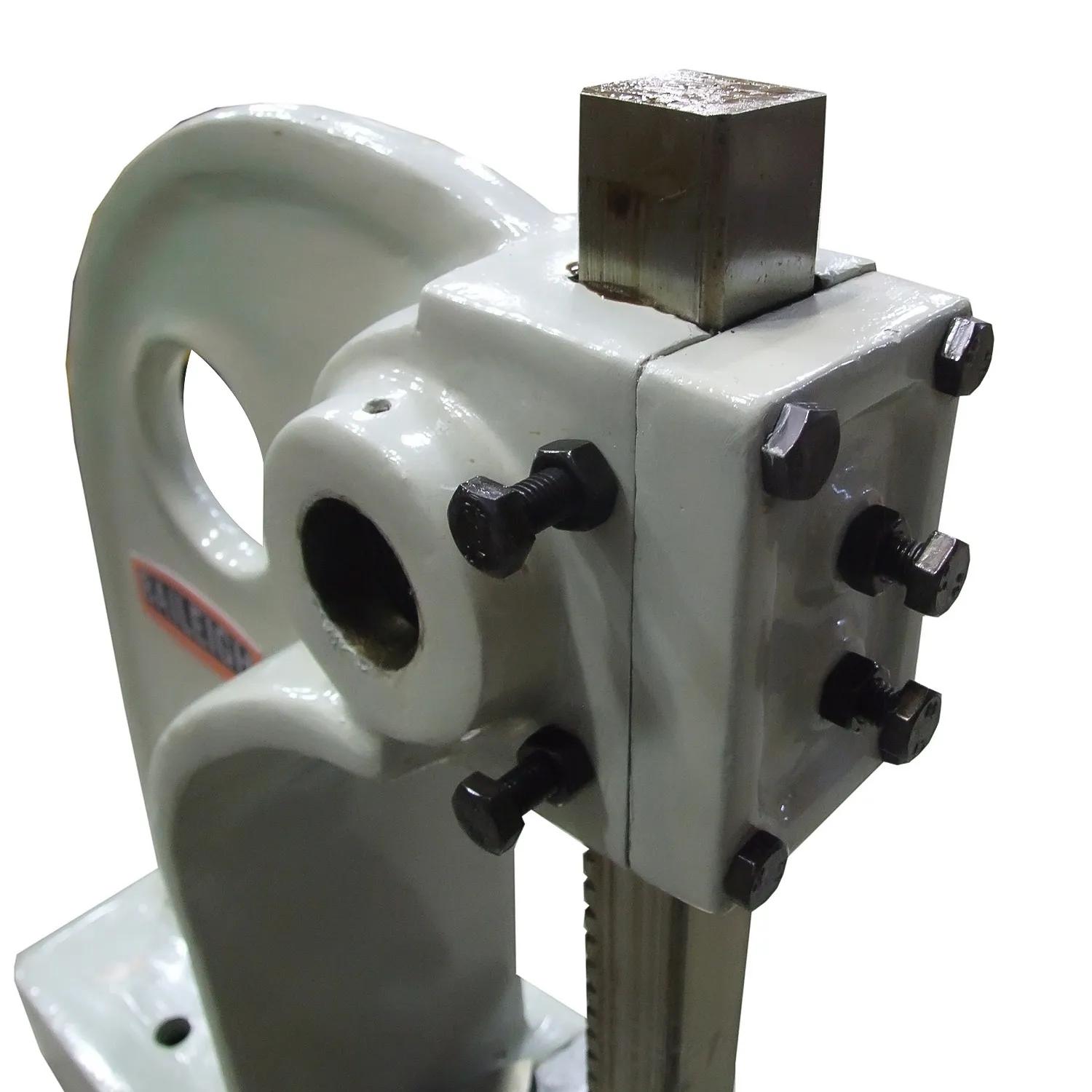

- Ram size: Solid, case-hardened 1.5″ square ram for precision pressing.
- Ratchet leverage: Ratchet lever system provides controlled pressure application.

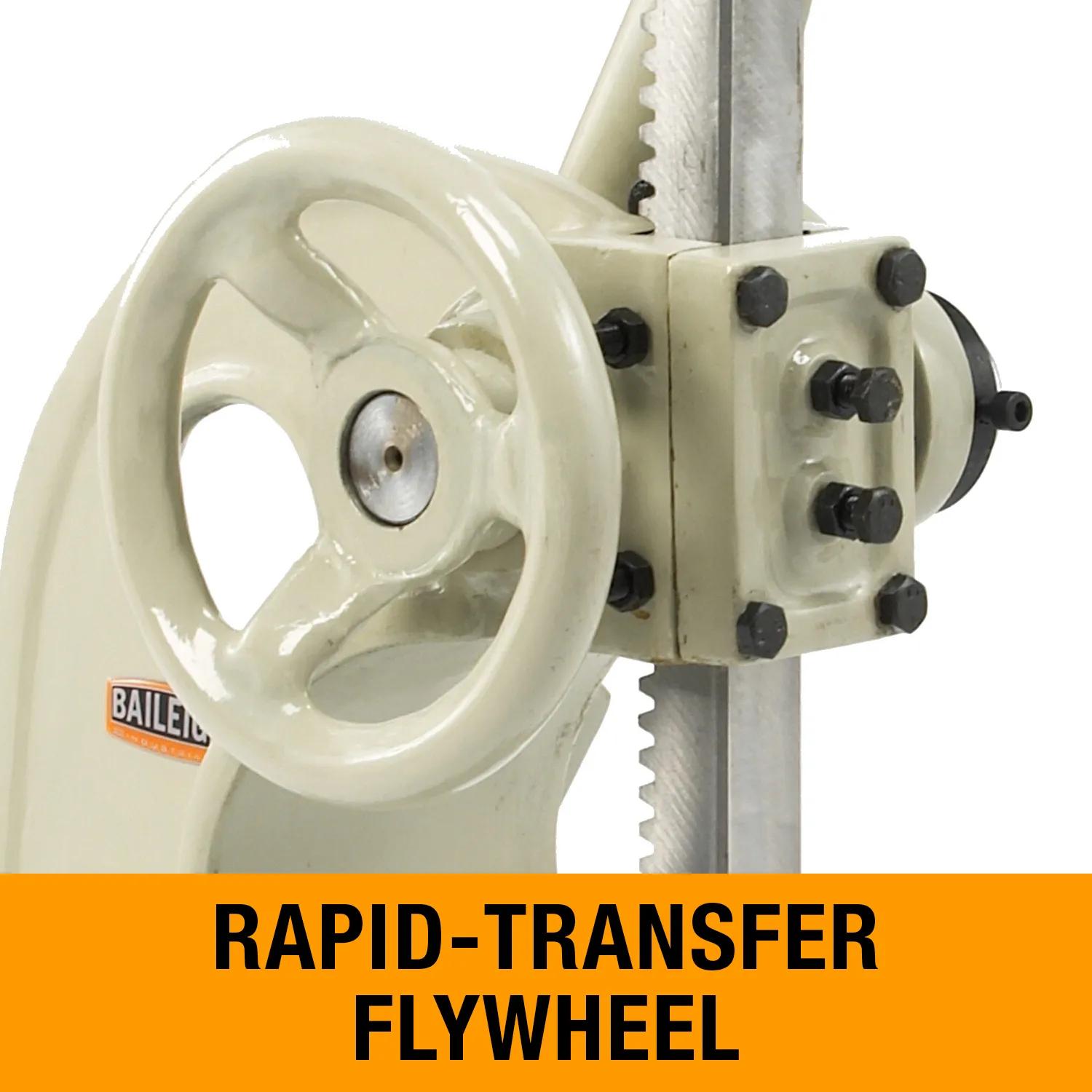

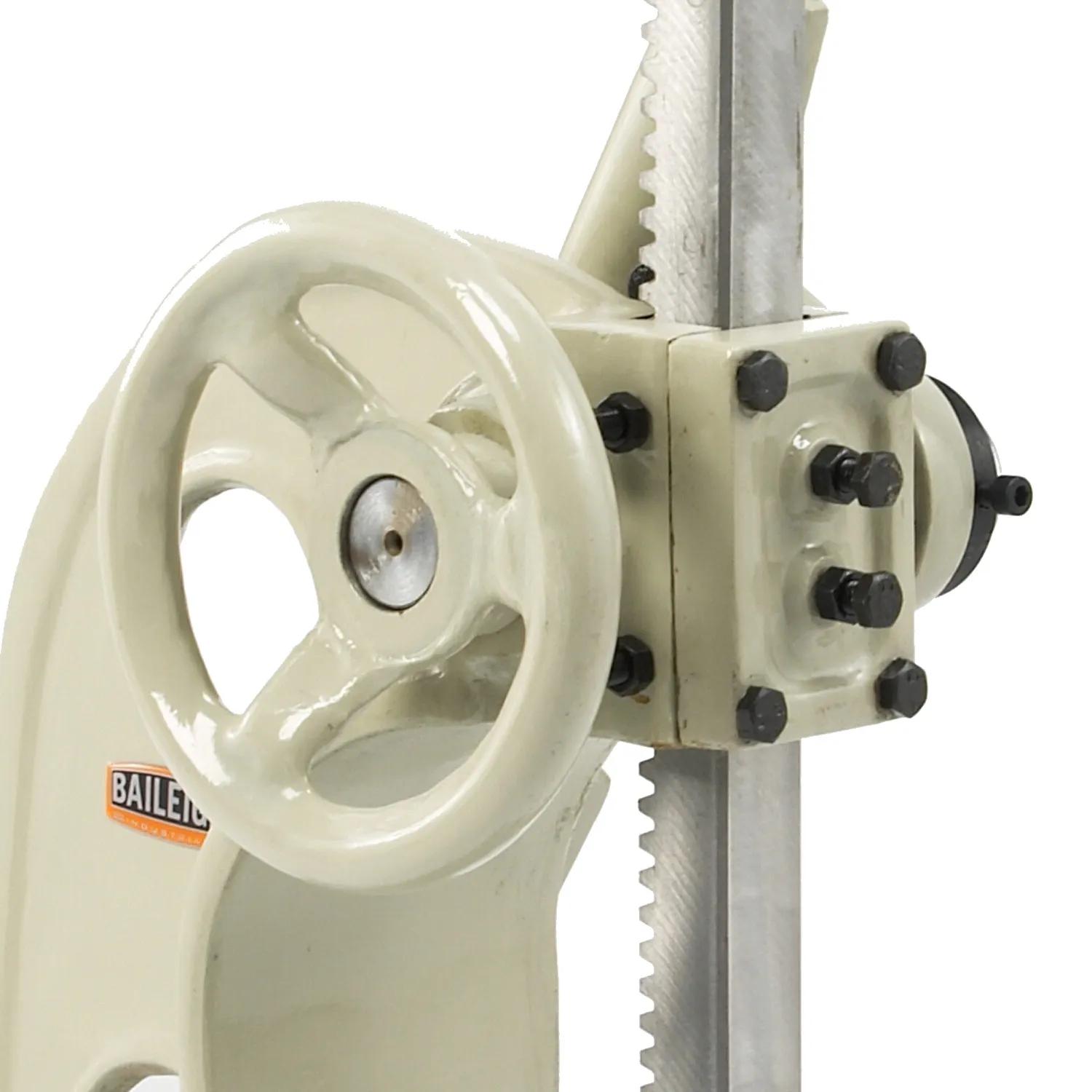

- Flywheel: Rapid-transfer flywheel for quick ram movement and fine adjustments.

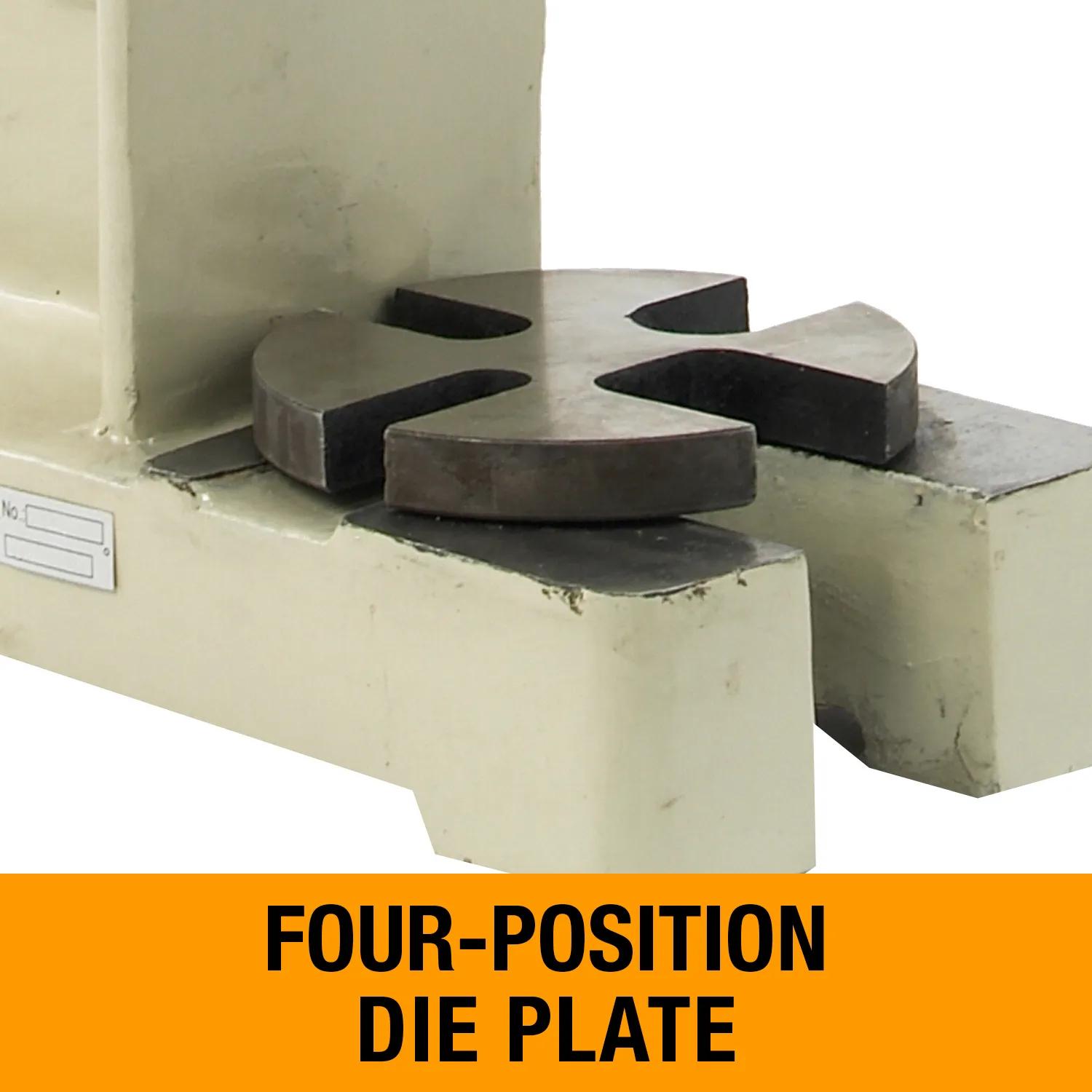

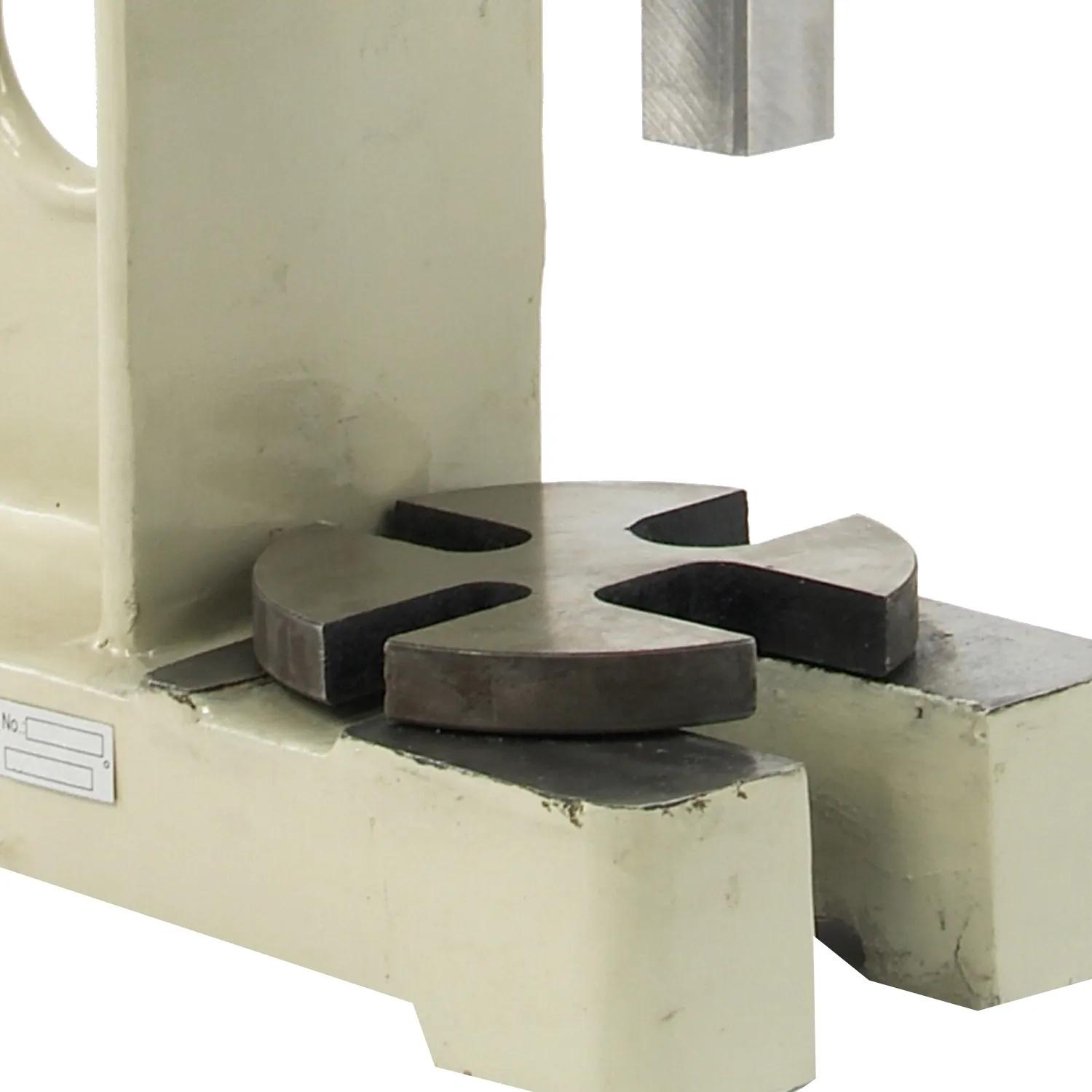

- Die plate: Machined 4-position bottom plate for securing workpieces.
- Slide adjustment: Slideway permits adjustment of ram tension and gap.

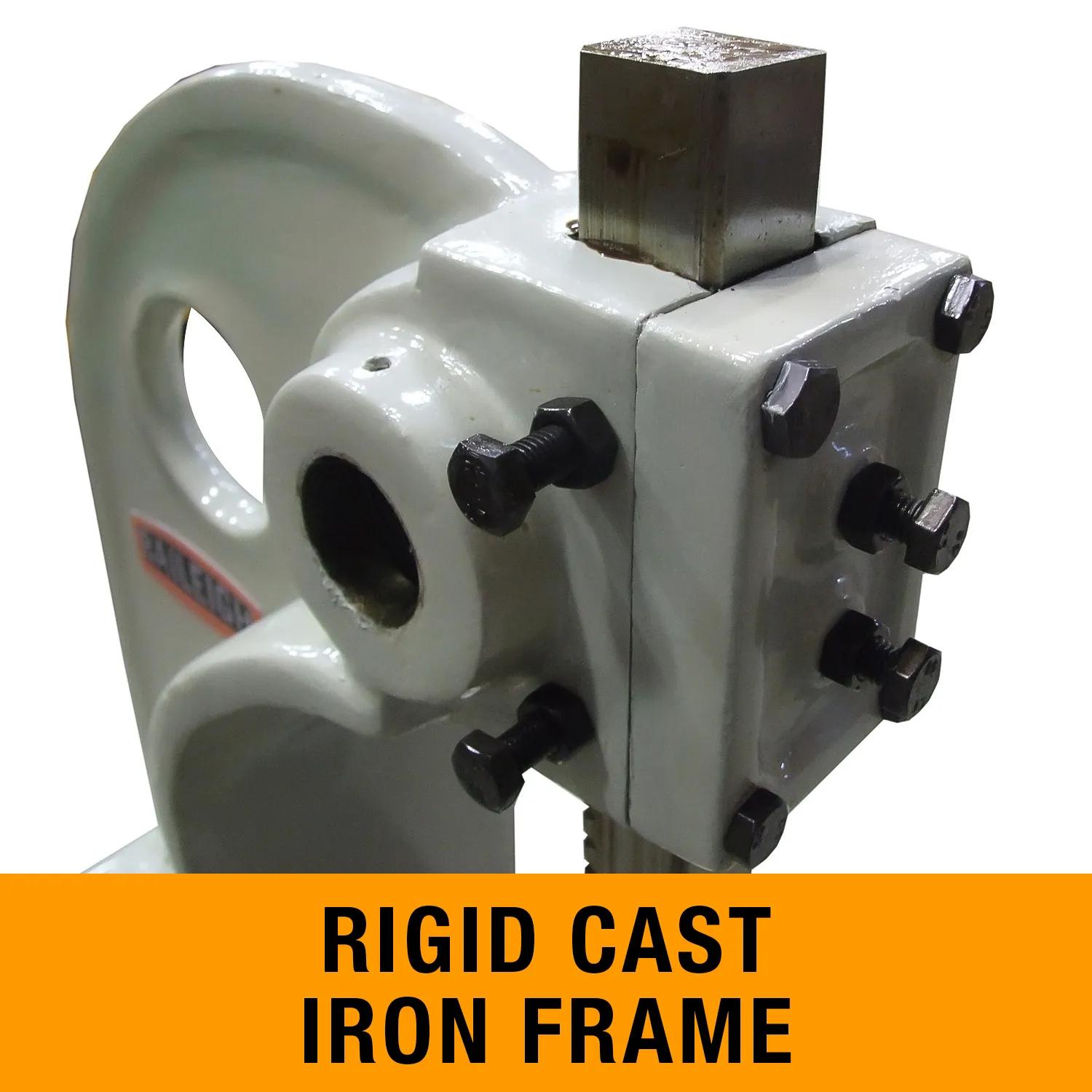

- Frame construction: Rigid cast-iron frame prevents flex under load.
- Warranty & support: Backed by Baileigh’s 1-year parts warranty and lifetime technical support.
Specifications
- SKUBA9-1000260
- Gross Weight170.0
- Input PowerManual
- Model NumberAP-3R
- Net weight170.0
- Product TypeAccessories
- Prop 65Cancer and Reproductive Harm
- Stroke Length11 in.
- Warranty1 Year
